1000 L Stainless steel cone bottom with air floating lid and manhole

Product code: SIP0102
Ready to order product
Shipping within 40 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 1,230.00
Add to cart
Description

1000 L Stainless steel cone bottom with air floating lid and manhole

The 1000 litre stainless steel tank with conical bottom is an interesting item dedicated to the storage and fermentation of wine products, as well as beer and other food liquids. Stainless steel is a fundamental element for conservation, thanks to its properties of inalterability with a very high temperature range of use, with excellent resistance to acids and chlorides such as salt. The reinforced bottom is in turn equipped with a 10° slope and thanks to the 1" end valve it offers both partial and total discharge possibilities. Supported by 3 stainless steel feet, it is completed by a stainless steel air float assisted by the air chamber made of transparent food-grade plastic. The interior finish is mirror polished to ensure perfect cleanliness, while the exterior has satin-finished welds for impeccable aesthetics. At the end of the structure there is a 300mm round door for easy emptying of the marc still stored.

Characteristics:

  • Material: AISI 304 stainless steel
  • Capacity: 1000 L
  • Internal finishes: mirror polished
  • External finishes: flamed, with satin welds
  • Conical bottom 10° with reinforcements
  • Total drain with valve 1" x ENO 30 (3)
  • Partial drain with stainless steel valve and plastic elbow 1" x ENO 30 (1)
  • 3 stainless steel feet
  • Stainless steel air float complete with transparent food grade plastic air chamber (4)
  • Double-acting plastic vent valve
  • Stainless steel wine taster (2)

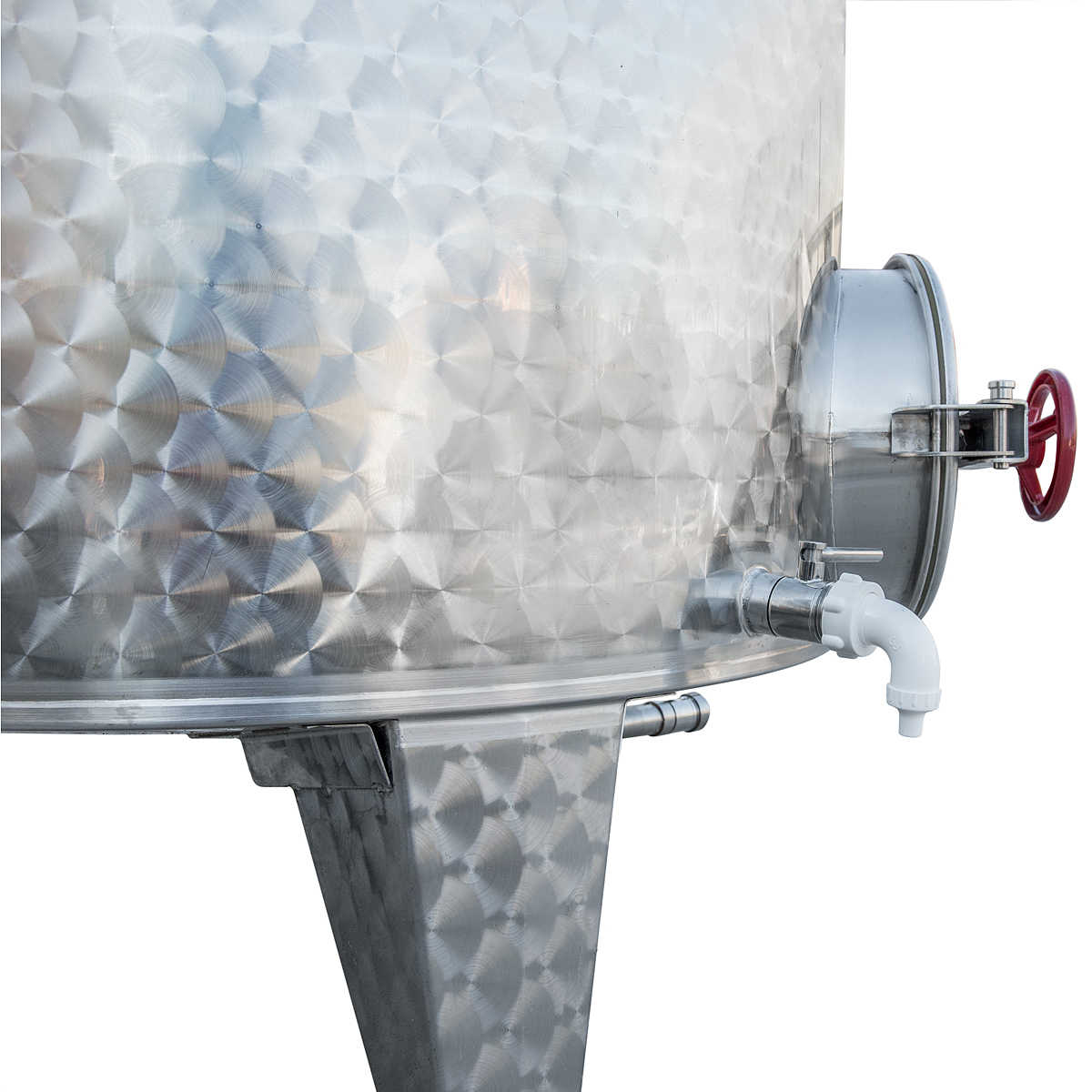

  • Round 300 mm door at the bottom for easy emptying of the pomace
  • Level indicator with stainless steel protection
  • Appliance conforms to CE safety standards

Dimensions:

  • Diameter: 930 mm. (D1)
  • Screw height: 1500 mm. (H3)
  • Foot height: 400 mm. (H2)
  • Total height with feet and sifter: 1900 mm. (H1)
  • Manhole ø: 300 mm. (D2)

Thickness:

  • Walls: 1 mm
  • Bottom: 1,5 mm
