ø70 ratchet wine press

ø70 Ratchet wine press

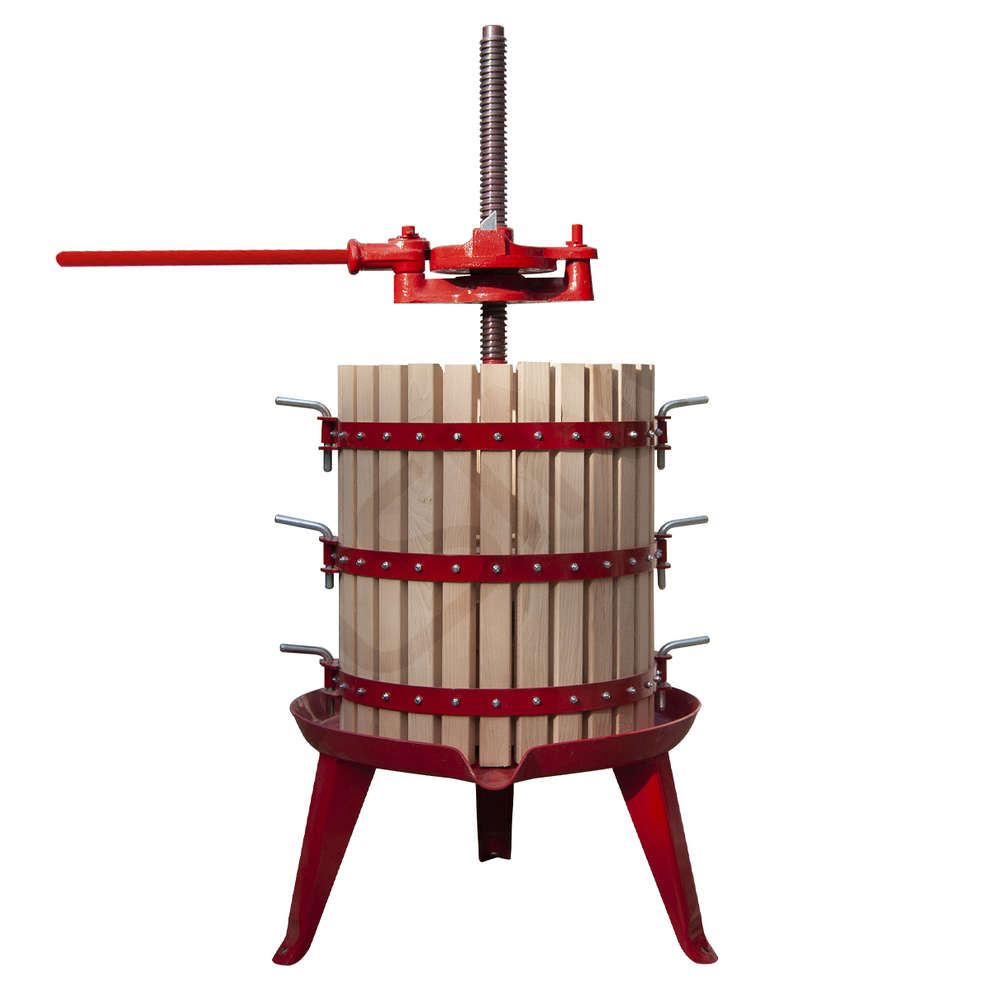

The 70 cm lever press is a tool of exceptional quality, fundamental in wine production, capable of efficiently extracting must from marc thanks to a powerful lever. The 70 cm lever press for sale on Polsinelli is made entirely in Italy with the aim of providing small producers and farms with a product of the highest standard. It consists of a cage with wooden staves with a diameter of 70 cm. The cage is supported by a strong metal skeleton, adequate to withstand even high pressures. The central screw of the 70 lever press is made of drawn steel to ensure its longevity. The ratchet can advance at two different speeds in order to precisely control the applied pressure. The 70 cm lever press is sold complete with crescents and pieces, which are essential tools for evenly distributing the ratchet action over the entire surface.

Characteristics:

• Manual two-speed ratchet movement operated by lever
• Cast iron ratchet
• Cage made of evaporated beech wood slats and removable pins
• Drawn steel screw that guarantees a long life over time
• Reinforced steel must gathering basin with brackets
• Steel support tripod

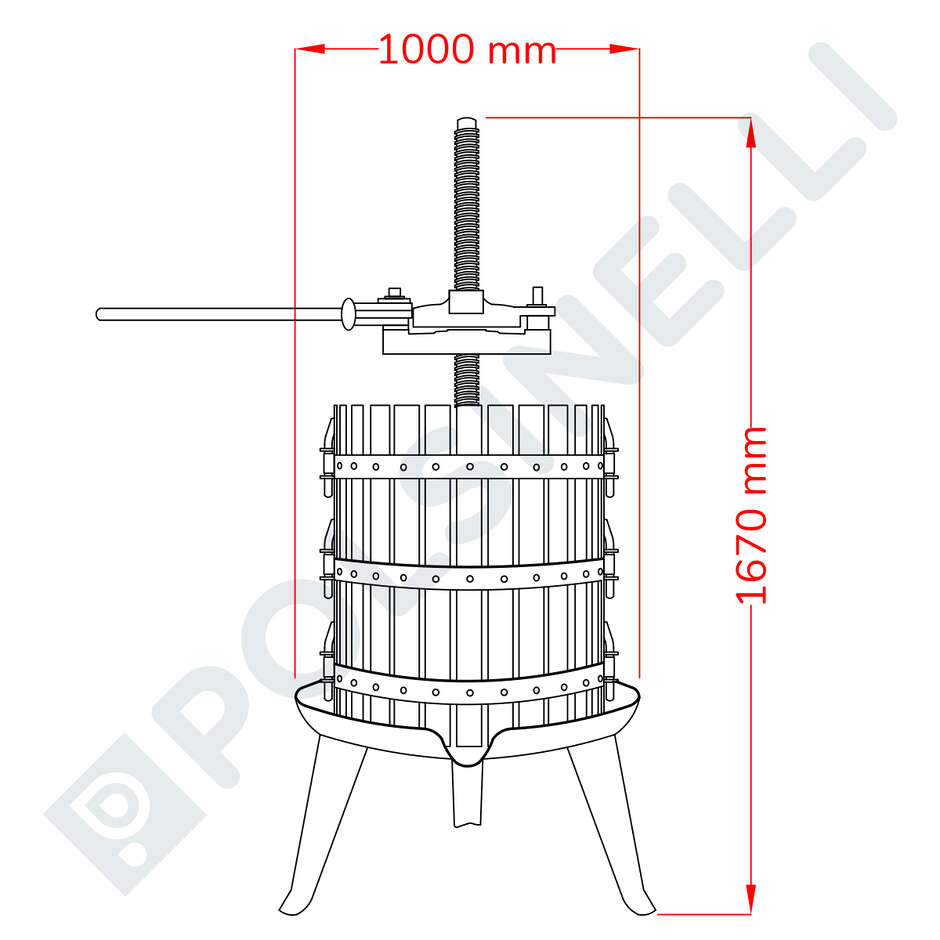

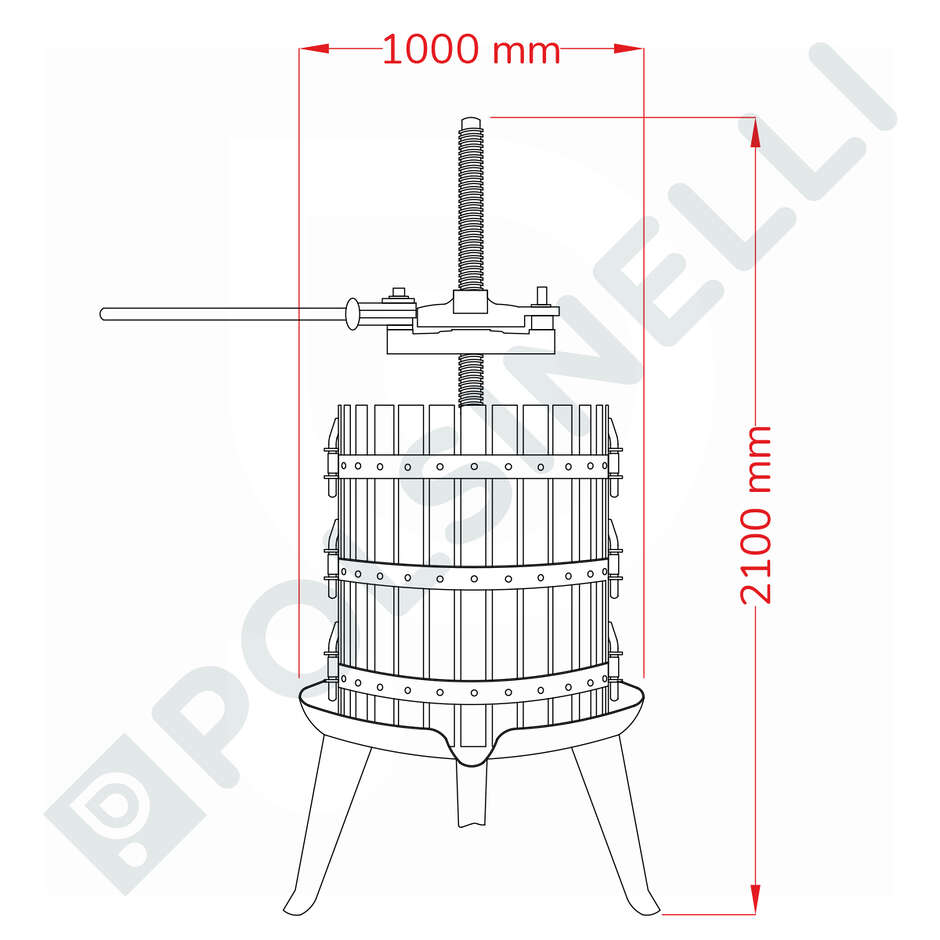

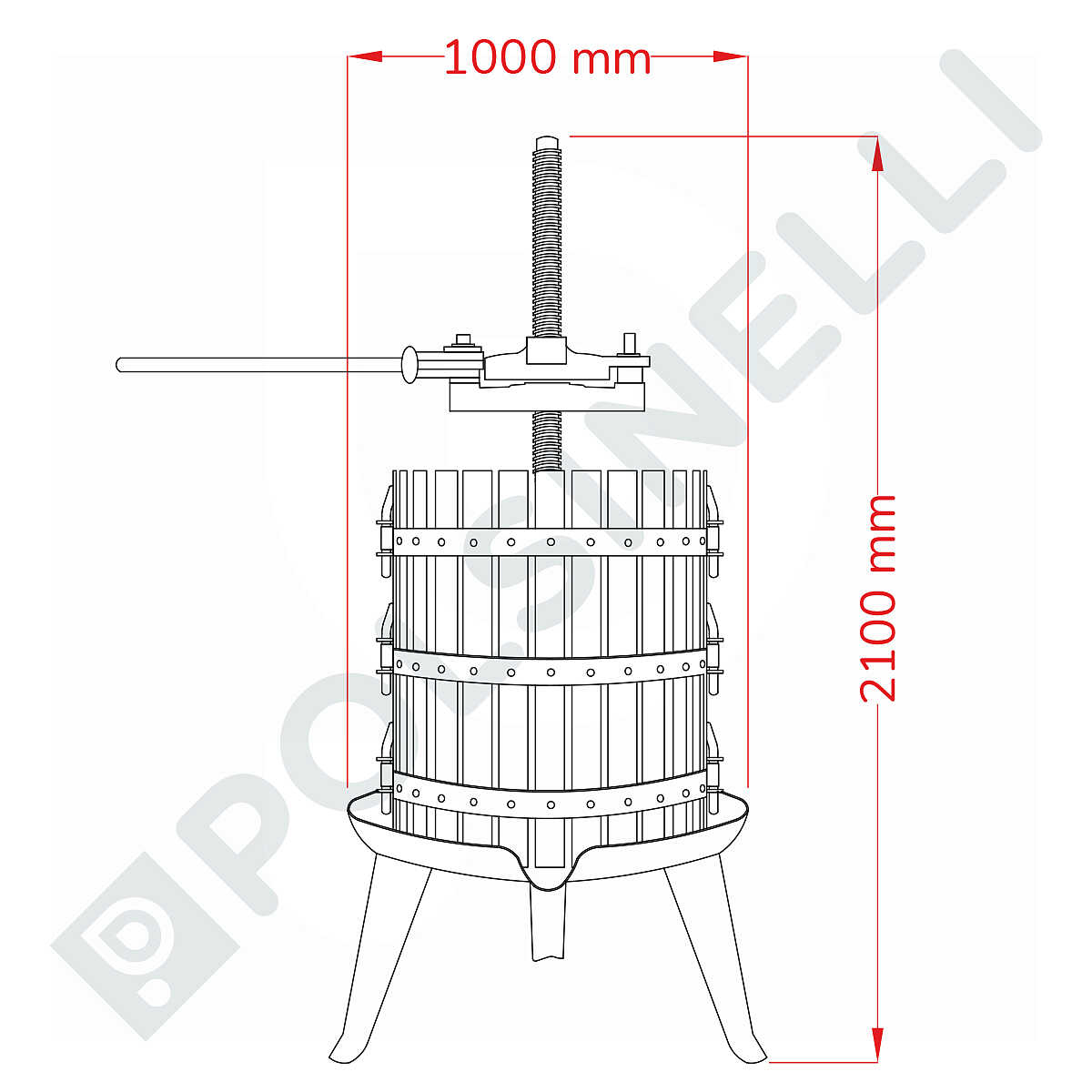

• Internal diameter of cage: 700 mm
• External diameter of cage: 770 mm
• Cage height: 855 mm
• Weight: 325 kg
• Load capacity: 1000 Kg of grapes
• Complete with chunks and crescents

Double-speed ratchet (only for models from #40 and up)

The 40 diameter presses and up, have a double speed crown. There are 4 slots on the ratchet where to insert the metal pawls, two on one side and two on the other. Place the metal pawls in the holes as near as possible to the screw in order to obtain a quicker pressing. It is however, necessary to use the outer notches when lever requires excessive force.

HOW IT WORKS:

• Before using the press it is necessary to remove with a brush and/or air blast any dust particles which are present in the inner parts (which could come into contact with the grapes) furthermore use a damp cloth to clean: the cage, the semi-circular wooden press plates and the pawls.

• Remove all interior wood pieces and make sure using the plugs supplied closes the cage.

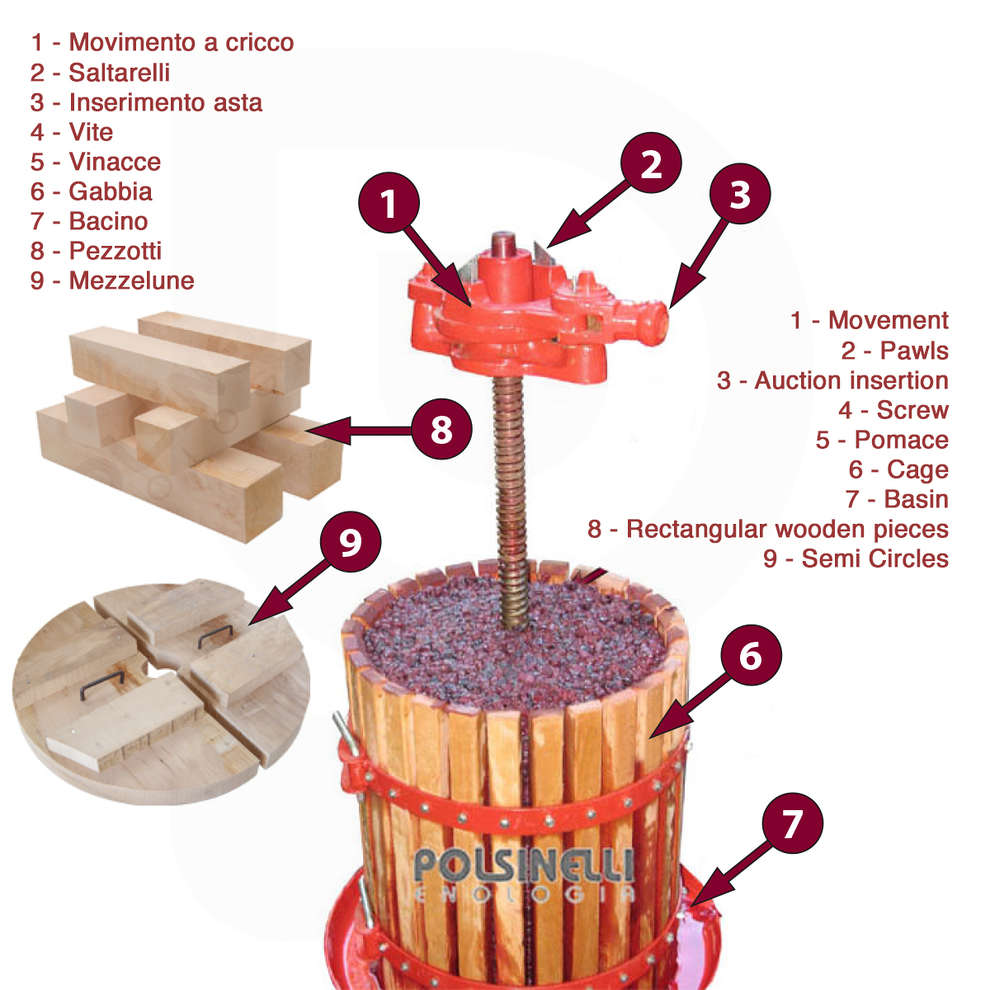

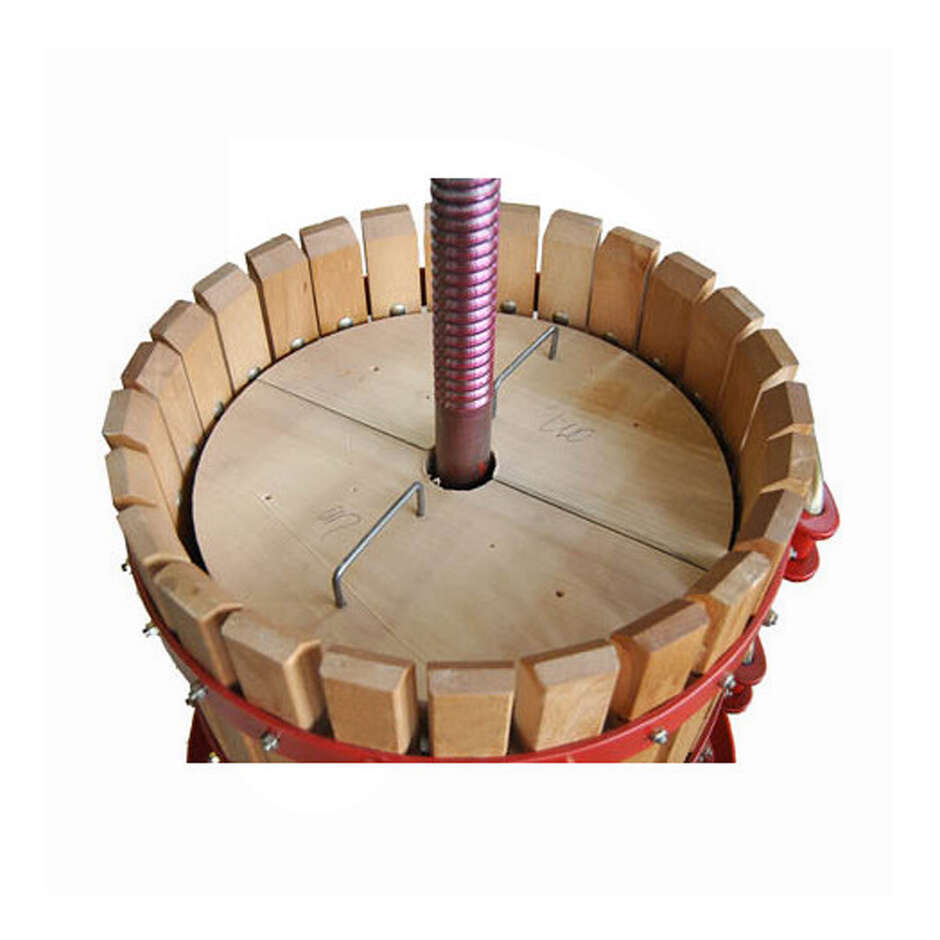

• Lift the jack upwards along the threaded screw (turning it counterclockwise), fill in the cage with the grape pulp (as in the photo) and insert the two semi-circular wooden press plates (two sturdy half-moons made of evaporated beech wood) once joined they will coincide with the diameter of the cage and there will be a gap in the center for the main screw. Place the wooden blocks on top of the half-moons, they should rest perpendicular to the direction in which the half-moons have been set, as seen in the photo.

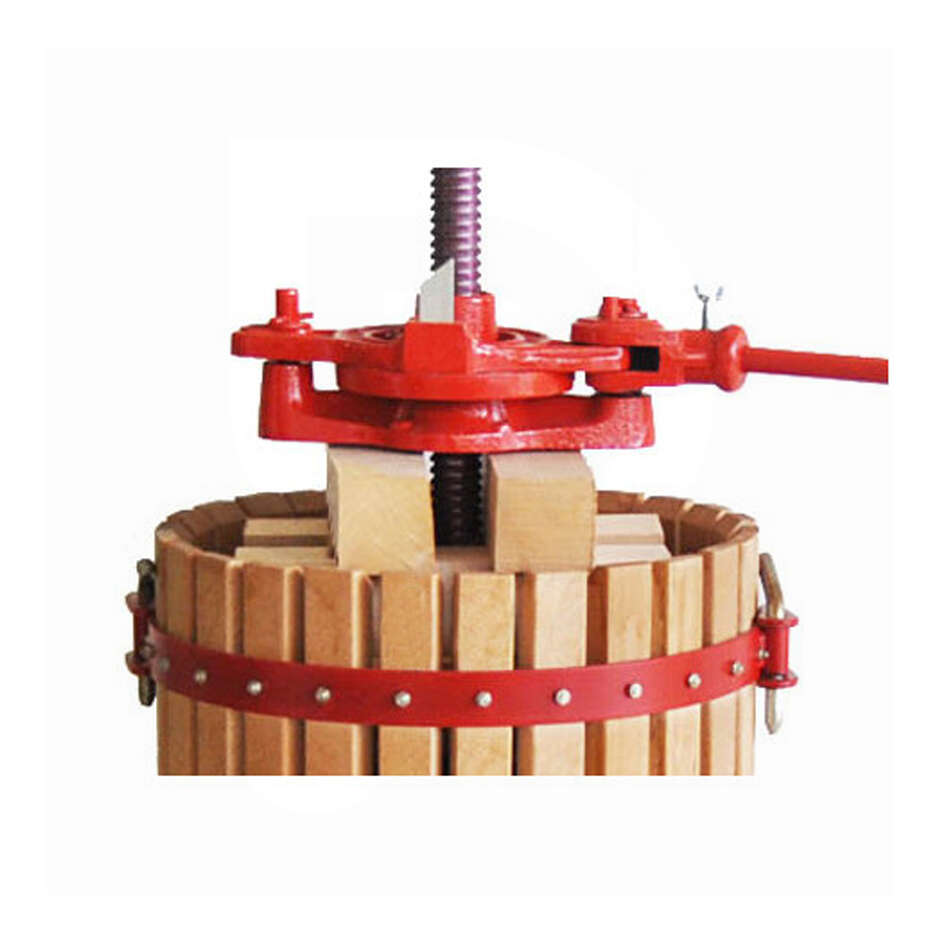

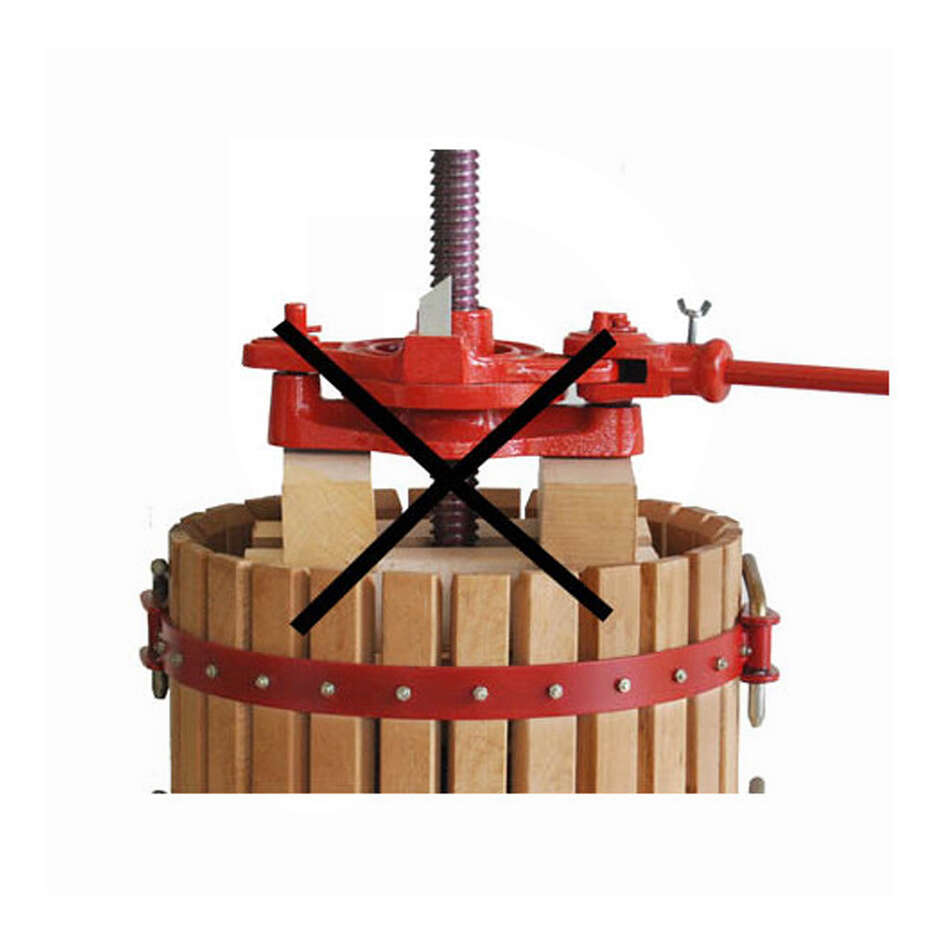

• Lower the jack, turning it clockwise until it rests on the wooden blocks (the wooden top blocks should be placed near the nut screw, as in the photo).
• Insert the metal pawls, making sure that the tips fit into the round holes of the crown (the crown is found in the ratchet).
• Insert the handle into the hole on the ratchet and secure it with the throttle screw.

• Stand in front of the ratchet and grab it with both hands, set it in action by moving it forward and backward. This movement will cause the shifting in both sides of the upper part of the ratchet, (see photo).
• The action exerted on the ratchet, allows the metal pawls to advance from the holes in which they have been inserted to the ones immediately following. This determines the downward movement of the rotation of the jack, thus pressing on the wood blocks, which lie on the grape pulp.
• When the jack is lowered to the top of the edges of the cage, it is necessary to stop the action, in order to refill the cage with grapes.
• Once you have finished the last pressing, bring the ratchet up (turning it counterclockwise), remove all wood blocks, remove the cage, pull out the pomace and clean thoroughly.
