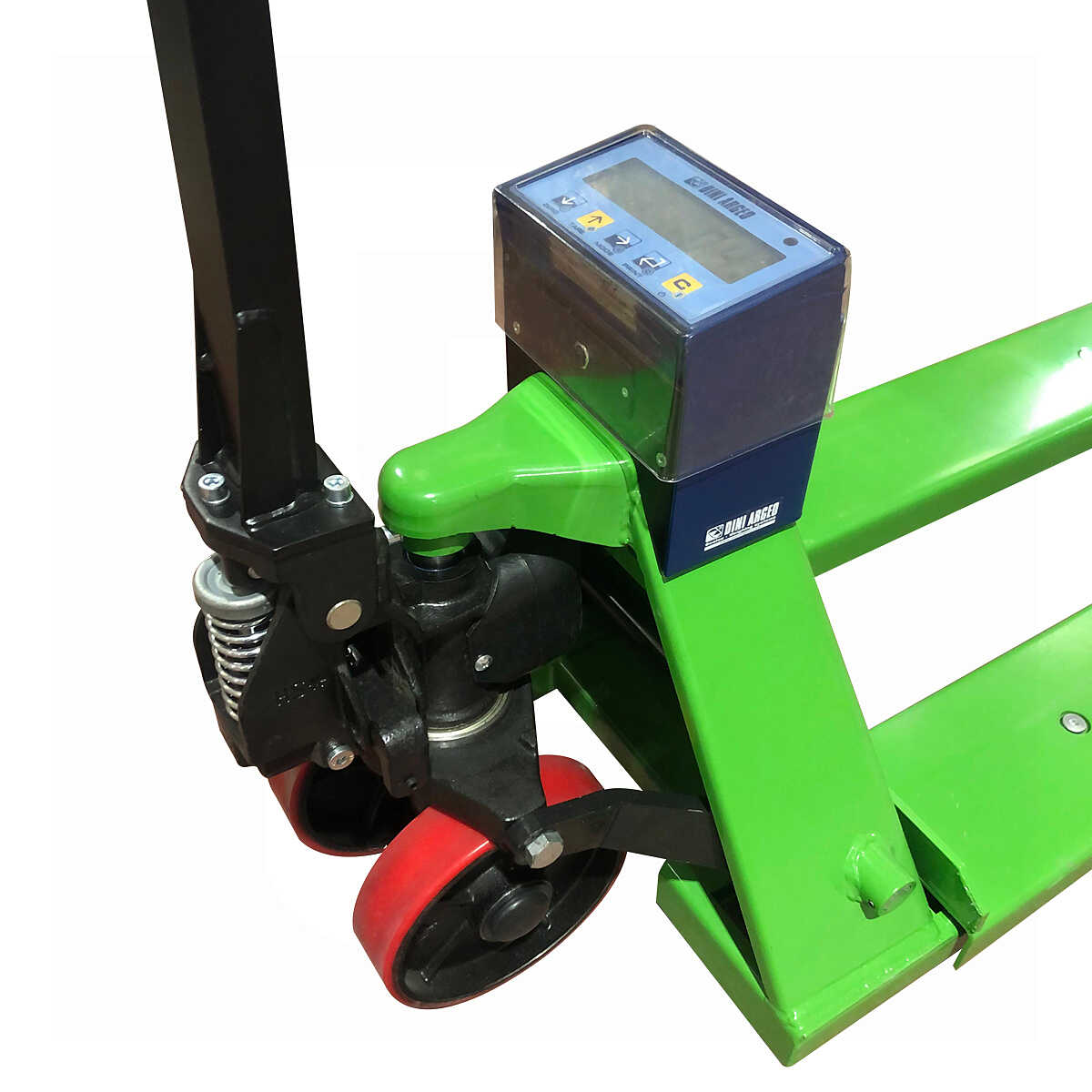

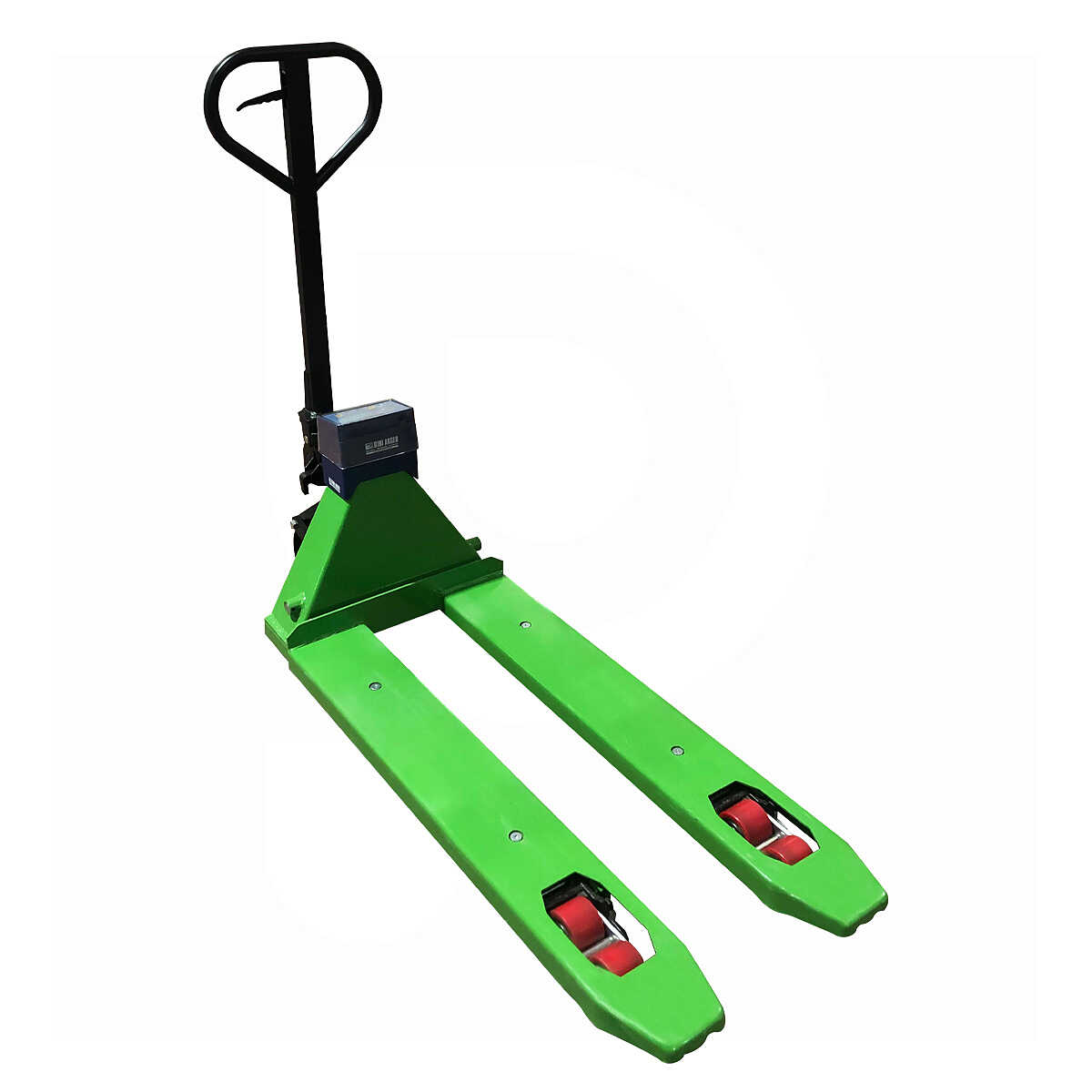

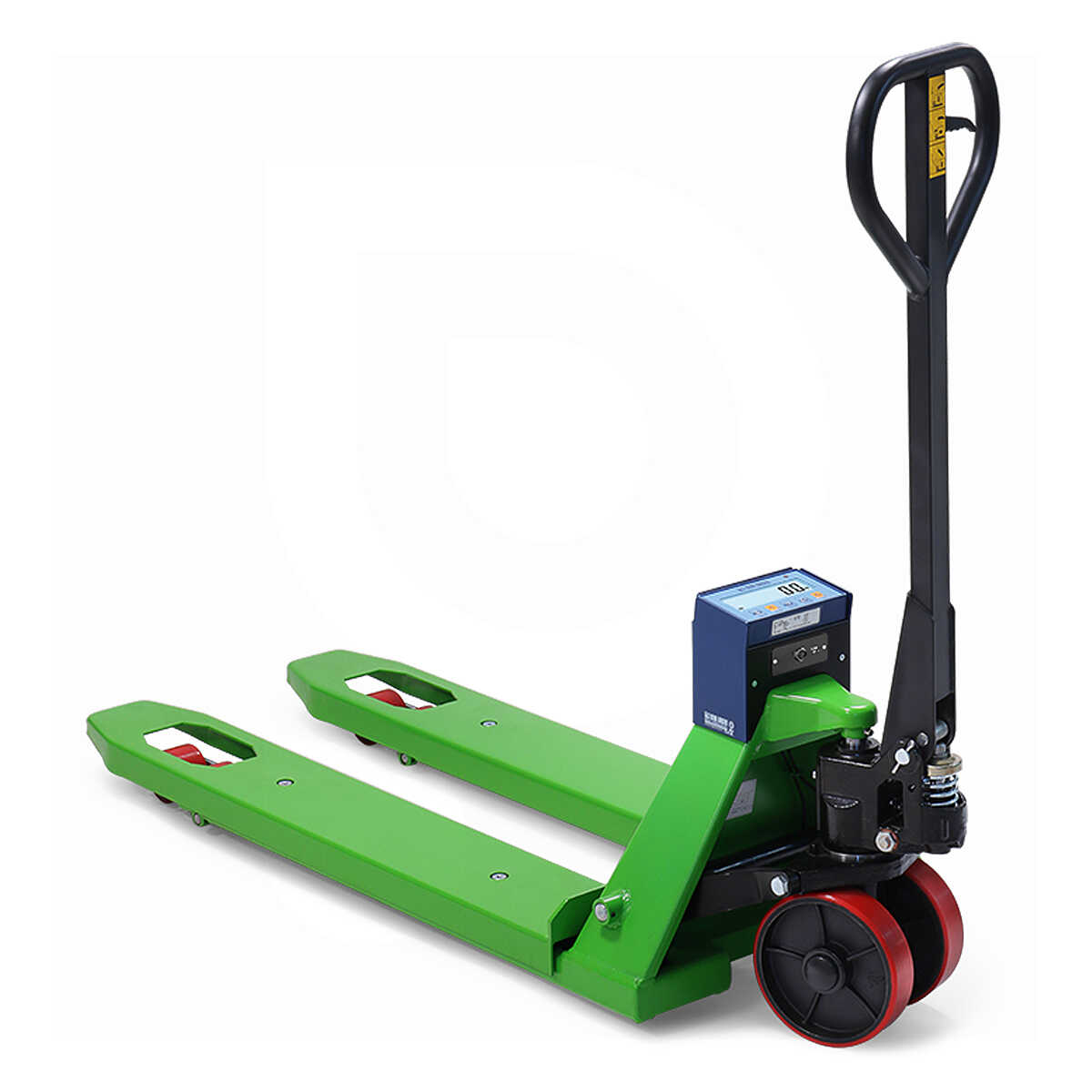

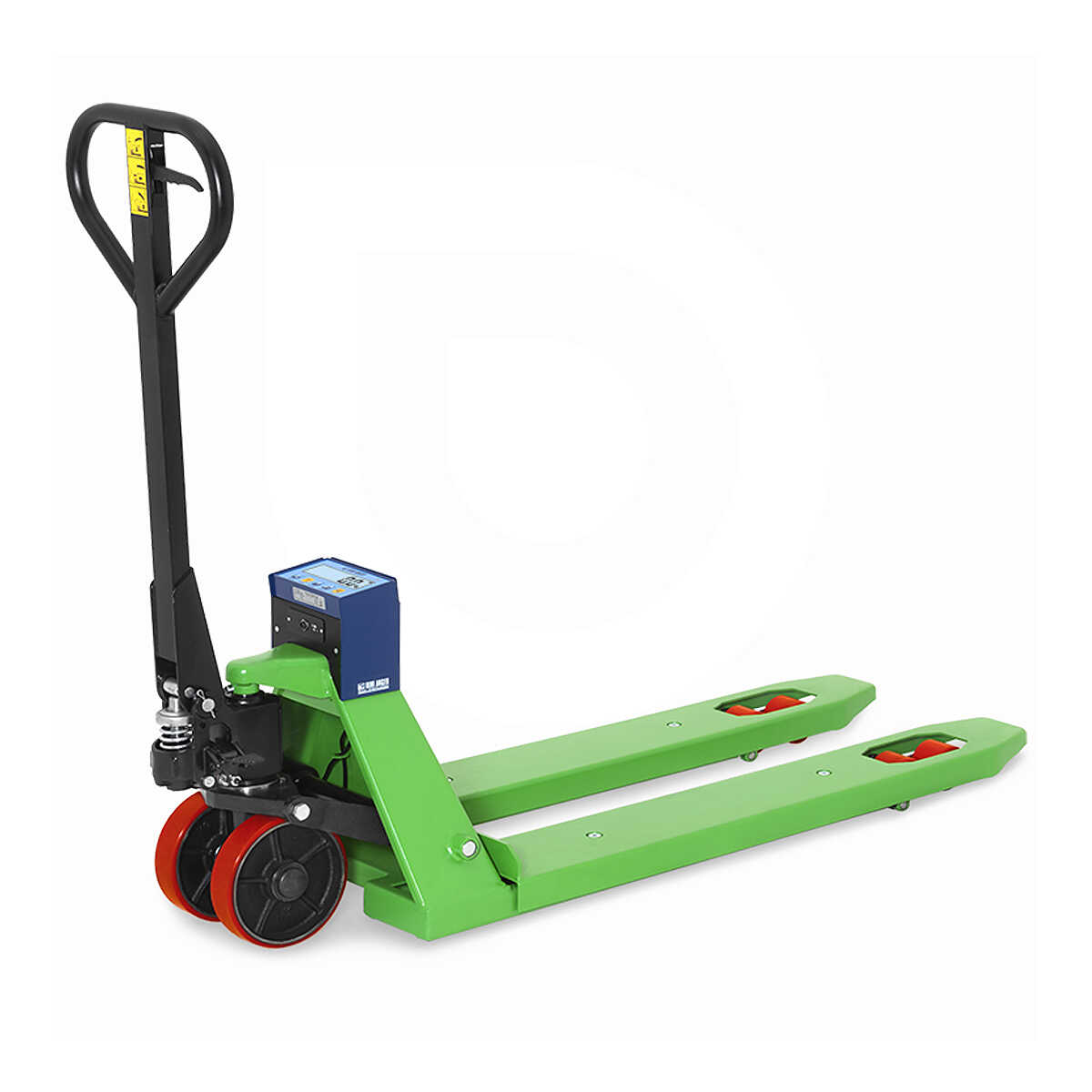

TPWNBT-11 Pallet Truck Scale – Capacity 2000 kg
Description
TPWNBT-11 Pallet Truck with Integrated Scale and Adjustable Load Cells
The TPWNBT-11 pallet truck scale, available at Polsinelli, is the ideal choice for companies and professionals who require robust, maneuverable, and reliable equipment. With a maximum capacity of 2,000 kg and a lightweight design of just 105 kg, this pallet truck with an integrated scale features a reinforced oven-painted steel structure, making it both highly durable and lightweight. The low-profile 85 mm forks, measuring 1150 x 550 mm, provide great versatility, while the quick-lift hydraulic pump reaches 200 mm, ensuring a controlled and smooth lowering for optimal load management.
The weighing system of the TPWNBT-11 is technologically advanced, as it does not require a junction box, but instead consists of four adjustable load cells, configurable via the keyboard with display, and certified with IP67 protection, guaranteeing maximum resistance to external agents and long-lasting durability. The high weighing accuracy of 0.05% of the capacity is ensured by the integrated CPU board, which optimizes precision and speed in measurements.

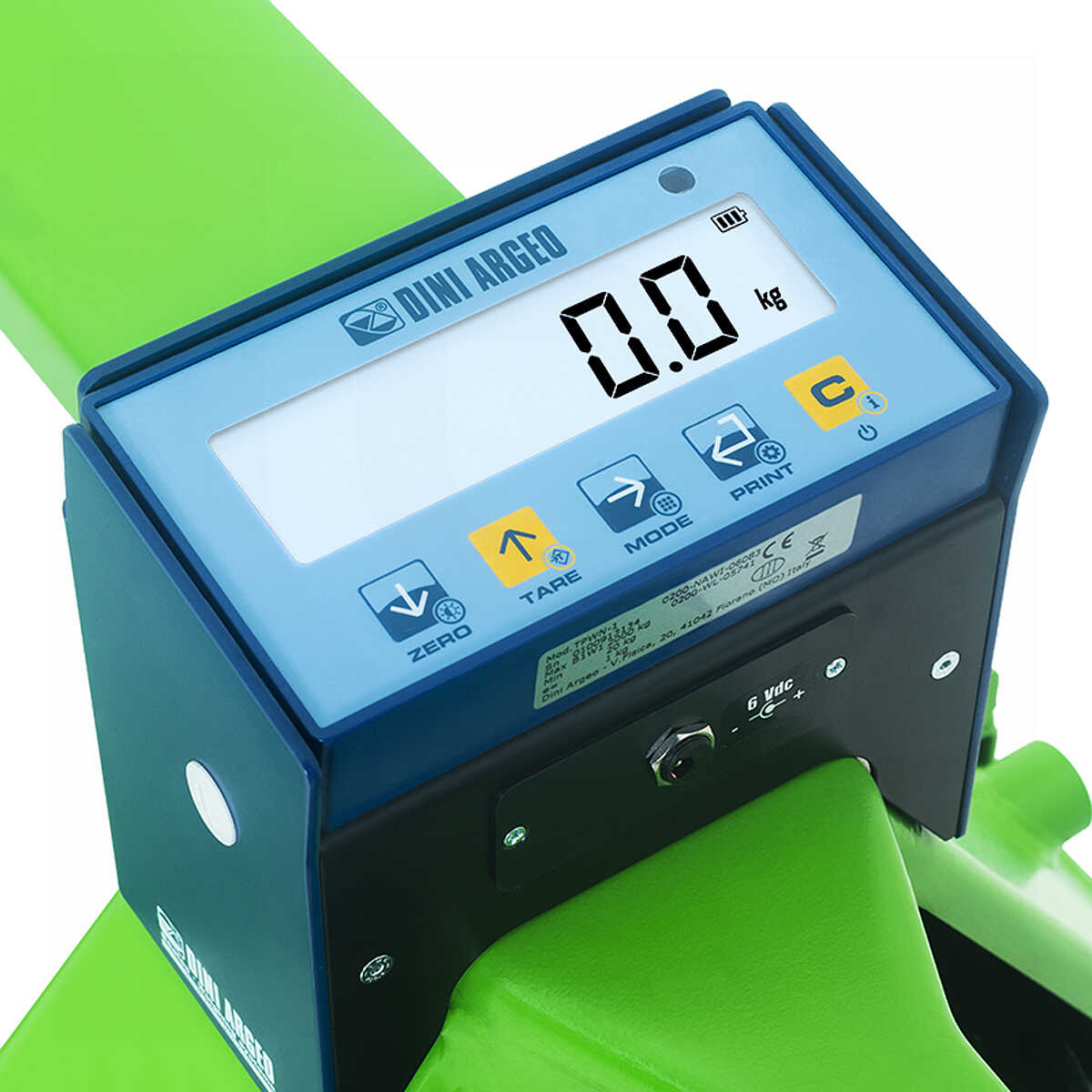

The 25 mm shockproof LCD display, with adjustable backlighting and automatic shutdown, ensures clear readings under any working conditions, while the waterproof keyboard, designed for industrial environments, is protected by a standard cover, making it resistant to water splashes and dust. Power is supplied by a rechargeable internal battery that provides 80 hours of autonomy, requiring approximately 8 hours for a full charge. The programmable automatic shutdown function optimizes energy consumption, extending operational efficiency.
Each TPWNBT-11 pallet truck scale is calibrated, adjusted, and tested using certified test masses to ensure maximum weighing accuracy. Every phase of the manufacturing process follows strict quality control standards, guaranteeing reliability and compliance with current regulations. The result is a highly precise and high-performance tool, ideal for optimizing logistics and material handling operations.
Technical Specifications of the TPWNBT-11 Pallet Truck Scale:
- Maximum lifting capacity: 2,000 kg
- Resolution: 0.2 kg
- Accuracy: 0.05% of the capacity

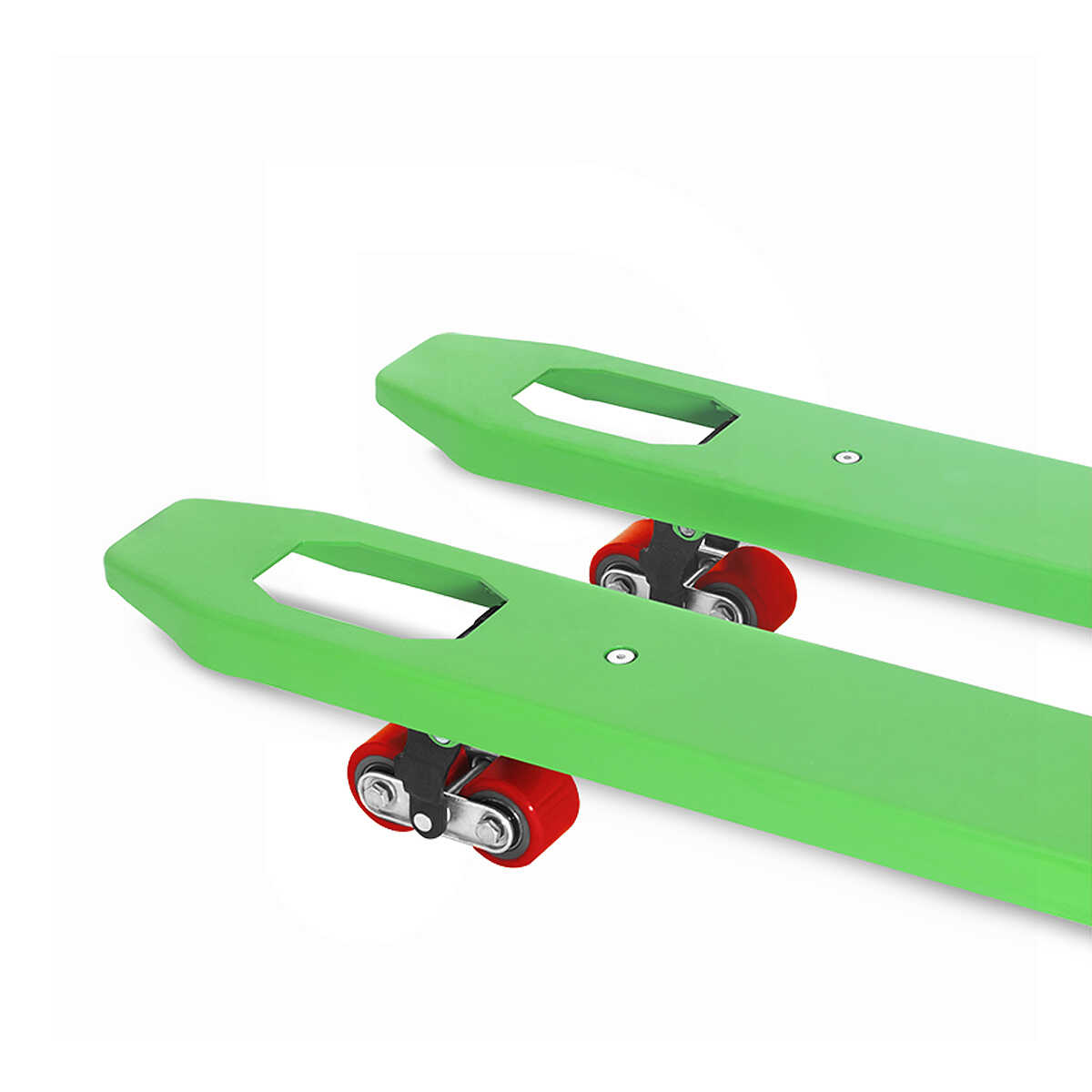

- Low-profile forks: 85 mm
- Fork dimensions: 1150 x 550 x 85 mm
- Lifting height: 200 mm
- Weight: 105 kg
- Reinforced oven-painted steel structure
- Polyurethane steering wheels and load rollers
- Weighing system with 4 load cells
- Waterproof 5-key keyboard
- Shockproof 25 mm LCD display
- Quick-lift hydraulic pump for controlled fork lowering
- Battery life: 80 hours
- Battery charger ensuring full charge in approximately 8 hours
- Operating temperature: -10° to +40°C
User-Selectable Functions via Dedicated Button:
- lb/kg conversion
- Free conversion factor (meter counter, liter counter, etc.)
- Total weight accumulation
- Piece counting function
- Hold function
