Stackable Pallet Mixing Tank

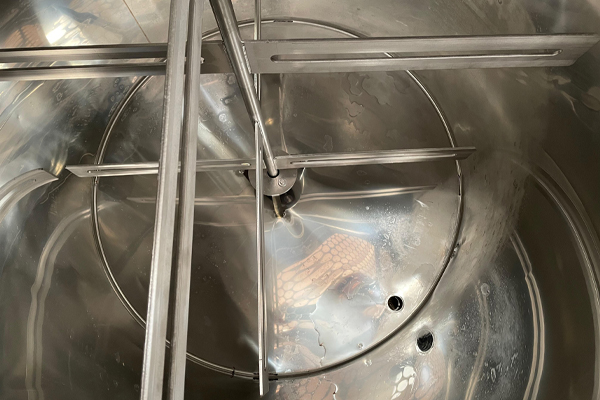

Manufactured from AISI 304 stainless steel, this 1000 L pallet-compatible mixing tank is equipped with an agitator driven by a geared motor operating at 28 rpm. The agitator shaft features 10 heavy-duty stainless steel cross blades with a central slot. The tank also includes a level indicator rod, total and partial discharge outlets, and a practical support frame that allows easy handling and transportation using a pallet truck.
Supplied complete with:

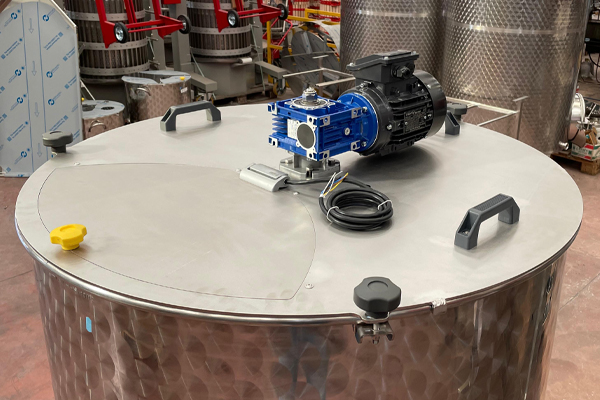

- 380 V, 0.50 kW motor
- 28 rpm geared motor

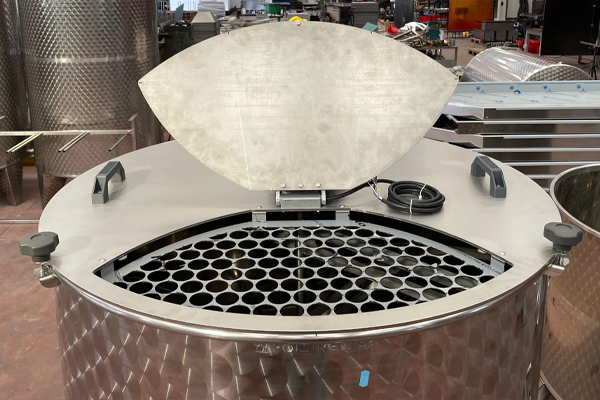

- Heavy-duty lid
- Agitator with cross blades and central slot

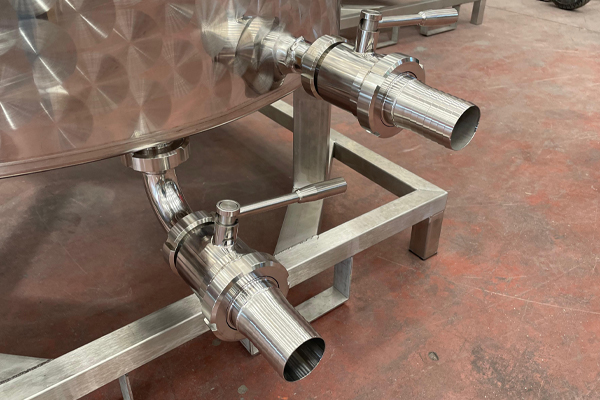

- Partial and total discharge DIN 40 × PG 50

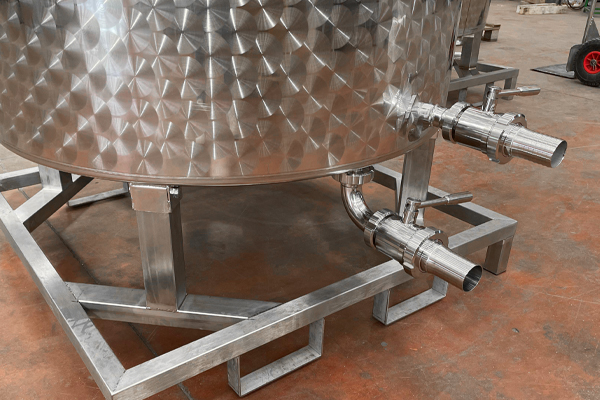

- Forklift-compatible support frame
Dimensions:
- Diameter: 1025 mm
- Cylindrical body height: 1250 mm
- Overall height: 1900 mm
Thickness:
- Side walls: 1 mm
- Bottom: 1.5 mm
 |
 |
 |
 |
 |
 |
