Stainless Steel 8 kW ⌀40 PSPEV GPL Gas burner

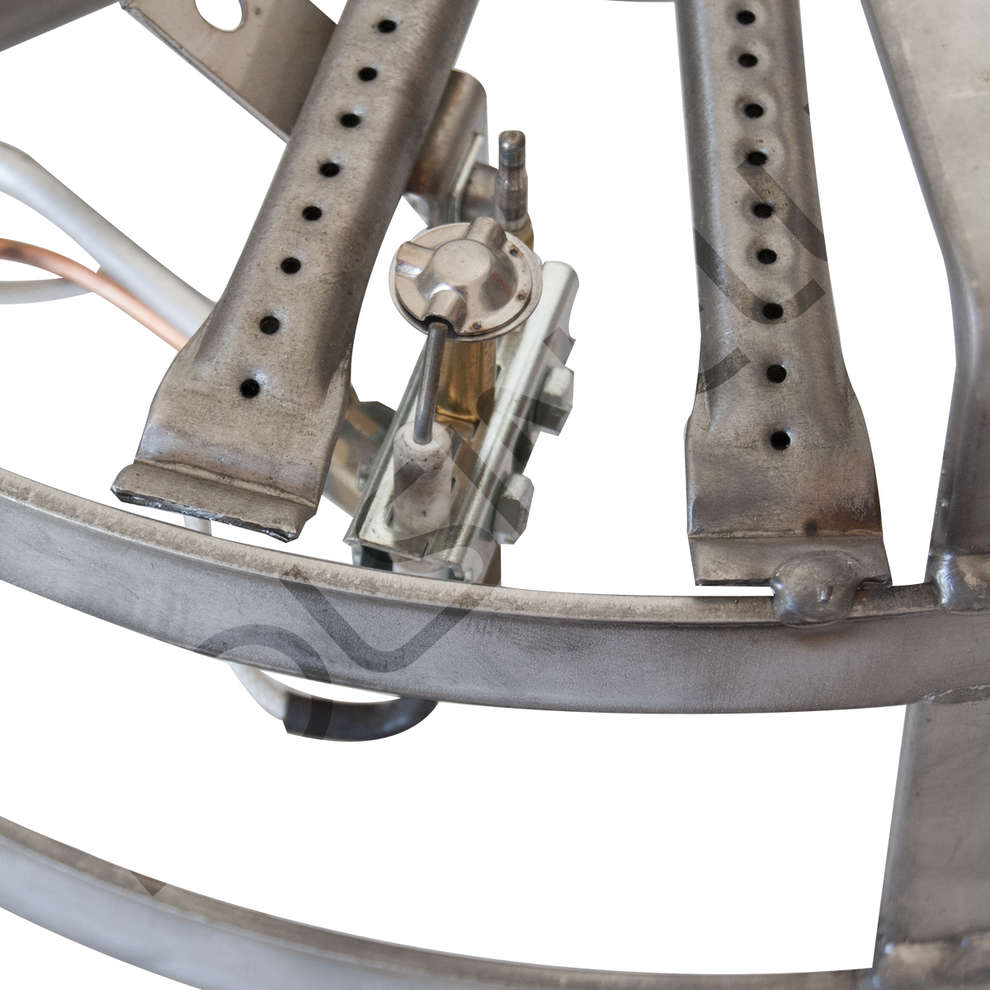

Stainless steel gas burner with safety, pilot flame, piezoelectric ignition and solenoid valve
Rated flow: 8 kW
Power supply: LPG (CNG on order)
Consumption: 0.560 kg / hour
Nozzle G30: 28-30 mbar
Material: AISI 304 stainless steel
Solenoid valve: 24V AC (alternating current)
SAFETY: THE THERMOCOUPLE AUTOMATICALLY BREAKS THE GAS FLOW IN CASE OF FLAME SHUTDOWN

PILOT: THE PILOT FLAME FACILITIES THE MANUAL / REMOTE TEMPERATURE CONTROL

PIEZO: COMFORTABLE IGNITION BUTTON

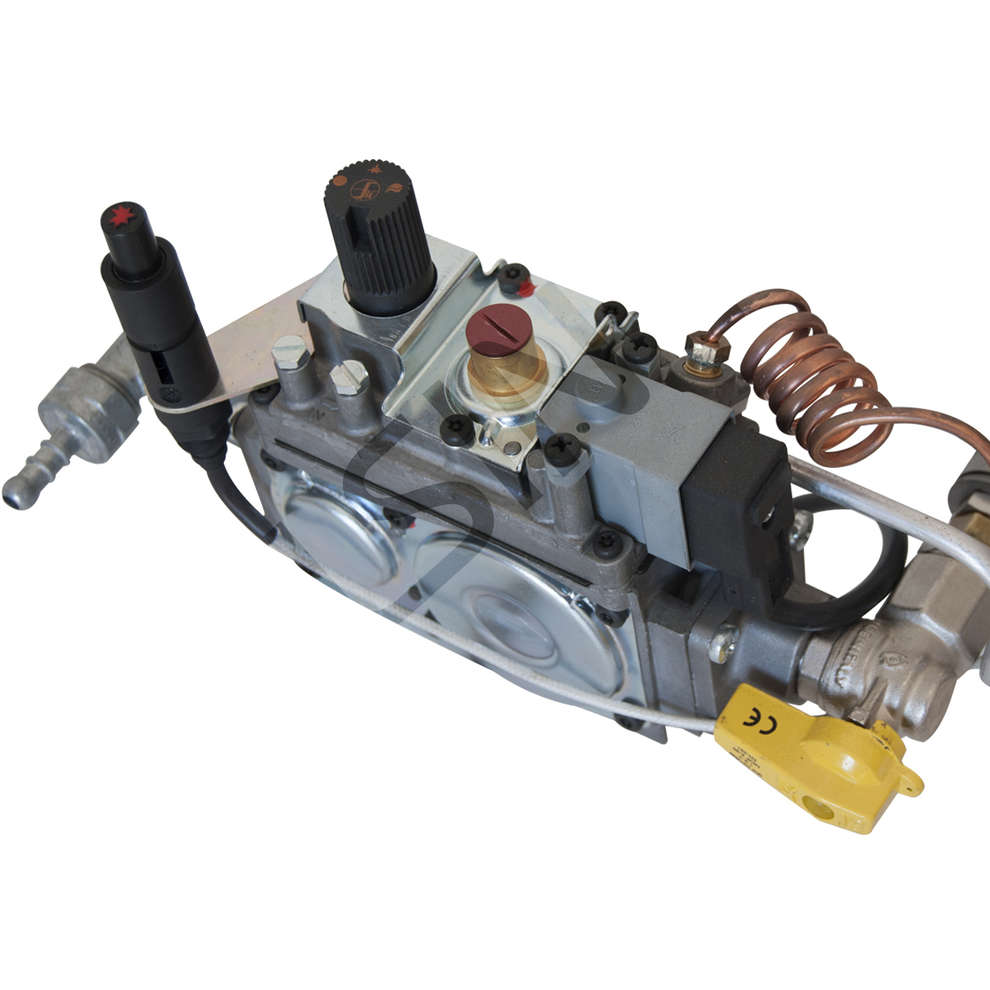

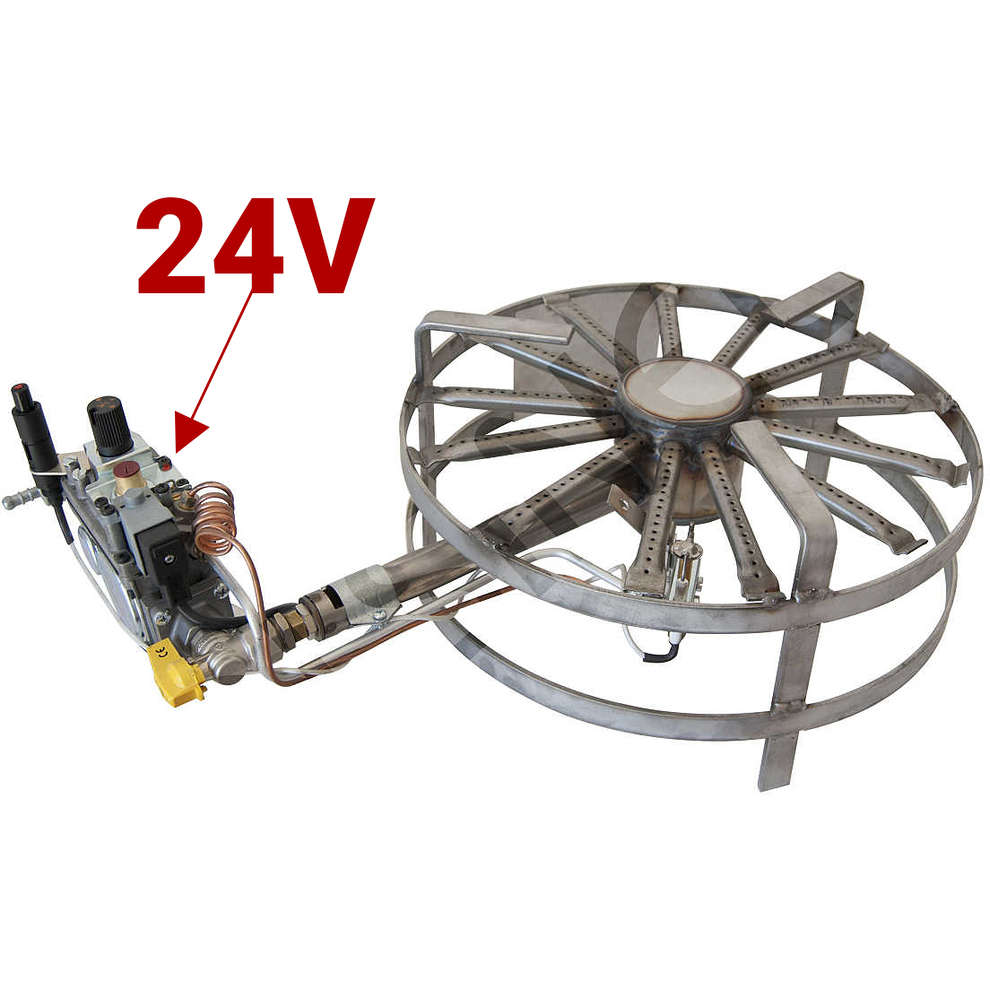

SOLENOID VALVE: FOR IGNITION, THE SOLENOID VALVE MUST BE POWERED TO 24V AC (ALTERNATING CURRENT), THEN THROUGH A TRANSFORMER (12/15 VA).

Dimensions in millimeters:

A = Ø 400
B = 205
C = 160
D = 270
