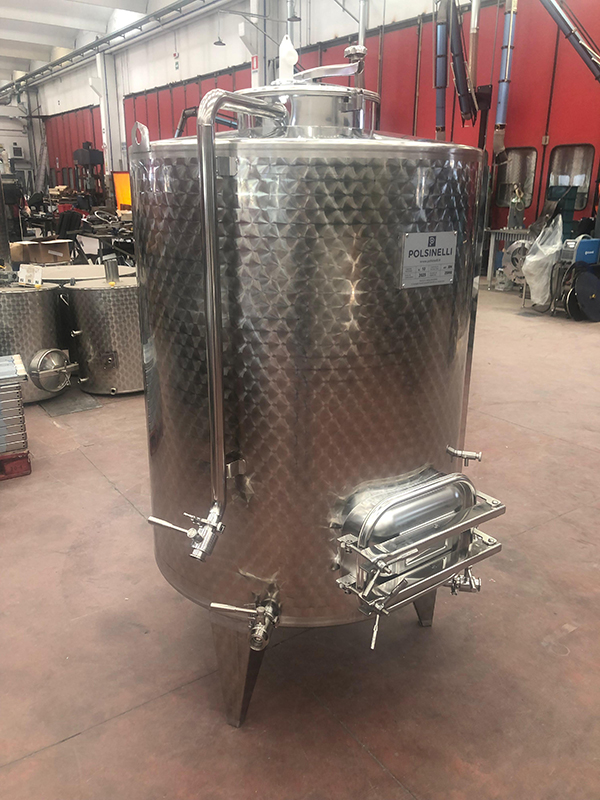

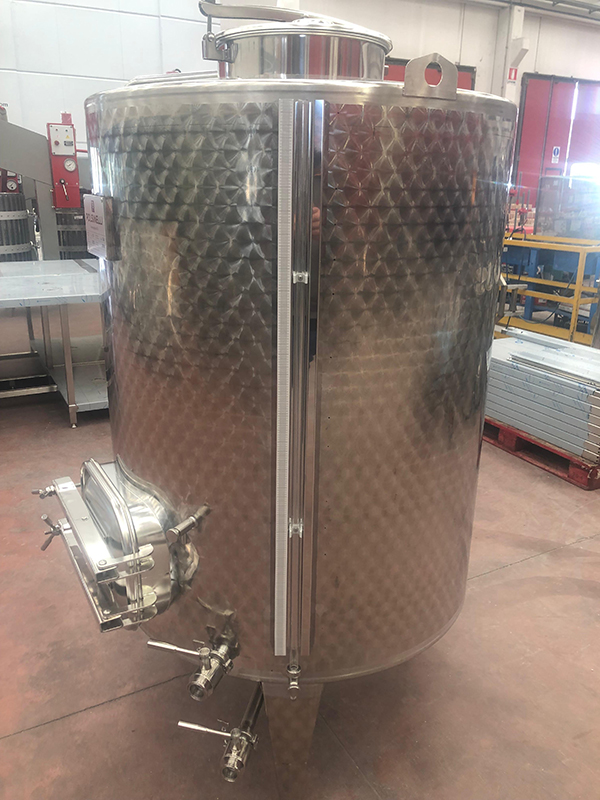

1000 L Low 10° Conical Tank with Rectangular Manway and Pump-Over System with Rain Cap
Manufactured from AISI 304 stainless steel, this tank is the ideal solution for the primary fermentation of wine. The pump-over system allows the wine to be drawn from the bottom using a pump and automatically redistributed from the top through the rain cap ("Chinese hat"), without opening the tank.
Complete with:
- Pump-over pipes

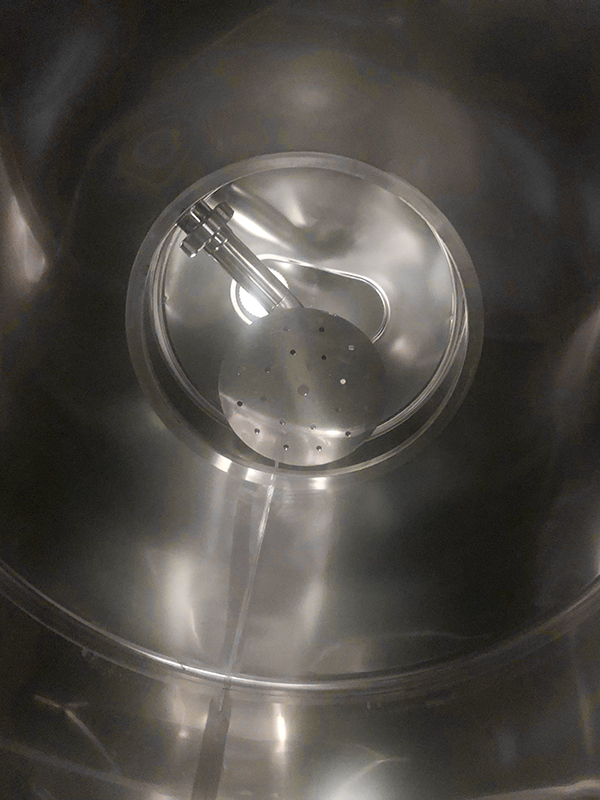

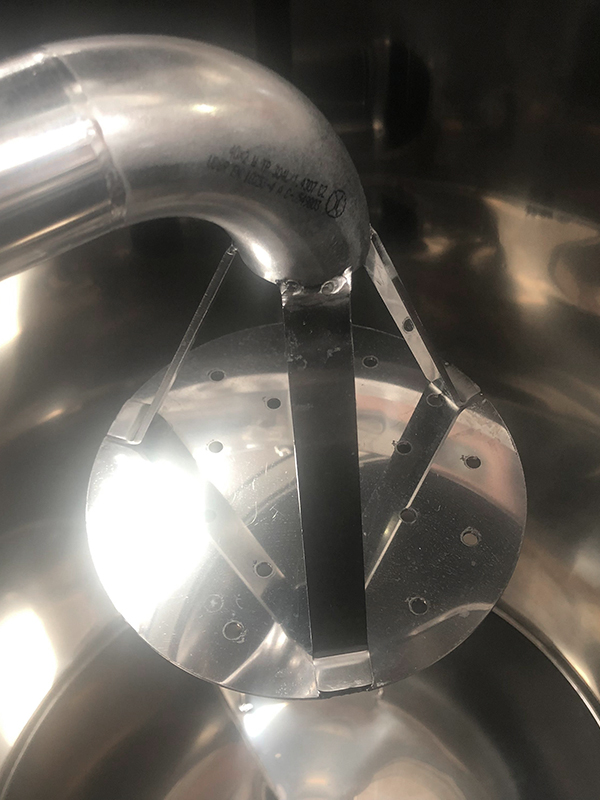

- Rain cap ("Chinese hat")

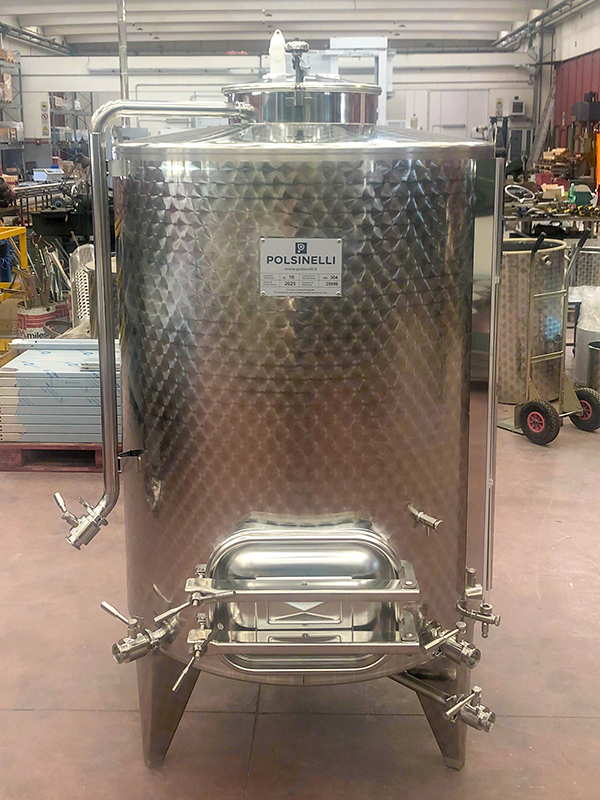

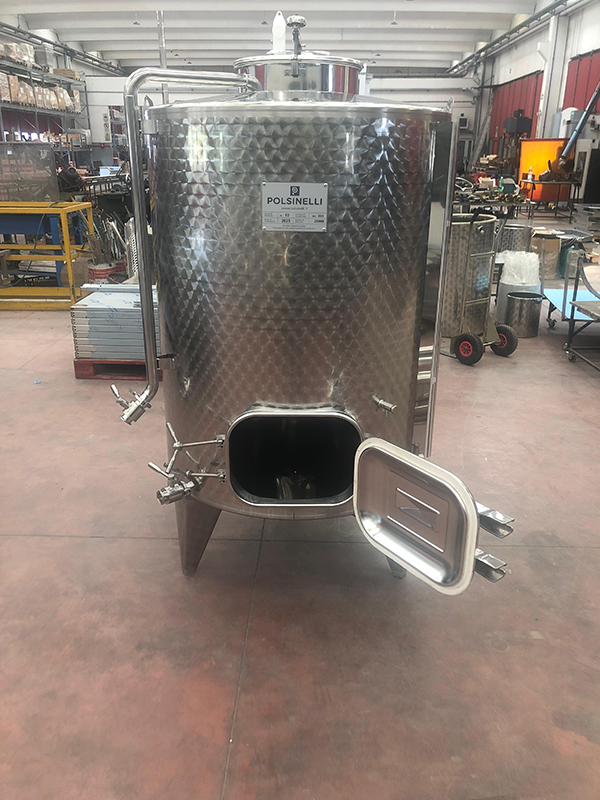

- Rectangular manway for easy tank emptying

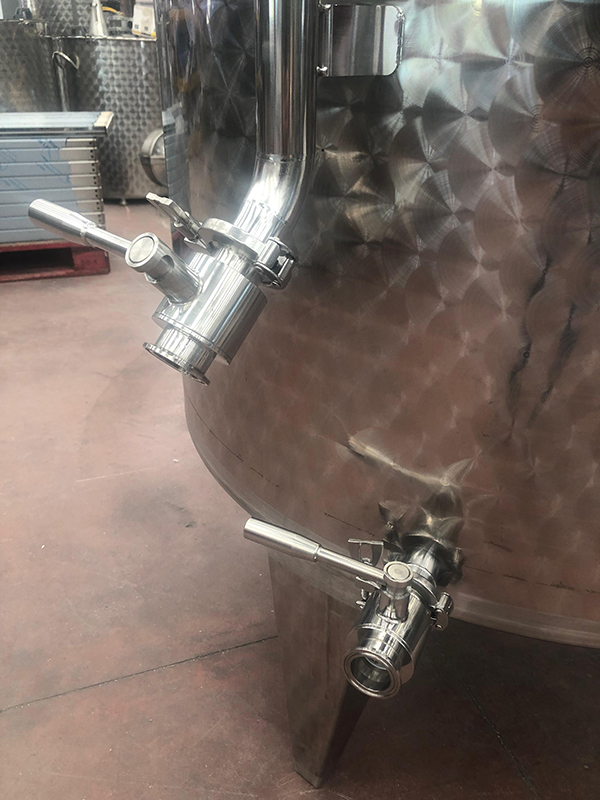

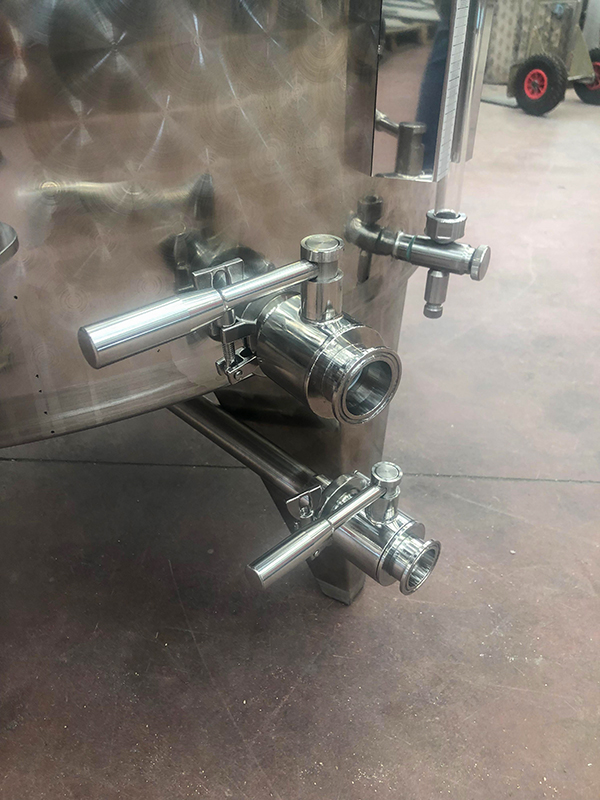

- Total/partial outlet with 1½" clamp valves
Dimensions:
- Diameter: 1025 mm
- Top section: 300 mm
- Cylindrical body height: 1250 mm
- Leg height: 400 mm
- Overall height (legs + body + top): 1950 mm
Thickness:
- Wall: 1.2 mm
- Bottom: 1.5 mm
 |
 |
 |
 |
 |
 |
 |
 |
 |
