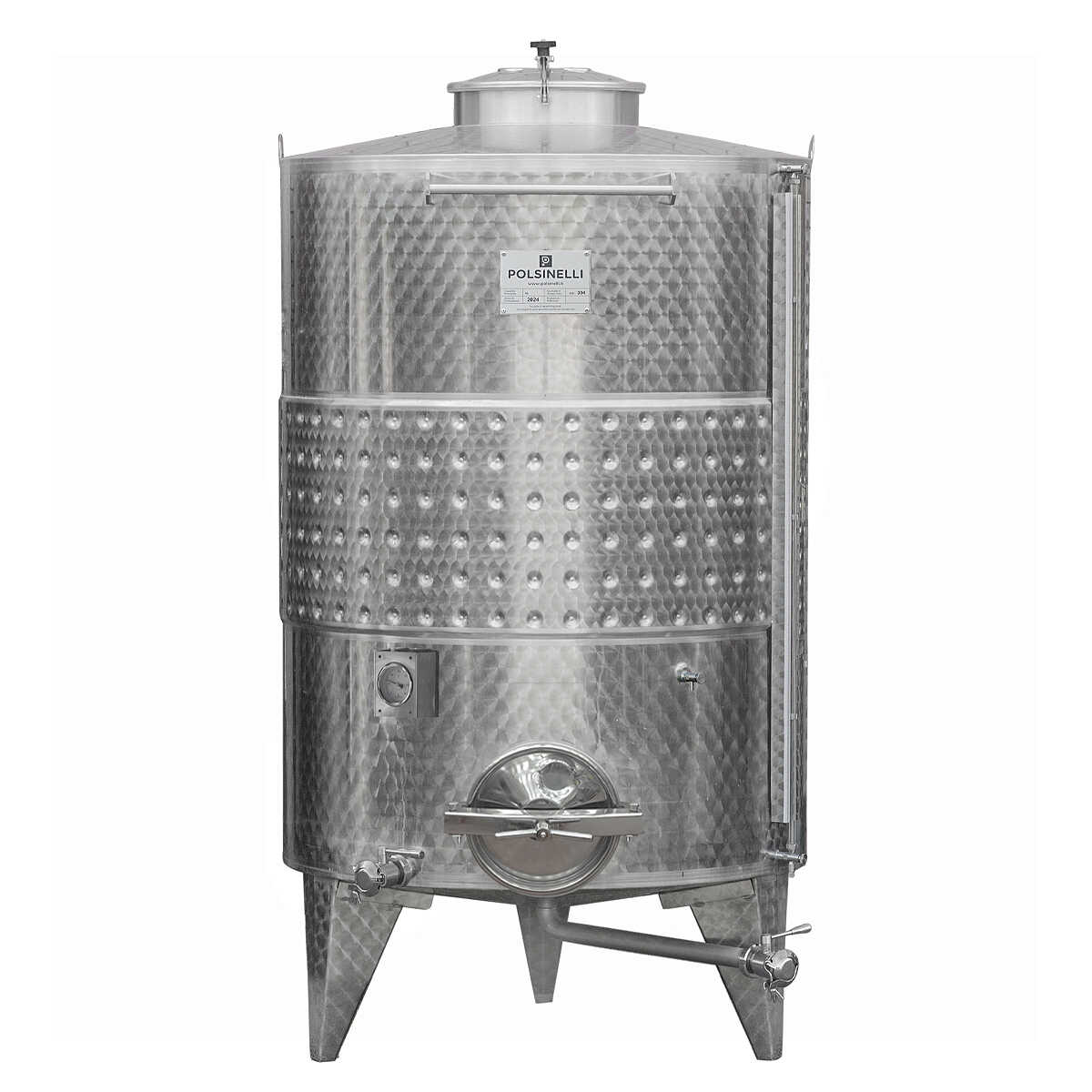

Refrigerated Storage with Conical Bottom 1500 L lid with Ø300 Manhole

Refrigerated Stainless Steel 1500 litres Tank with 10° Conical Bottom and Ø300 mm Manhole

The stainless steel 1500 lt. tank with the conical bottom is a high-quality tank for storage and fermentation of wine and beer, thanks to its refrigerating system it’s possible to check exactly the liquid temperature. This product is characterized by a strong casing in stainless steel AISI 304, ideal to respect wine and beer organoleptic properties, and from a conical bottom tilted by 10° with reinforcements, easy to clean and to sanitize.

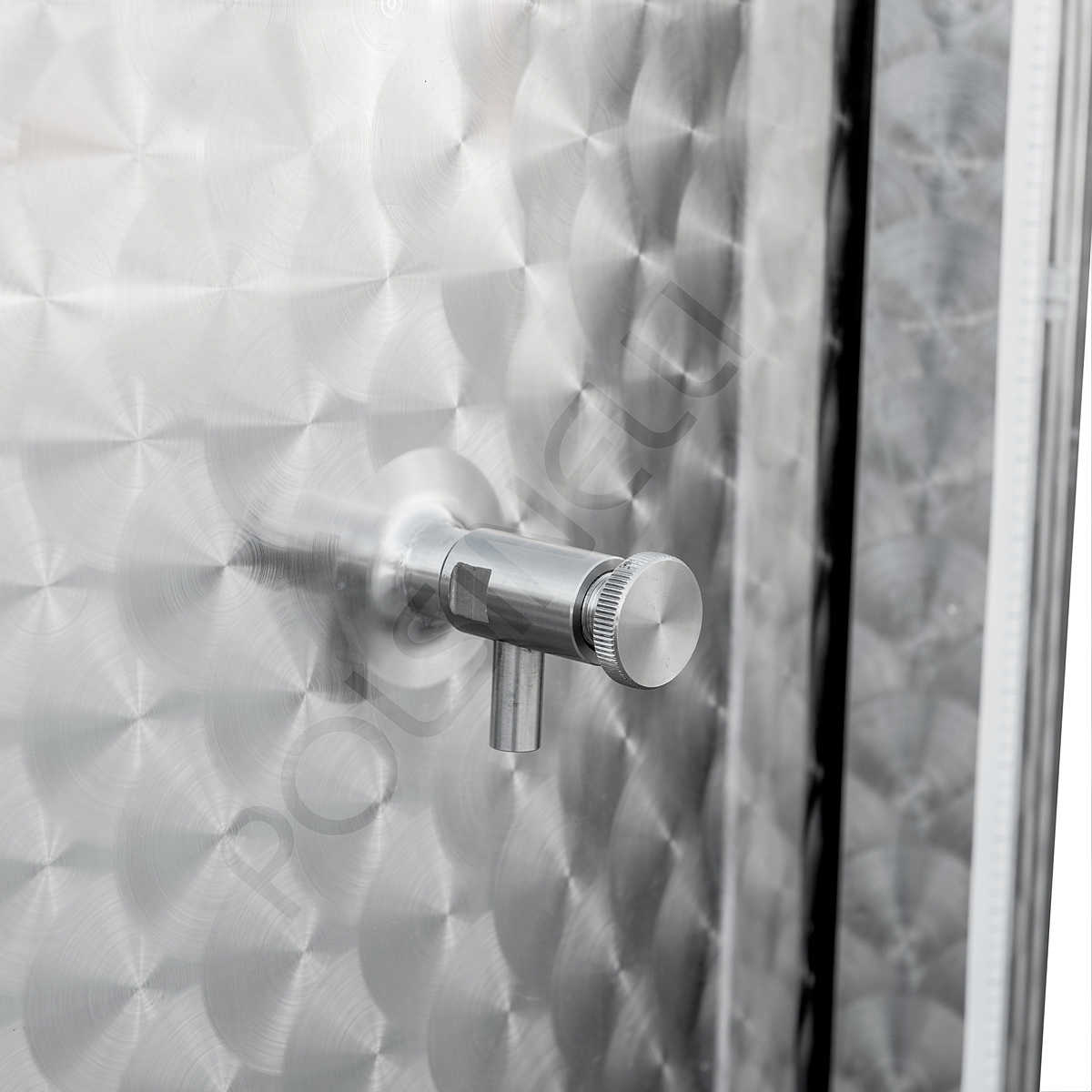

The stainless steel 1500 lt. tank with the conical bottom is equipped with an upper anti-retention manhole 400mm, vent valve and wine tasting tap. The round manhole, with 300 diameter, allows to easily empty the tank. The cooling jacket and the analogical thermometer with stainless steel probe holder ensure to check the inner temperature. The level indicator points to the liquid content. The stainless steel 1500 lt. tank with conical bottom has a total height of 2200mm and a diameter of 1150mm. The walls and the bottom are respectively 2 mm and 1,5mm thick.

Characteristics:

• Stainless steel AISI 304
• Conical bottom 10° with reinforcements

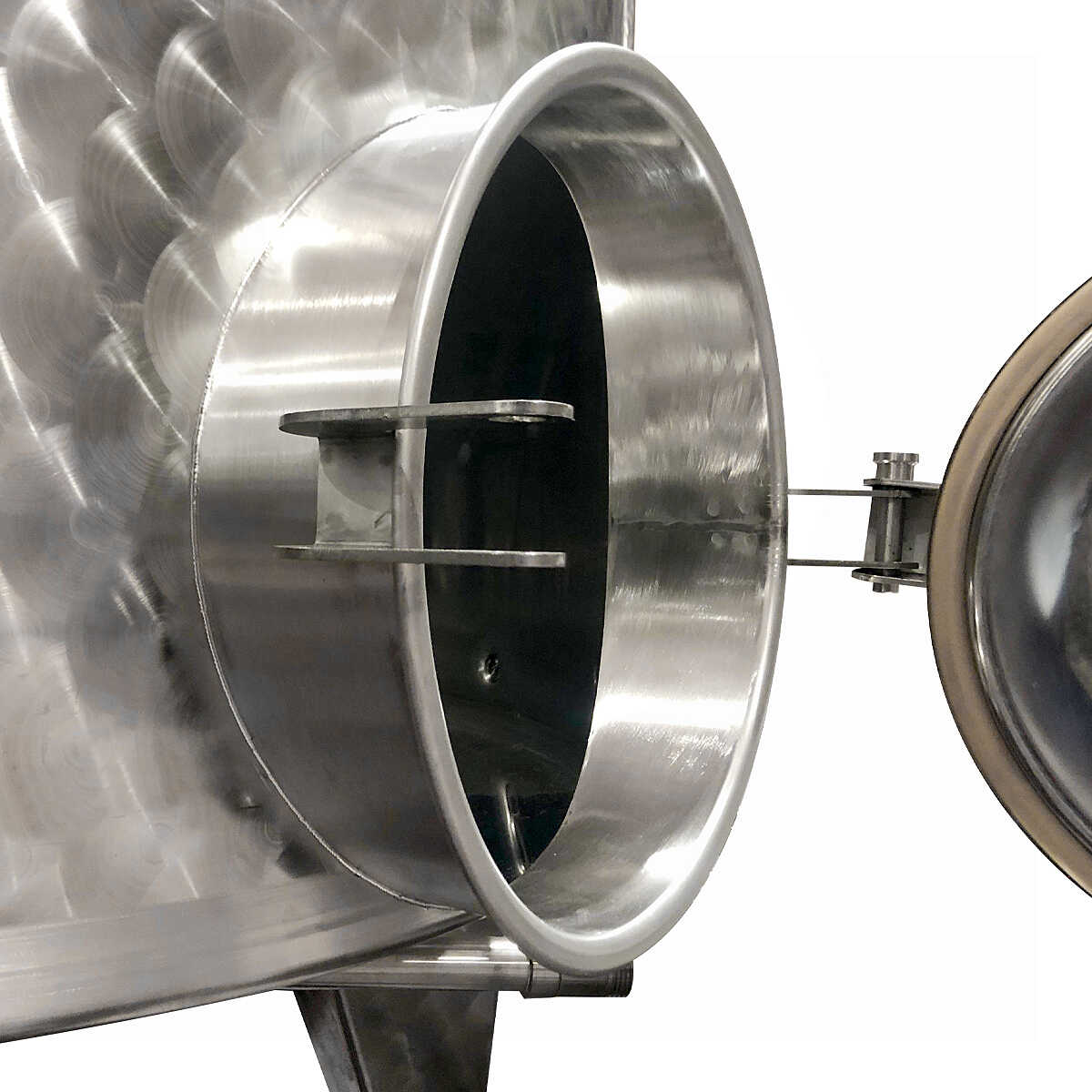

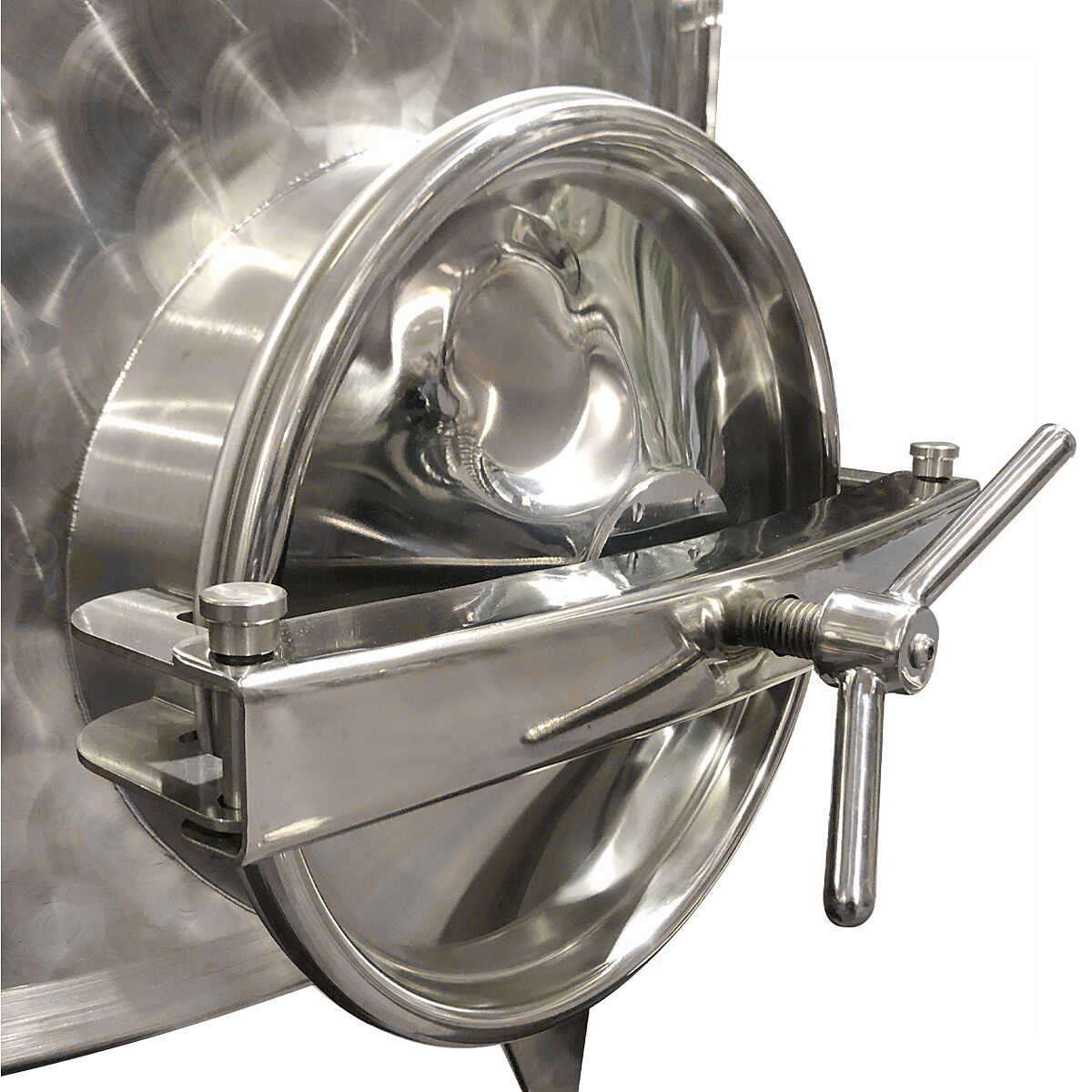

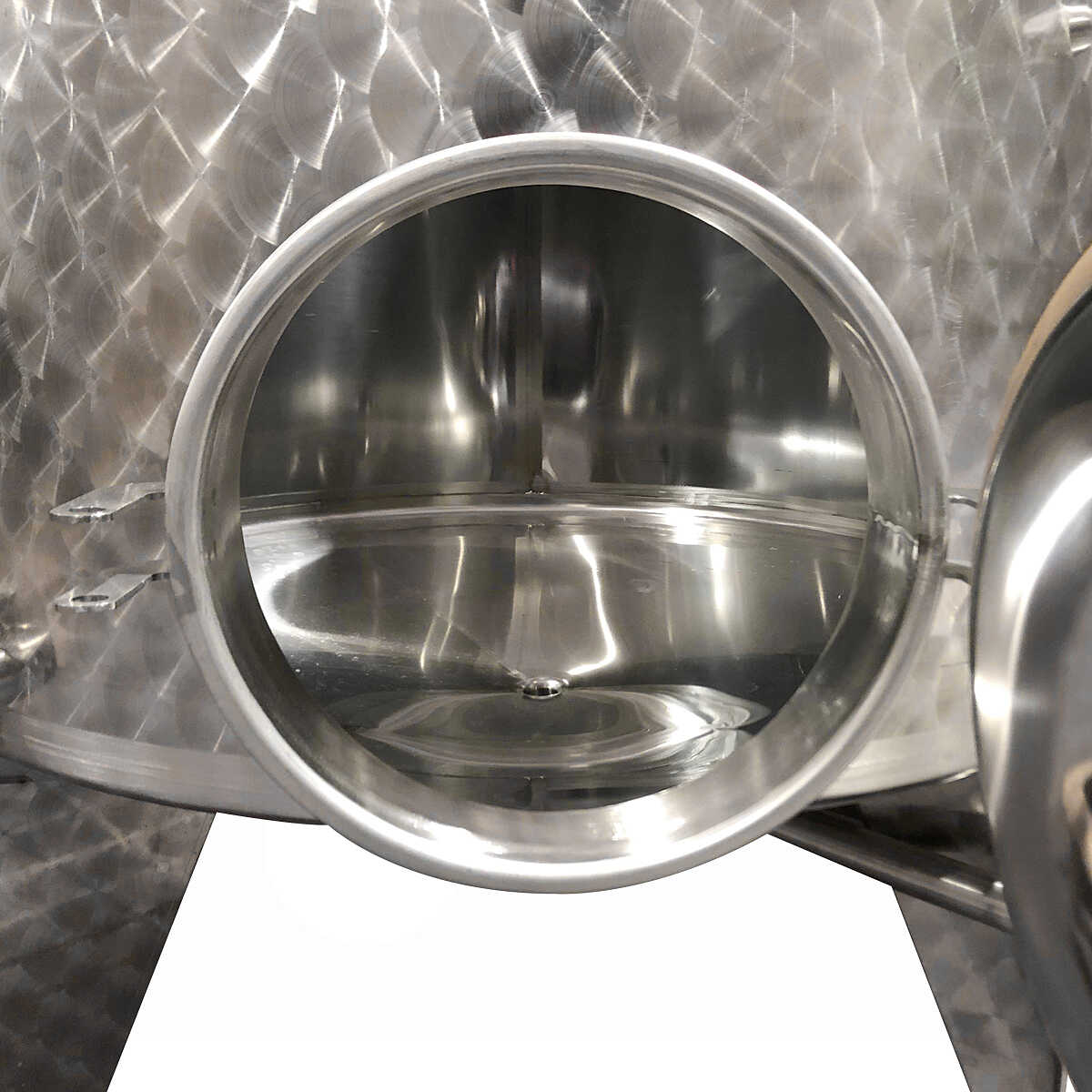

• Round manhole 300, placed flush bottom for easy emptying of the marc
• Anti-retention upper manhole 400mm
• Conical cap 10°

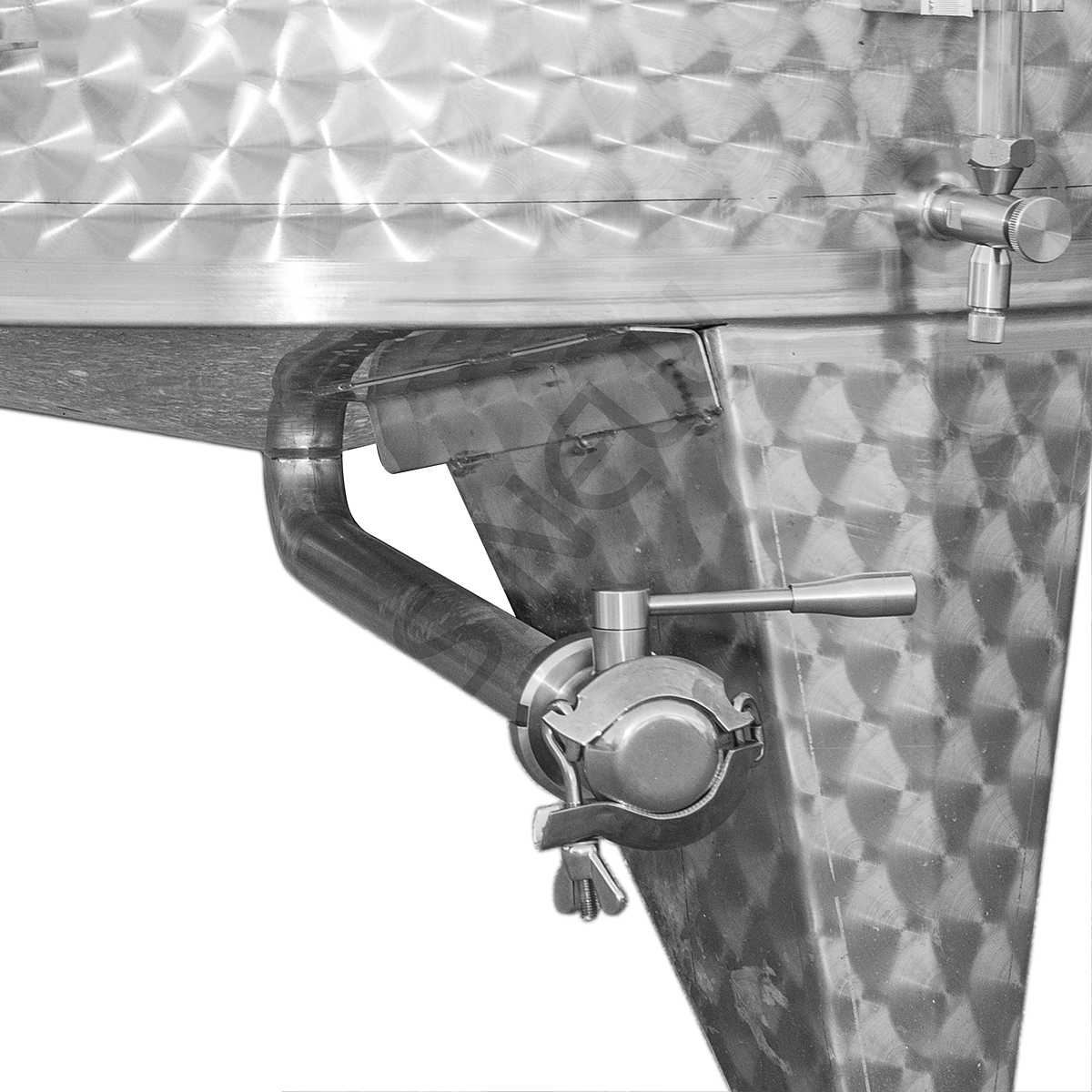

• Total discharge DIN 40 with stainless steel valve 1” and 1/2” GA50
• Partial discharge DIN 40 with stainless steel valve 1” and 1/2” GA50
• 3 stainless steel feet
• Plastic vent valve with double effect

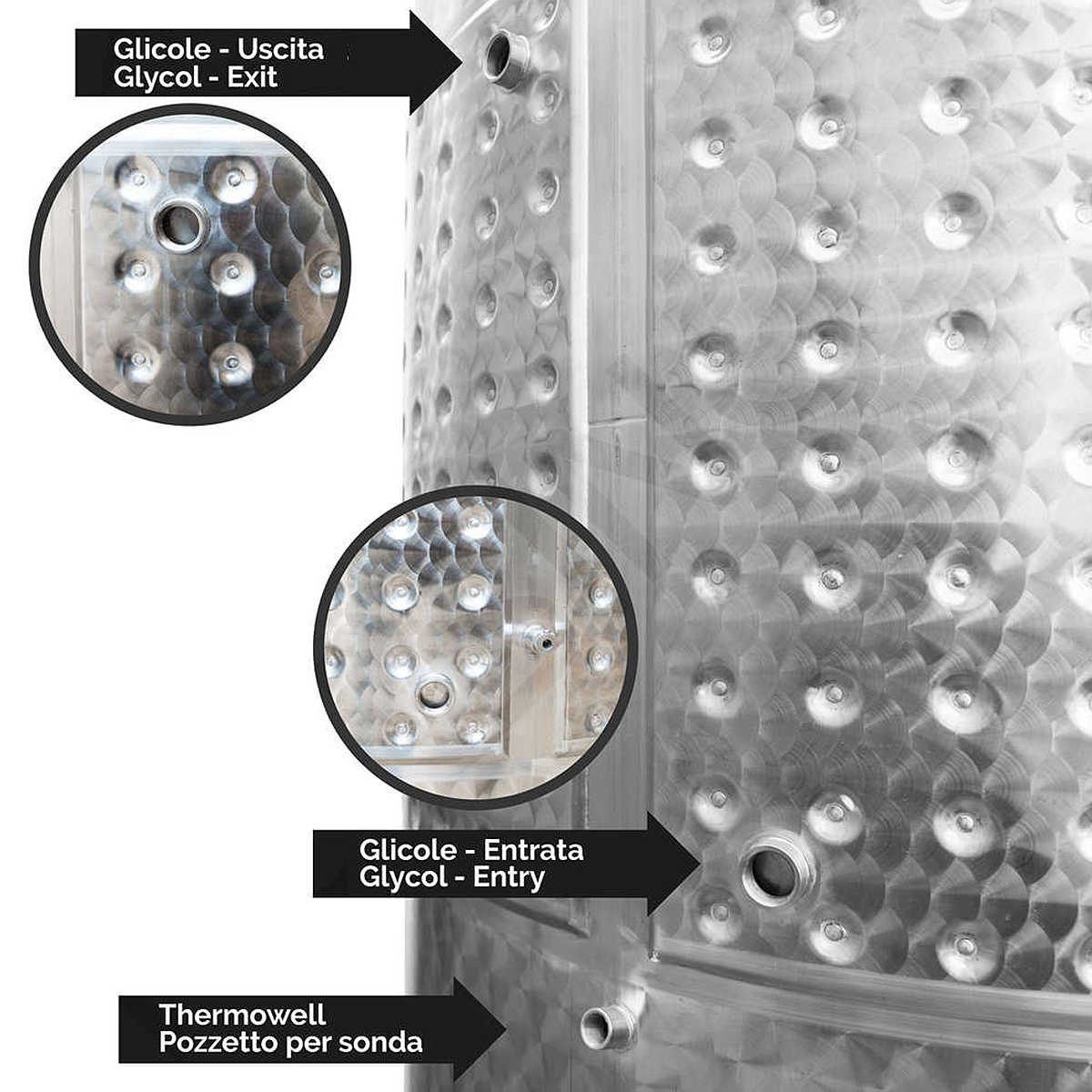

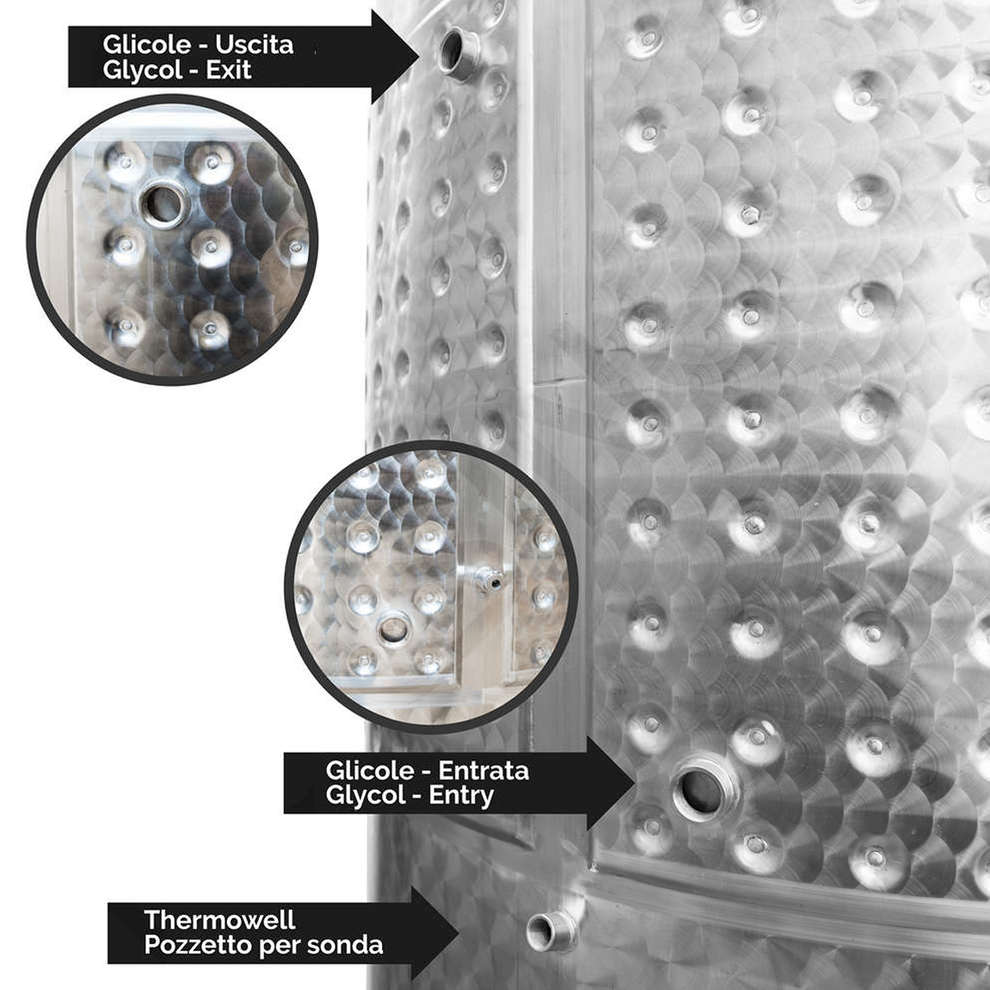

• Cooling jacket of height 750 mm with 1” connections for inlet and outlet of refrigerating liquid

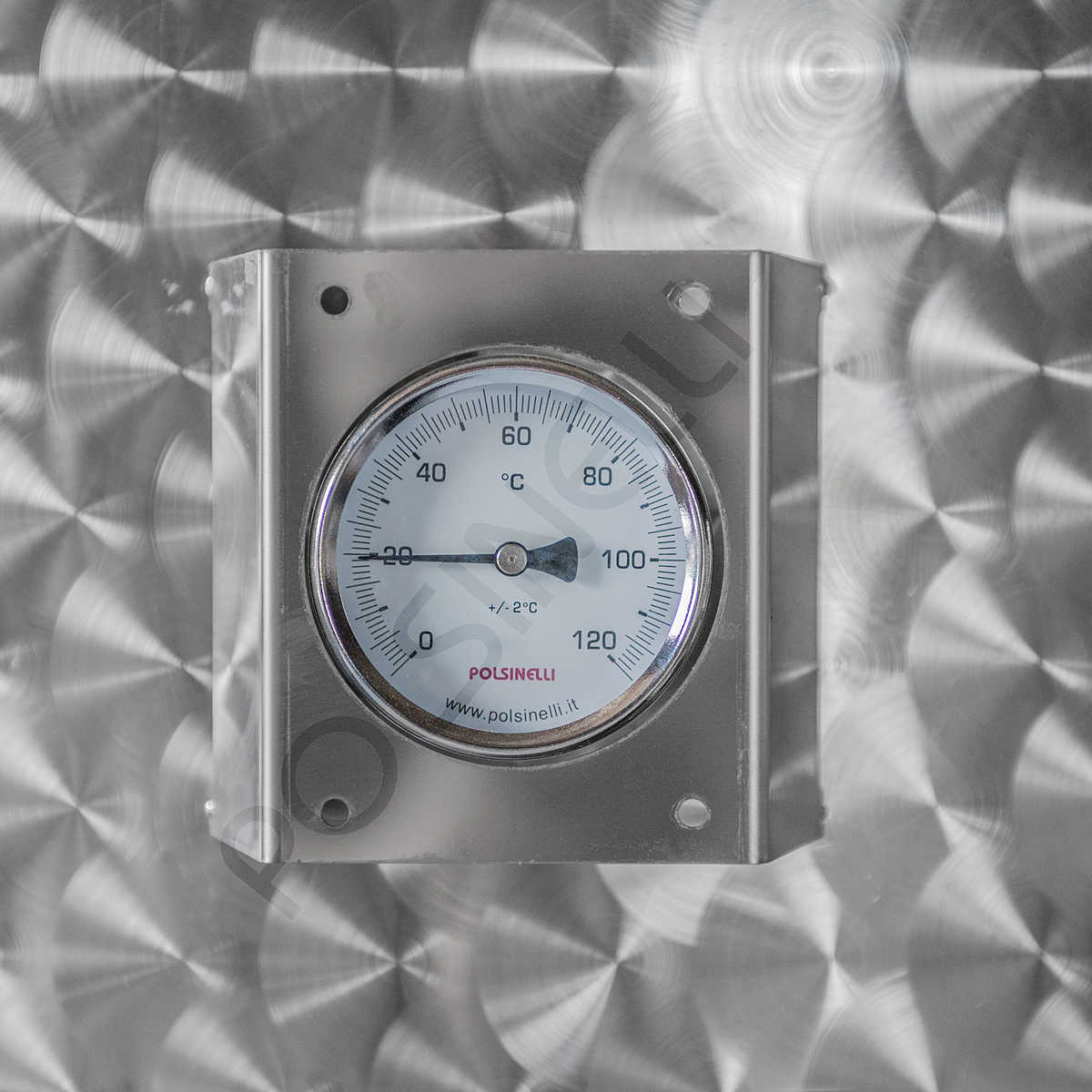

• Analogical thermometer with stainless steel probe holder
• Ladder support

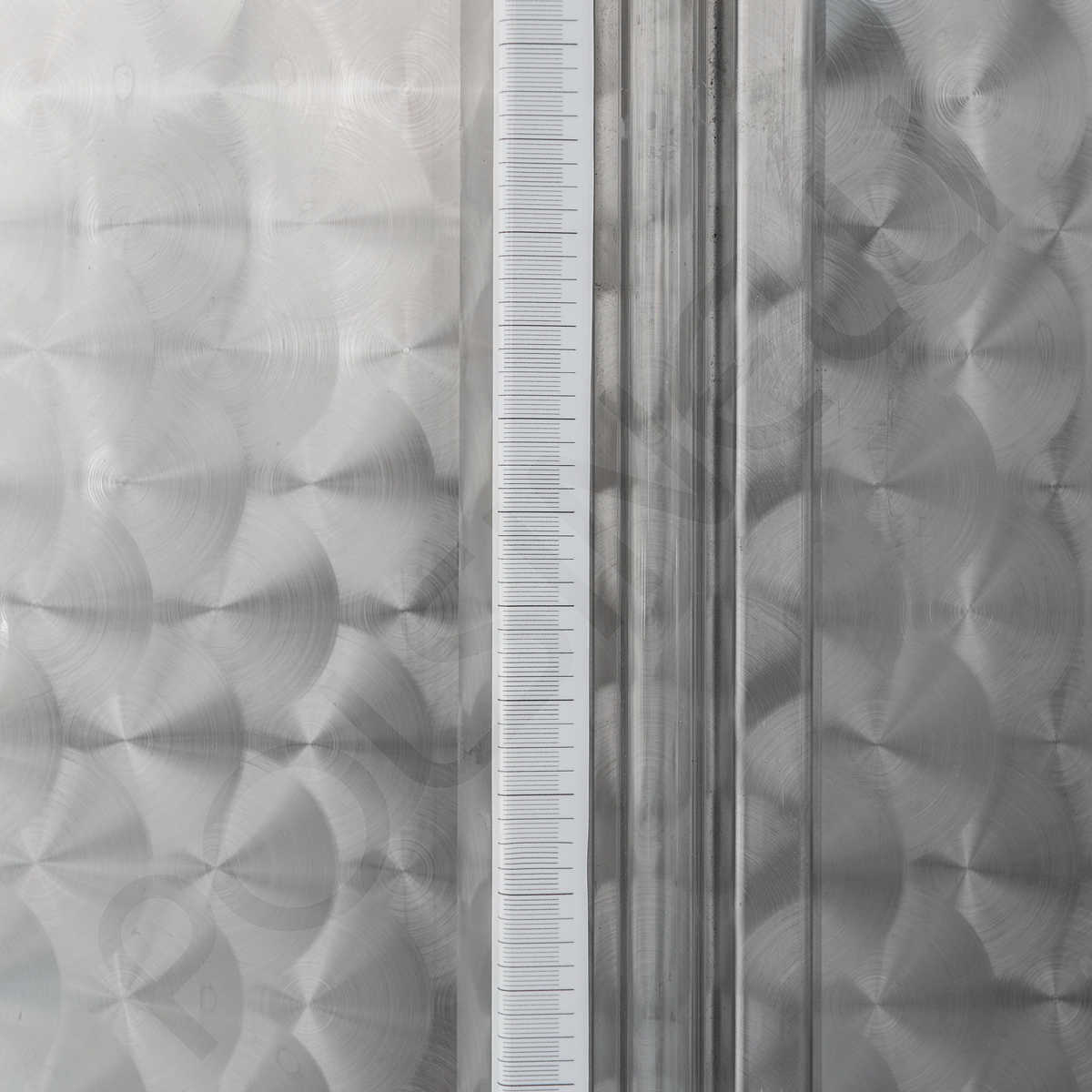

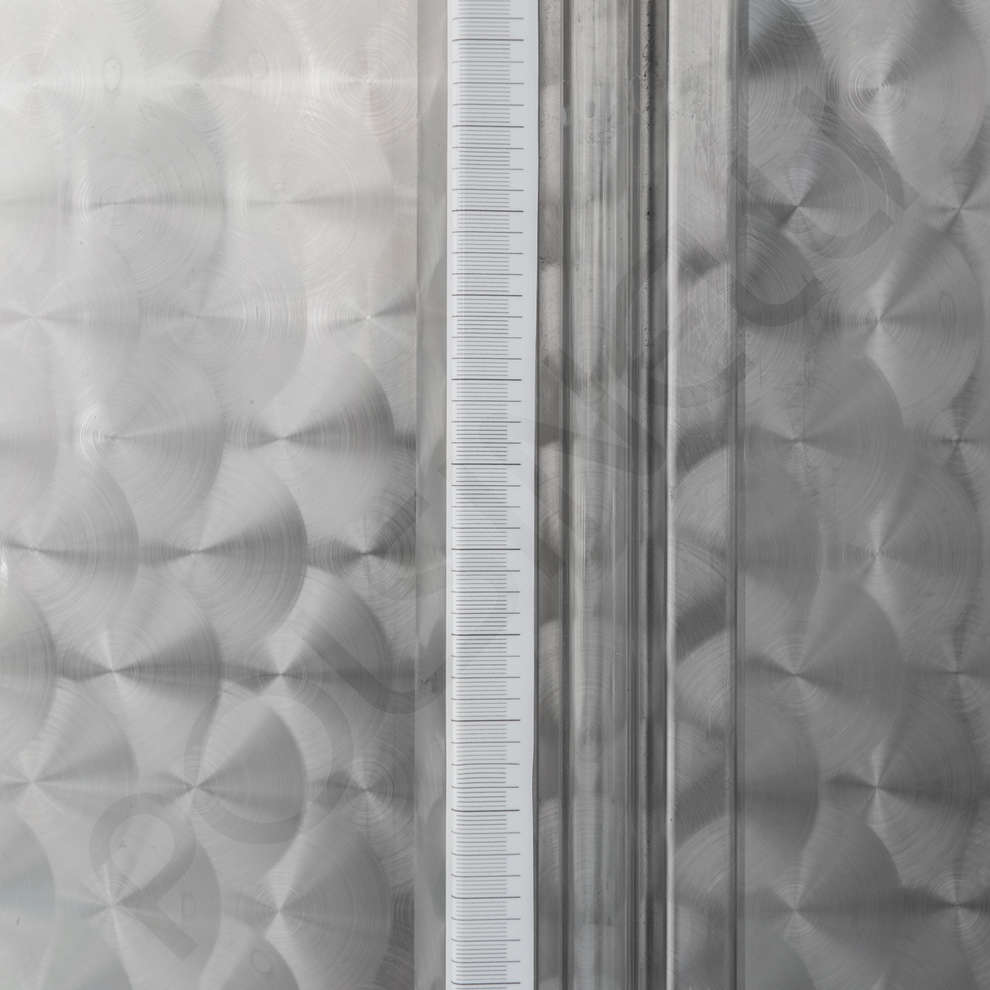

• Level indicator with stainless steel protection
• Internal finish: mirror polished for an easy clean and sanitization
• External finish: flower embossing with satin weldings

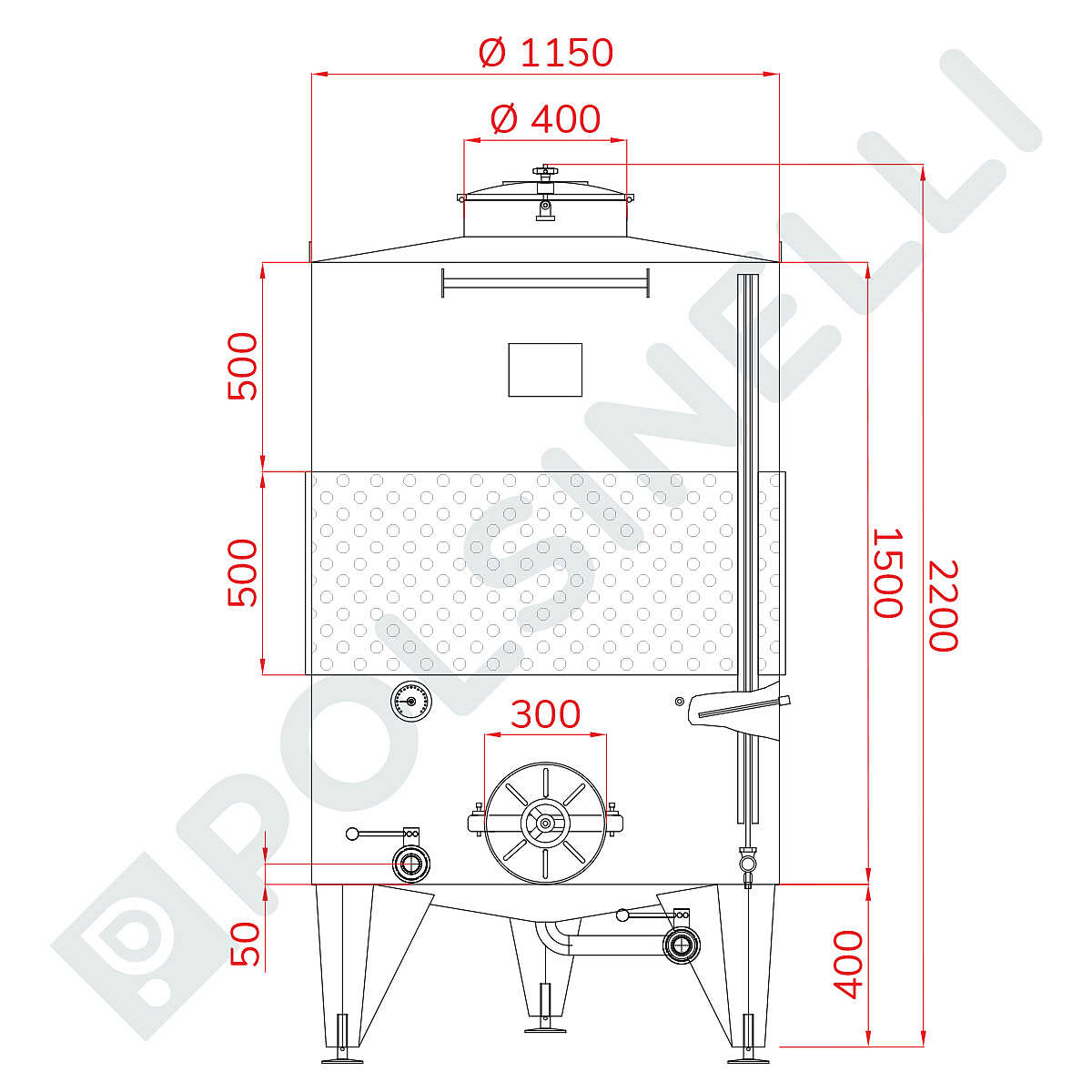

Dimensions:

• Diameter 1150 mm
• Cap diameter: 300 mm
• Shell height: 1500 mm
• Feet height: 400 mm
• Cap height: 300 mm
• Total height with feet, shell and cap: 2200 mm

Thickness:

• Walls: 2 mm
• Bottom: 1,5 mm
