Refrigerated Storage with Conical Bottom 1000 L with Ø300 Manhole
Beschreibung

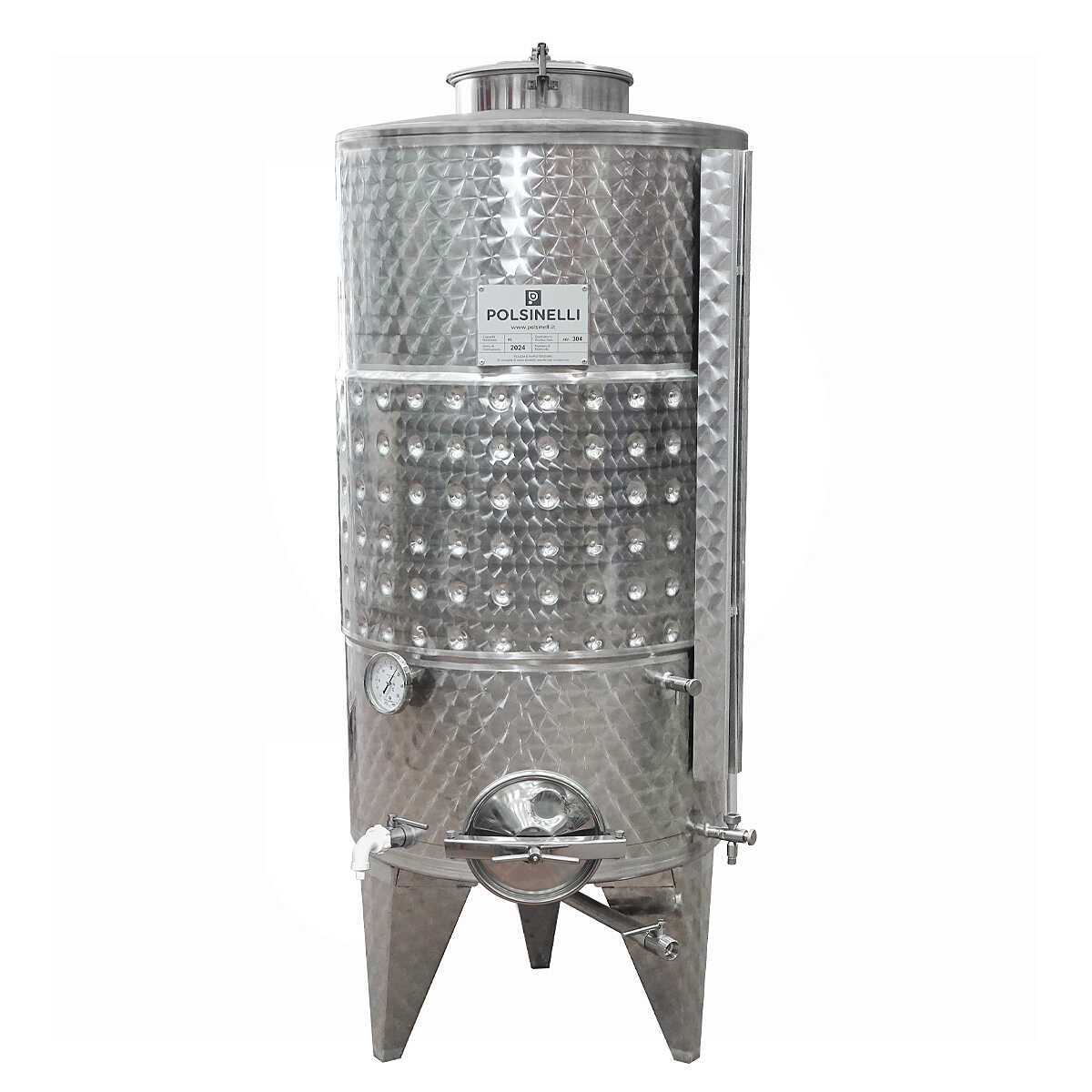

Refrigerated Storage with conical bottom 1000 L with manhole Ø 300
The stainless steel 1000 lt. tank with the conical bottom is a high-quality tank for storage and fermentation of wine and beer, thanks to its refrigerating system it’s possible to check exactly the liquid temperature. This product is characterized by a strong casing in stainless steel AISI 304, ideal to respect wine and beer organoleptic properties, and from a conical bottom tilted by 10° with reinforcements, easy to clean and to sanitize.
The stainless steel 1000 lt. tank with the conical bottom is equipped with an upper anti-retention manhole 400mm, vent valve and wine tasting tap. The round manhole, with 300 diameter, allows to easily empty the tank. The cooling jacket and the analogical thermometer with stainless steel probe holder ensure to check the inner temperature. The level indicator points to the liquid content. The stainless steel 1000 lt. tank with conical bottom has a total height of 2200mm and a diameter of 930mm. The walls and the bottom are respectively 2 mm and 1,5 mm thick.
Characteristics:
- Material: stainless steel AISI 304
- Capacity: 1000 L

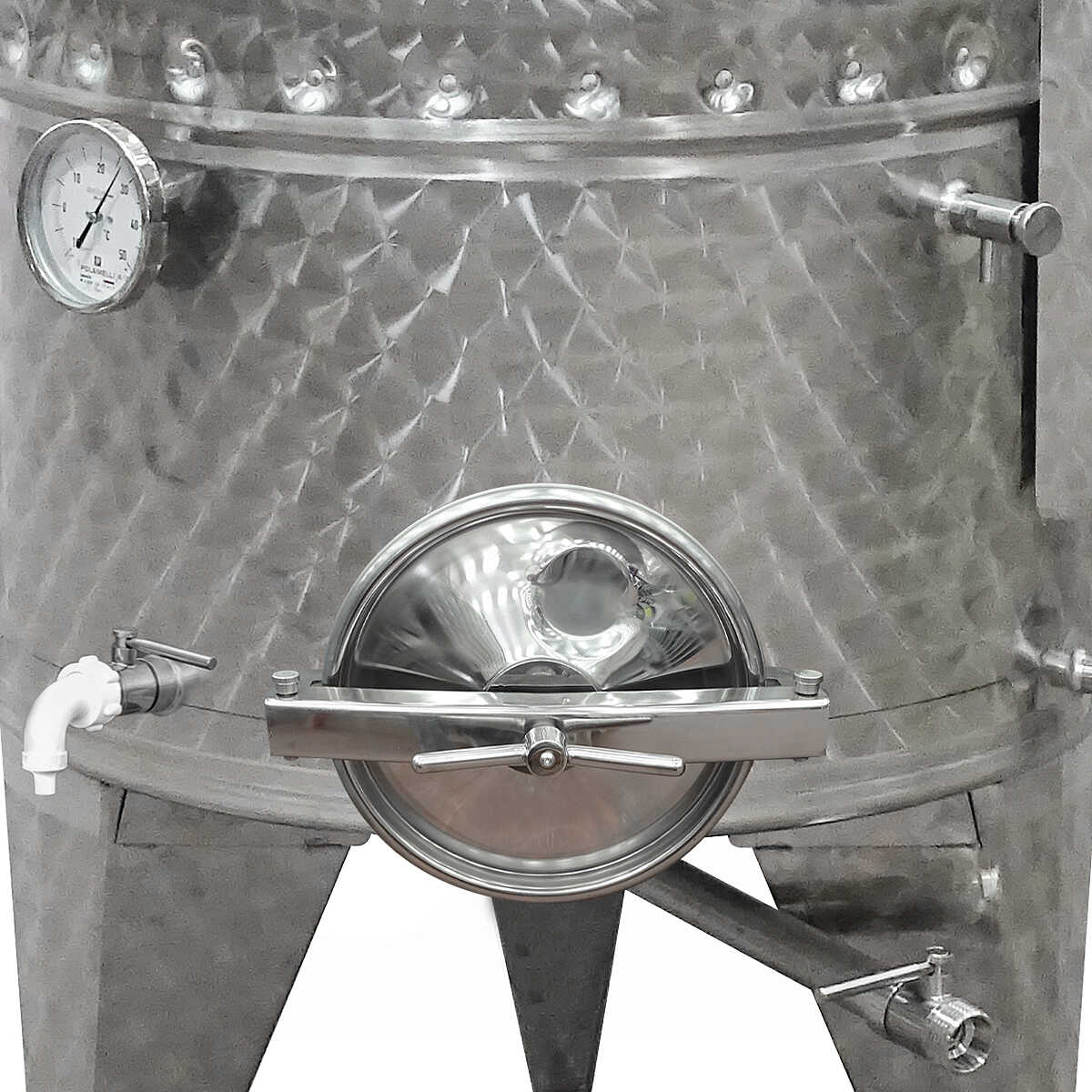

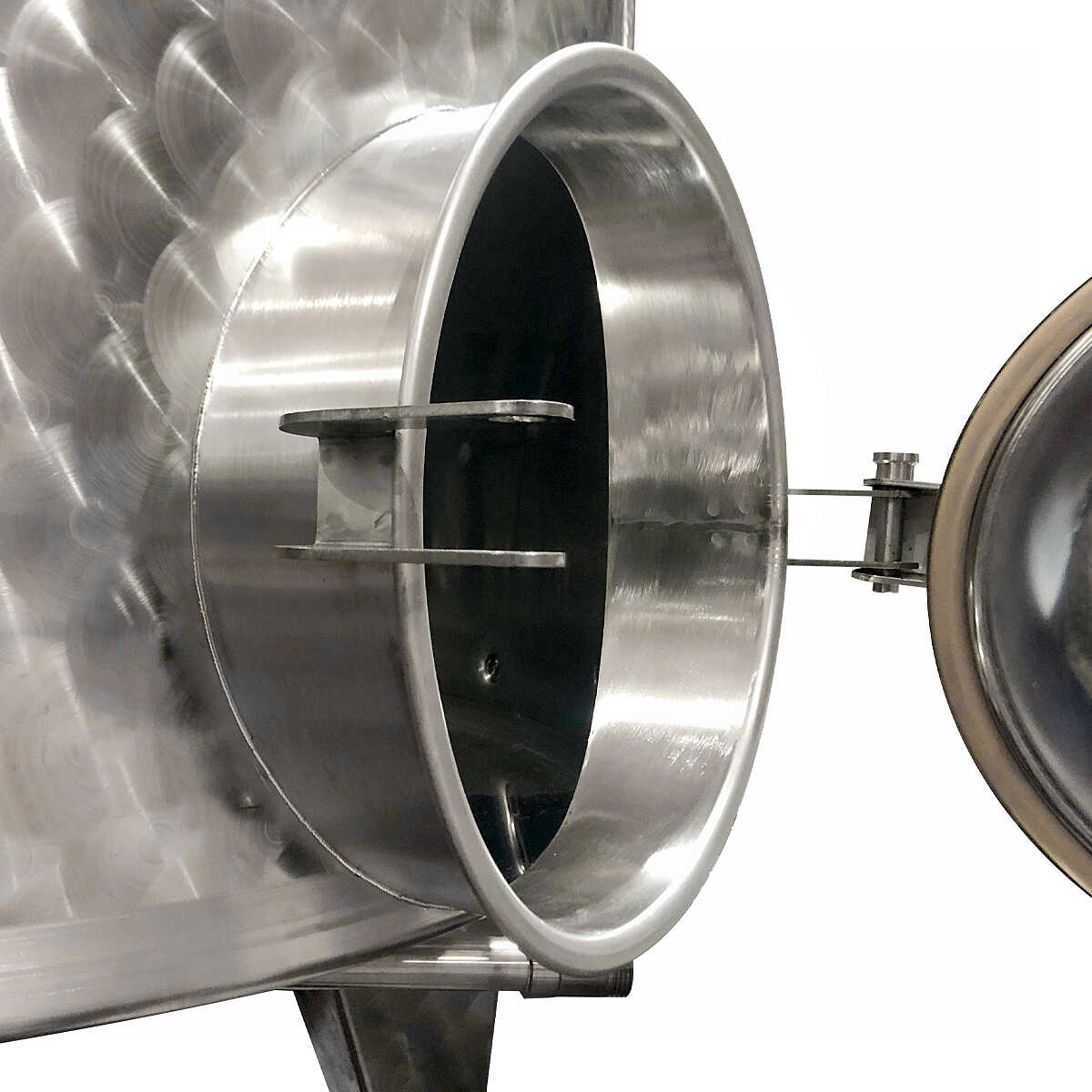

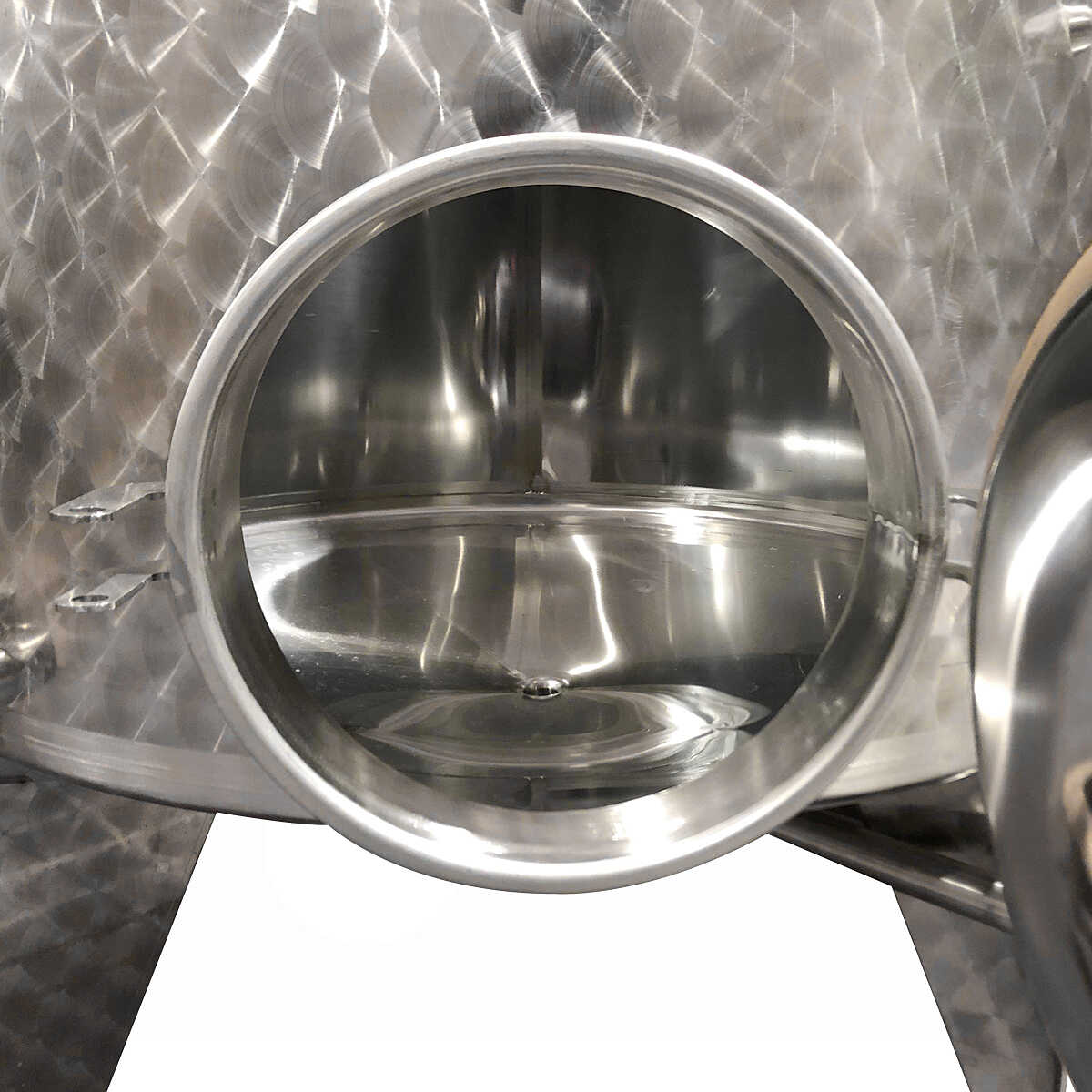

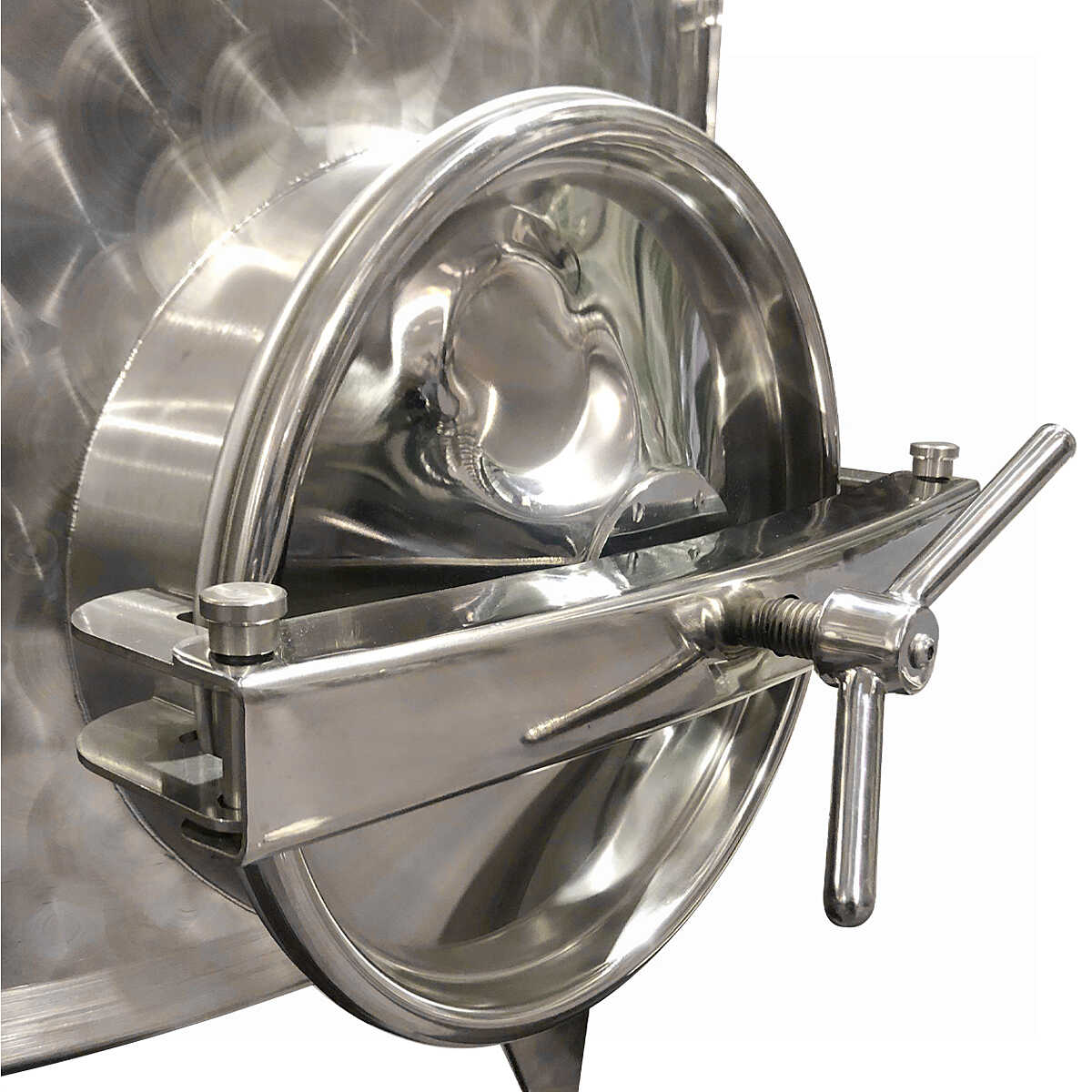

- Round manhole 300 placed flush bottom for easy emptying of the marc
- Internal finishes: mirror polished for easy cleaning and sanitising
- External finishes: flamed, with satin welds
- Conical bottom 10° with reinforcements

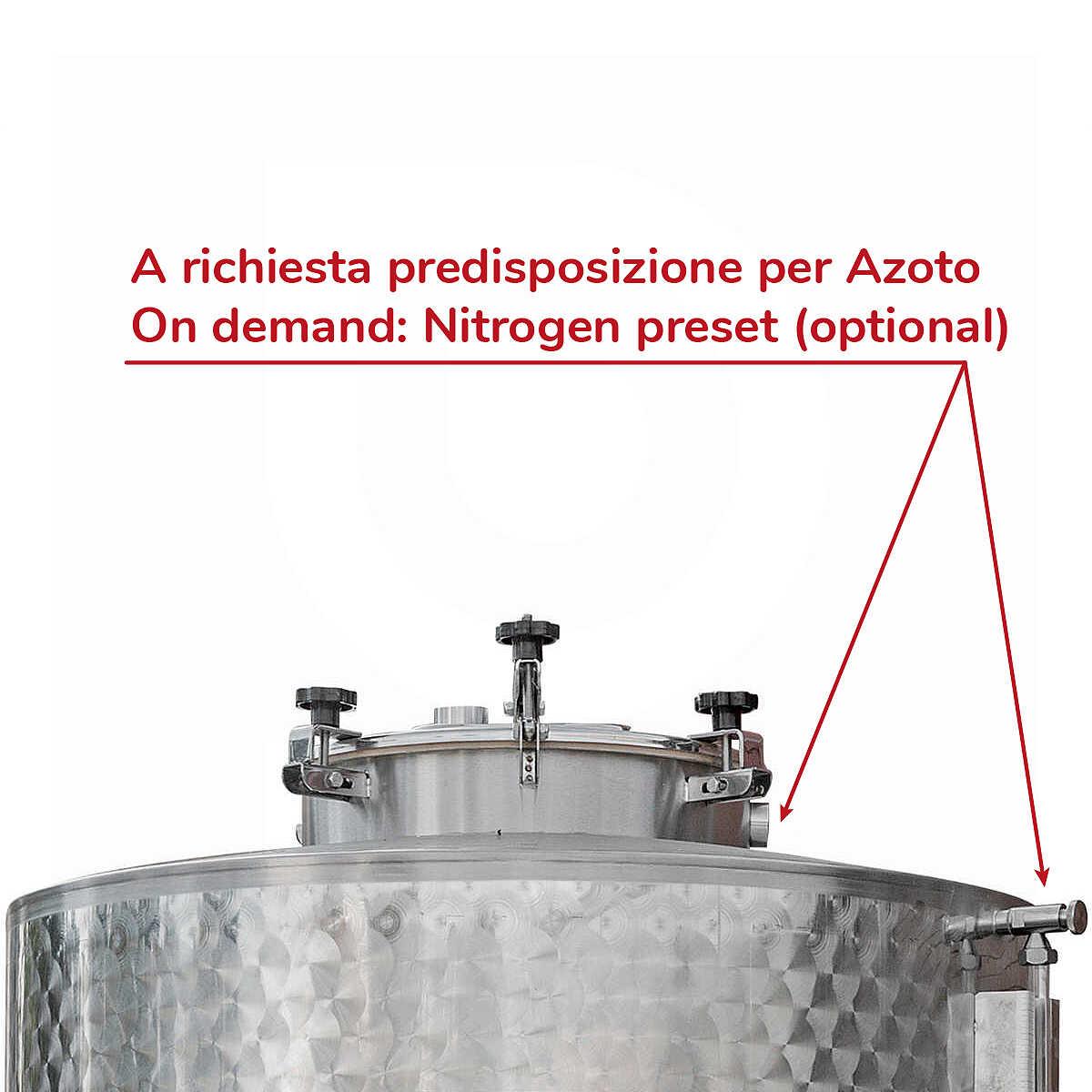

- 400 mm anti-retention top manhole cover
- 10° conical roof

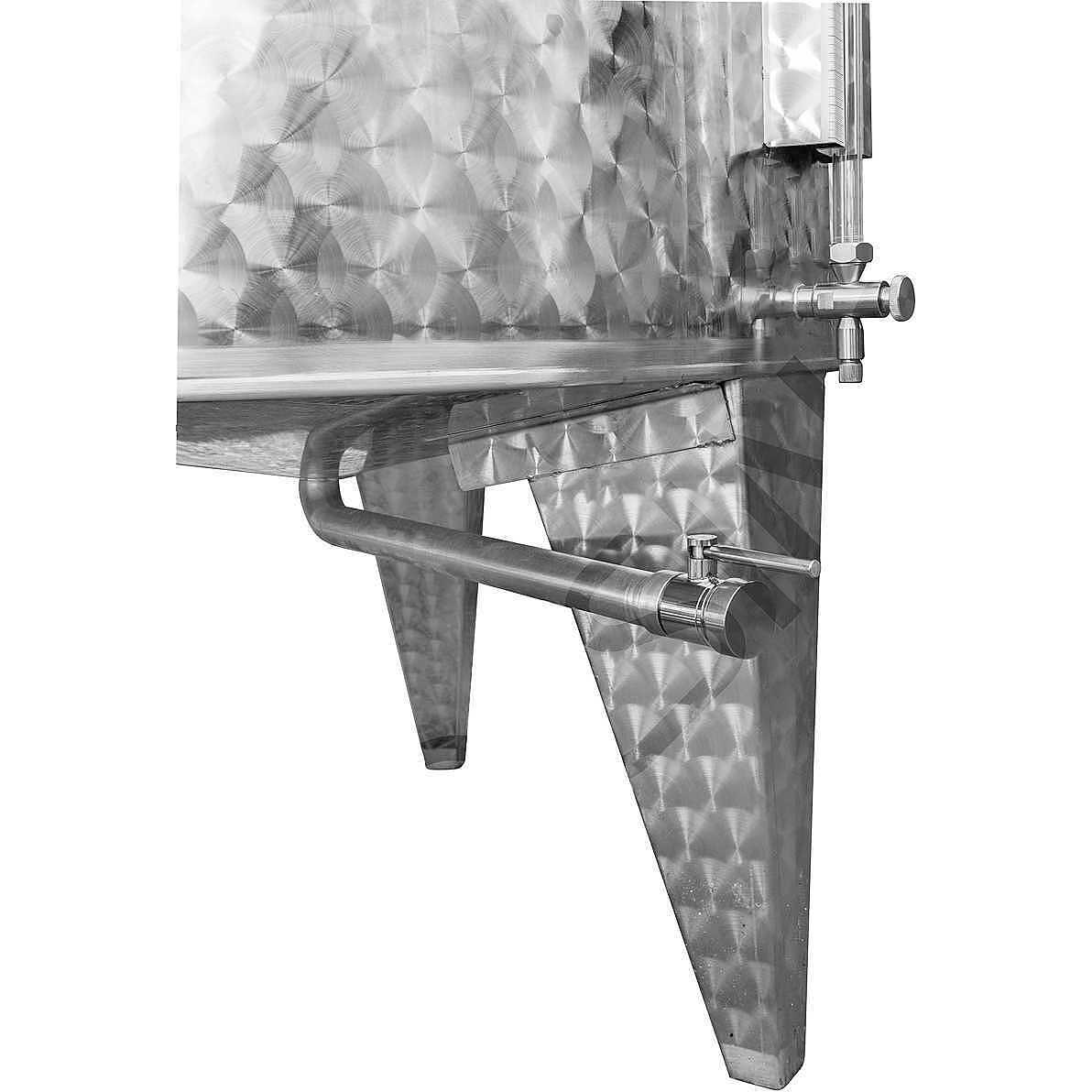

- Total discharge with stainless steel valve 1" x ENO 30

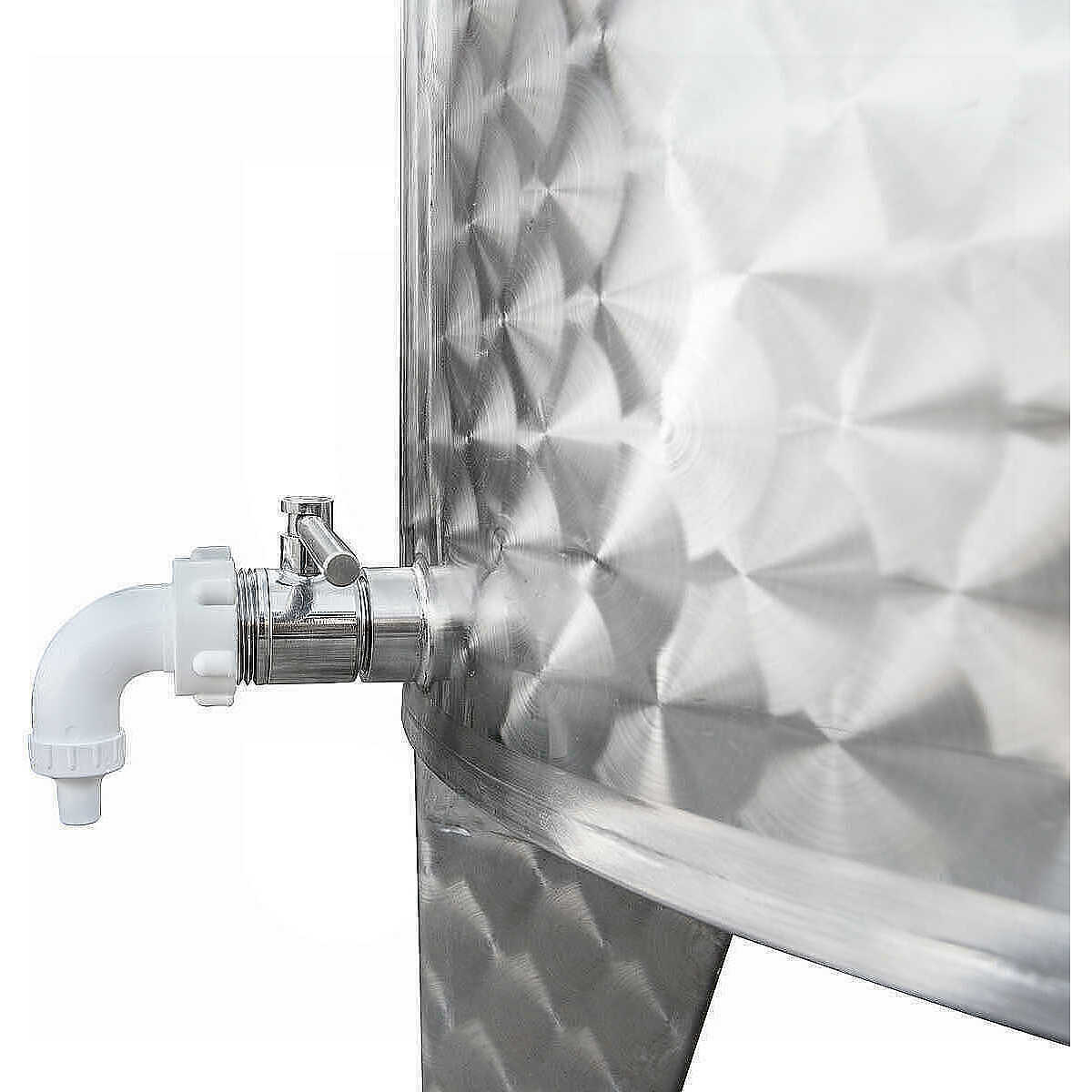

- Partial discharge with stainless steel valve and plastic elbow 1" x ENO 30
- 3 stainless steel feet
- Double-acting plastic vent valve

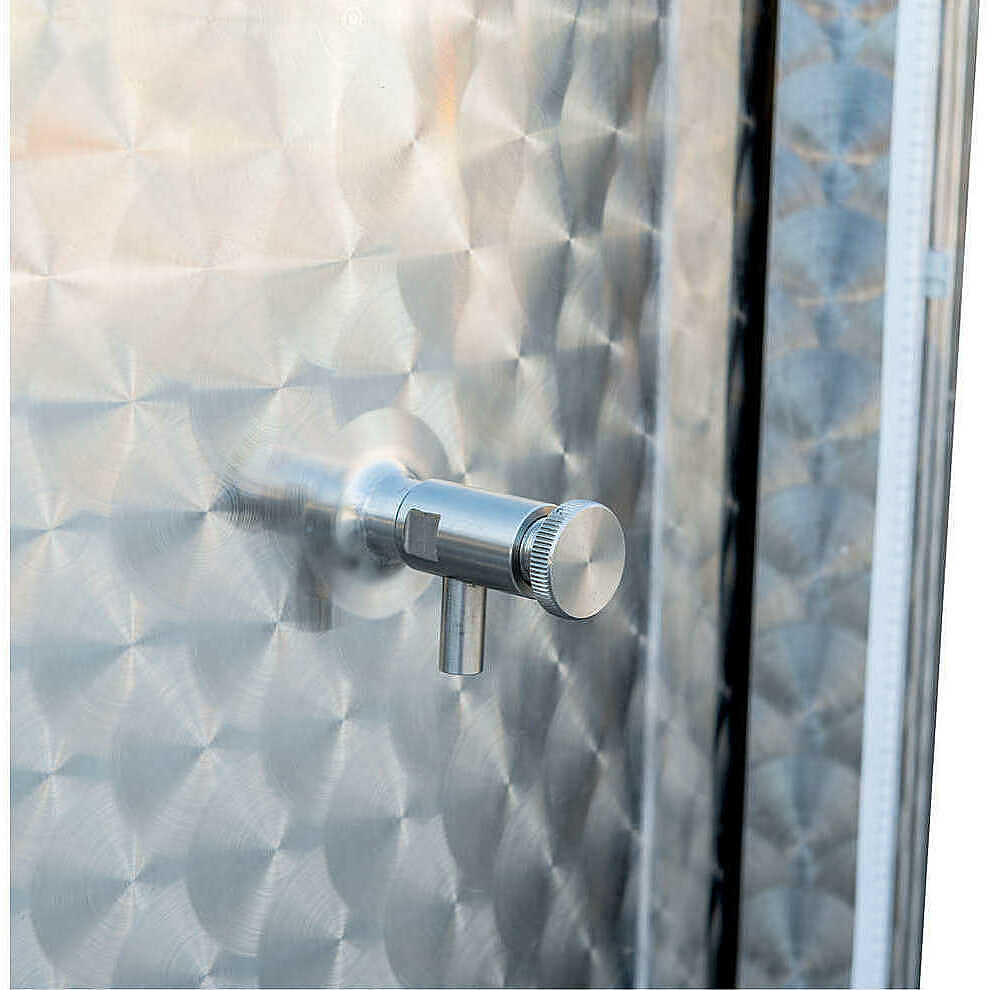

- Stainless steel wine taster

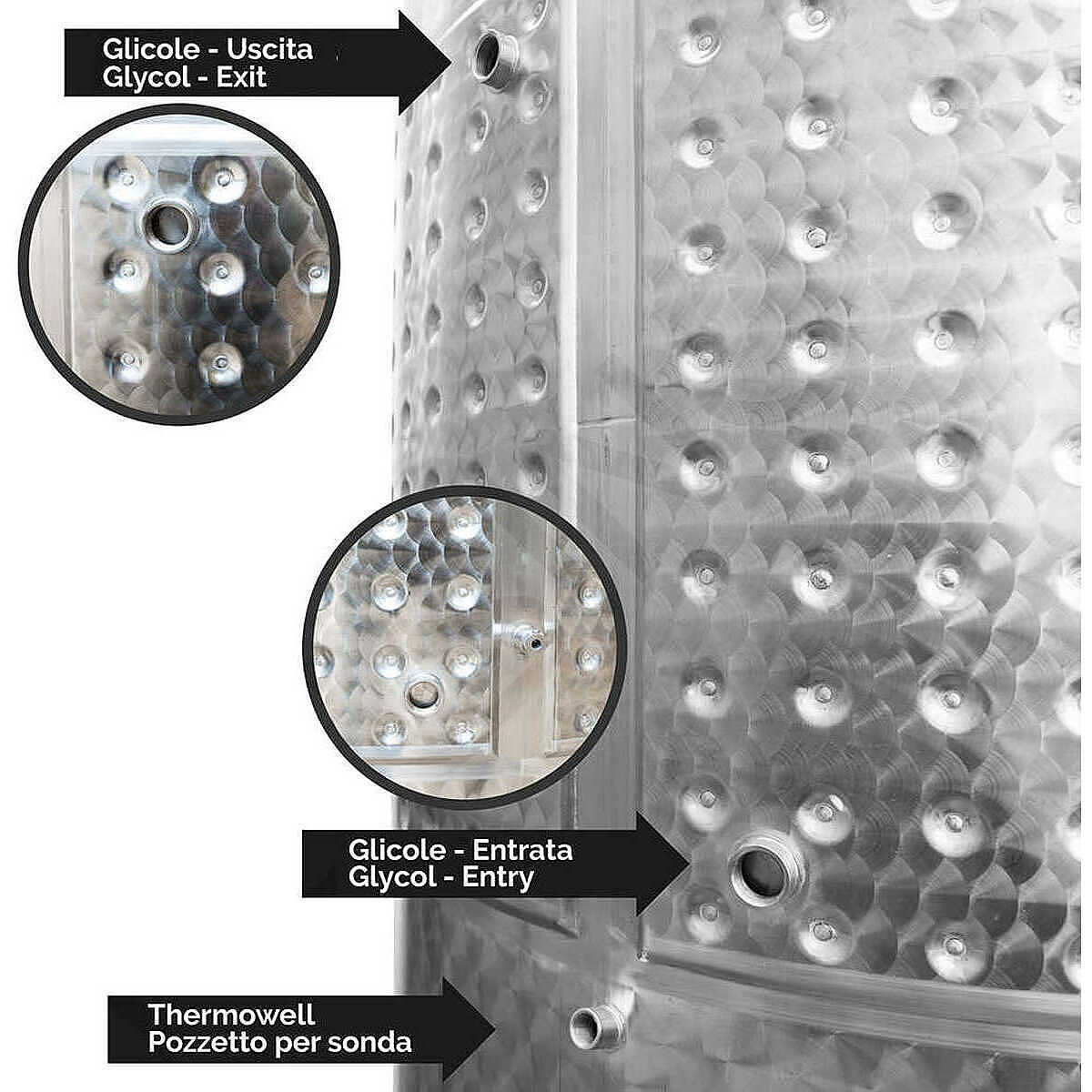

- Cooling jacket of height 500 mm with 1” connections for inlet and outlet of refrigerating liquid

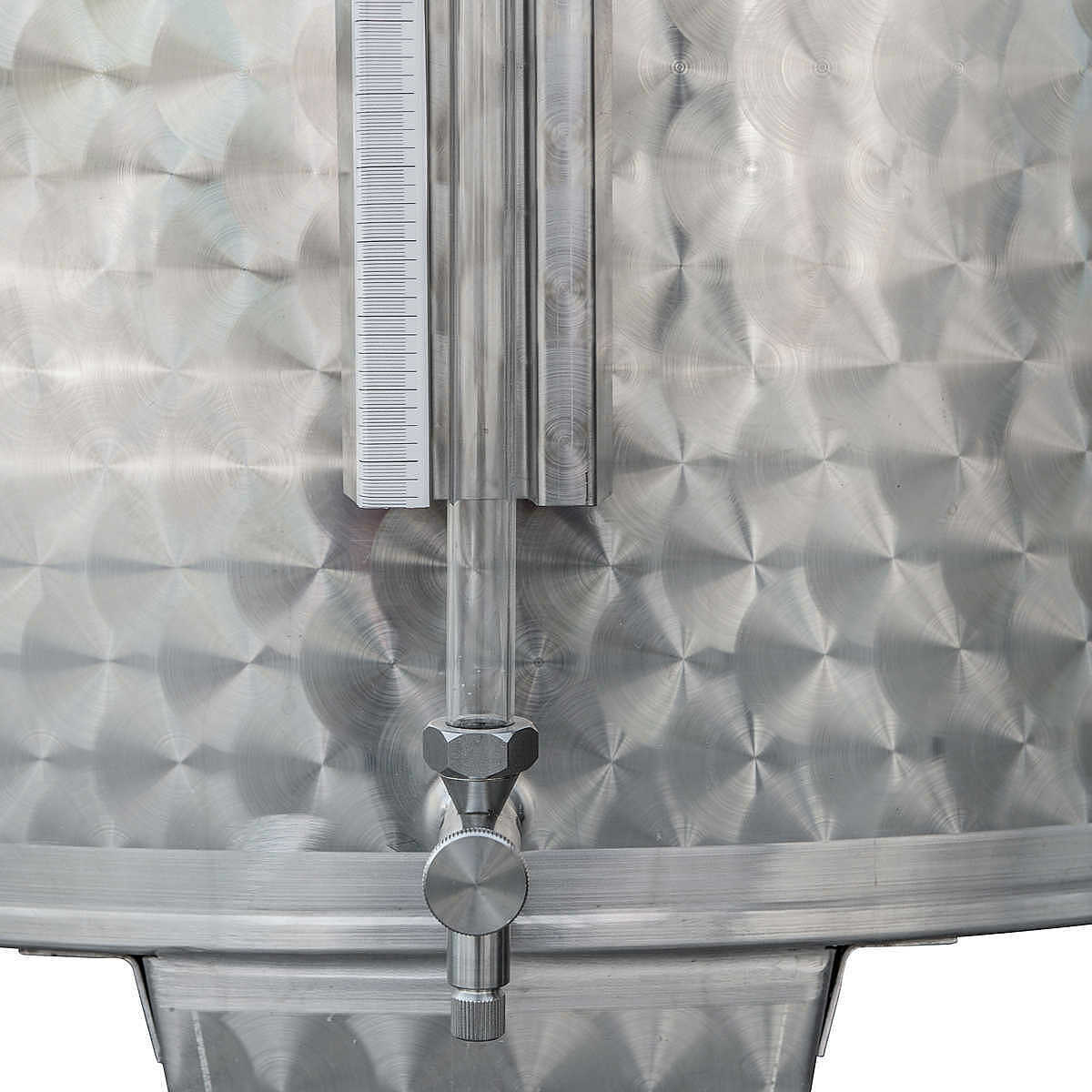

- Level indicator with stainless steel protection

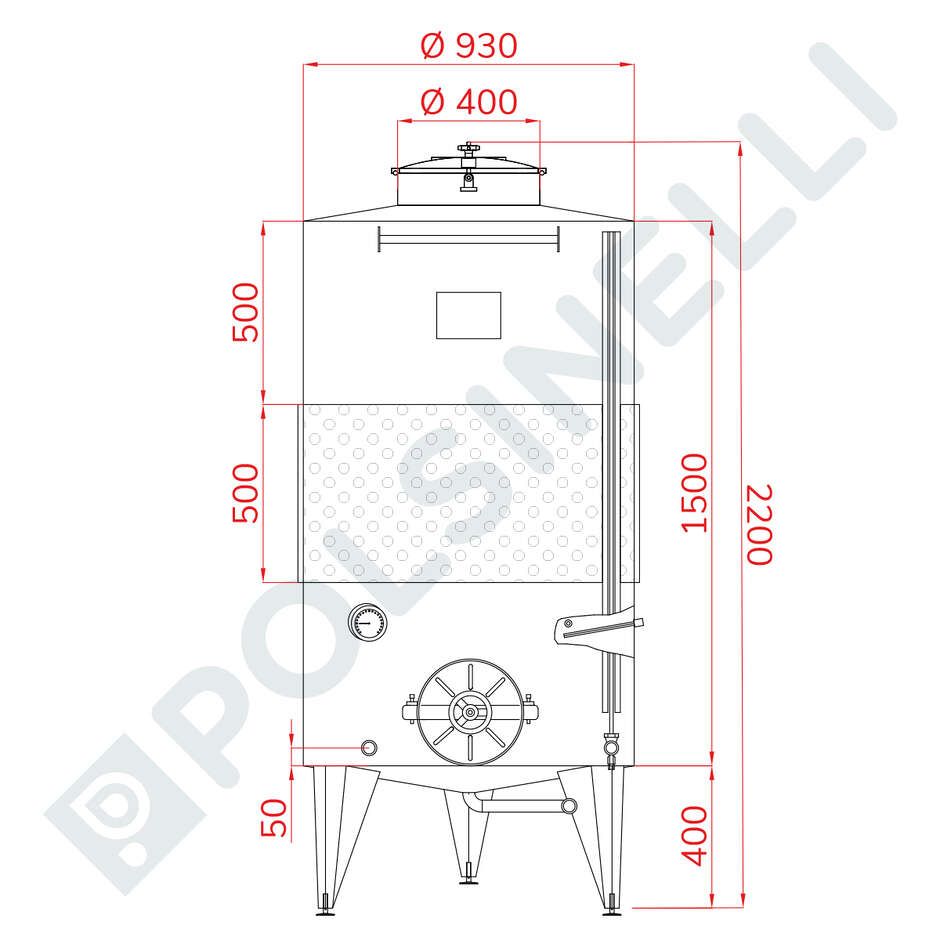

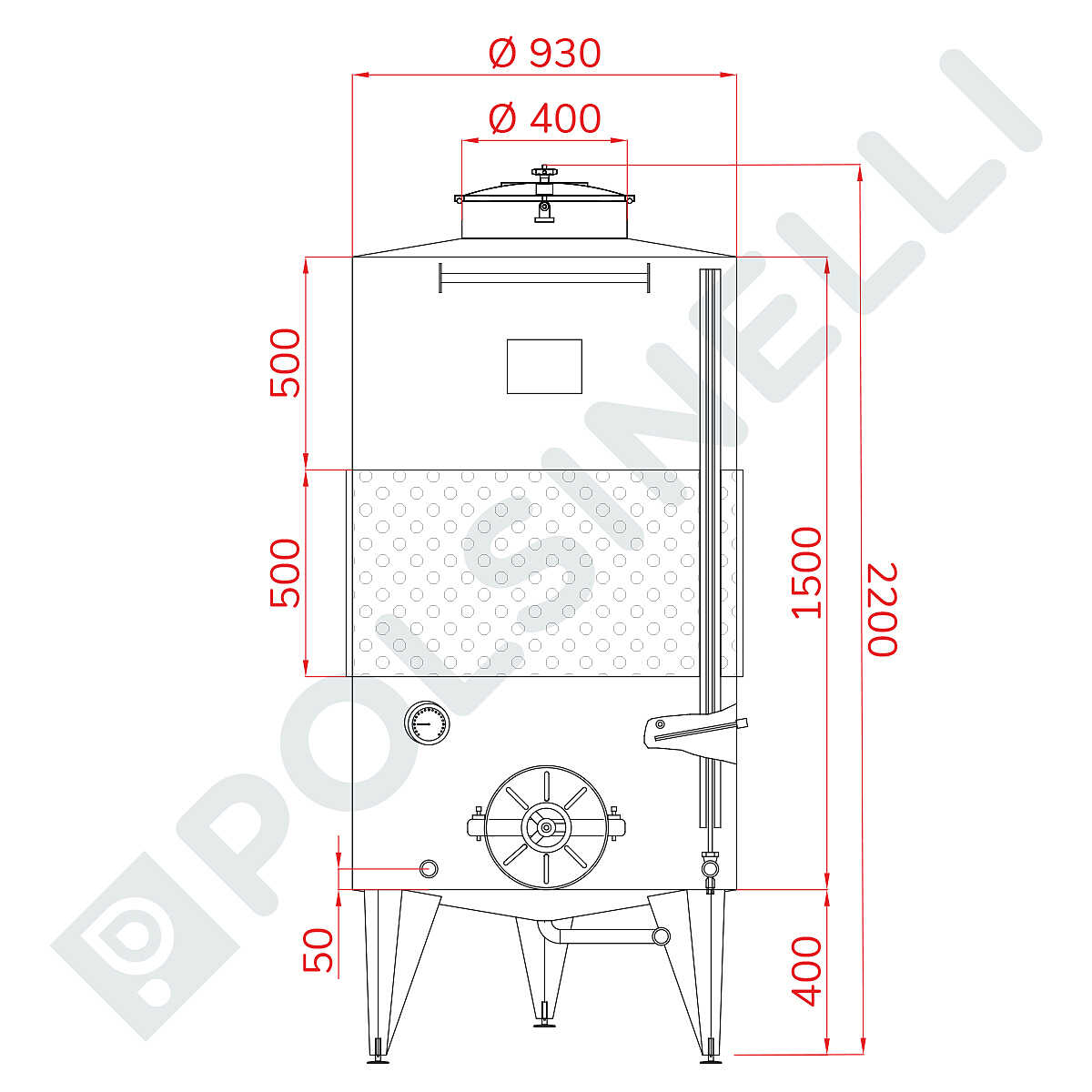

Dimensions:
- Diameter: 930 mm
- Roof: 300 mm
- Door diameter: 300 mm
- Wing height: 1500 mm
- Foot height: 400 mm
- Total height with feet, sash and roof: 2200 mm
Thickness:
- Walls: 2 mm
- Bottom: 1.5 mm
