Motorized stainless steel tank 60° conical trunk 150 L with Inverter
Descrizione

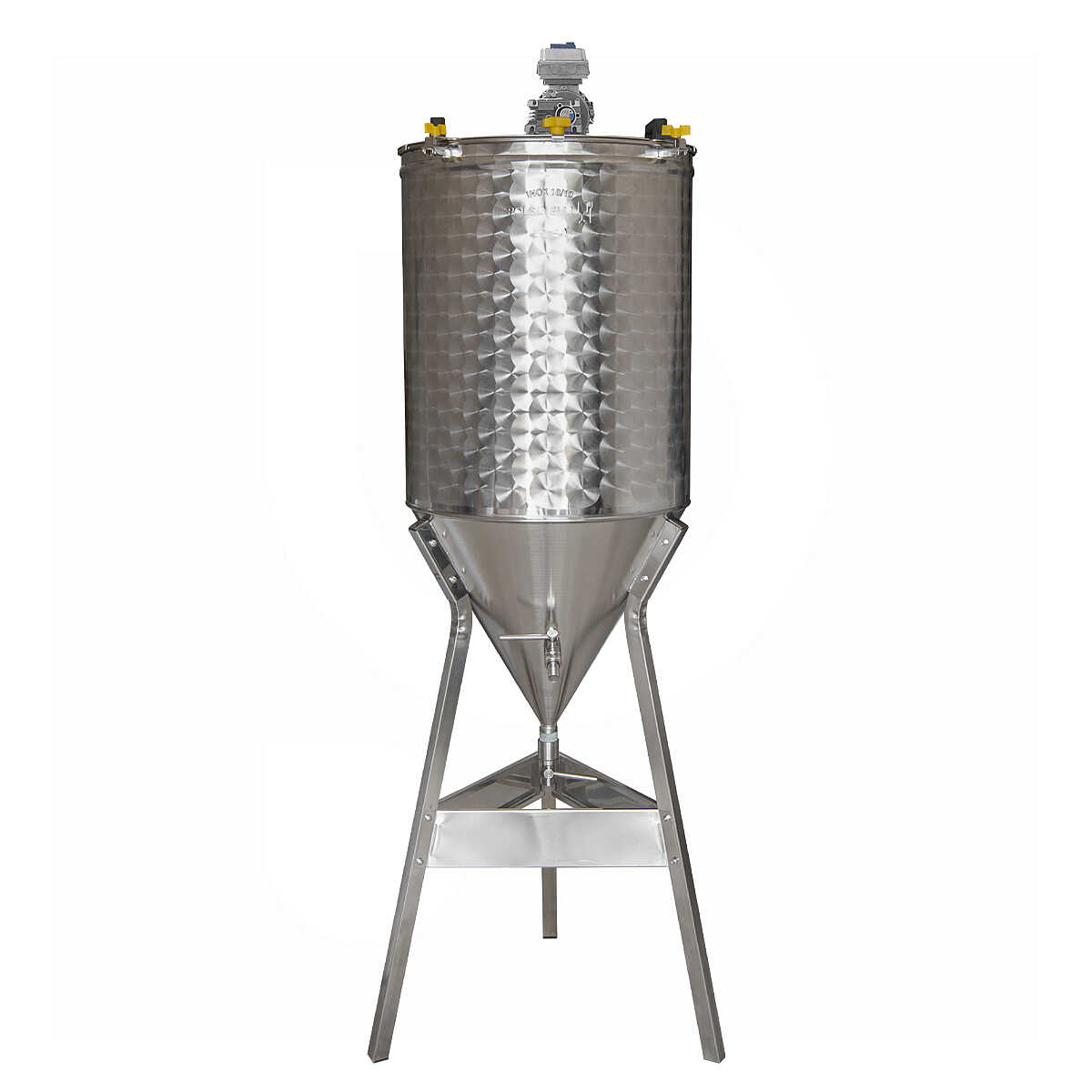

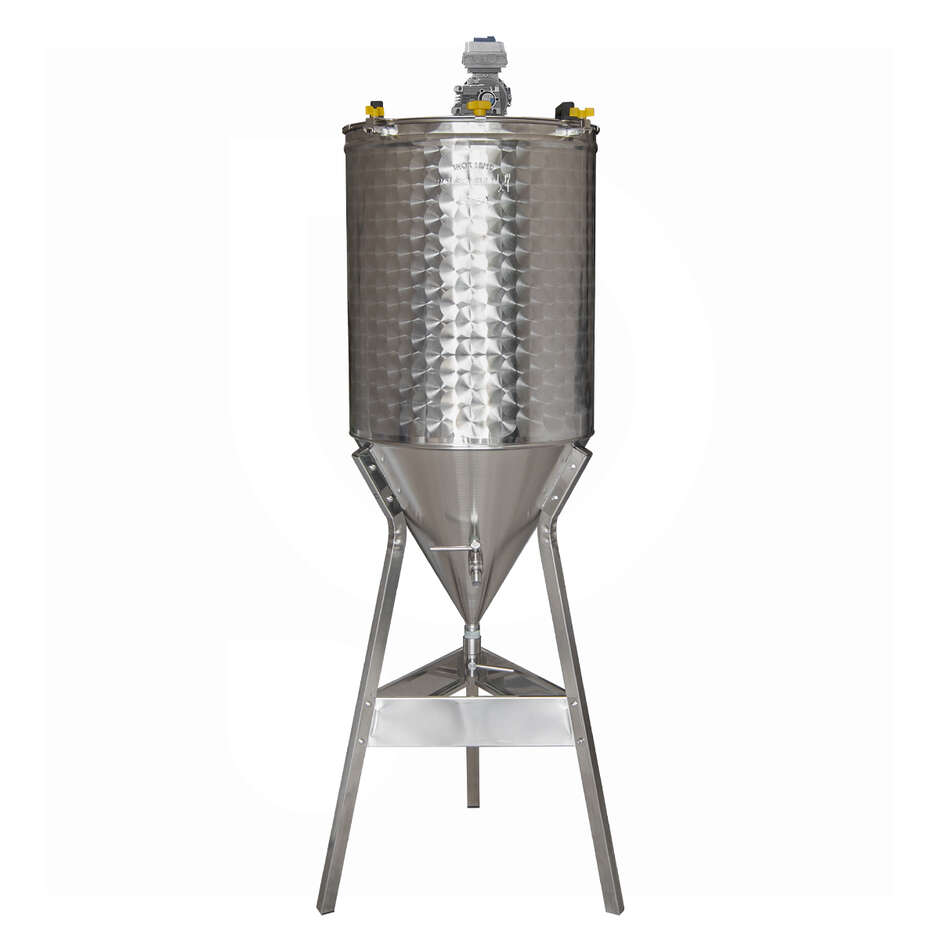

Motorized stainless steel tank 60° conical trunk 150 L with Inverter

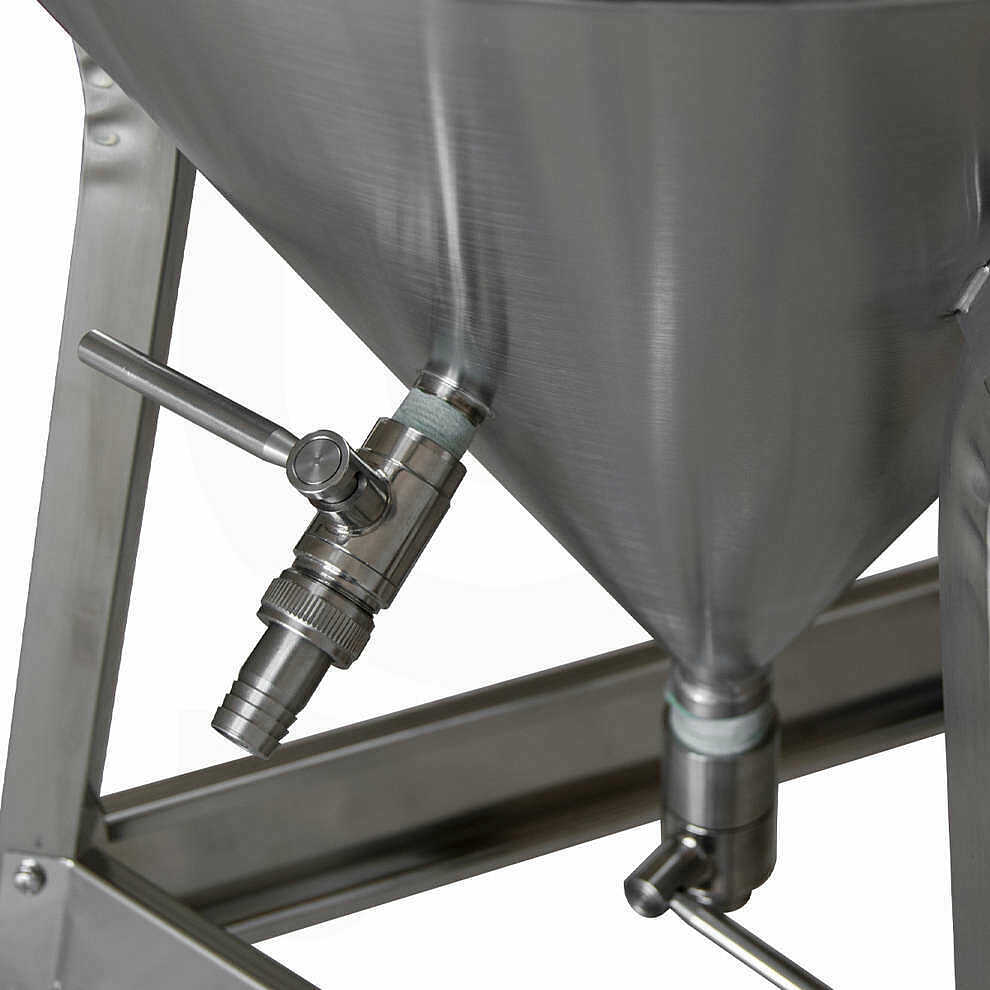

With the 150 L motorised 60° conical stainless steel tank you can easily mix your liquids. Made of Aisi 304 stainless steel (18/10 for foodstuffs), it complies with all food safety regulations. The 150 litre motor-driven 60° conical stainless steel tank is equipped with a thick stainless steel lid reinforced with stainless steel hooks, a motor and gearmotor with an inverter that allows speed regulation from 6 to 42 rpm, and rotation direction can be reversed via a convenient digital control display and mixing blades. It is also equipped with two stainless steel ball valves, one 1" for total discharge and the other 1/2" raised from the bottom, for drawing off the liquid without sediment.

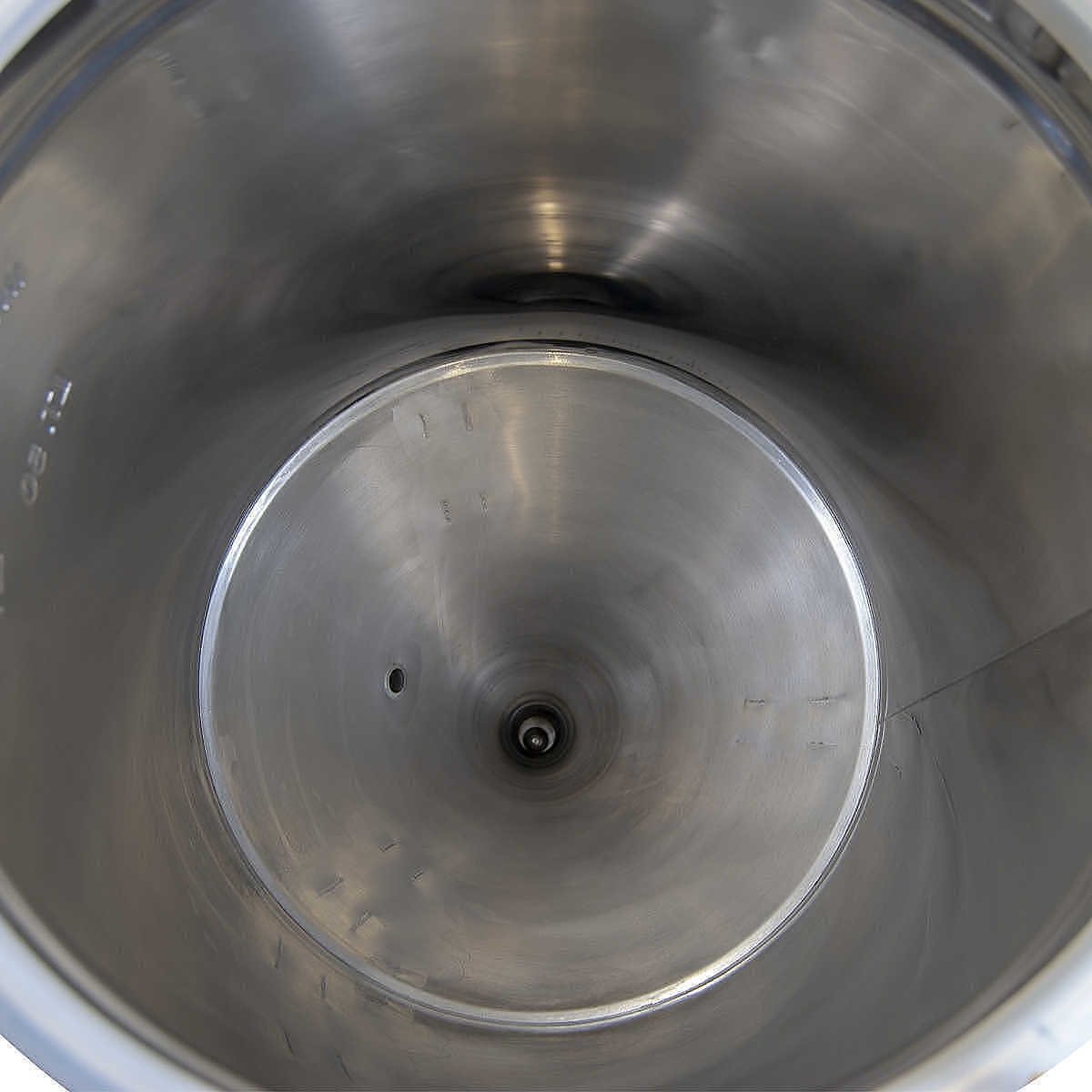

The 60° conical trunk facilitates the extraction of sediment that settles at the bottom of the cone, allowing for greater cleaning. TIG welds facilitate cleaning and sanitising operations thanks to the mirror-polished interior. Excellent stability thanks to the integrated pedestal.
Characteristics:
- Material: Stainless steel 18/10 (AISI 304)
- High-thickness stainless steel lid reinforced with stainless steel hooks

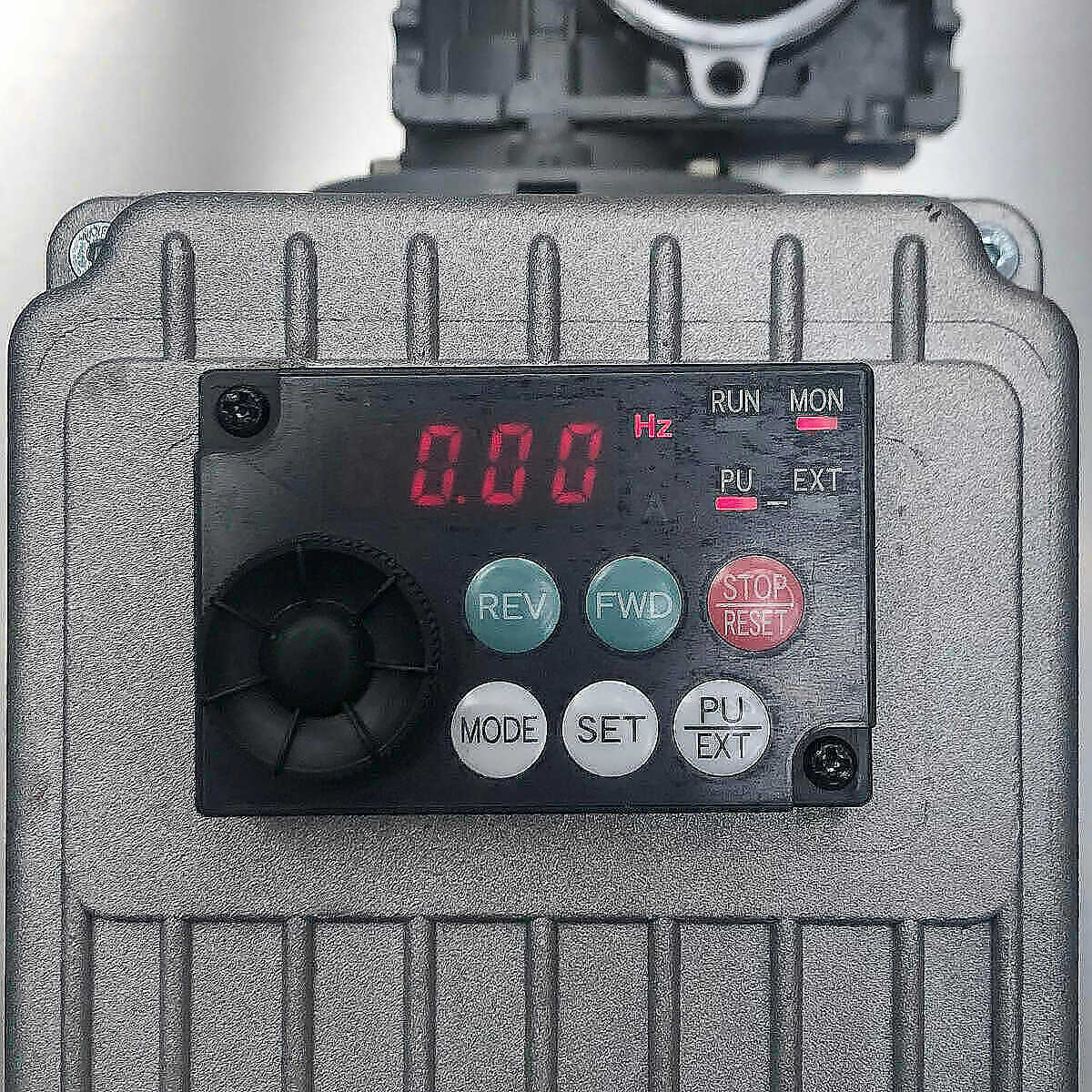

- Single-phase 220 Volt motor with display
- Power absorption: 0.18 kW

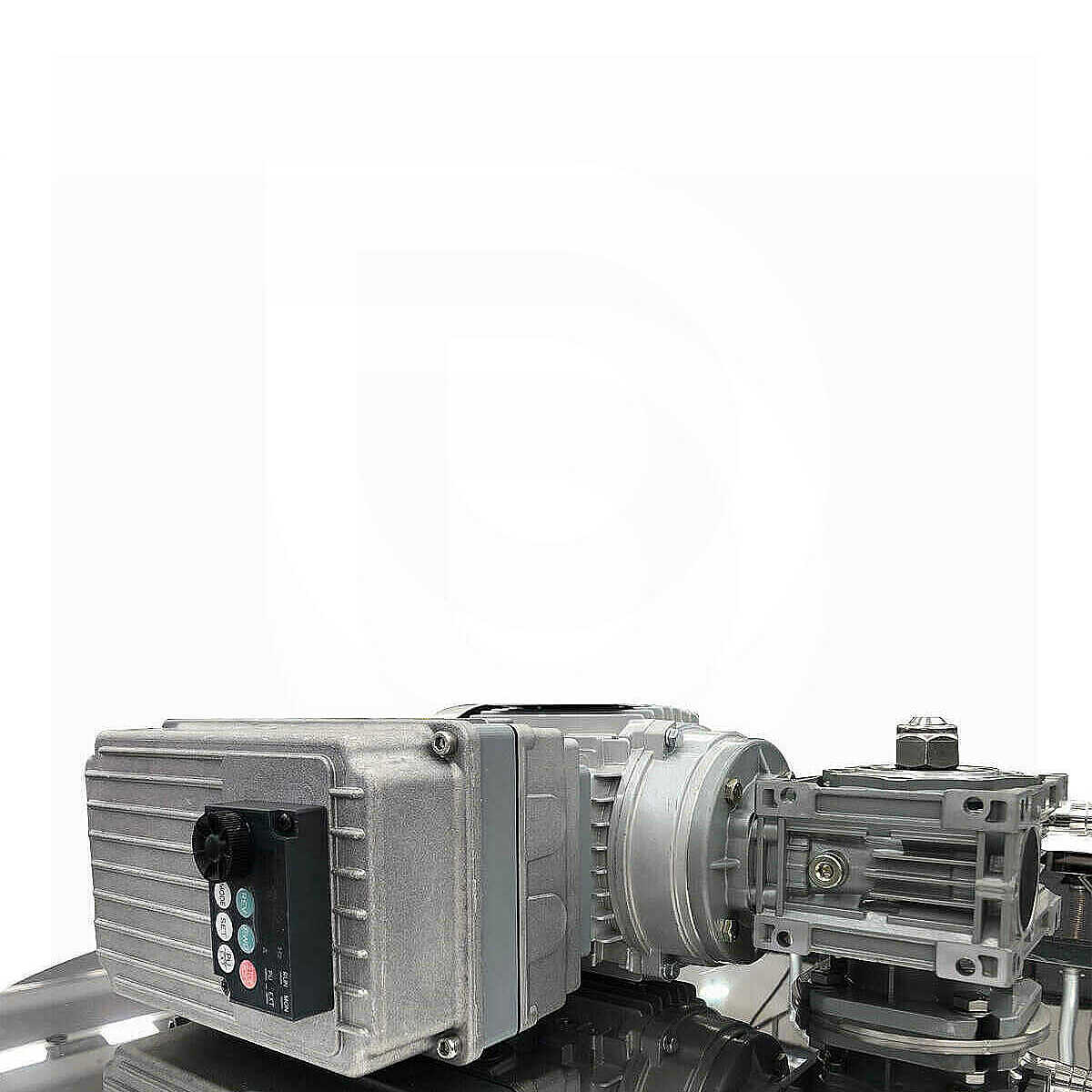

- Gear motor 1:50 with inverter: adjustable speed from 6 to 42 rpm

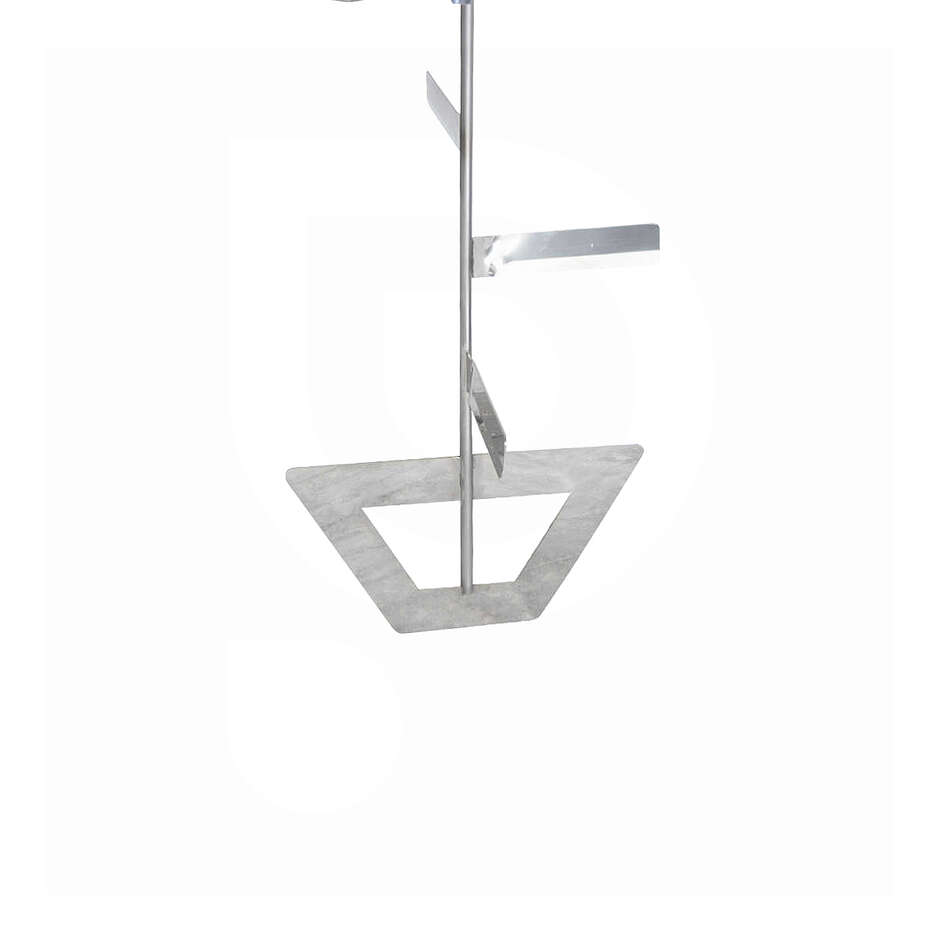

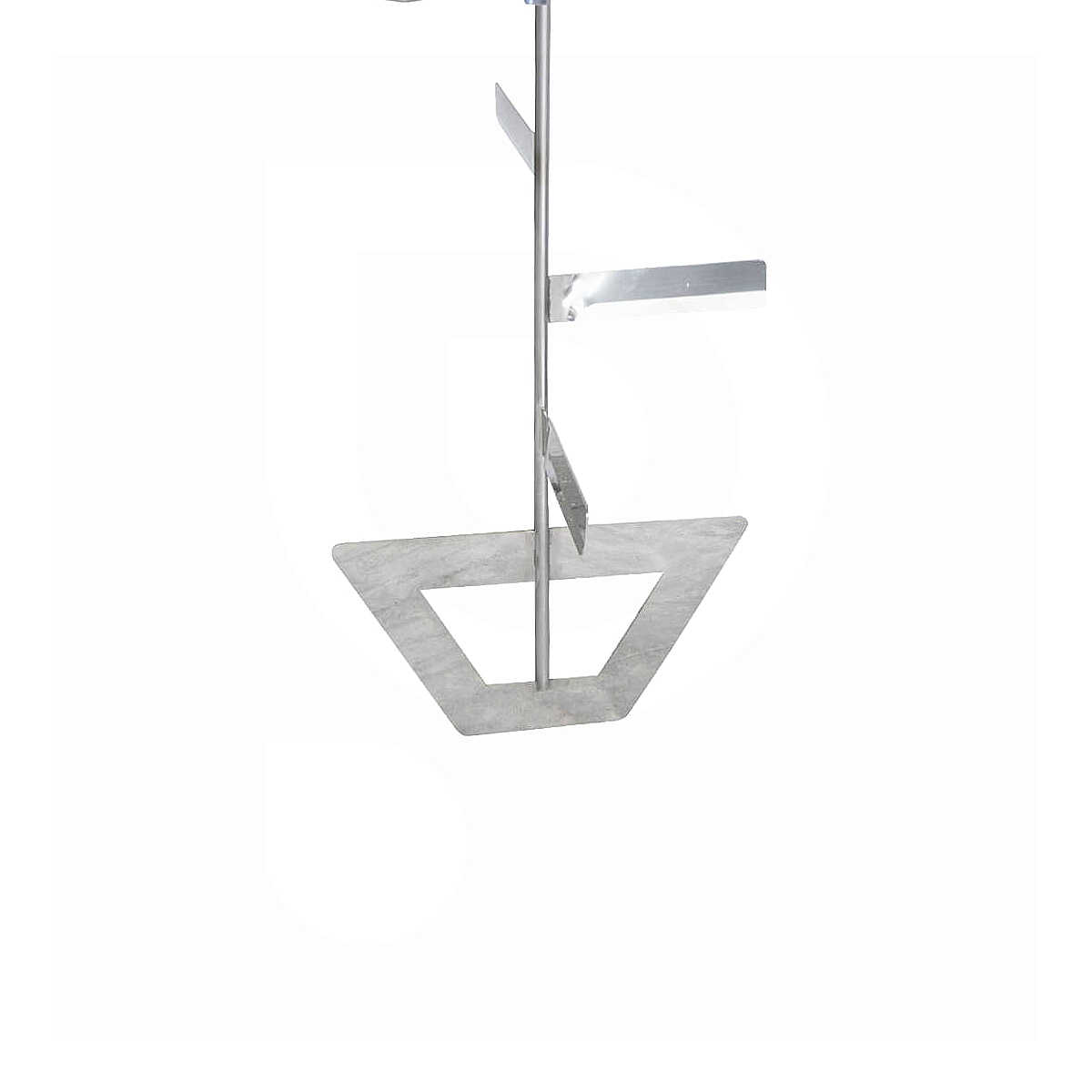

- Stainless steel mashing blades

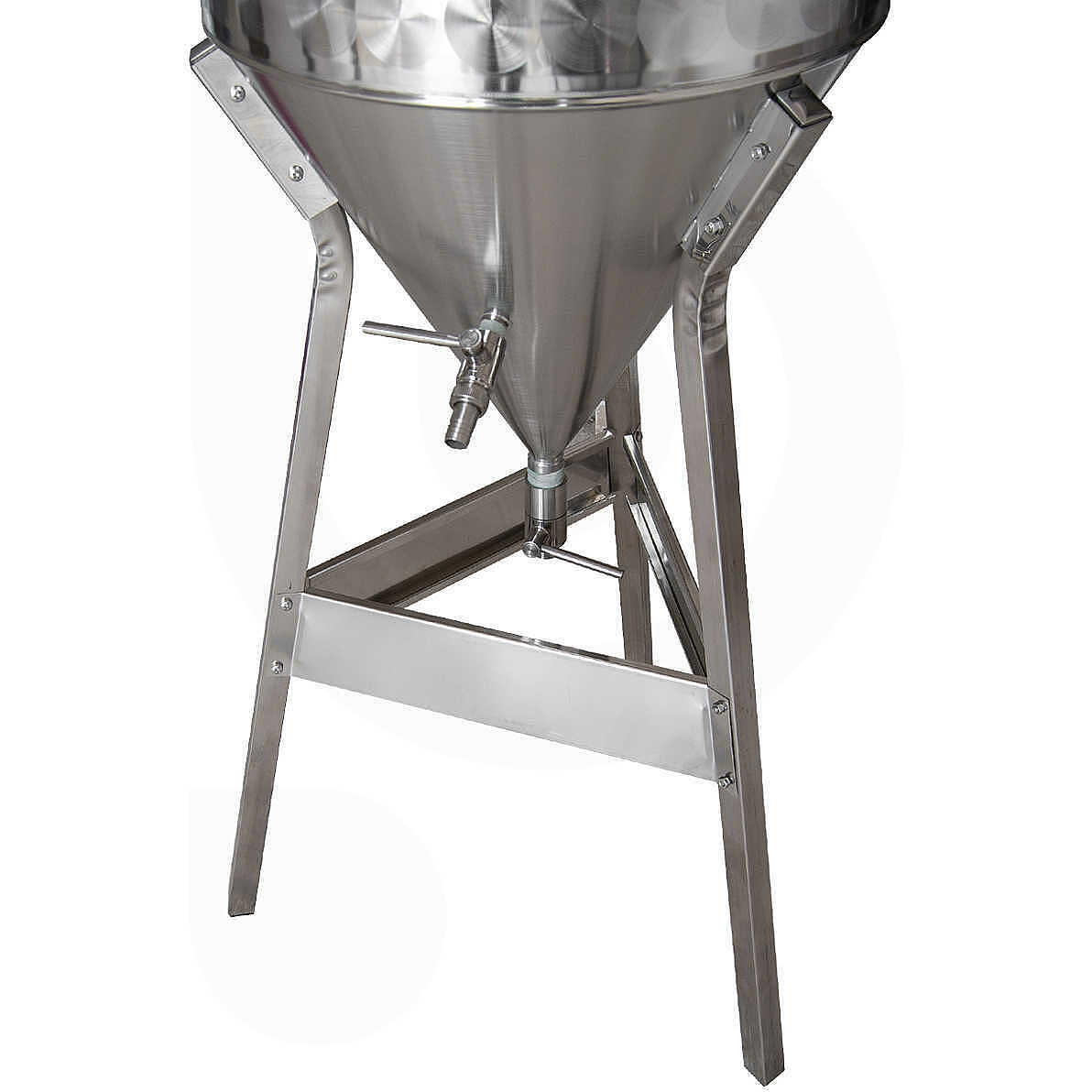

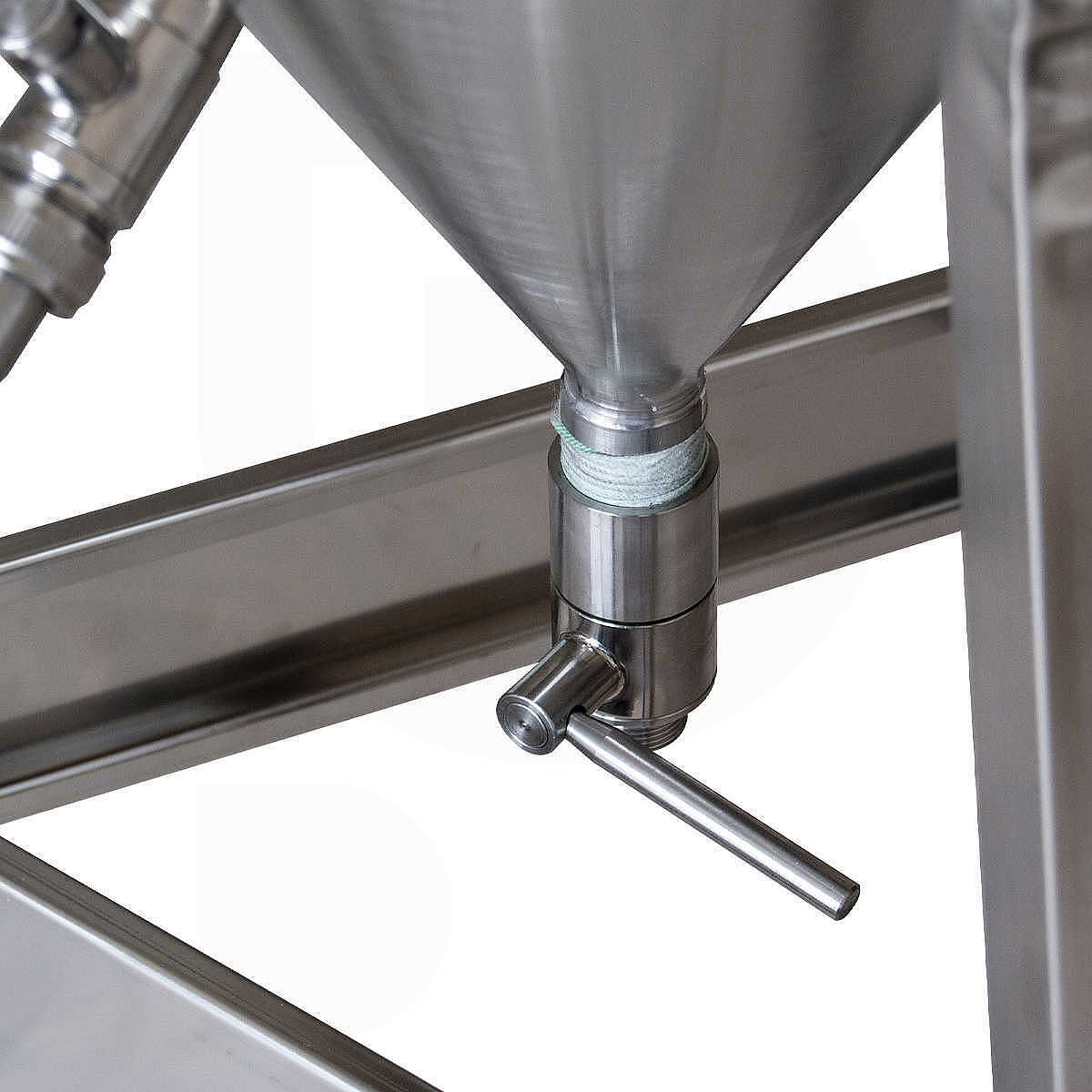

- 1" x 3/4" total discharge valve
- 1/2" x 3/4" withdrawal valve
- No. 1 3/4" x Ø 20 stainless steel hose connector with swivel connection
- External flowering
- 60° conical bottom
- Integrated pedestal
- Luminaire complies with CE safety standards

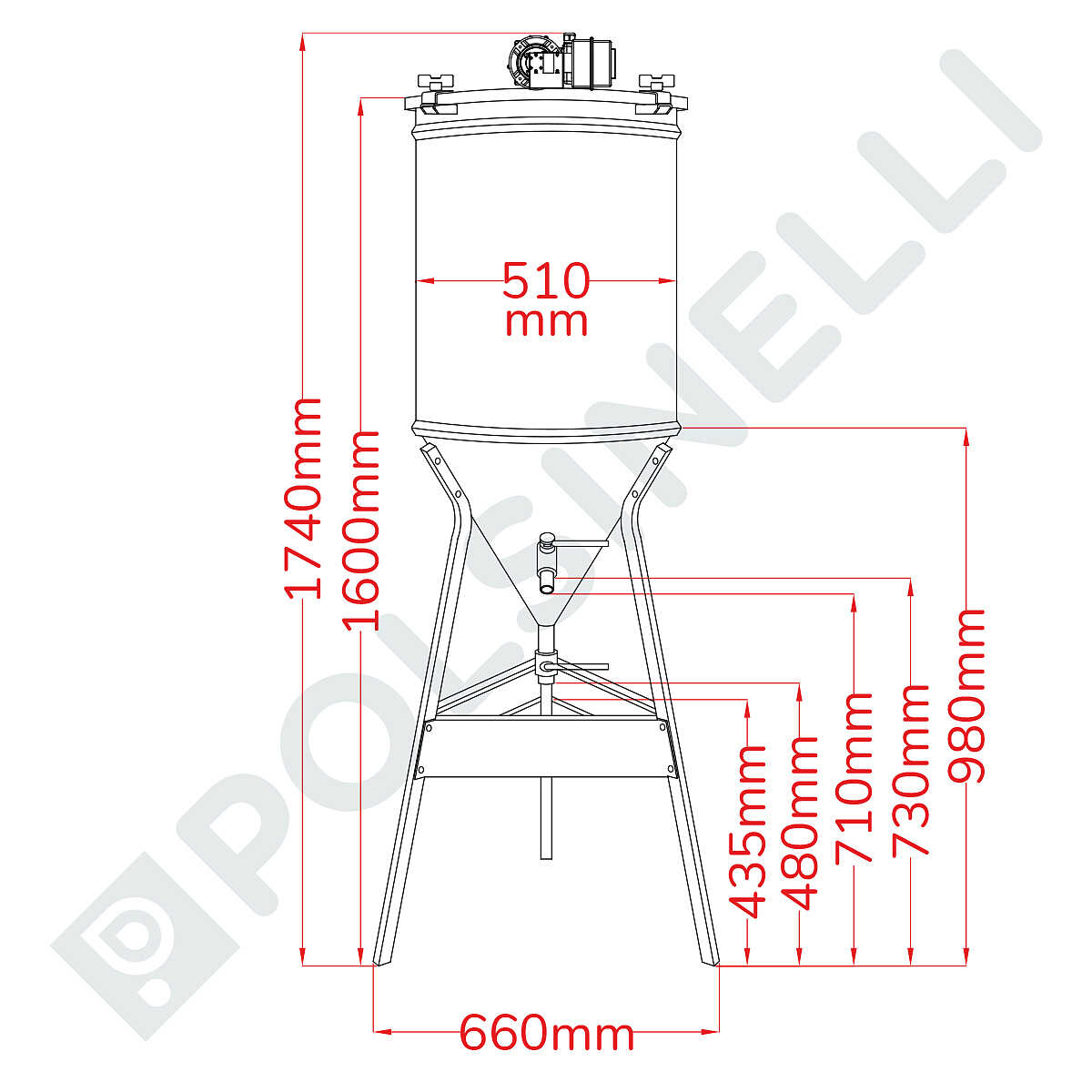

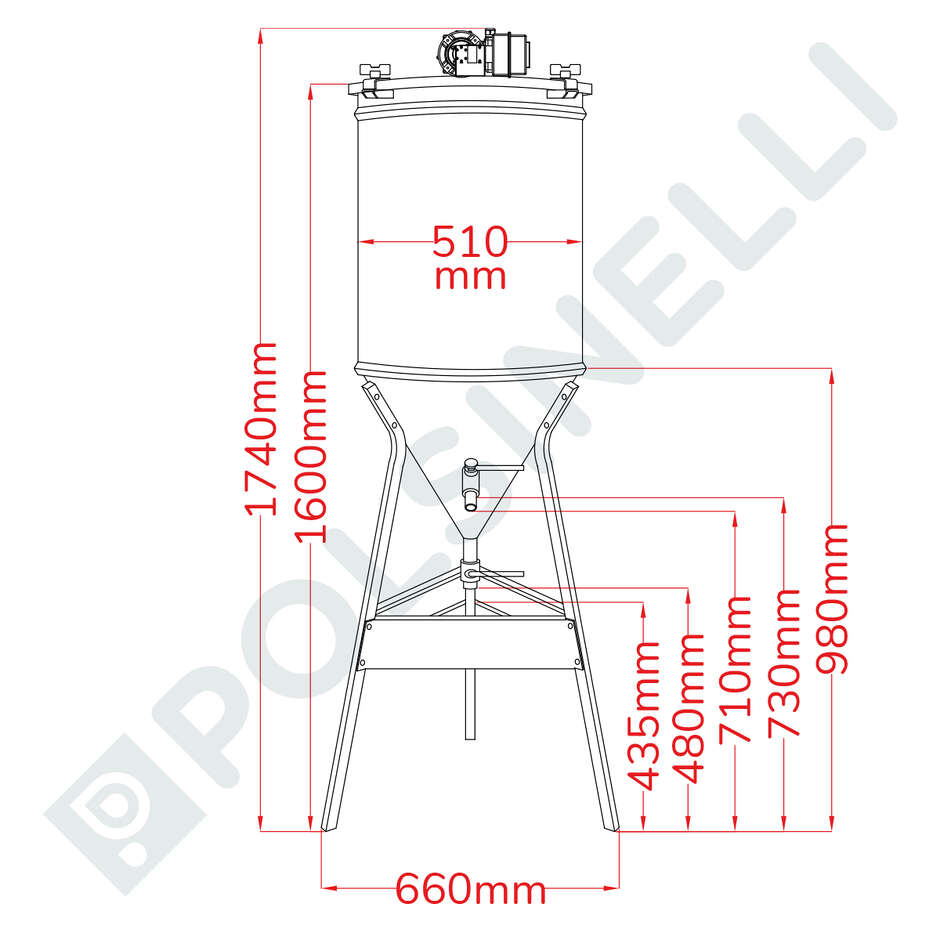

Dimensions:
- Height of the cylinder: mm 600
- Height of the cylinder plus conical bottom: mm 1050
- Tank diameter: mm 510
- Overall dimensions: mm 660x660x1740h
