Motorized stainless steel tank 10° Conical Bottom 1000 L

Motorized stainless steel tank 10° Conical Bottom 1000 L

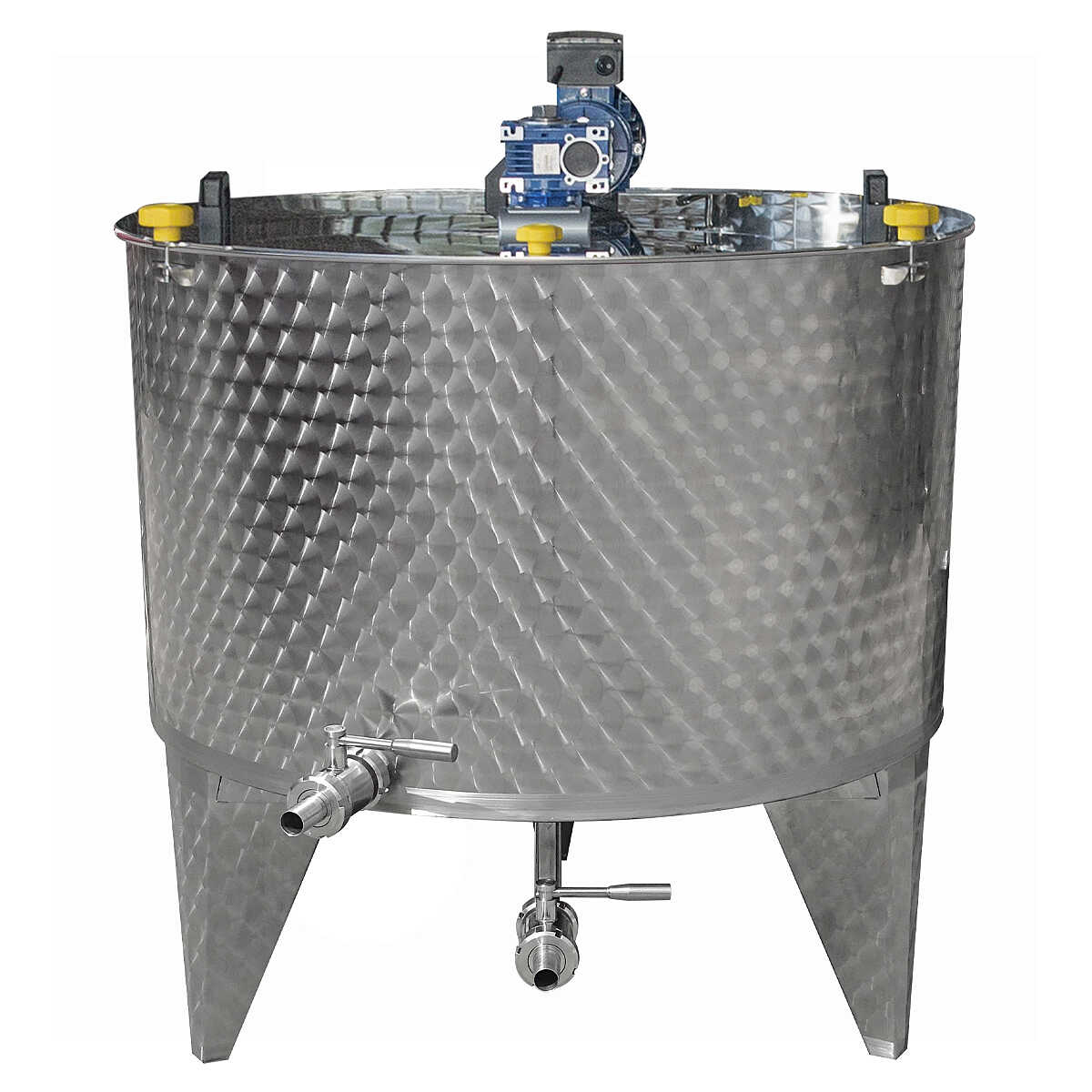

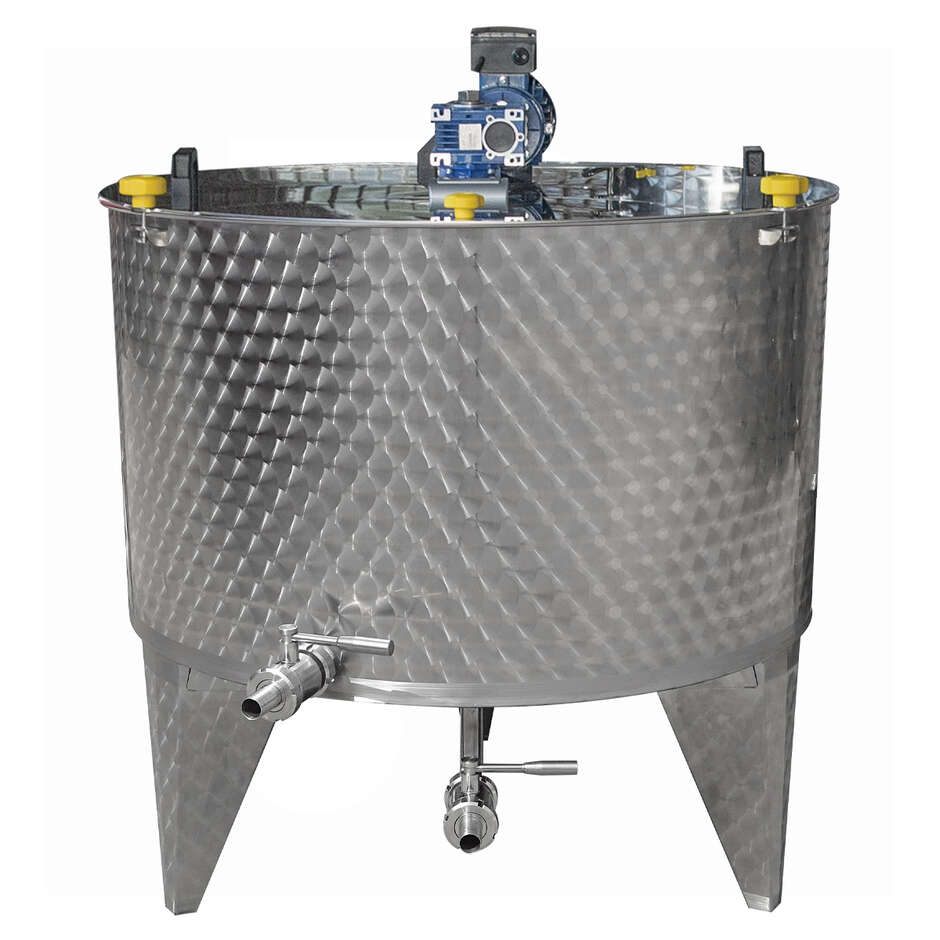

The 1000 litre, 10° conical bottom motorised stainless steel mixer is the ideal tool for easily mixing your liquids and for producing wine, kombucha, cheese spinning, macerating and infusing fruit and other foods. Entirely made of high quality Aisi 304 stainless steel, the motorised stainless steel mixer is equipped with a thick reinforced stainless steel lid with stainless steel hooks, 220 Volt motor with speed reducer (28 rpm) and mixing paddles. It also has two drains to facilitate emptying and cleaning operations: a total DIN 32 drain with a DIN32 M x DIN 32 F stainless steel ball valve positioned on the bottom, and a partial DIN 32 drain with a DIN32 M x DIN 32 F stainless steel ball valve positioned on the cylinder. The 1000-litre, 10° conical bottom motorised stainless steel mixer has a inner diameter of 1270 mm and features a mirror-polished internal finish and a satin-brushed welded external finish; there is also a practical hose barb compatible with DIN32 M x PG30 pipe connections. The stability of the tank is also ensured by the 3 robust stainless steel feet with a height of 40 cm.

Characteristics:

• Material: Stainless steel Aisi 304
• Thick reinforced stainless steel lid with stainless steel hooks

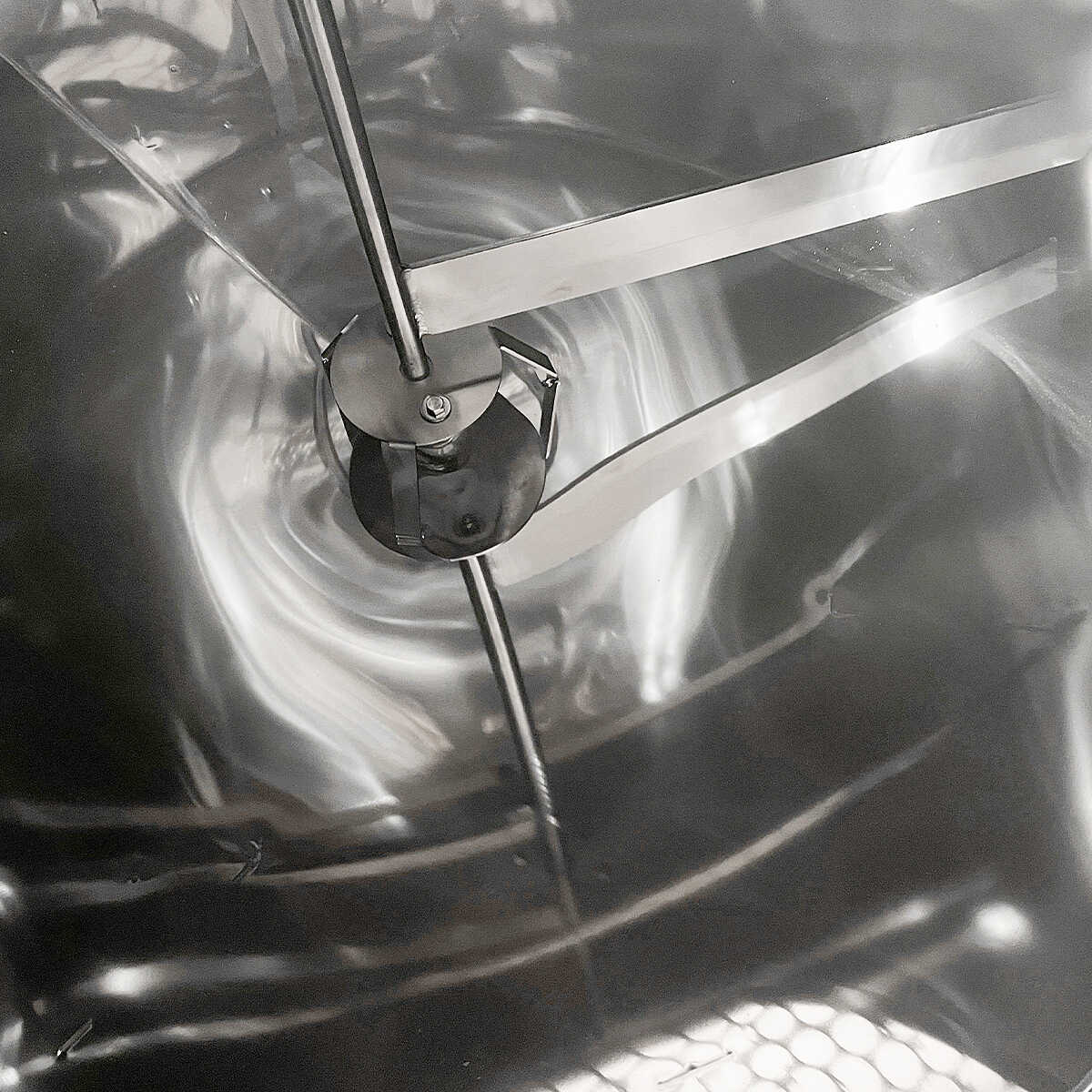

• 220 Volt motor with speed reducer (28 rpm) and mixing blades
• Power consumption: 0.37 kW

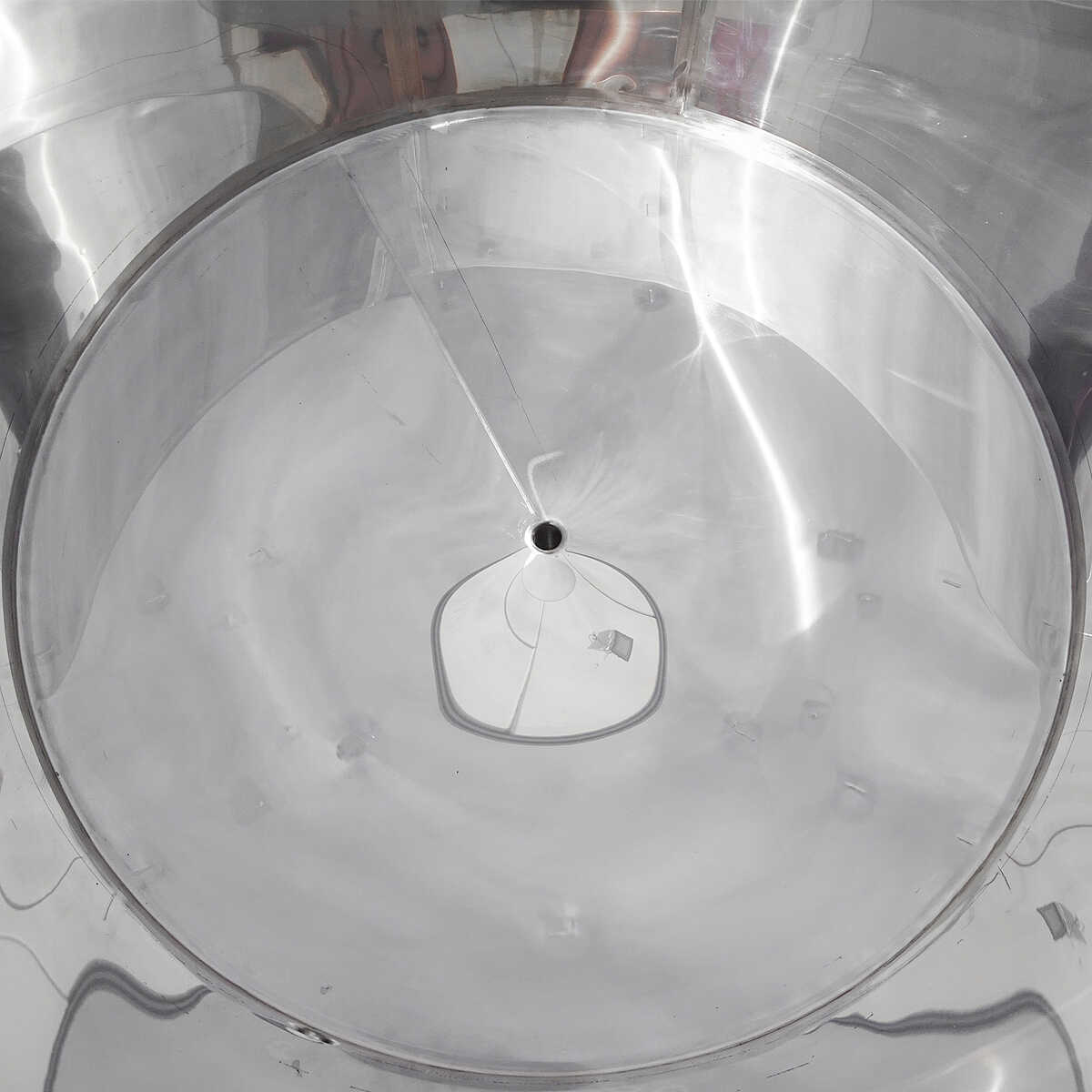

• 10° reinforced conical bottom

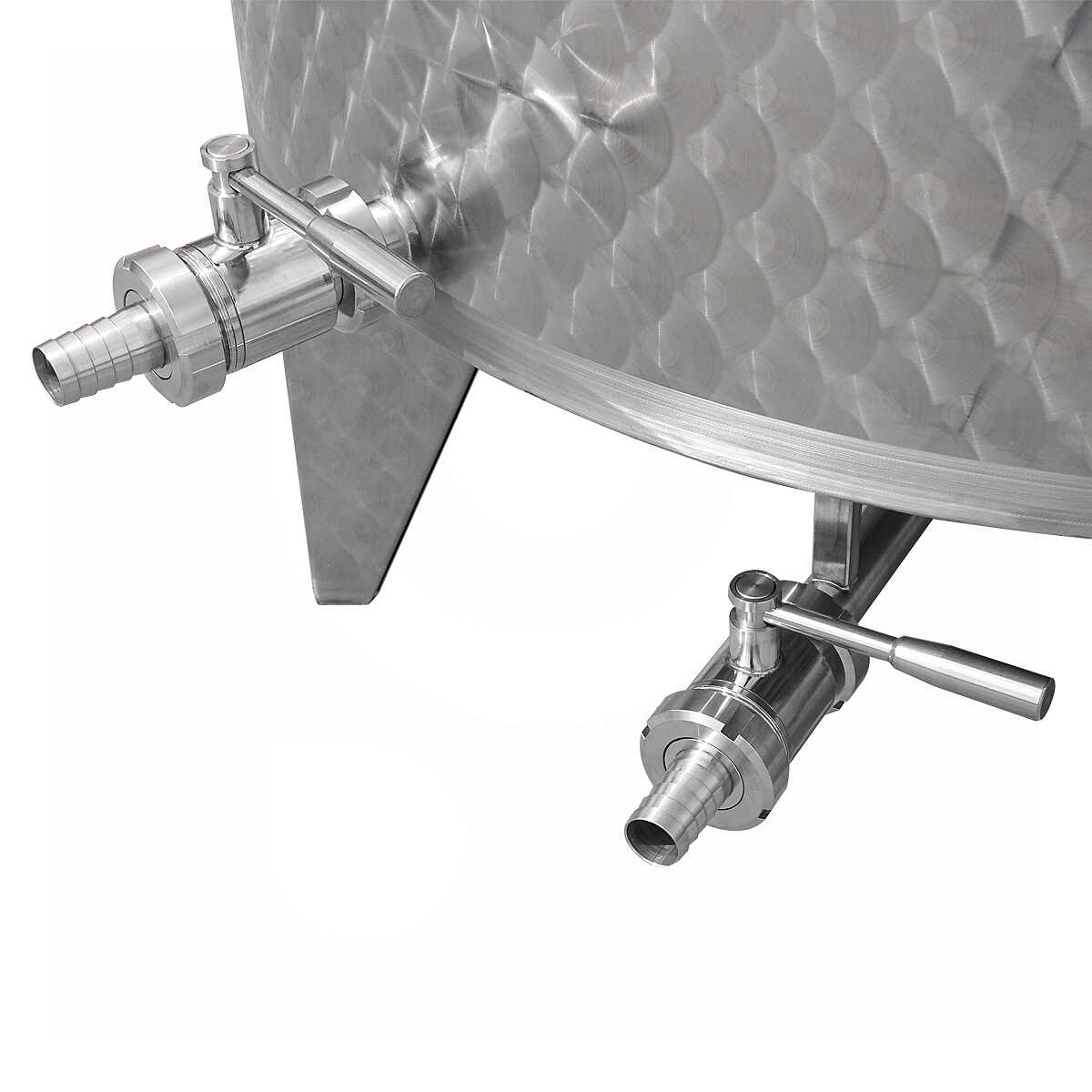

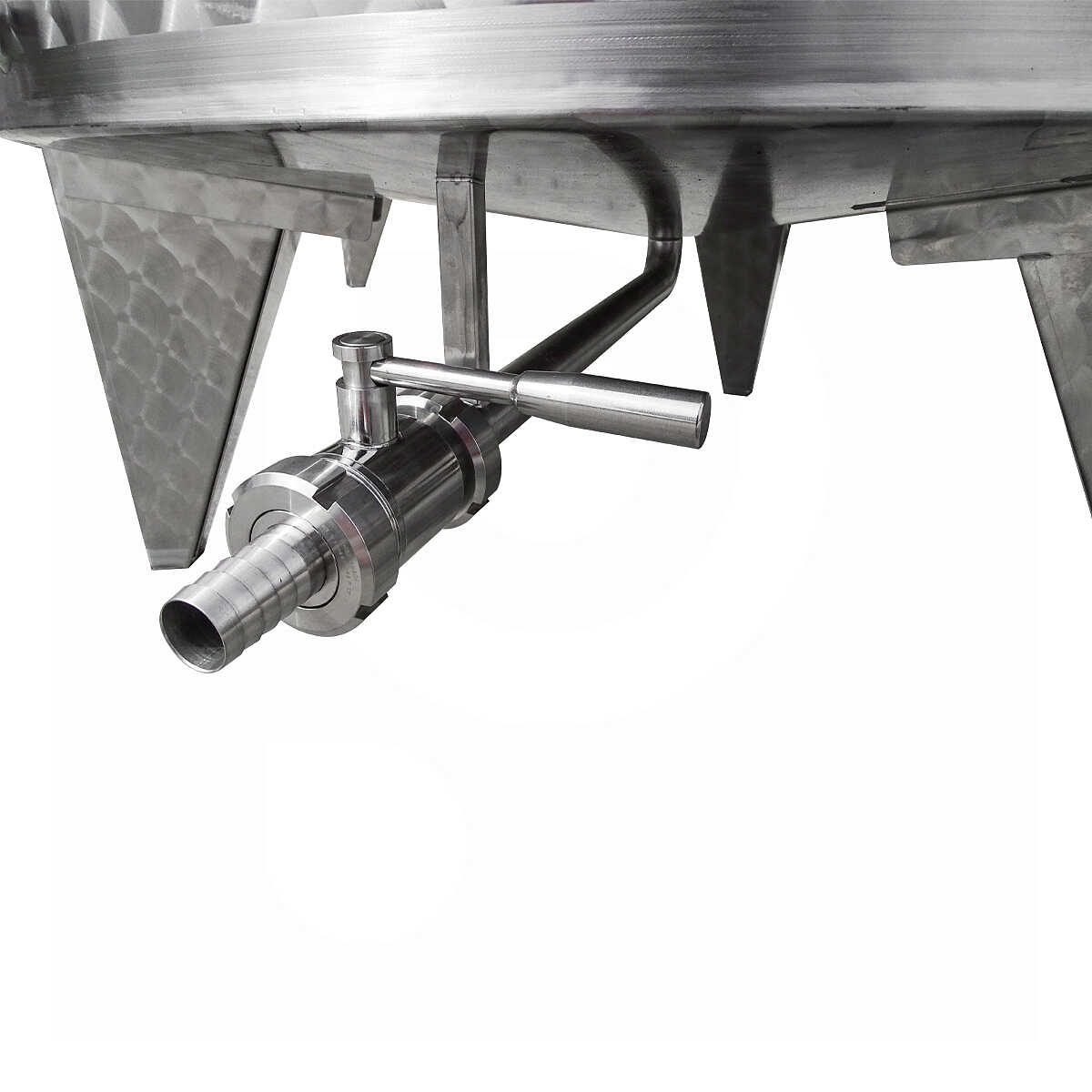

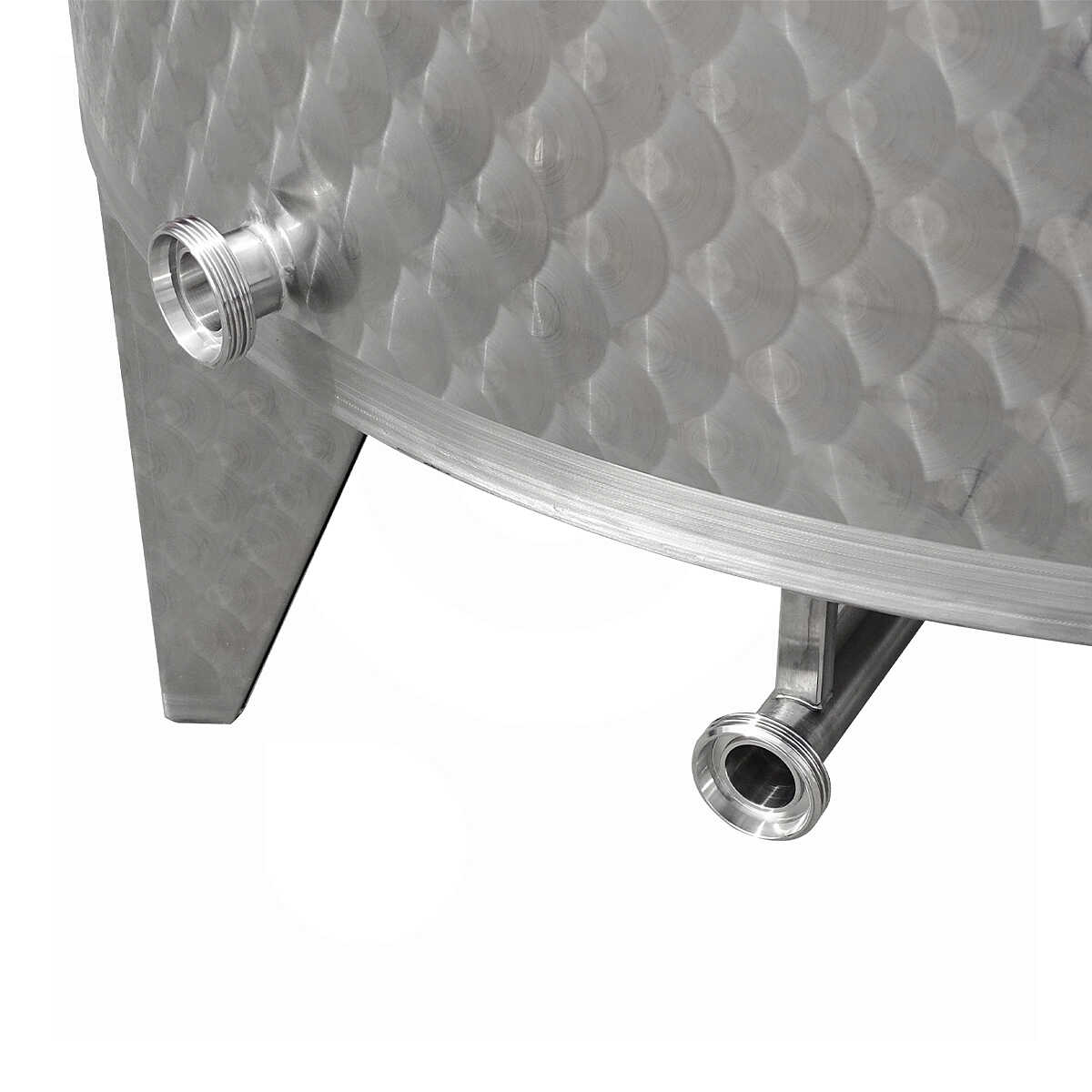

• Total discharge DIN 32 with stainless steel valve DIN32 M x DIN 32 F
• Partial discharge DIN 32 with stainless steel valve DIN32 M x DIN 32 F
• No. 2 straight hose connectors for tube connection DIN32 M x PG30
• 3 stainless steel legs
• Internal surface: mirror polished for easy cleaning and sanitation
• External surface: flocked, with satin welded seals

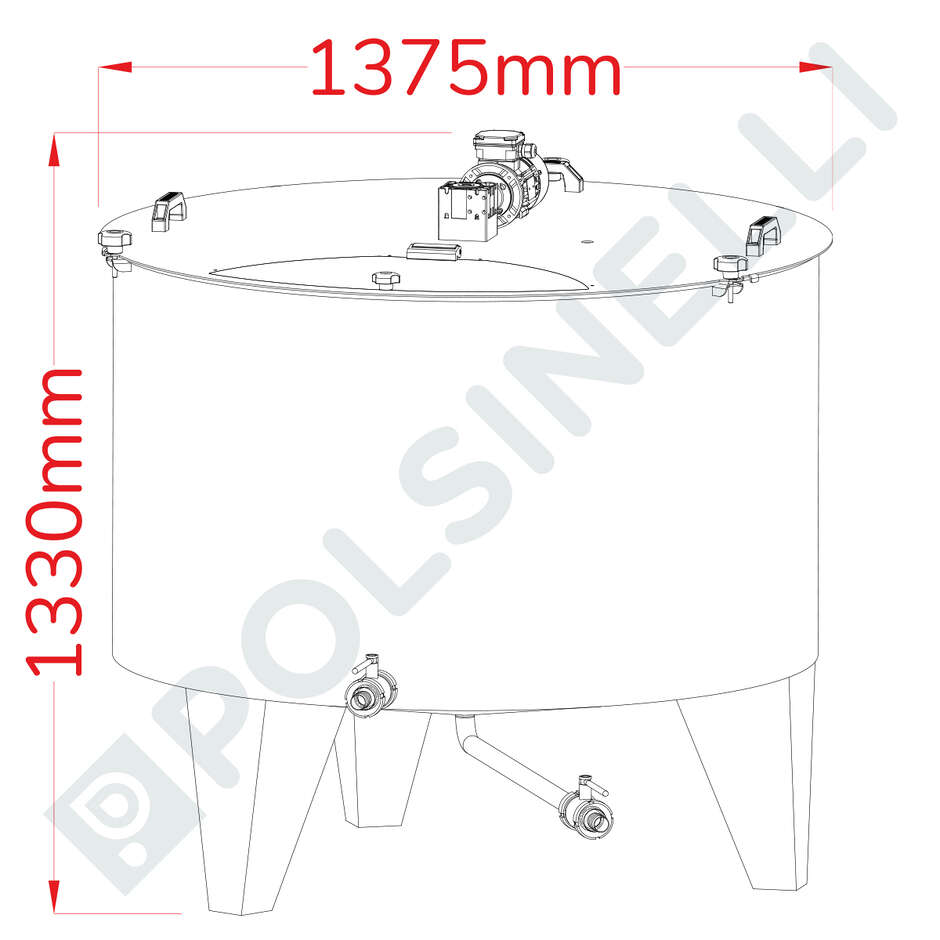

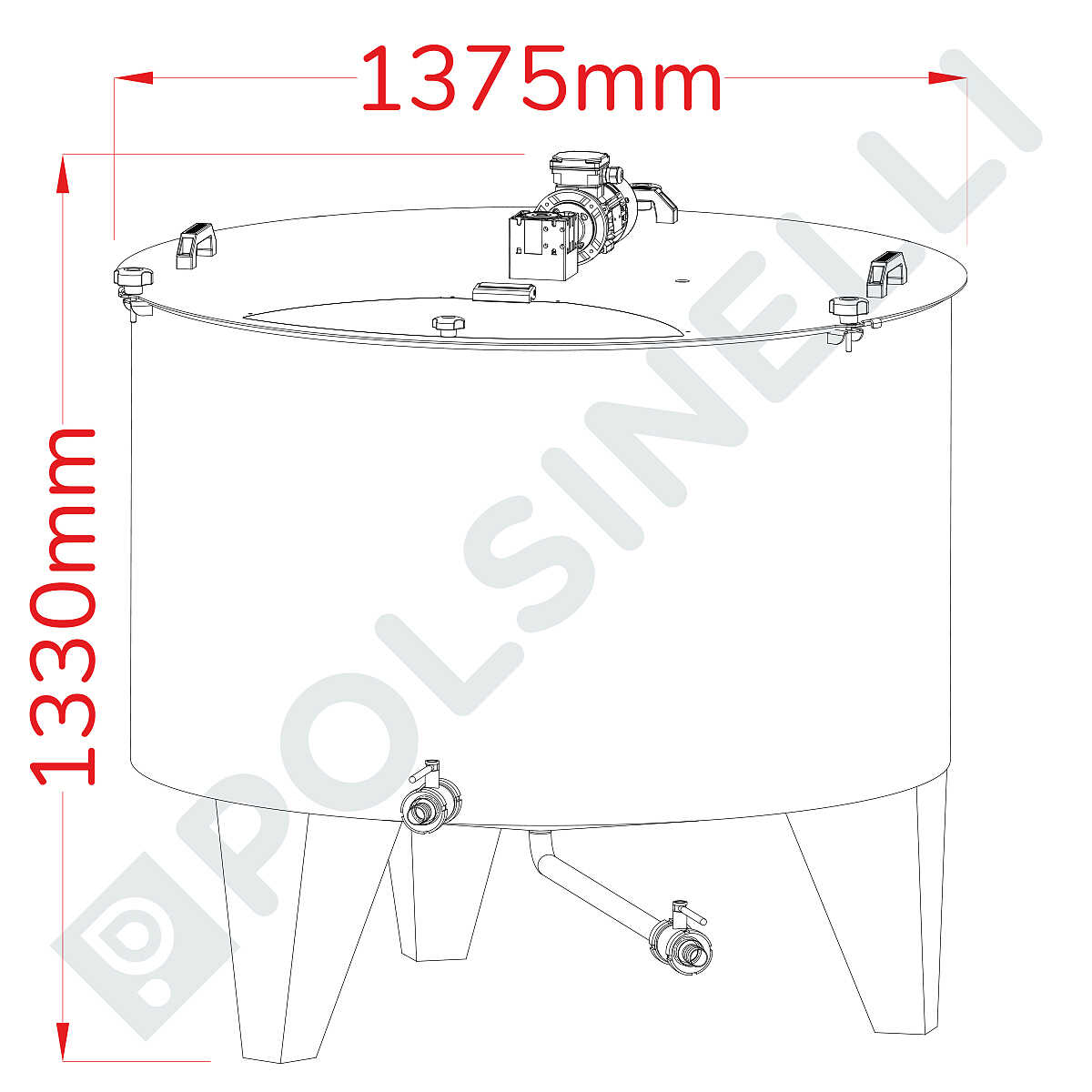

Dimensions:

• Inner diameter: 1270 mm
• Virola height: 750 mm
• Support height: 400 mm
• Total height with pedestal, virola and motor: 1330 mm

Thickness:

• Walls: 1.2 mm
• Bottom: 1.5 mm
