Hydraulic jack type n. 6 for Polsinelli branded press
Code: TOR0133
Brand: Polsinelli
€ 627.05
Product available
Shipping within 7 working days (from Monday to Friday) from the receipt of payment.
Shipping costs: € 122.13
Add to favorites
Description

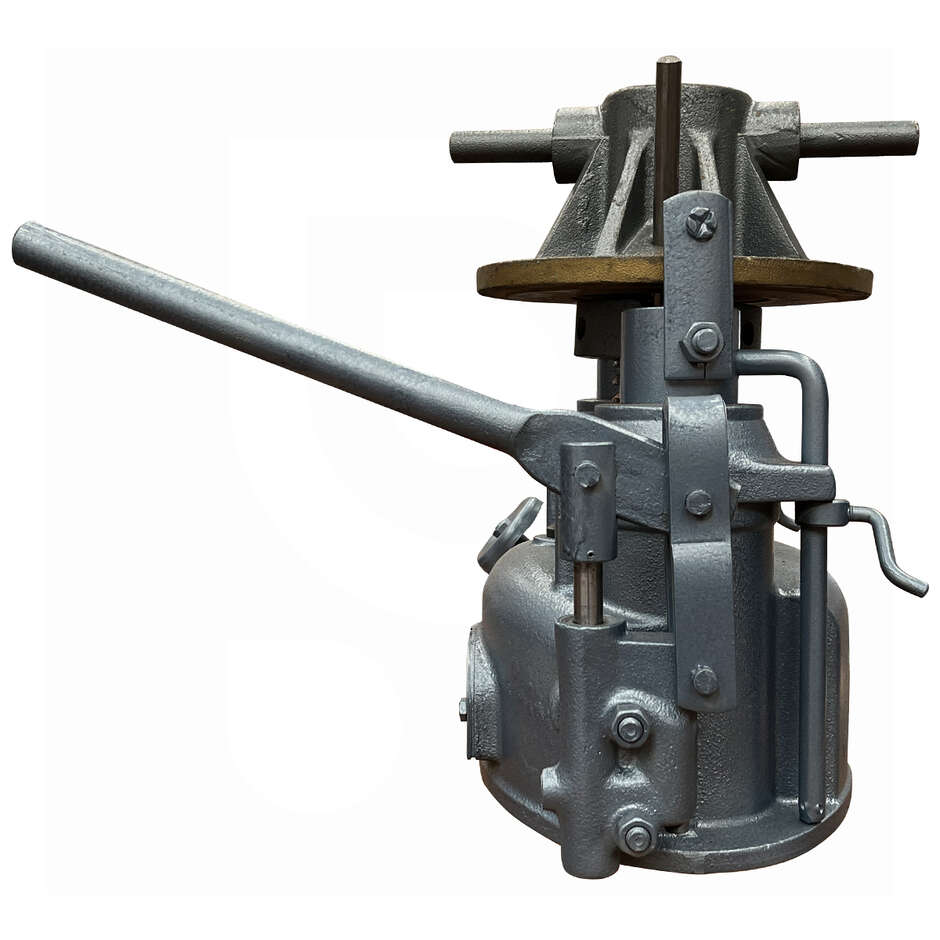

Hydraulic jack type n. 6 for Polsinelli branded press
Hydraulic jack type n.6, complete, for presses having internal cage diameter cm 60. Maximum Pressure exerted 400 atm.
As a replacement oil, we recommend the use of glycerine oil: for hydraulic jack type 6 we recommend 1.5 kg.
ATTENTION: THE PRODUCT IS COMPATIBLE EXCLUSIVELY WITH POLSINELLI BRANDED PRESSES
SPARE PARTS
| 1 - Jack 2 - Screw nut 3 - Locking ring 4 - Pin for locking ring 5 - Right-hand jack plunger 6 - Left-hand jack plunger 7 - Complete roller blade 8 - Roller blade fixing nut 9 - Short grooved pin 10 - Long grooved pin 11 - Curved rod 12 - Complete clamp for curved rod |
13 - Collar gasket for pistons 14 - Tank cap 15 - Washer gasket 16 - Studs for pump 17 - Studs for exhaust unit 18 - Tank cover gasket 19 - Tank cover 20 - Tank cover screws 21 - Complete pump 22 - Fastening nuts for pump and exhaust unit 23 - Exhaust assembly complete |
Technical description
for presses internal diameter 60 cm
