500 L Stainless Steel Storage Tank with Conical Bottom and Ø300 Manhole
Descripción

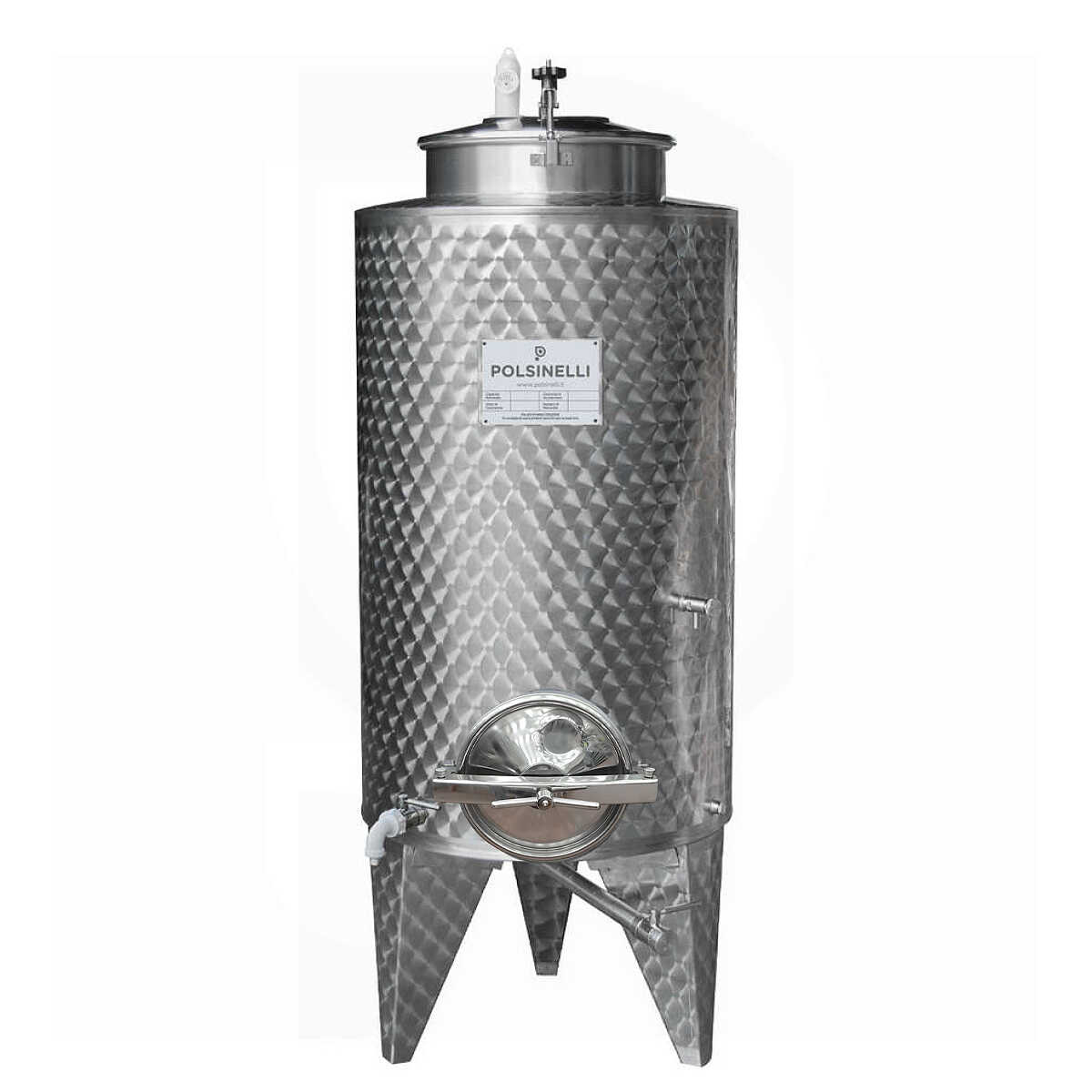

500 L Stainless Steel Storage Tank with 10° Conical Bottom and Ø300 mm Manhole
The 500 litre stainless steel tank is a professional quality product designed to accompany all companies in the wine sector during the storage of wine and meet all requirements for robustness. Thanks to the high quality materials that characterise it, such as AISI 304 stainless steel, it also guarantees total respect for the organoleptic characteristics of the product contained inside.
The 500 litre stainless steel tank for sale on Polsinelli also has a conical bottom inclined at 10° complete with reinforcements that allow ideal decantation of the wine and a stainless steel wine taster that allows you to extract and taste small quantities of product to check its maturation over time.
The 500L stainless steel storage tank is fitted as standard with a partial drain with a stainless steel valve and a 1" x ENO 30 plastic elbow and a full drain with a 1" x ENO 30 valve, as well as a 400 mm anti-retention top manhole cover, specialised equipment for the wine sector that meets all practical requirements. It also has a 300 mm door at the bottom for easy emptying of the marc. With its 500 litre capacity, the stainless steel wine tank is perfectly suited to the needs of small and medium-sized businesses looking for an efficient and reliable product.
Characteristics:
- Material: stainless steel AISI 304
- Capacity: 500 L
- Internal finishes: mirror polished
- External finishes: flamed, with satin welds
- Conical bottom 10° with reinforcements

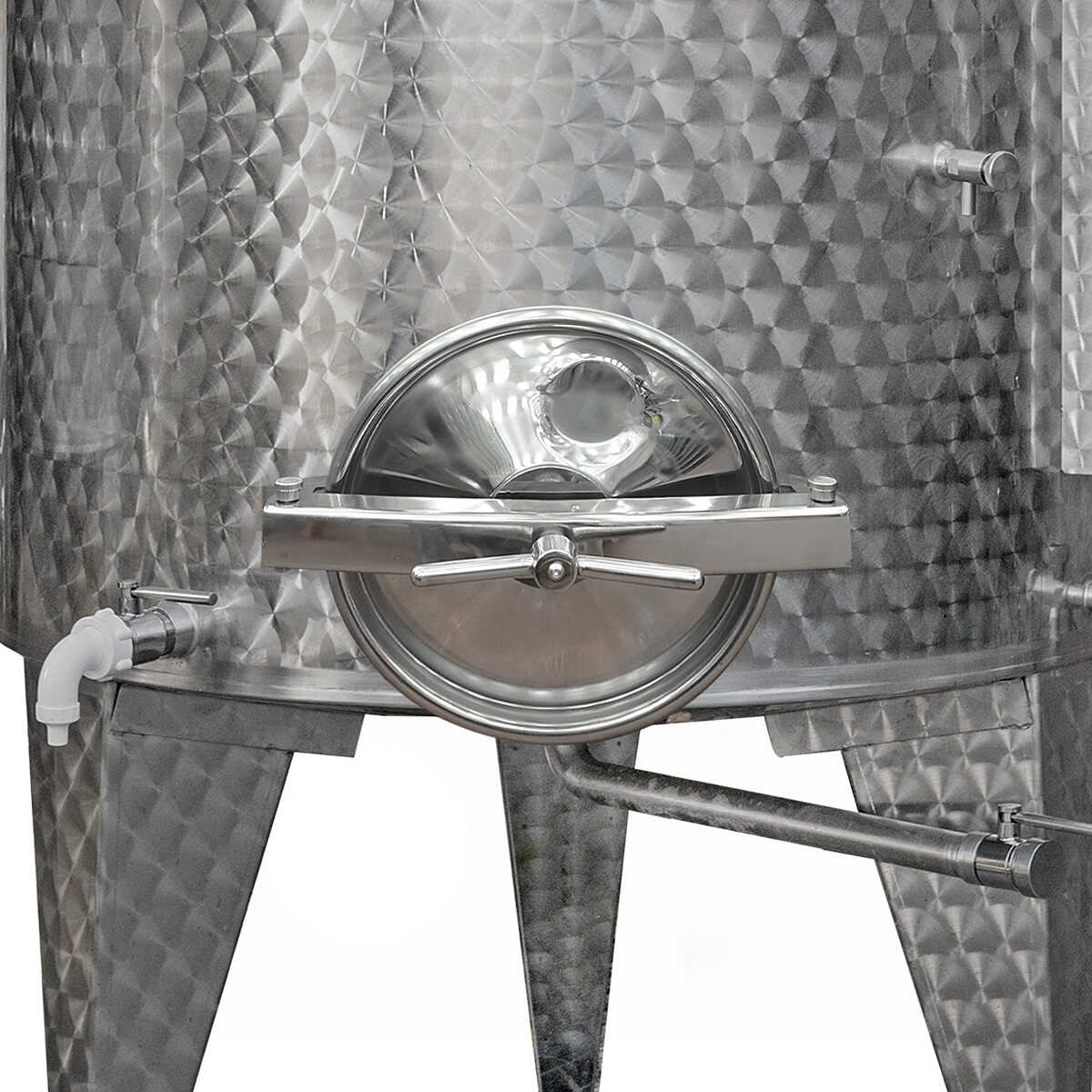

- Total discharge with valve 1" x ENO 30 (3)

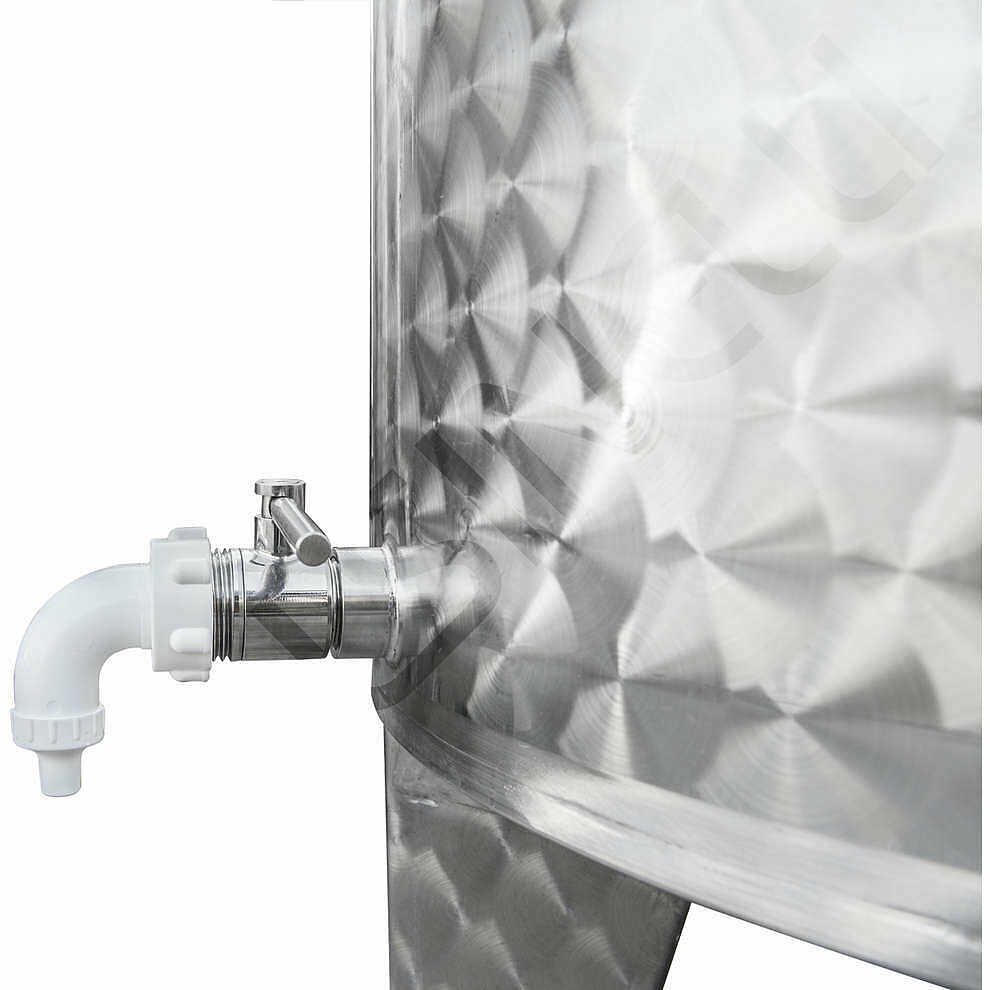

- Partial discharge with stainless steel valve and plastic elbow 1" x ENO 30 (1)

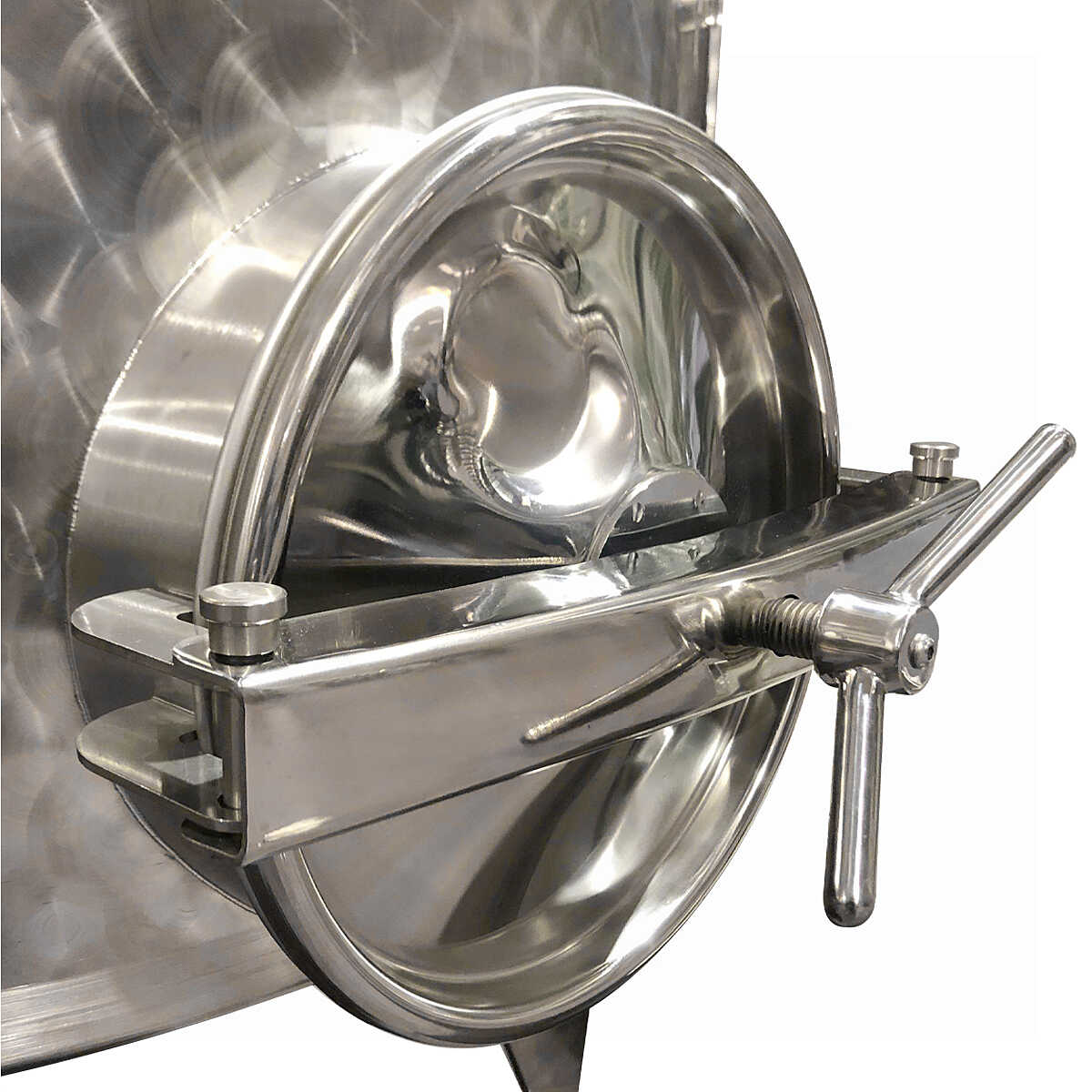

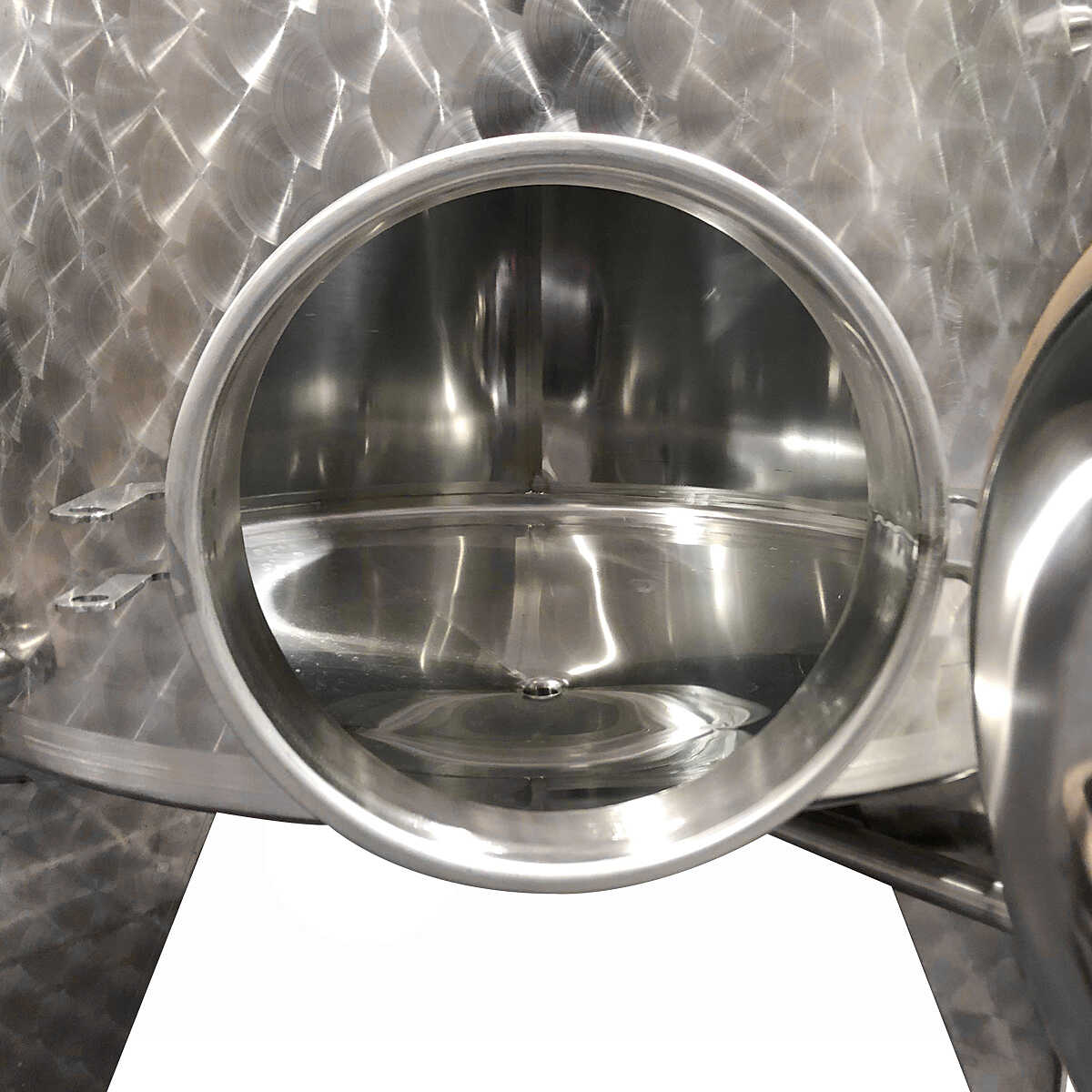

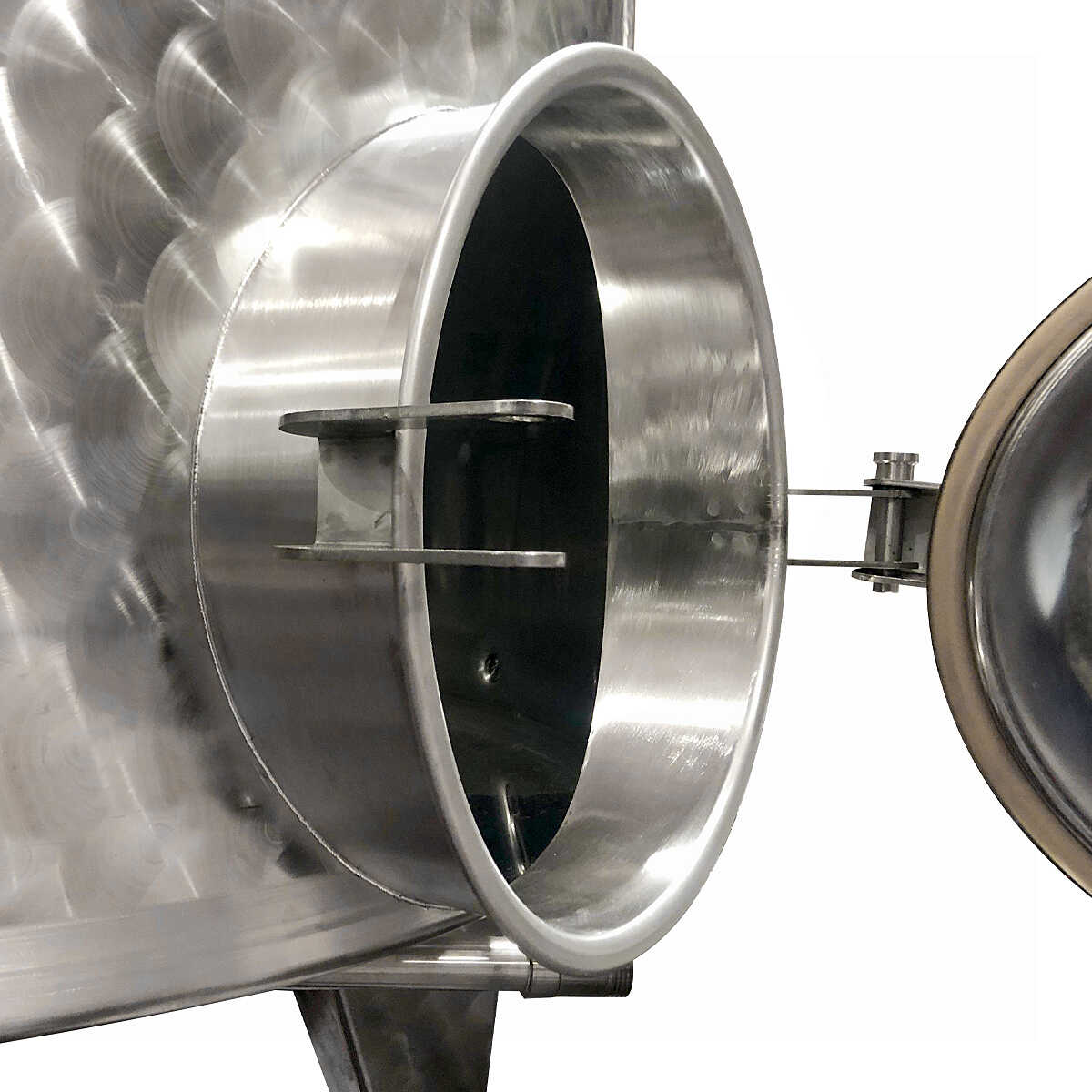

- 300 mm round manhole, flush with the bottom for easy emptying of the marc
- Upper 400 mm non-returnable manhole cover
- 10° conical roof
- 3 stainless steel feet
- Double-acting plastic vent valve
- Stainless steel wine taster (2)
- Appliance conforms to CE safety standards

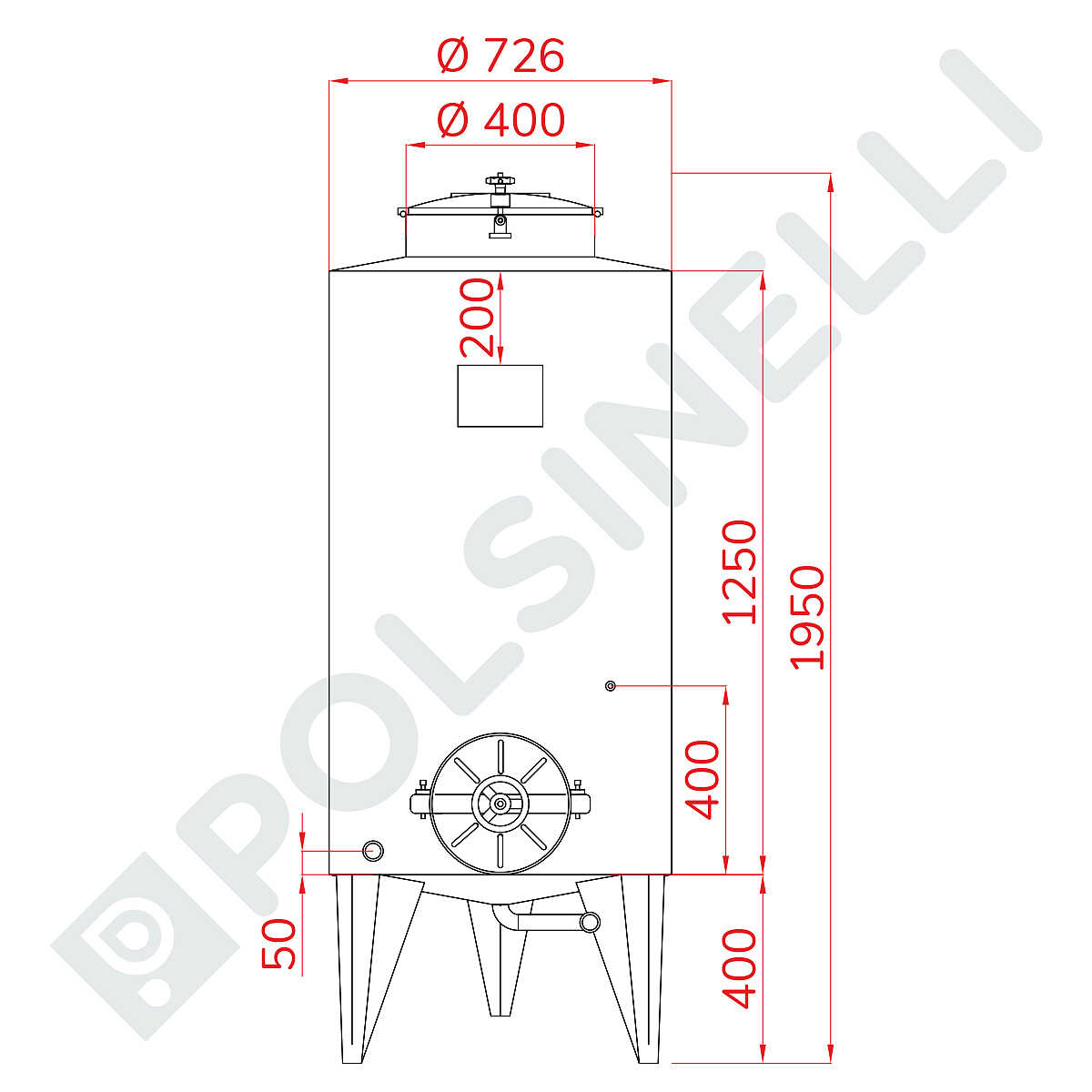

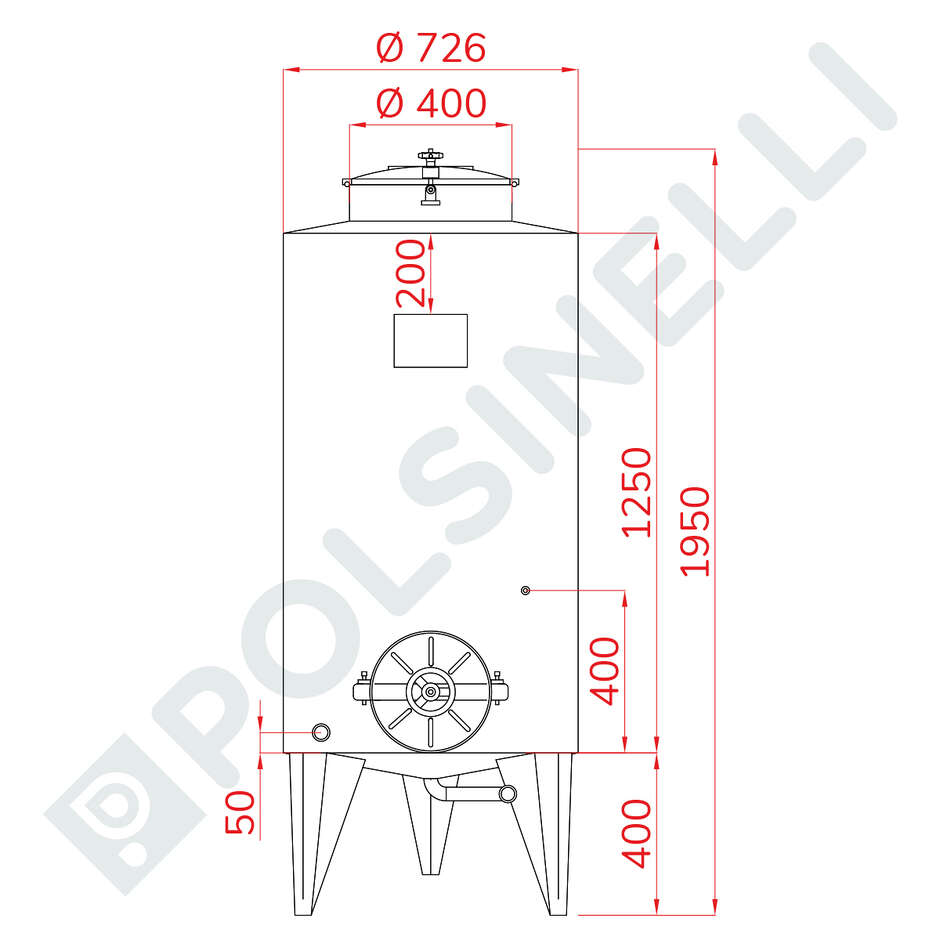

Dimensions:
- Diameter: 720 mm (D1)
- Roof: 300 mm (H4)
- Virola height: 1250 mm (H3)
- Foot height: 400 mm (H2)
- Total height with feet, sash and roof: 1950 mm (H1)
Thickness:
- Walls: 1 mm
- Bottom: 1.5 mm
