1000 L Stainless Steel Conical 10° Palletizable and Stackable Tank
Descrizione
1000-Liter Palletizable and Stackable Stainless Steel Tank with 10° Conical Bottom
The 1000-liter palletizable and stackable stainless steel tank, available at Polsinelli’s store, is the ideal solution for businesses seeking to simplify and enhance the efficiency of storing and transporting food-grade liquids.

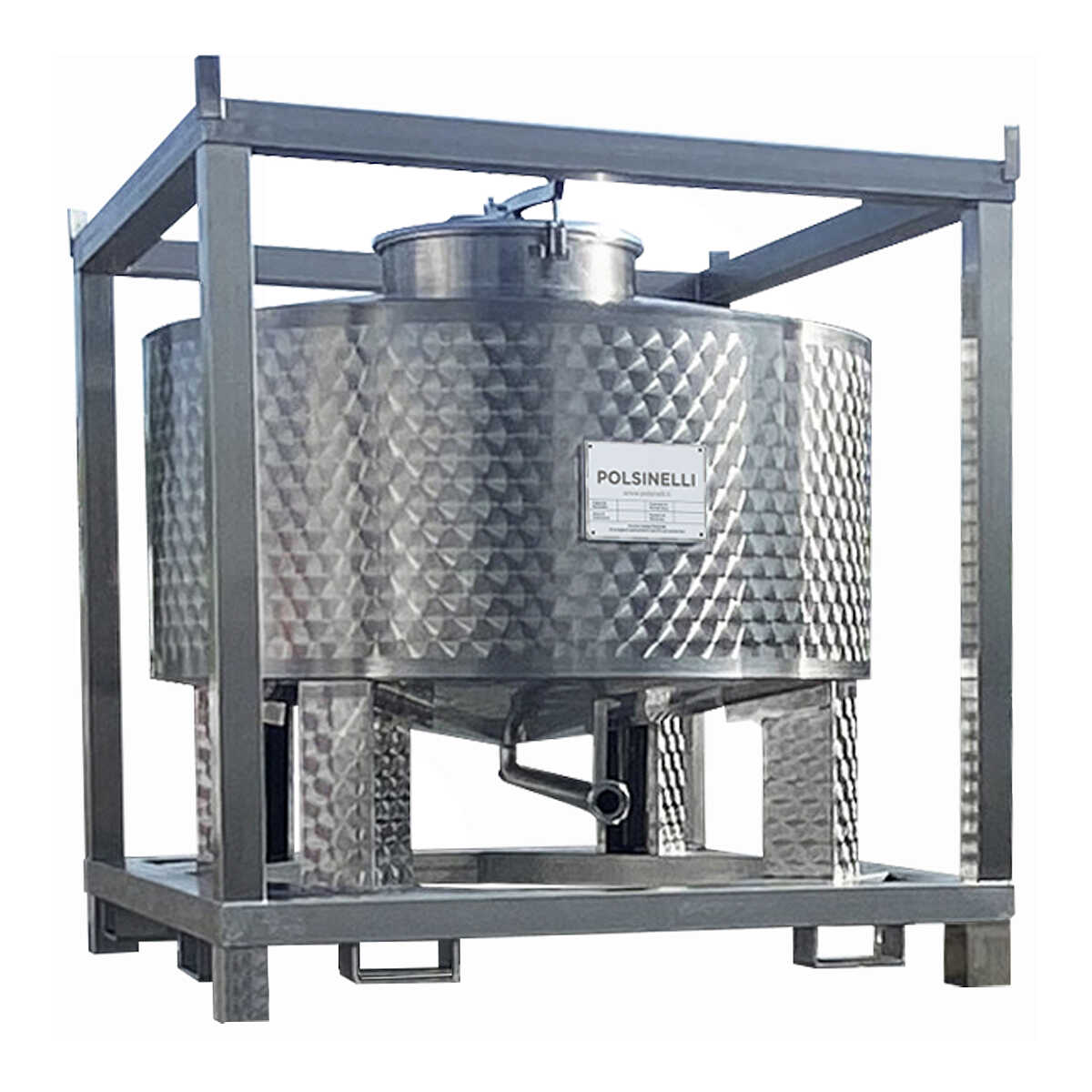

The compact dimensions of the stainless steel tubular frame (1200x1200x1800h mm) provide the tank with an extremely robust support structure, capable of bearing the stacking of another fully loaded tank. The base, equipped with 4 stainless steel feet, is designed for palletization on all four sides, allowing for easy movement with a pallet jack and safe lifting with a forklift, while ensuring maximum protection of the tank during transport and placement, preserving its integrity.
Constructed entirely from AISI 304 stainless steel, the tank ensures durability and resistance while preserving the organoleptic properties of the stored product. The design, featuring a 10° sloped conical bottom and top, along with the DIN 40 x GA 50 valve for total discharge and the top manhole (Ø400 mm) with lateral hinged opening, offers high user convenience and facilitates draining, cleaning, and maintenance operations.
The tank’s finishes combine aesthetics and functionality: the interior is mirror-polished to ensure maximum hygiene, while the exterior is adorned with a flamed texture and satin-finished welds. Stability is guaranteed by 4 stainless steel legs (300 mm high) welded to the tank bottom and connected to the support frame base.
Compliant with CE safety standards, the 1000-liter palletizable and stackable stainless steel tank is a safe and durable investment for businesses looking for reliability, efficiency, and professional-grade equipment.
Characteristics of the 1000 L Palletisable and Stackable Stainless Steel Tank:
- Material: AISI 304 stainless steel
- Capacity: 1000 L
- Internal finishes: mirror polished for easy cleaning and sanitising
- External finishes: flamed, with satin welded seams
- 10° Conical bottom
- 10° Conical top
- Total drain with stainless steel DIN 40 x GA 50 valve
- Ø400 mm upper manhole cover with side and flag opening (frame height 90 mm).
- PVC Vent valve
- 4 stainless steel legs 300(h) mm welded to the bottom of the tank and connected to the support frame.

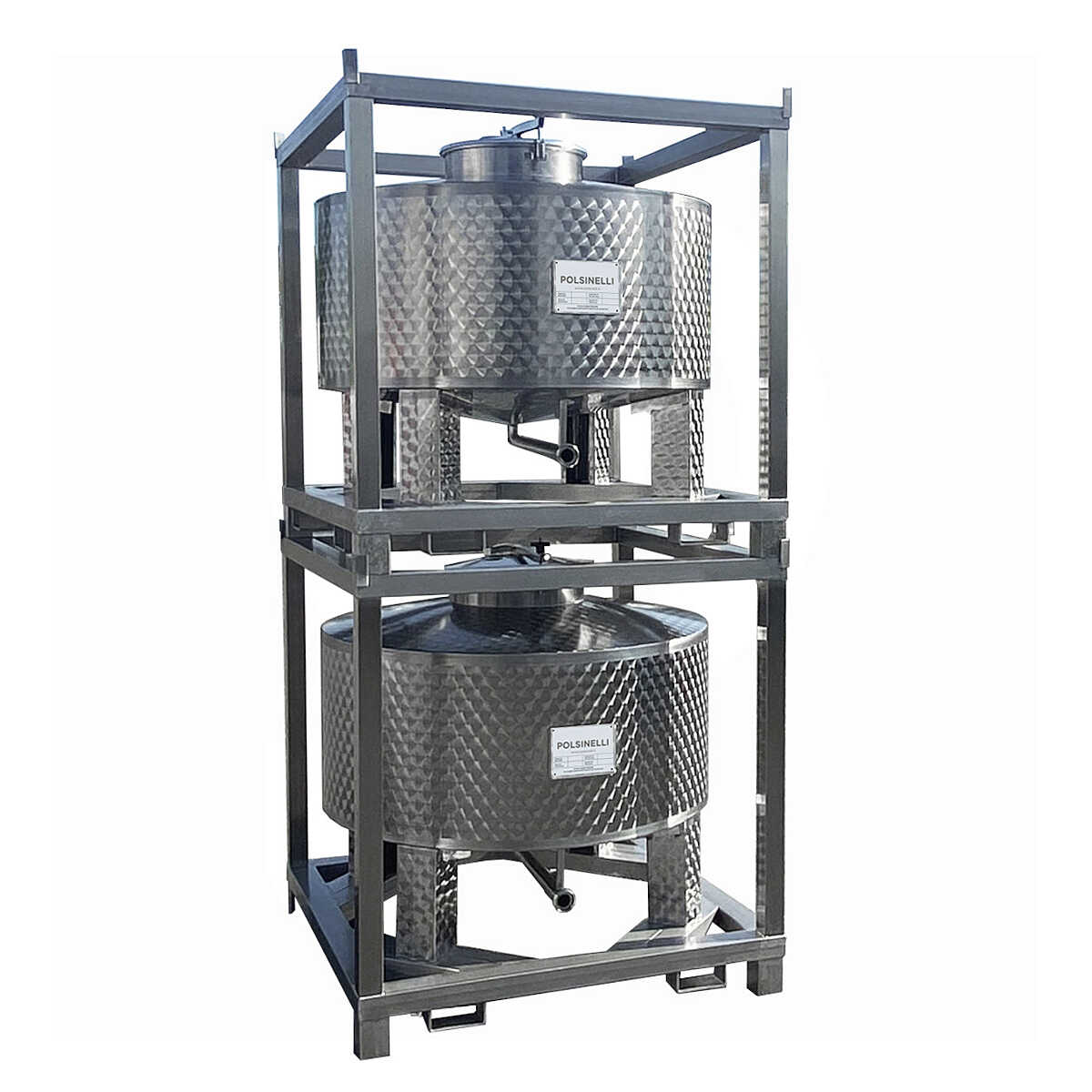

- Support and transport frame built with stainless steel tubing to overlap a maximum of 1 tank at full load.
- Frame base with 4 stainless steel feet built for palletization with forklift on 4 sides.
- Product complies with CE safety regulations

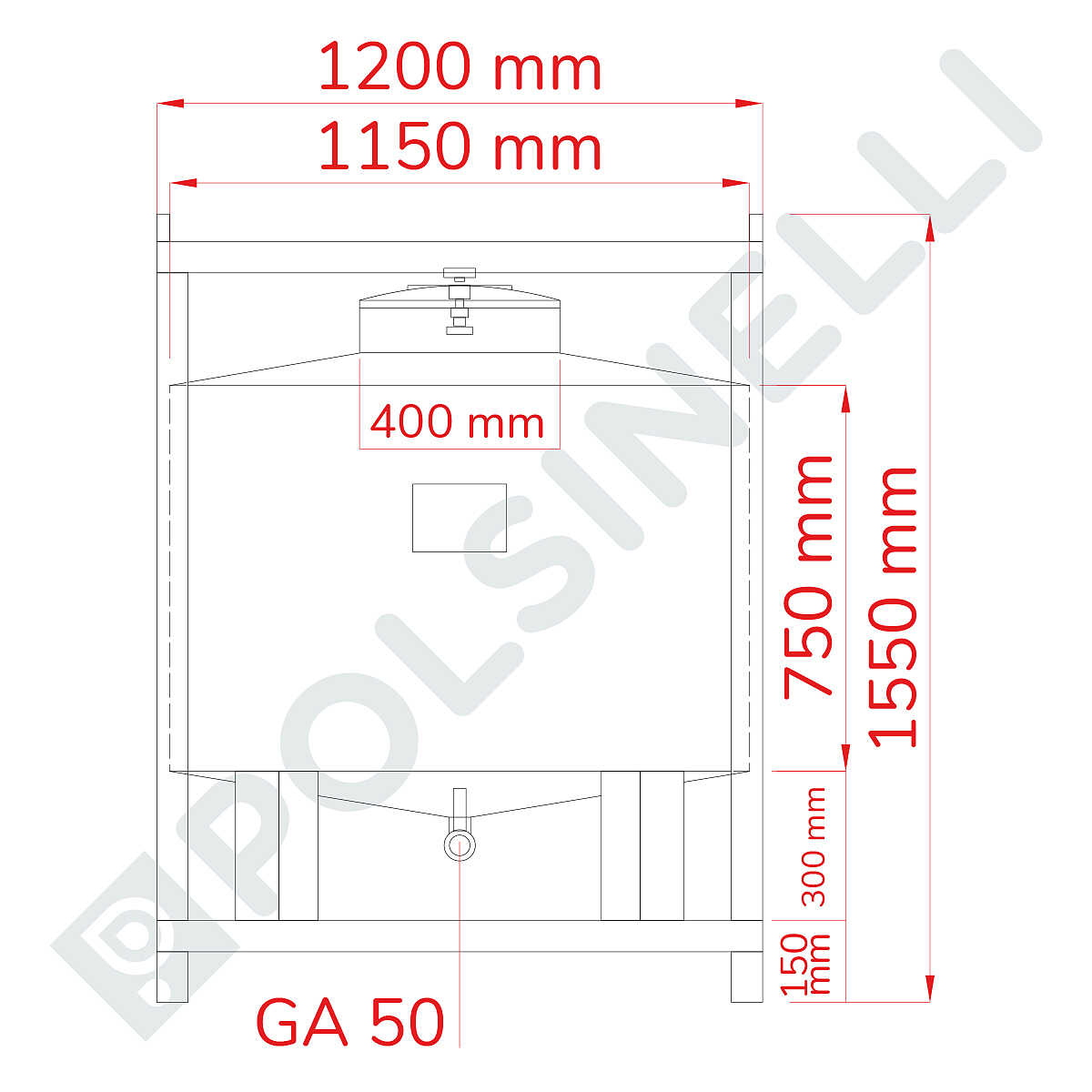

Dimensions:
- Inner diameter: 1150 mm
- Top Manhole diameter: 400 mm
- Virola height: 1000 mm
- Overall height: 1800 mm

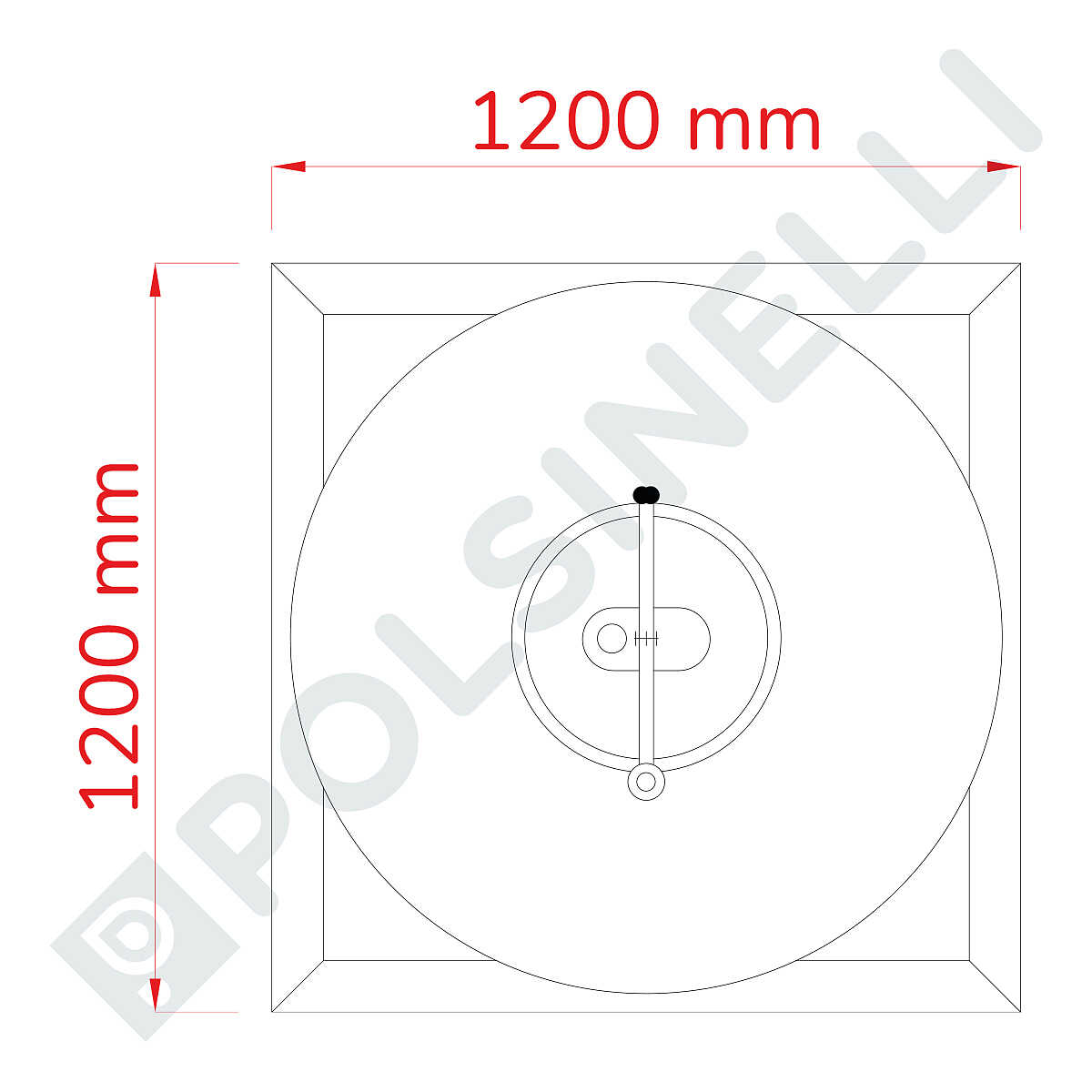

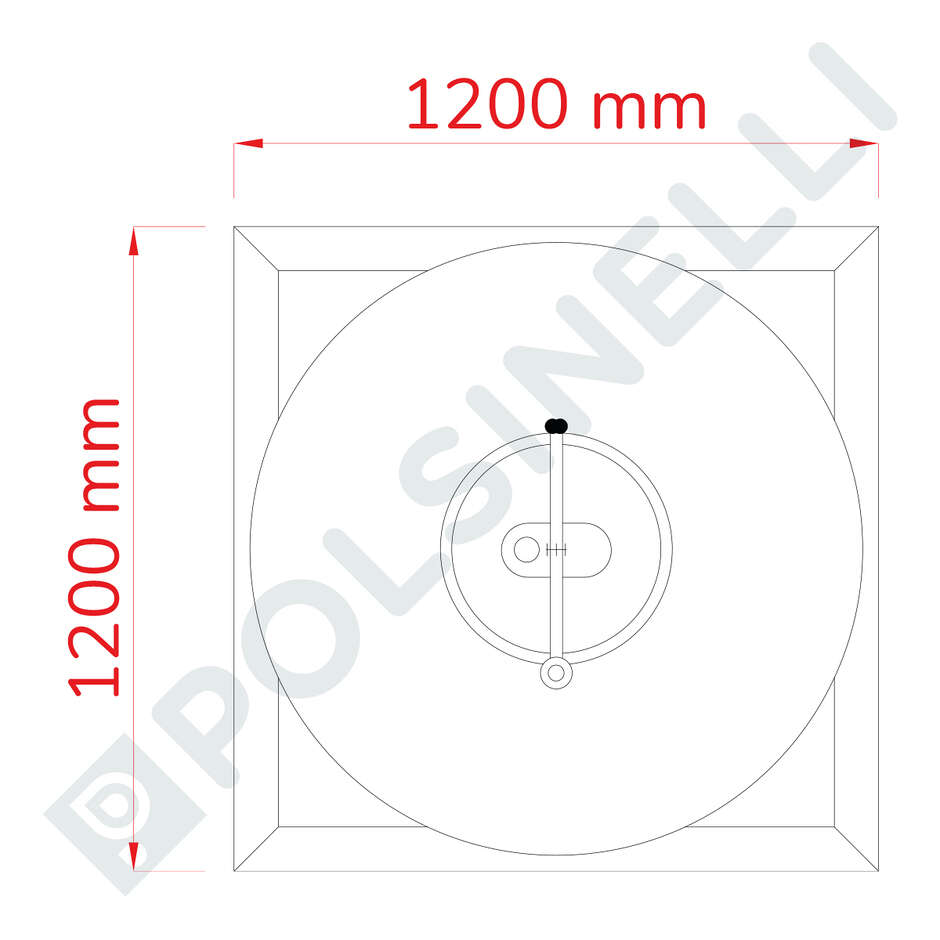

- Support frame: 1200 x 1200 x 1800(h) mm
Thickness:
- Walls: 1.2 mm
- Bottom: 1.5 mm
- Top: 1.5 mm
- Legs: 2.5 mm
Optional Features (not included):
- Ø300 mm Manhole
- Ø400 mm Manhole
