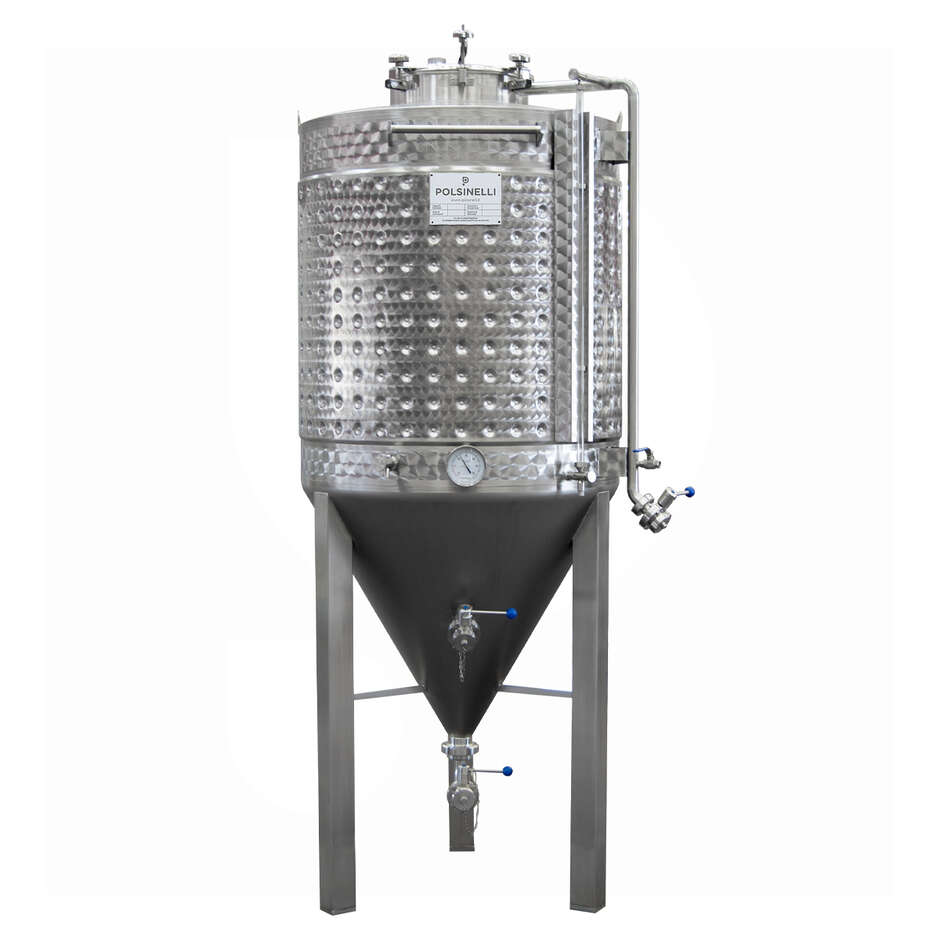

Refrigerated fermenter with conical 60° bottom 500 L

Refrigerated fermenter with conical 60° bottom 500 L

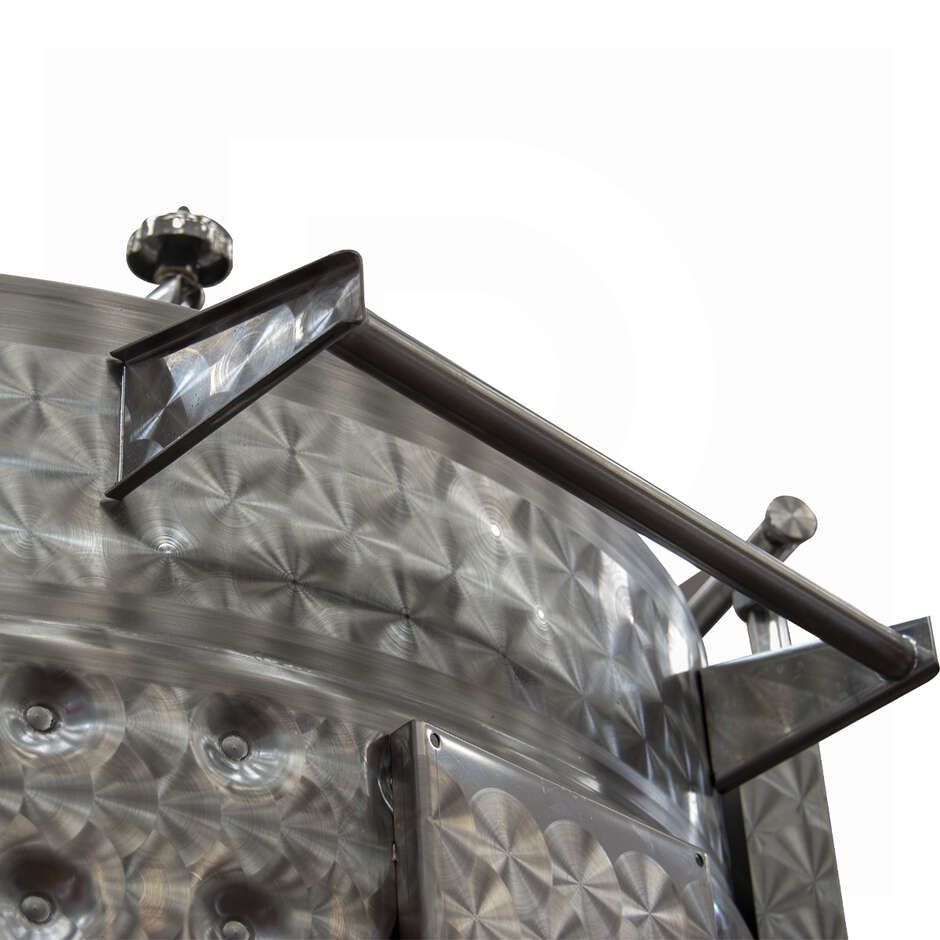

Container designed for beer fermentation complete with refrigerating band on the cylinder, with a 60° conical bottom to facilitate yeast extraction during primary fermentation. Entirely made of AISI 304 stainless steel (18/10 for foodstuffs), mirror-polished interior and flowered exterior, satin-finished TIG welds for easy cleaning and sanitising.
Roof 10° complete with manhole cover Ø 400 mm with side and flag opening, prepared for inert gas with max. pressure of 30 mbar. Available in three versions: without cooling band, with band on cylinder and with band on cylinder and cone.

Features:

• Material: Stainless steel AISI 304 18/10
• Capacity: 500 L

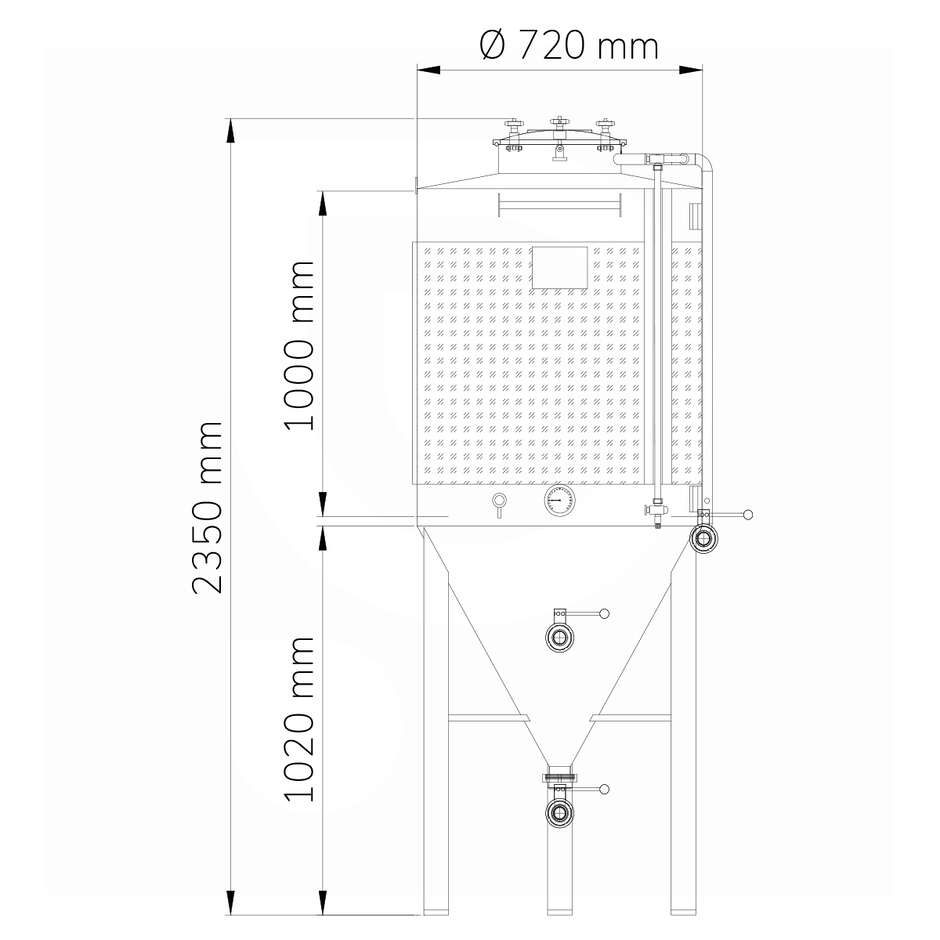

• Diameter: mm 720
• Cylinder height: mm 1000
• Leg height: mm 1020
• Total height: mm 2350
• Internal mirror polished finish, external satin welded finish
• Conical bottom 60° - conical top 10°
• Square legs welded to the bottom with adjustable feet
• Upper manhole cover Ø 400 frame height 90 mm side opening and flag.
• Manhole for inert gas P.max 30mmbar
• Stainless steel valve for inert gas inlet
• Level holder with protection as standard
• Flushing tube with stainless steel butterfly valve and flushing ball

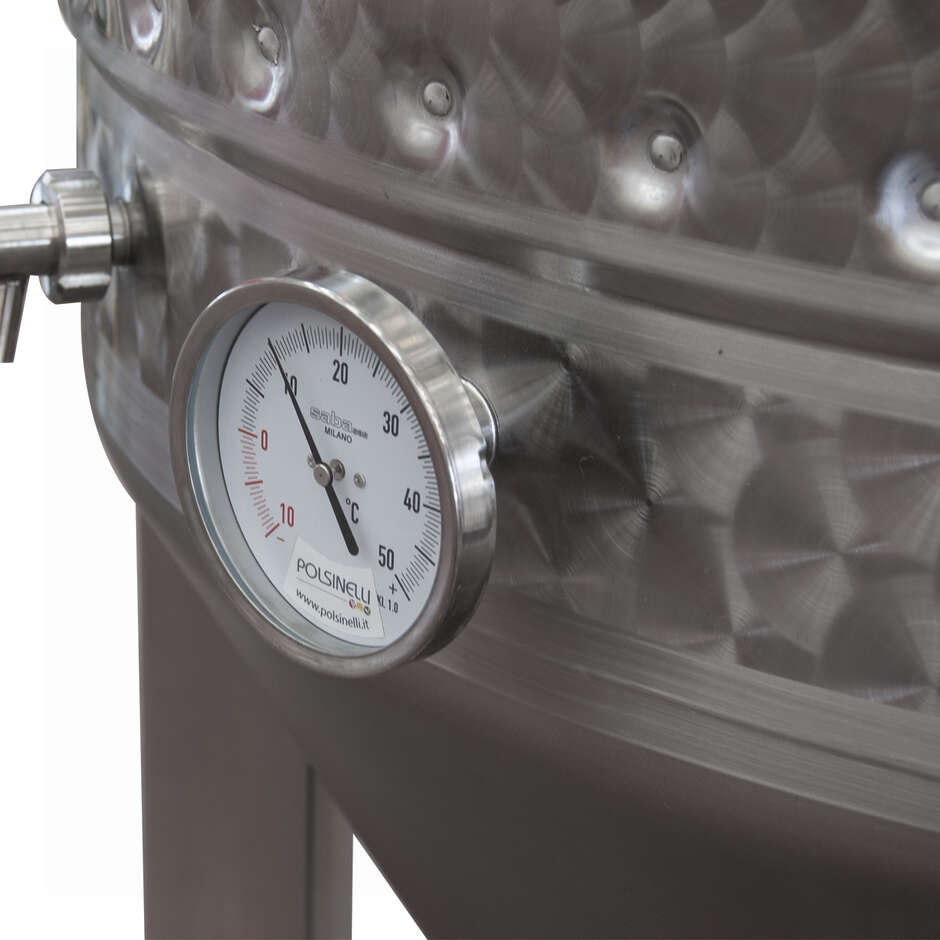

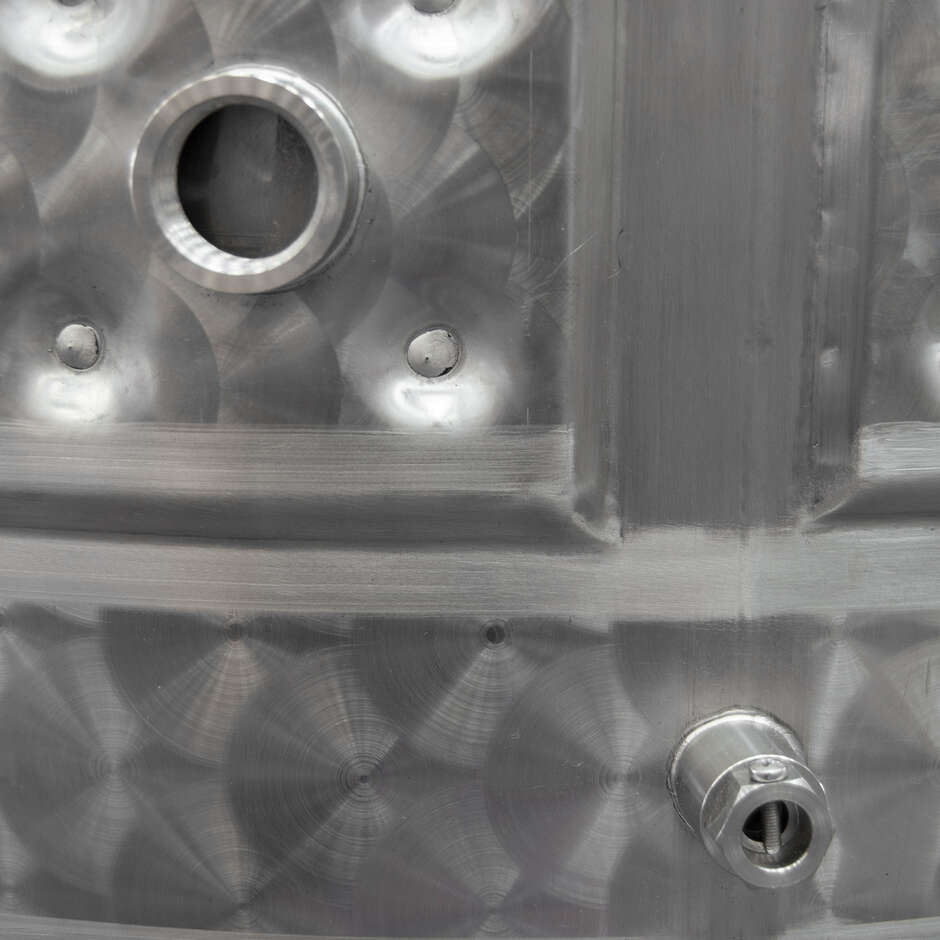

• Cooling band, stainless steel analogue thermometer and probe holder

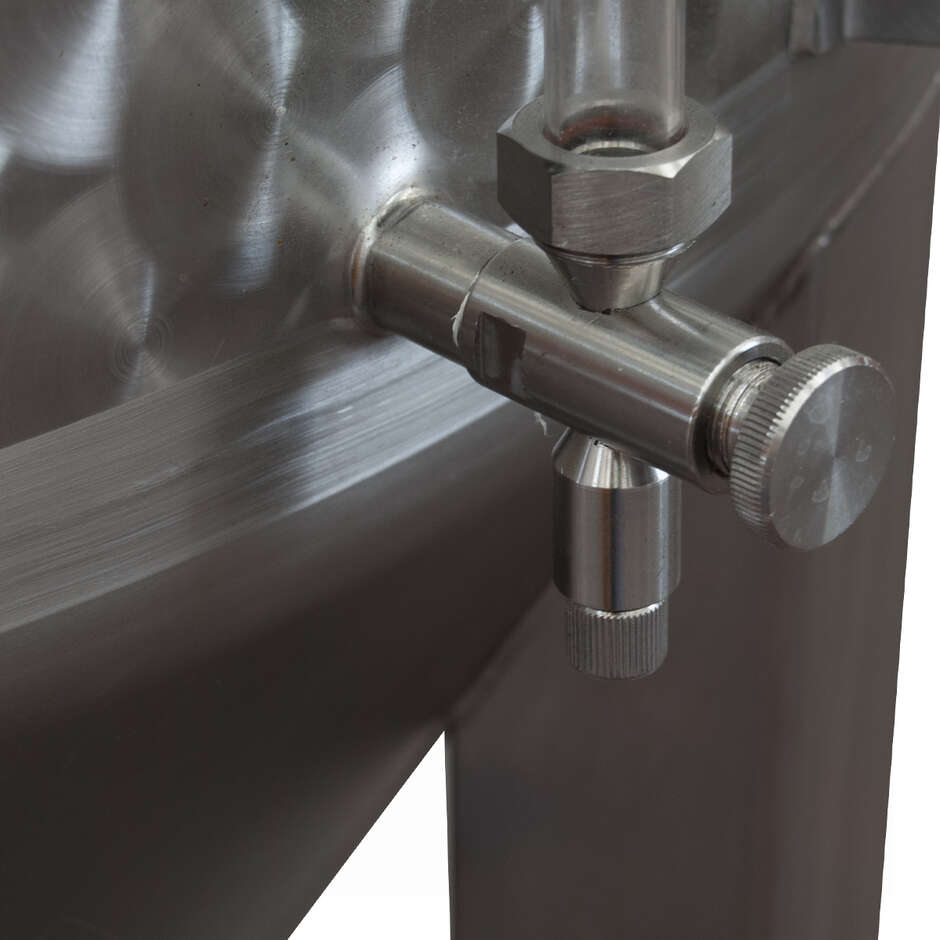

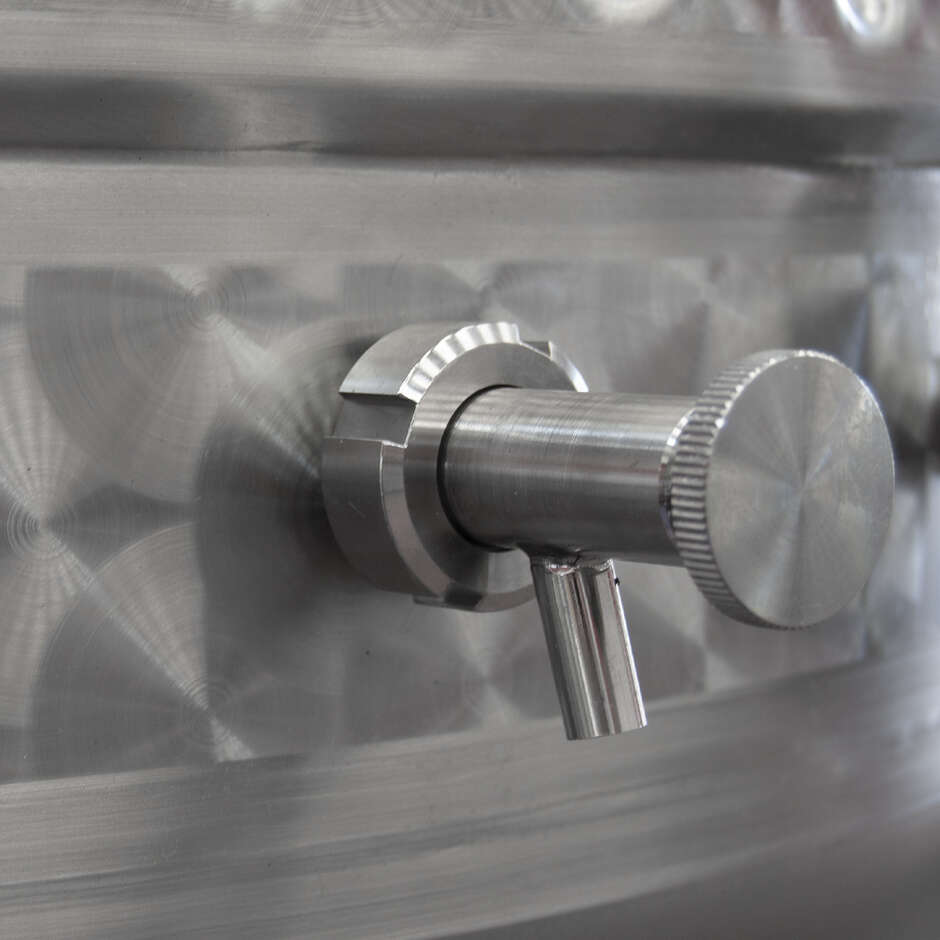

• Stainless steel sample holder

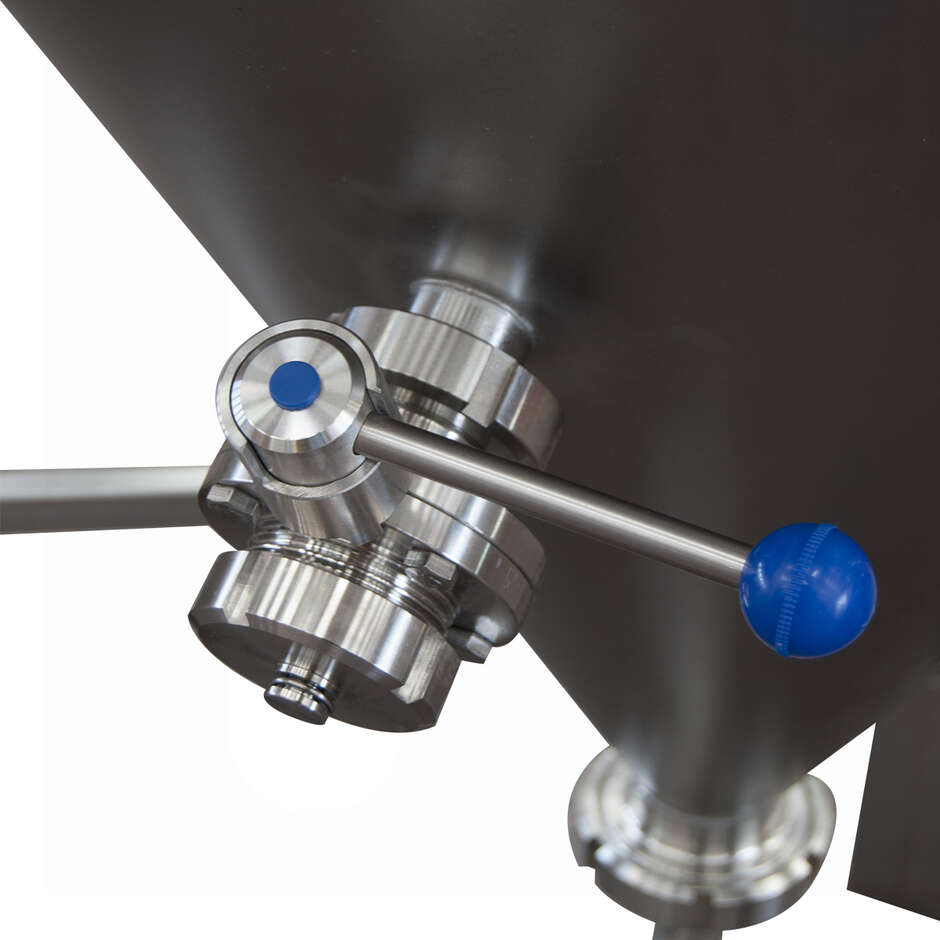

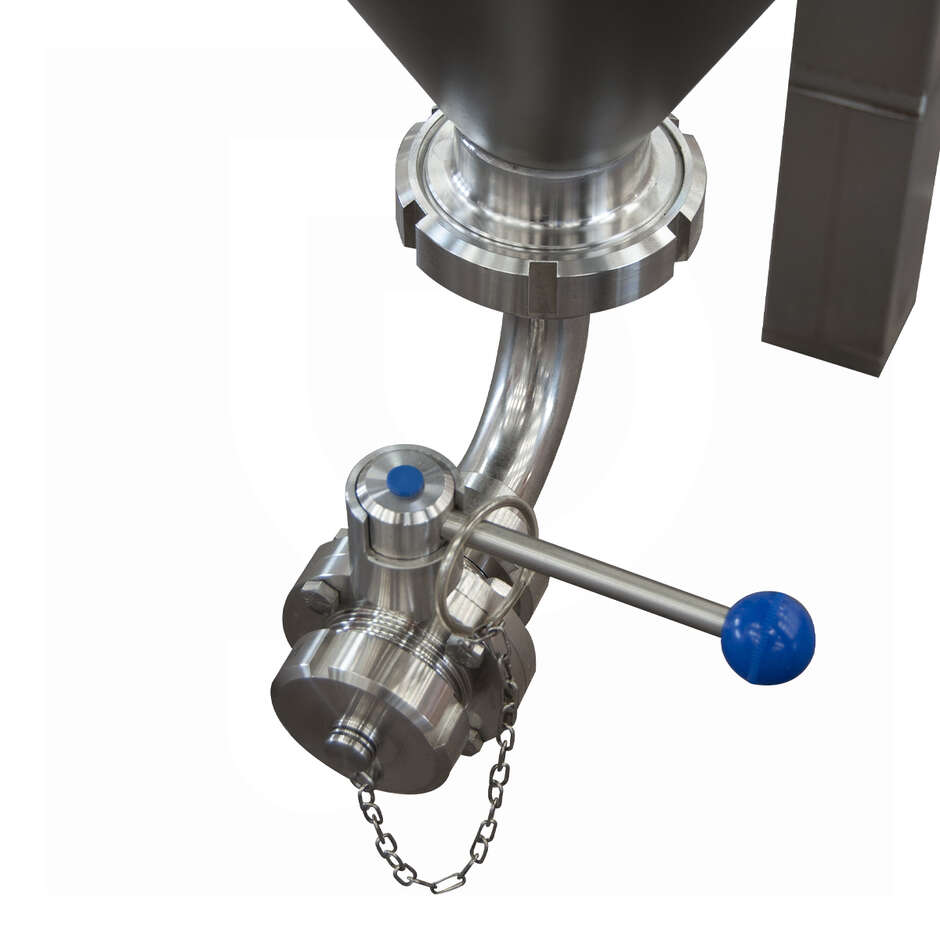

• Total and partial drain with stainless steel butterfly valves

Also available in the capacity:

400 - 500 - 750 - 900 - 1050 - 1200 - 1400 - 1650 - 1900 (Litres)
