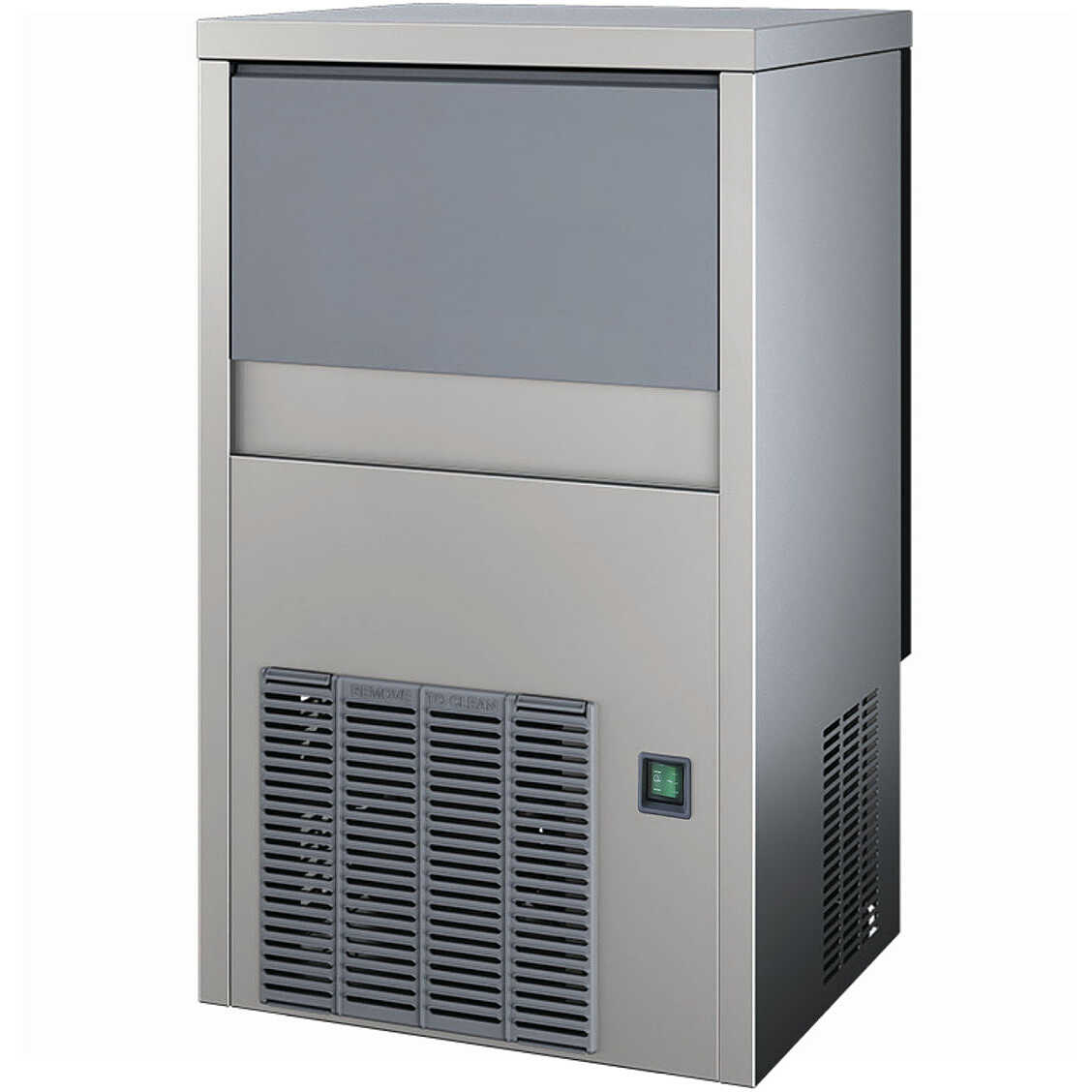

Professional Ice Maker 36 kg

Professional Ice Maker 36 kg with Built-in Storage Bin

The professional ice maker with built-in storage bin is designed to ensure a constant production of solid, crystal-clear and compact ice cubes, ideal for professional use in hotels, restaurants, bars, nightclubs, fast-food outlets and industrial applications.

Thanks to its spray production system and air-cooled condensation, the machine can produce up to 36 kg of ice in 24 hours, depending on the ambient temperature. The built-in storage bin has a capacity of up to 9 kg, ensuring a good supply of ice that is always ready for use.

The sturdy AISI 304 stainless steel outer structure with Scotch-Brite finish ensures durability and easy cleaning, essential features in professional environments. The rounded internal surfaces further simplify cleaning and maintenance operations.

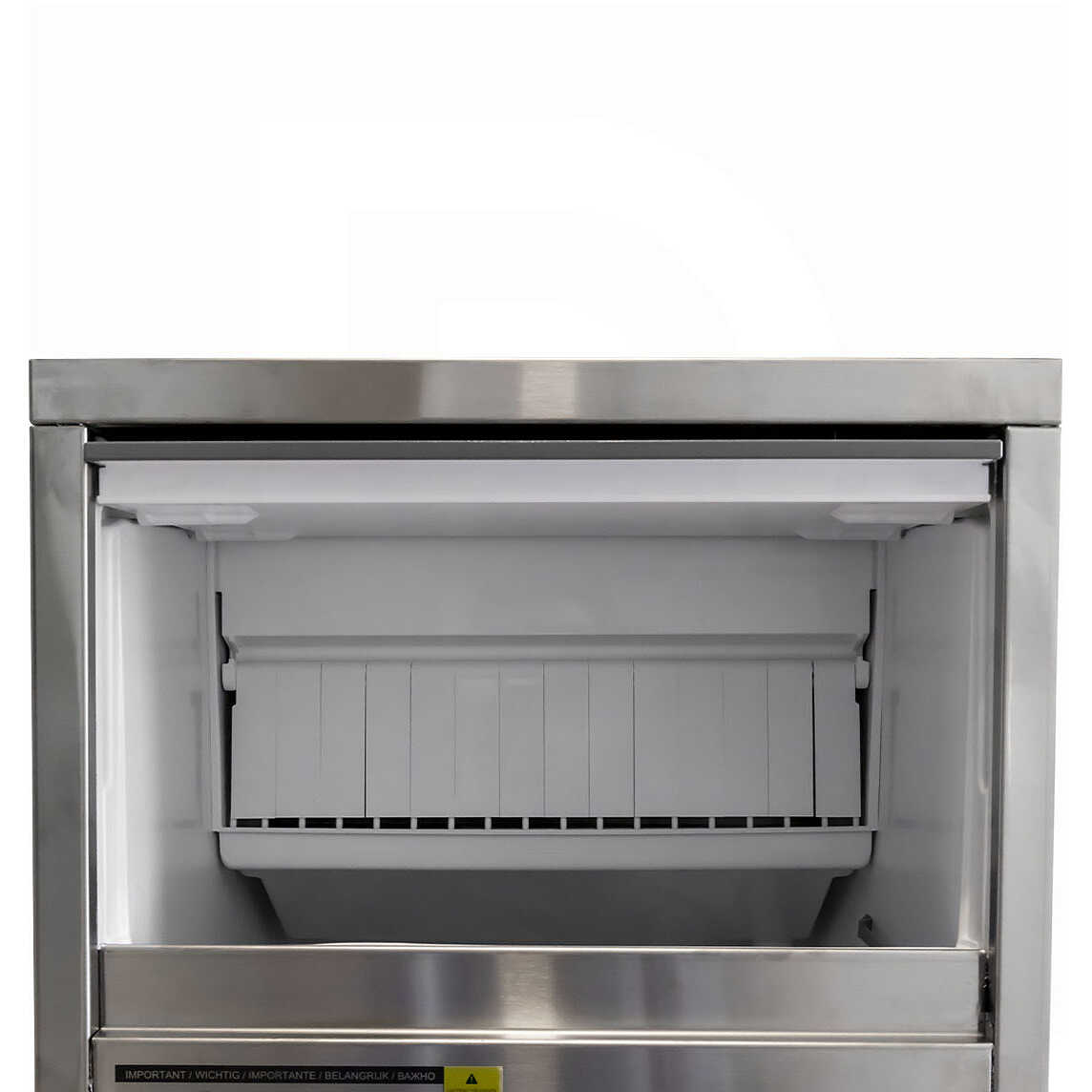

The model is also equipped with side ventilation grilles, removable side panels and an easily removable and washable external protective filter. The insulated retractable door provides convenient access to the ice storage bin while helping to reduce ice melting.

Designed for undercounter installation, the ice maker optimises workspace and can operate at ambient temperatures of up to +43°C thanks to its Tropical Class rating.

Applications:

• Hotels
• Restaurants
• Nightclubs
• Bars
• Fast-food outlets
• Industry

Features:

• Solid, crystal-clear and compact ice cube
• AISI 304 stainless steel outer structure, Scotch-Brite finish
• Side grilles for improved ventilation
• Removable side panels
• Electromechanical operating system
• Air- or water-cooled condensation
• Insulated retractable door
• ON/OFF switch
• HCFC-free insulation of the internal storage bin
• Compliant with the RoHS Directive
• Easy cleaning thanks to rounded surfaces
• Tropical Class model, +43°C
• Removable, easy-to-clean external protective filter
• Undercounter model

Technical Data:

• Production in 24 h: up to 36 kg
• Storage bin capacity: up to 9 kg
• Condensation: Air-cooled
• Ice cube weight: 17 g
• Refrigerant: R404A
• Standard voltage: 220–240 V ~ 50 Hz
• Power consumption: 350 W
• Fuse: 10 A
• Water consumption: 5.1 l/kg
• Dimensions: 387 × 465 × 687(h) mm
• Dimensions with feet: 387 × 465 × 692(h) mm
• Net weight: 38 kg
• Gross weight: 44 kg

Production:

Air temperature:

• 10°C – 36 kg/24 h
• 21°C – 32 kg/24 h
• 32°C – 26 kg/24 h

Installation Conditions:

• Installation: Indoor
• Ambient temperature: Min. +10°C – Max. +43°C
• Water temperature: Min. +3°C – Max. +32°C
• Voltage: Min. -10% – Max. +10%
• Inlet water pressure: Min. 1 bar (14 psi) – Max. 6 bar (84 psi)
