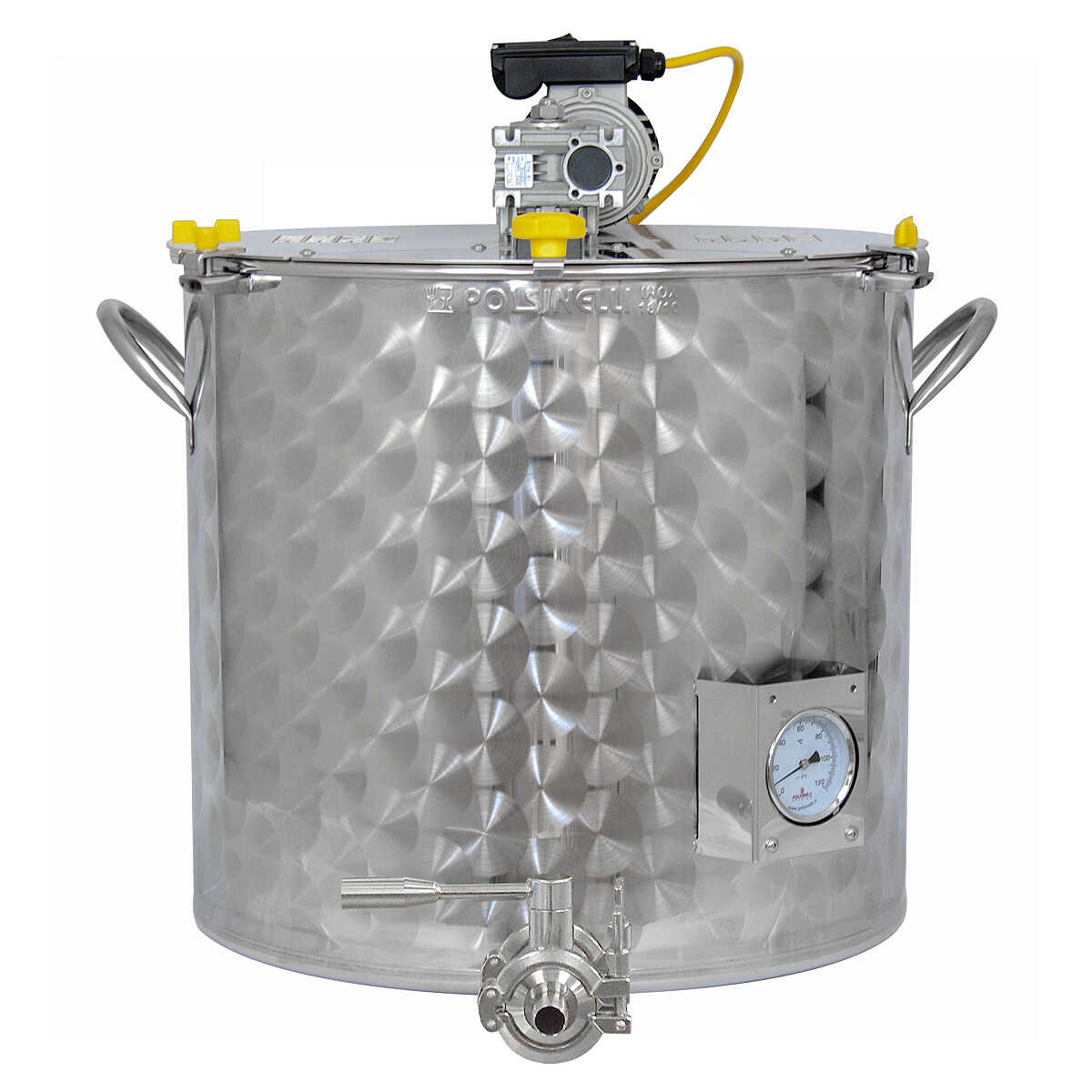

Motorized jam pot Tri-Clamp 75 L

75 L motorised jam pot with Tri-Clamp connection

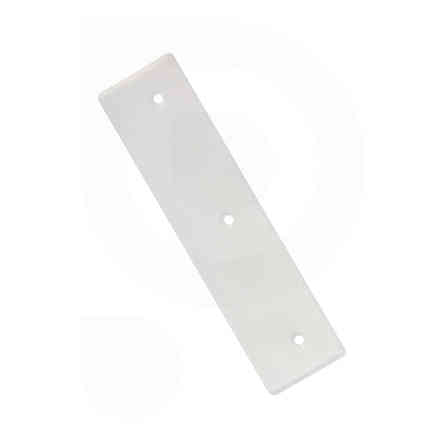

The 75 litre stainless steel motorised jam pot with Tri-Clamp connection is a professional quality product designed to be used by companies and amateurs during the process of cooking jam. Complete with a food-grade silicone scraper strip applied to the bottom blade, the 75-litre motorised jam pot is able to optimally prevent burning and caramelisation of the product.

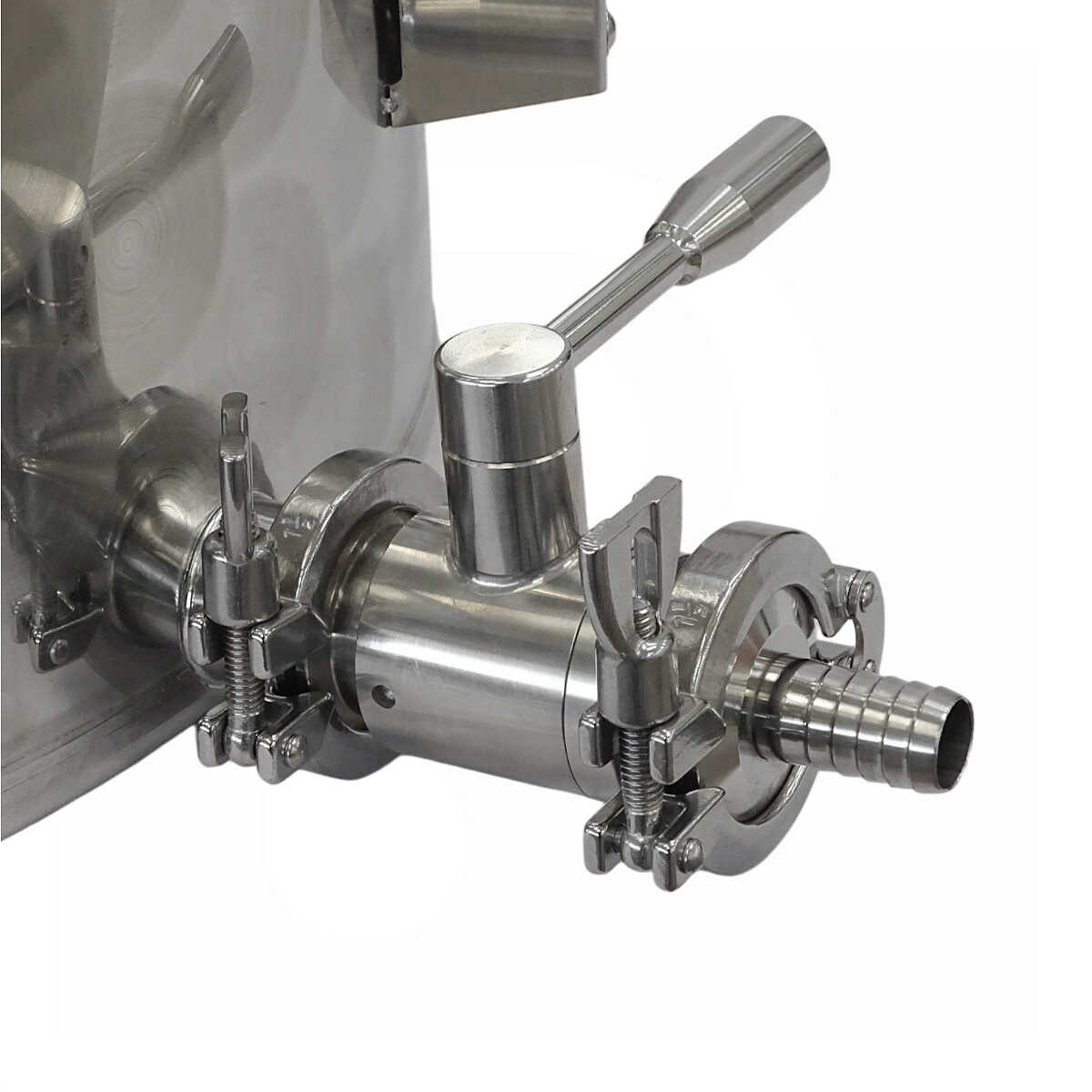

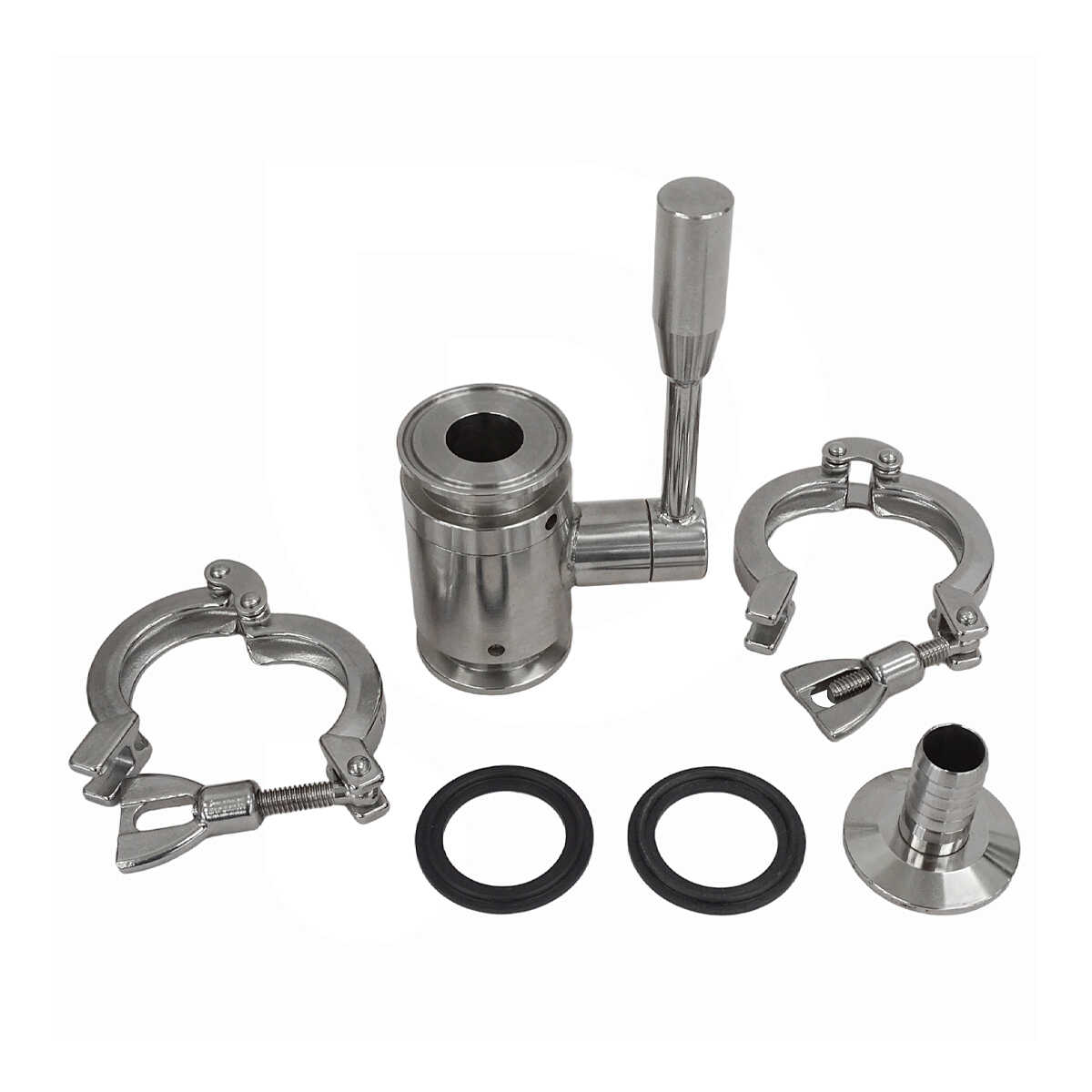

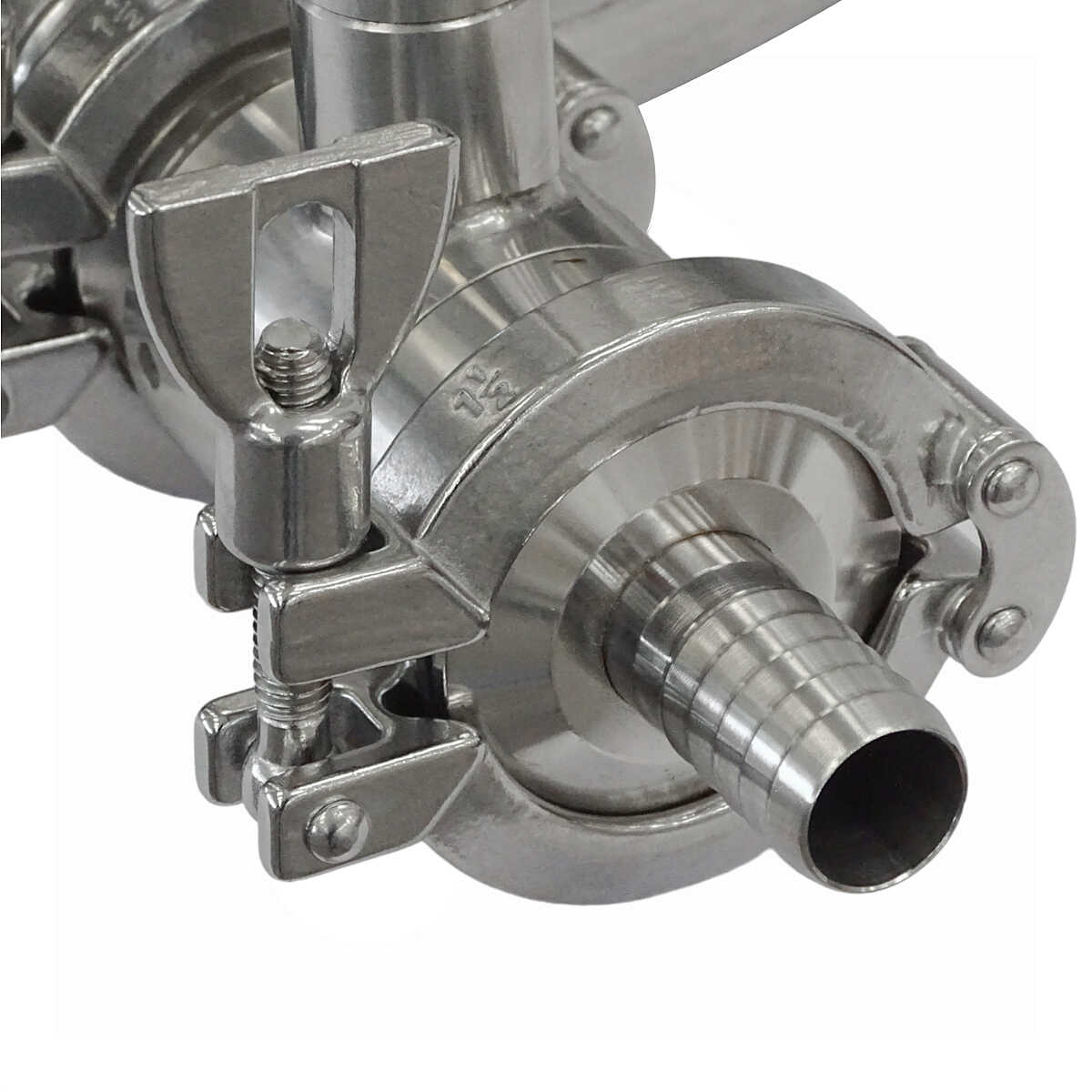

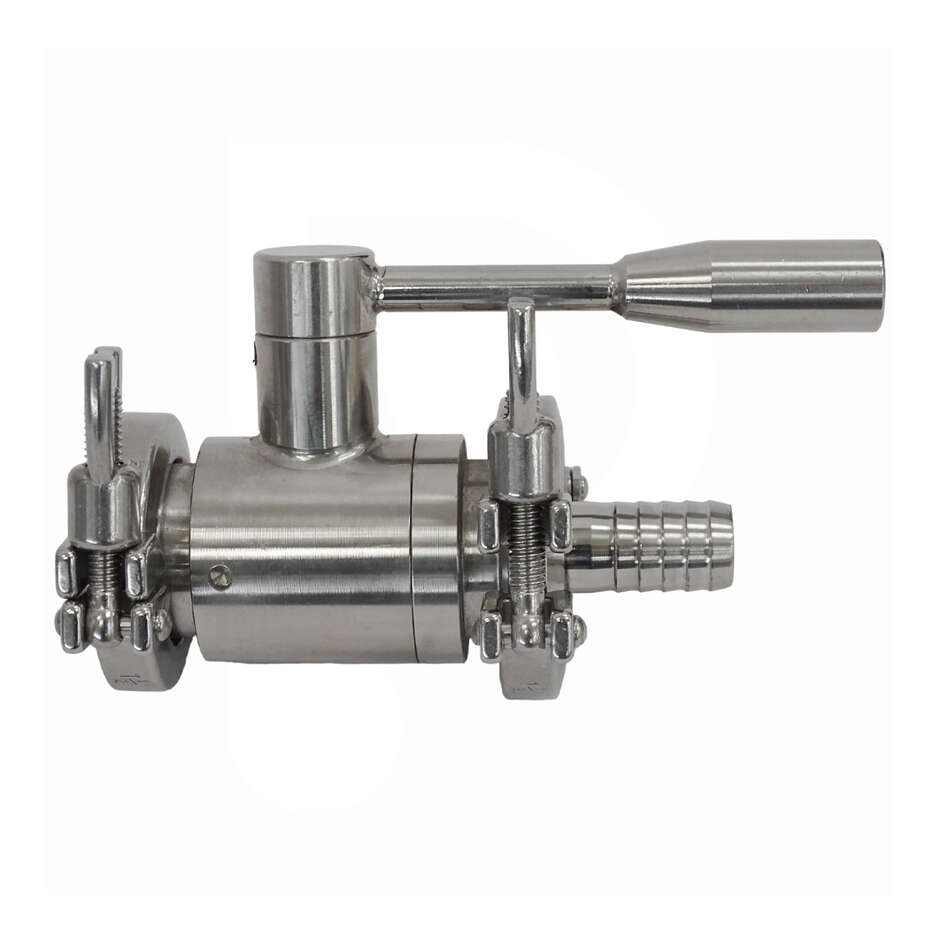

Equipped with a Tri-Clamp valve, it respects the organoleptic properties of the product: the Tri-Clamp quick-connect system consists of a DN25 CLAMP 1" 1/2 stainless steel valve with PG 30 stainless steel hose connector, CLAMP gaskets and clamps, which is ideal for ensuring a sterile environment in compliance with the highest production standards. This system guarantees easy assembly and disassembly without the use of additional tools, as well as simple sanitisation thanks to the choice of smooth joints.

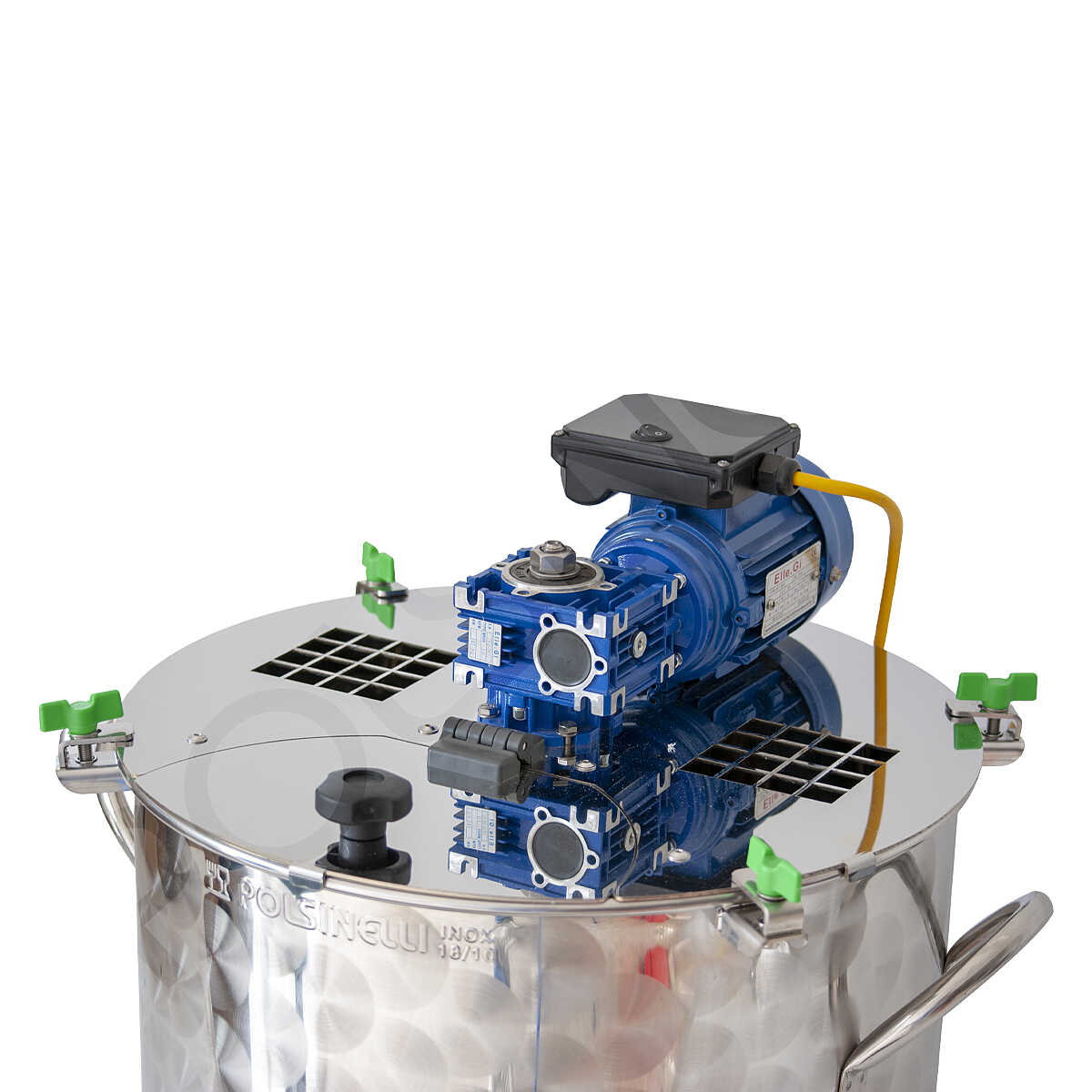

It is also equipped by a professional analogue thermometer with a special protection, which can be inserted via a probe input specifically designed to control the temperature of the cooking product. The motorised jam pot has a total capacity of 75 litres to meet all the quality and productivity requirements of companies in the sector. It also incorporates a 220V gear motor, a stirrer with stainless steel paddles, and it features ergonomic handles and a thick lid complete with hooks and holes for steam escape. This model has an internal diameter of 455 mm, while the bottom thickness is around 1.5 mm: thus ideal for maintaining the right temperatures even without active insulation.

Equipped with:

• Made of 18/10 stainless steel (AISI 304)
• Food-grade silicone scraper on the bottom plate
• Analogue thermometer with stainless steel protection
• Probe inlet and thermometer protection
• Reinforced thick stainless steel lid
• Stainless steel hooks
• Steam escape holes
• Speed motor 200 V - 0.09 kW

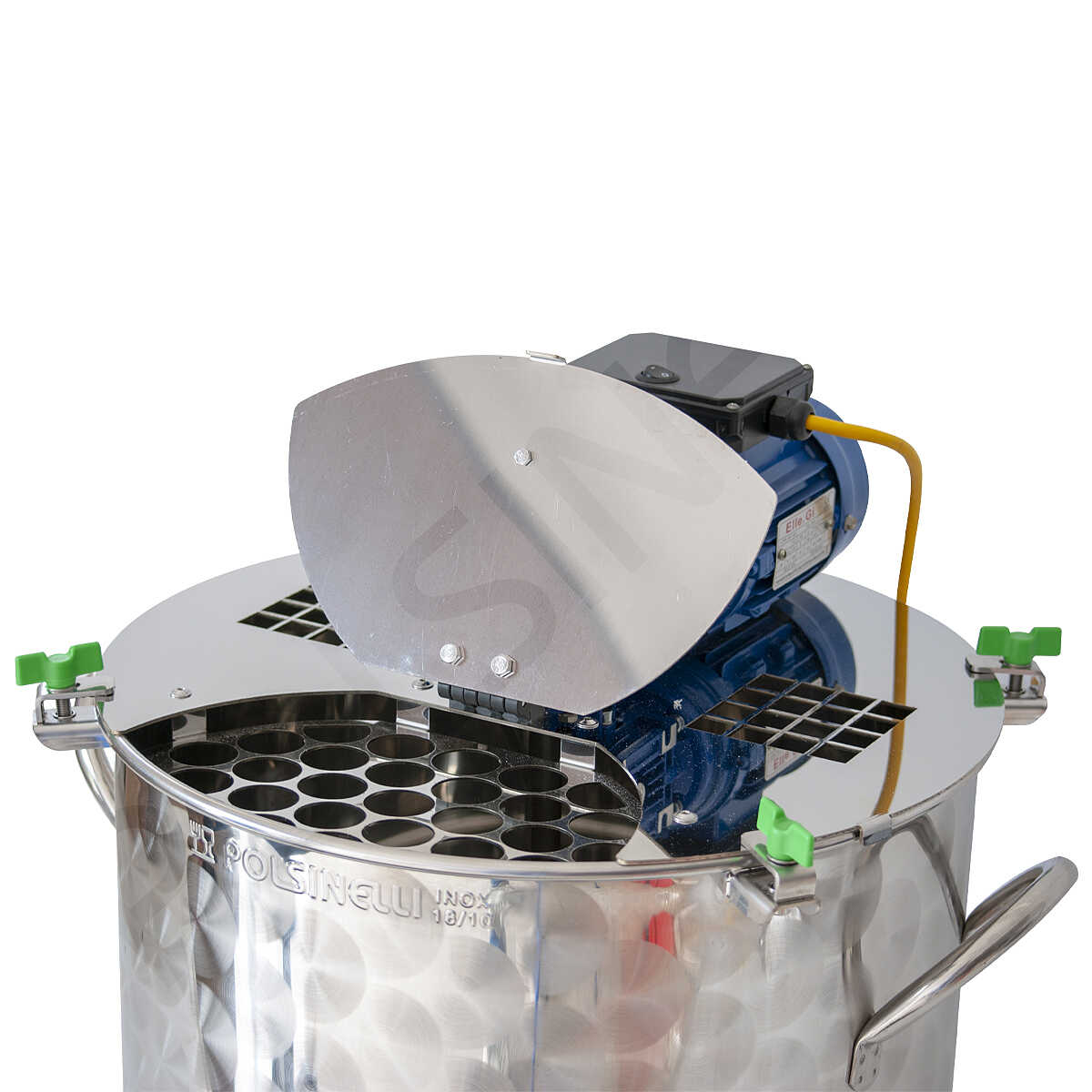

• Stirrer with stainless steel blades

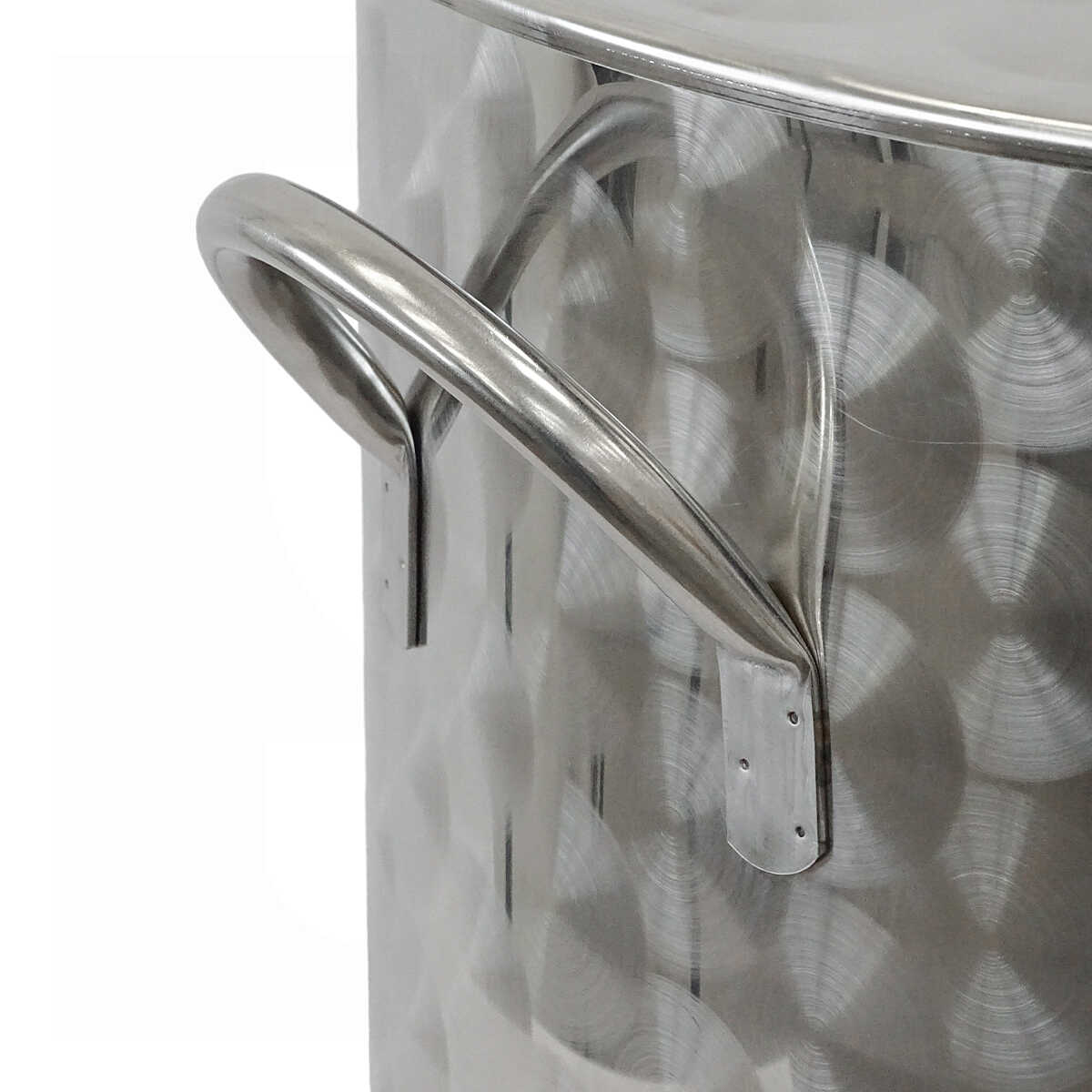

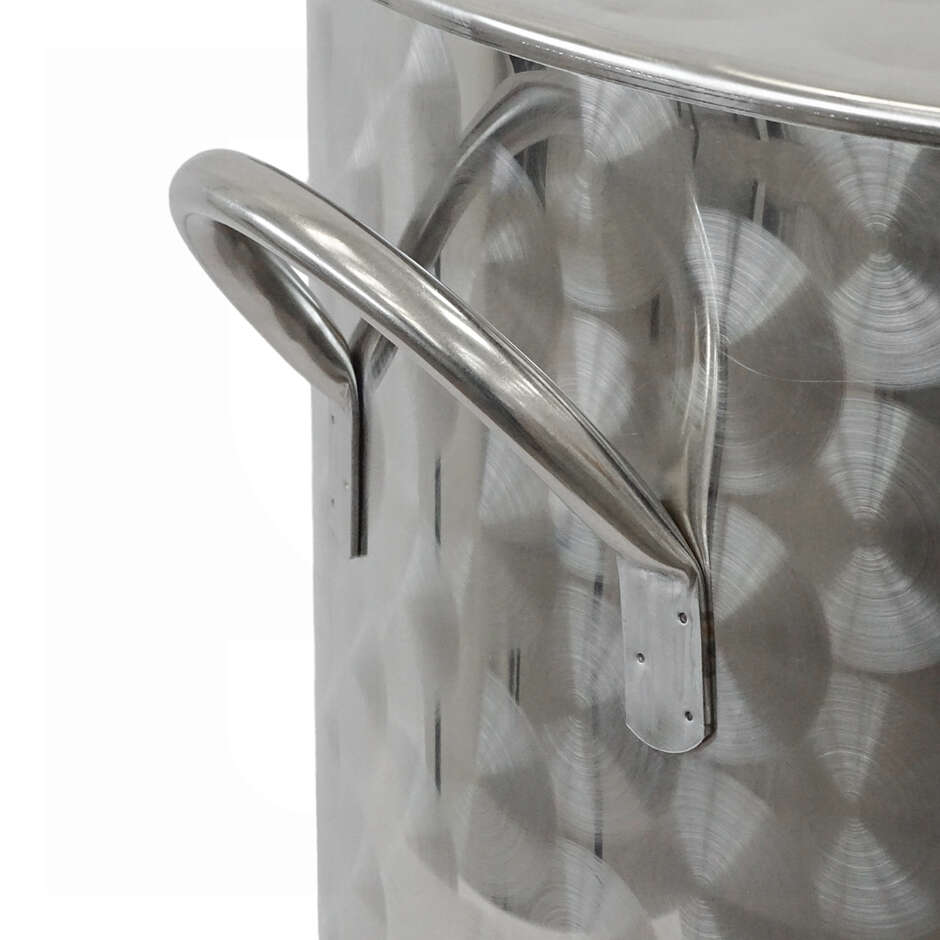

• Stainless steel handles

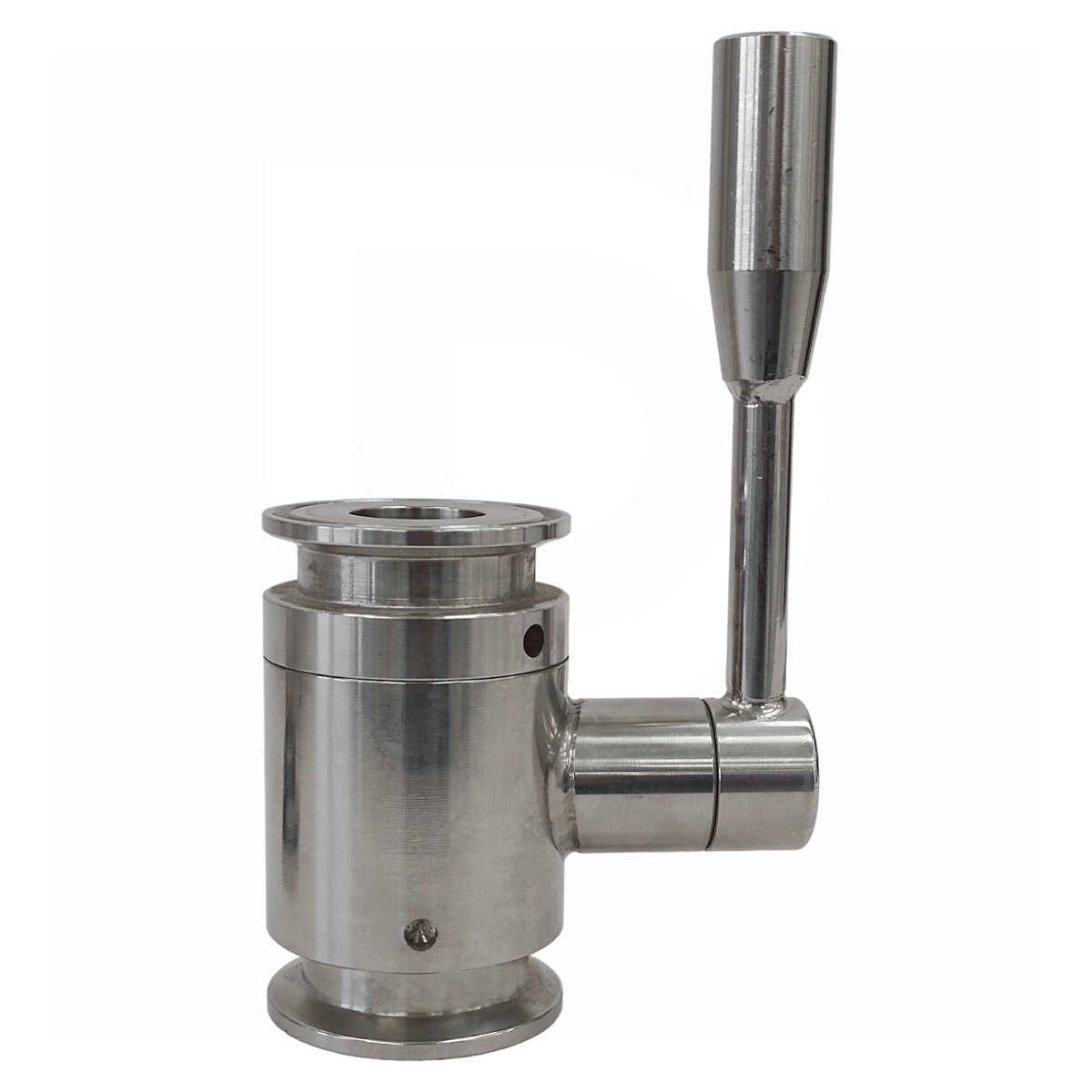

• Stainless steel valve CLAMP 1" 1/2 DN25

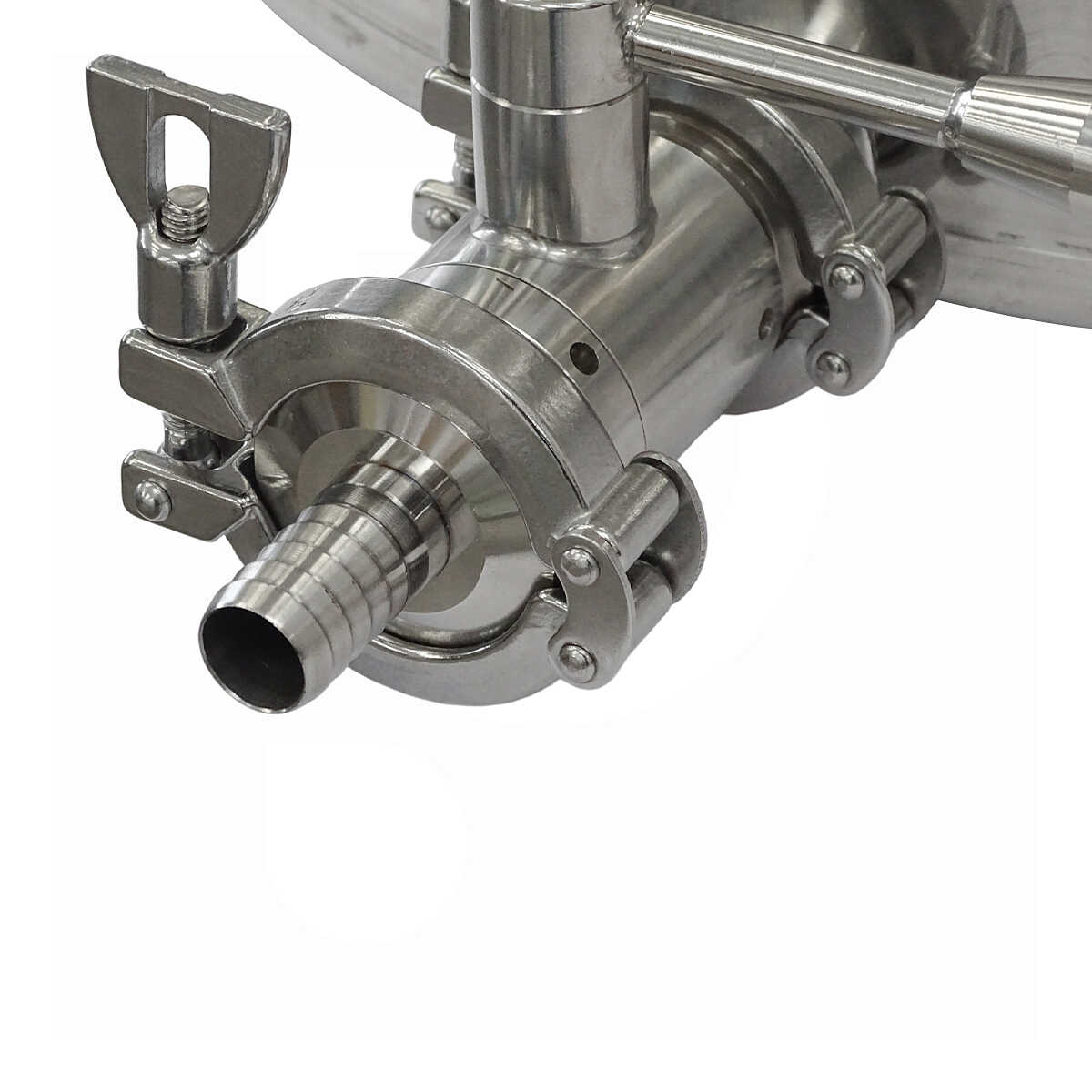

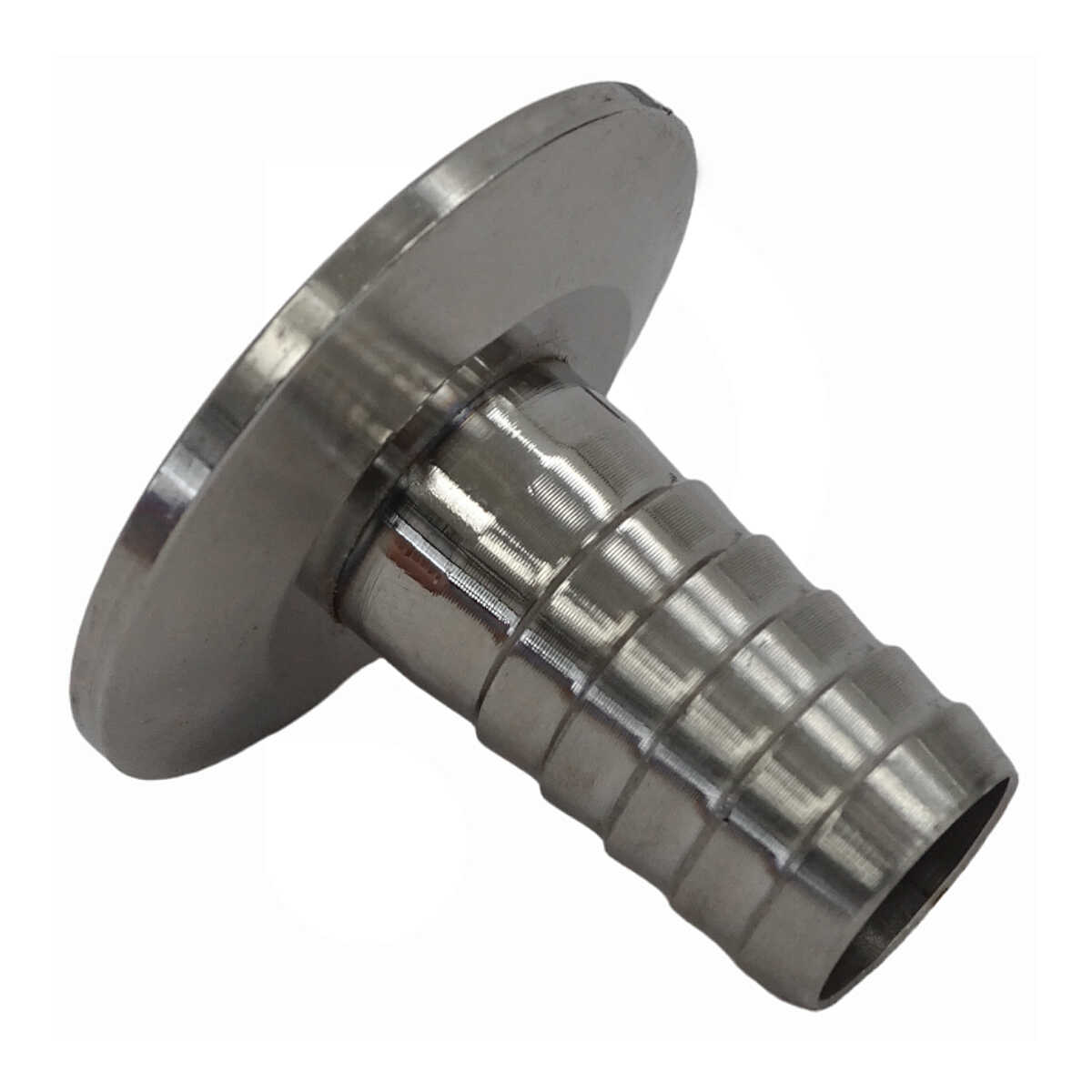

• Stainless steel hose connector CLAMP 1" 1/2 PG30

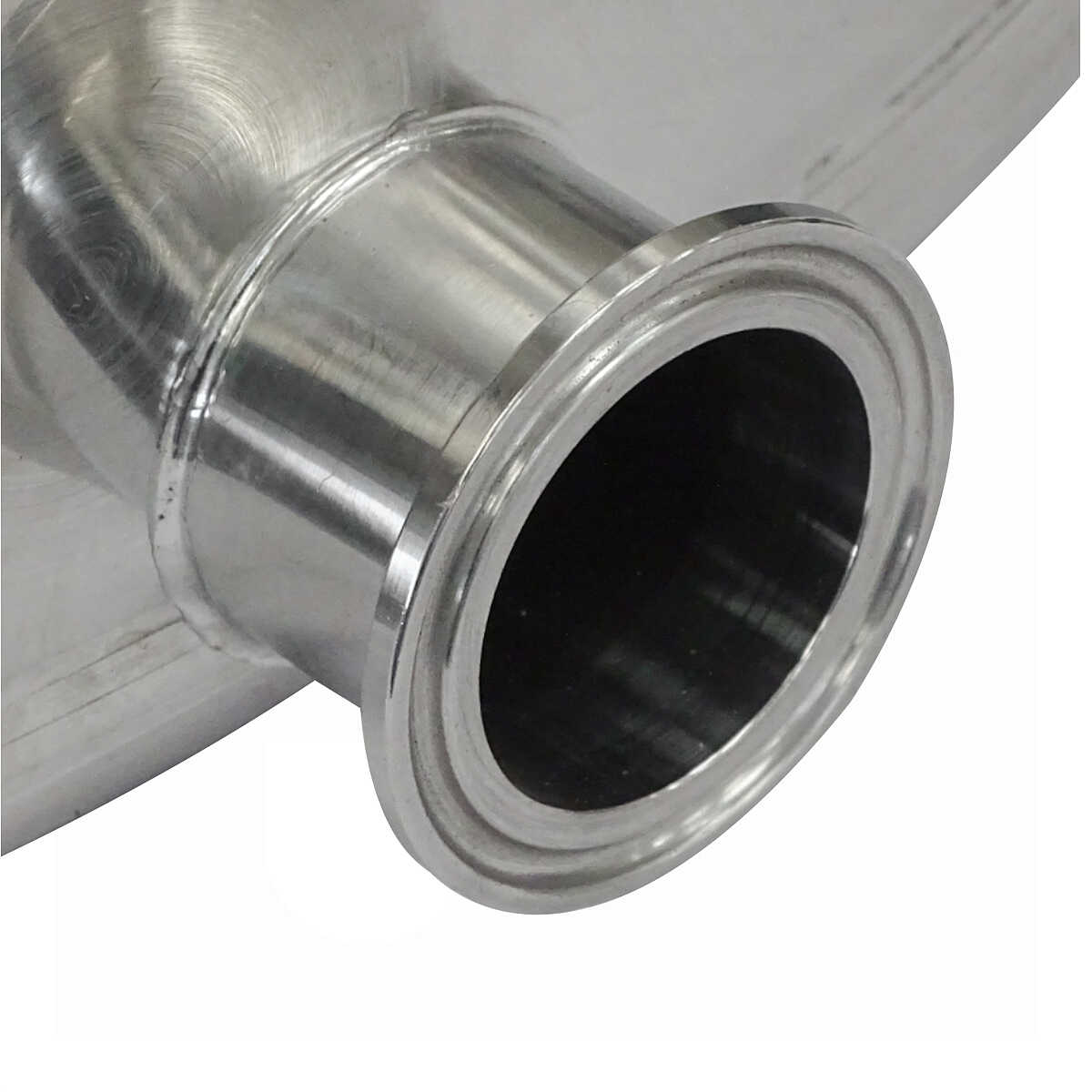

• Stainless steel connector CLAMP 1" 1/2

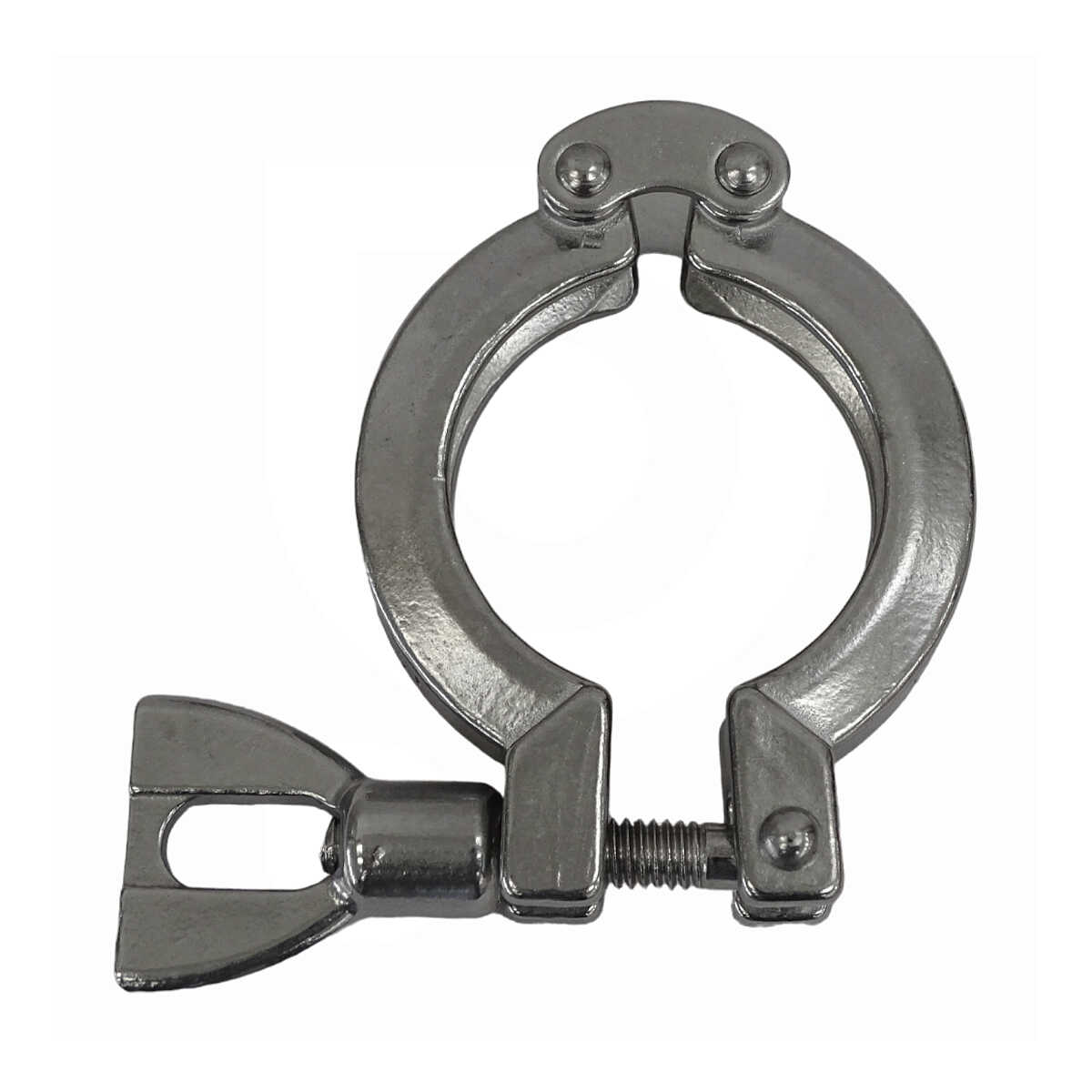

• Stainless steel double joint clamps CLAMP 1" 1/2
• CLAMP gaskets
• Inside diameter: 455 mm
• Overall height: 495 mm
• Overall dimensions complete with motor: mm 580 x 655 (h)
• Bottom thickness: 1.5 mm
• Wall thickness: 1 mm

Our pots are built in stainless steel AISI 304
They are not suitable for induction heating.
