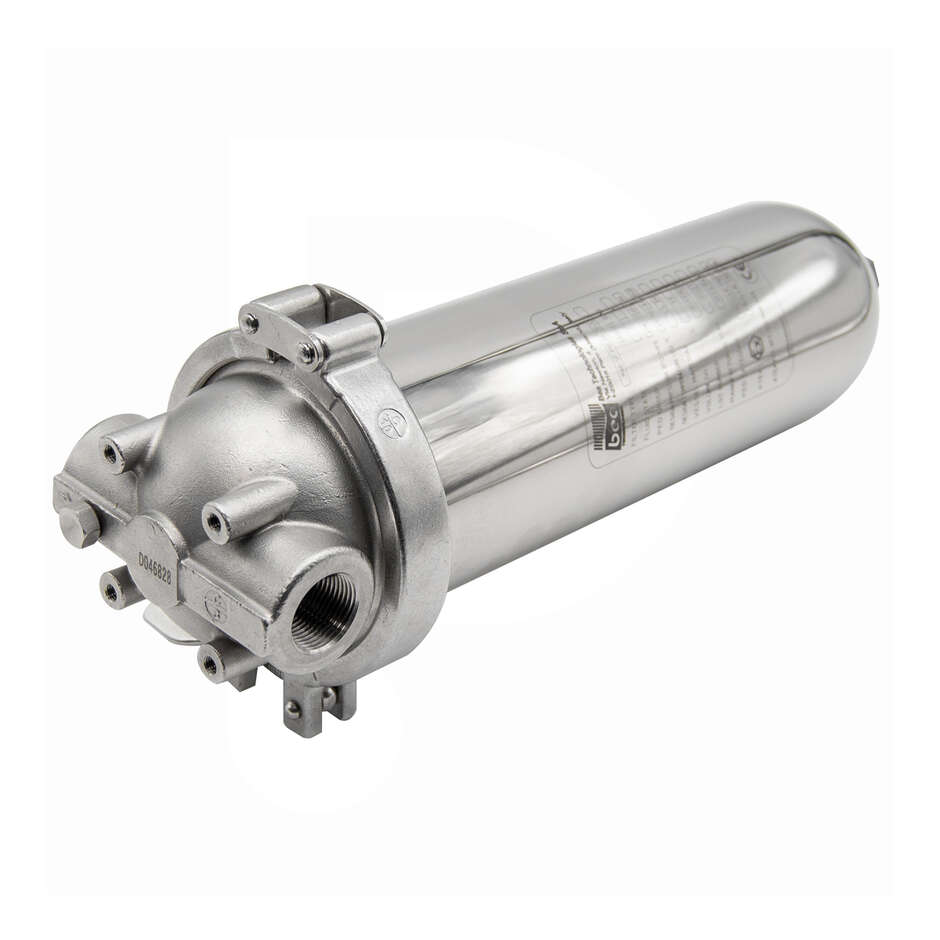

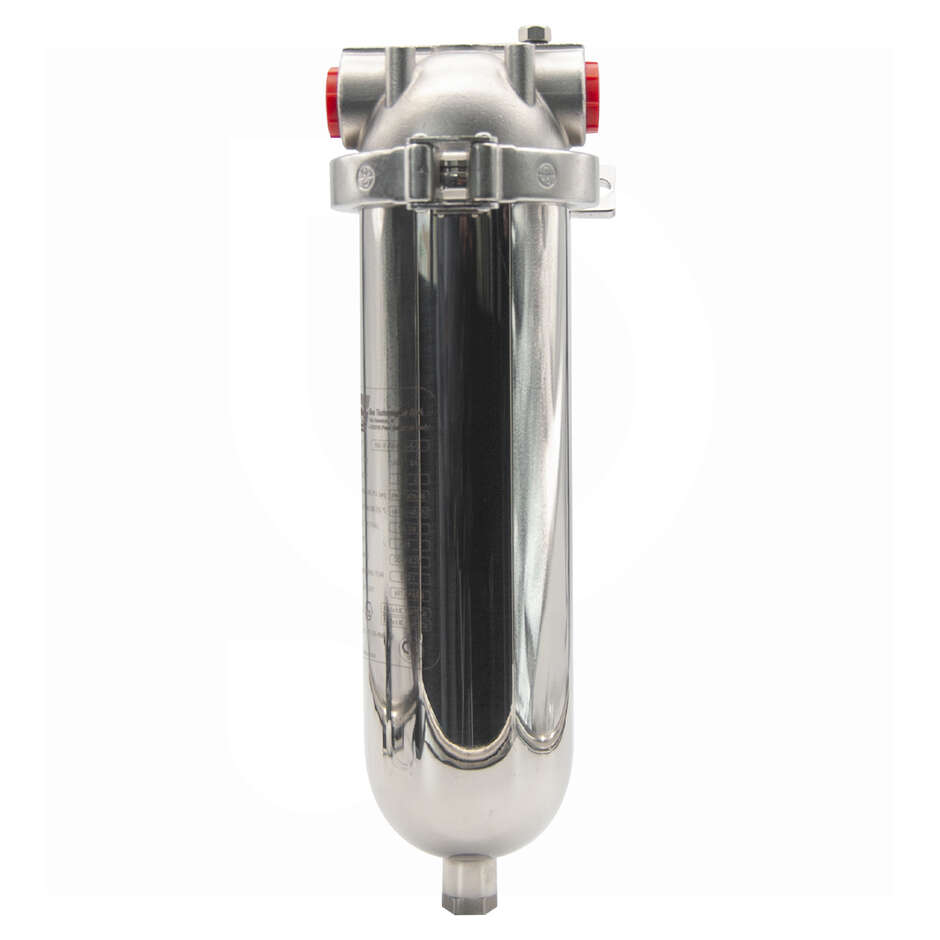

Filter Housing 10"
Description

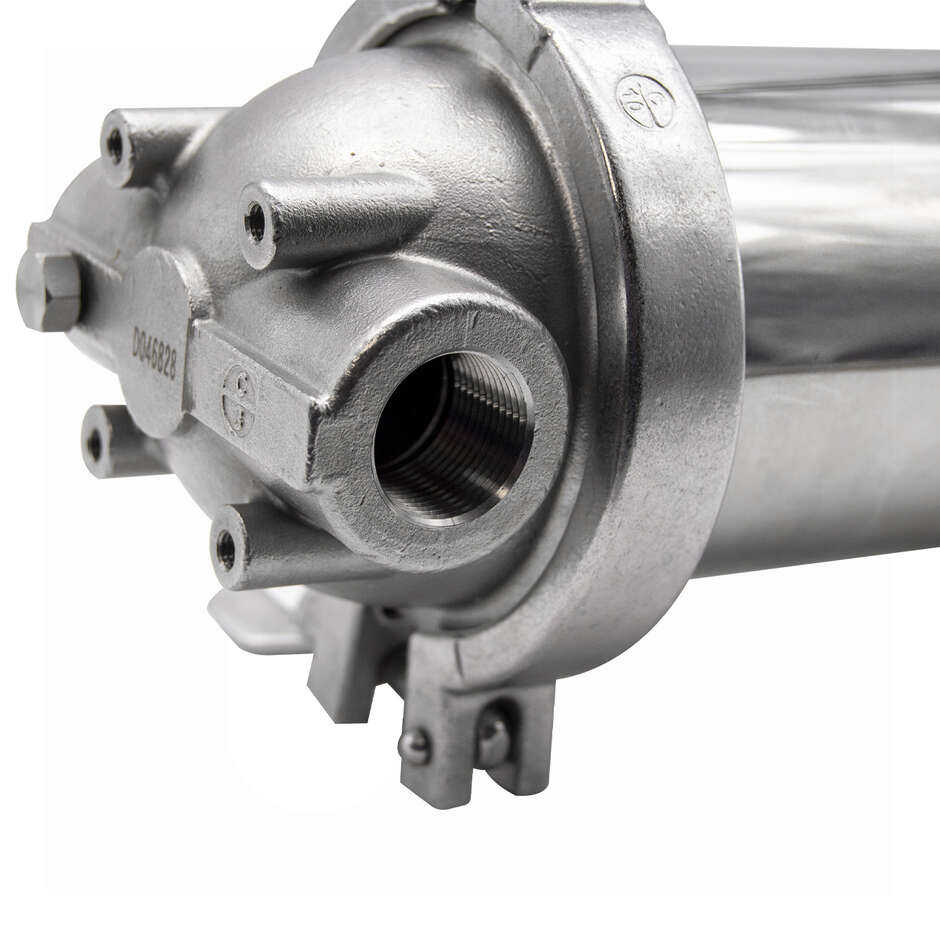

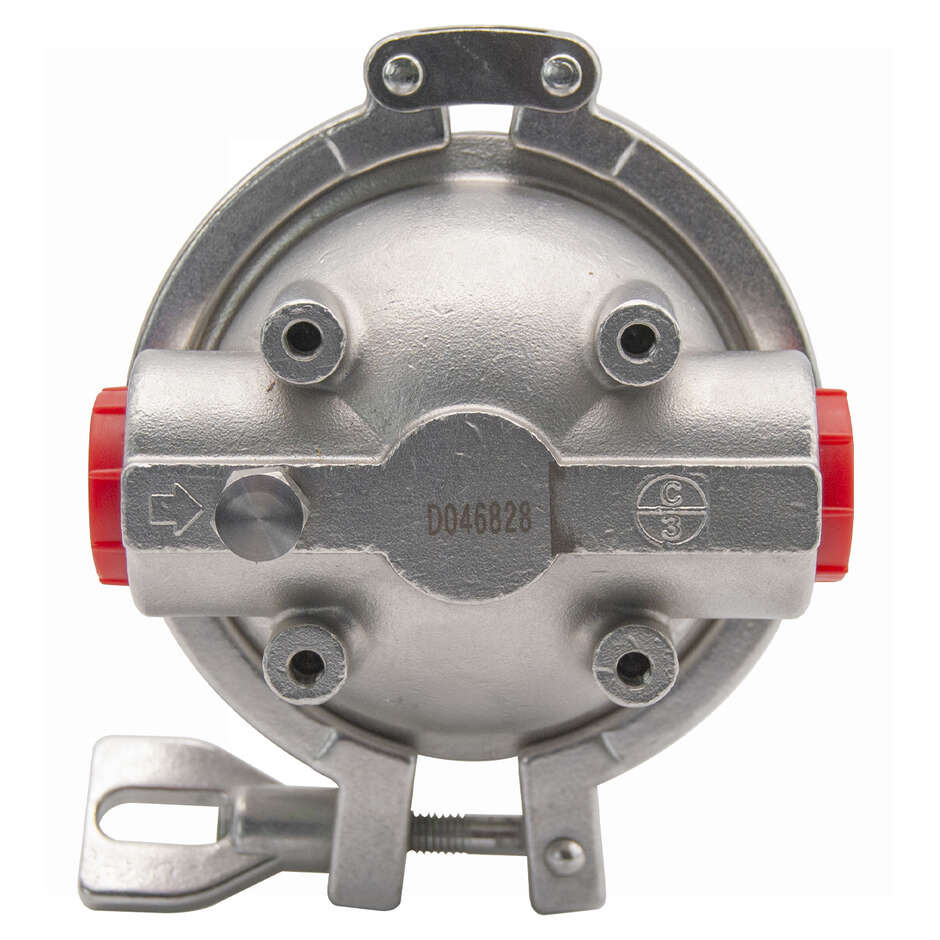

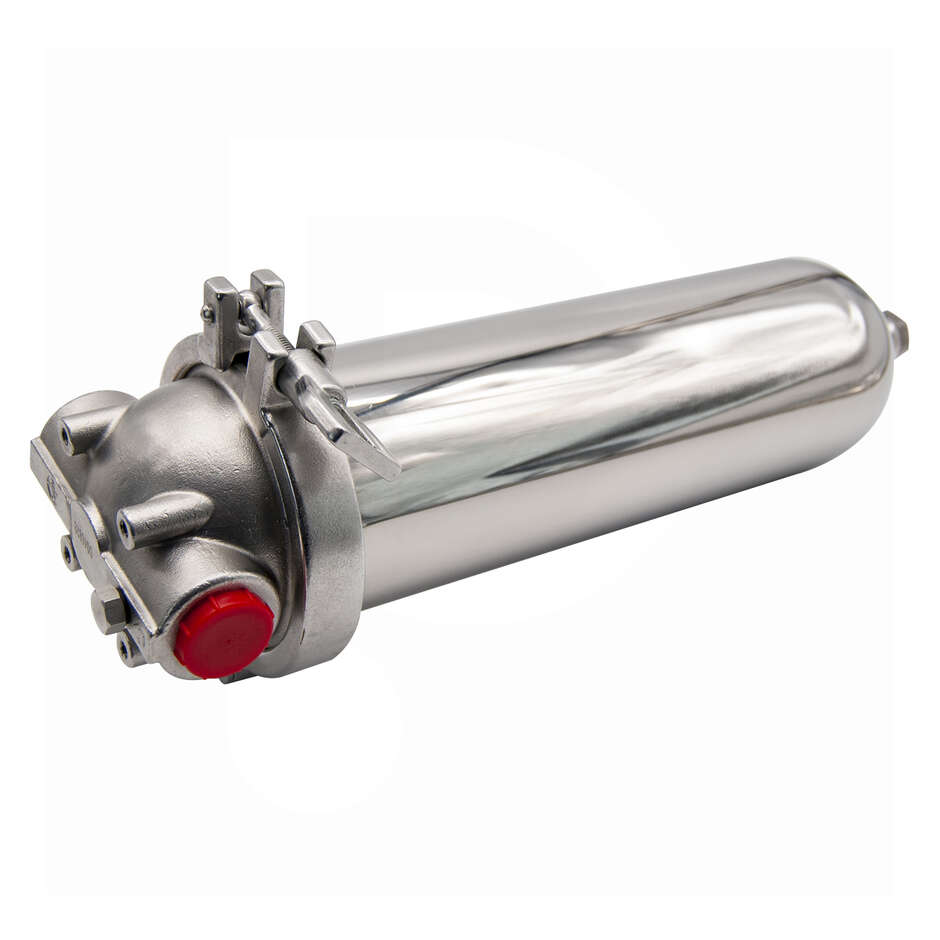

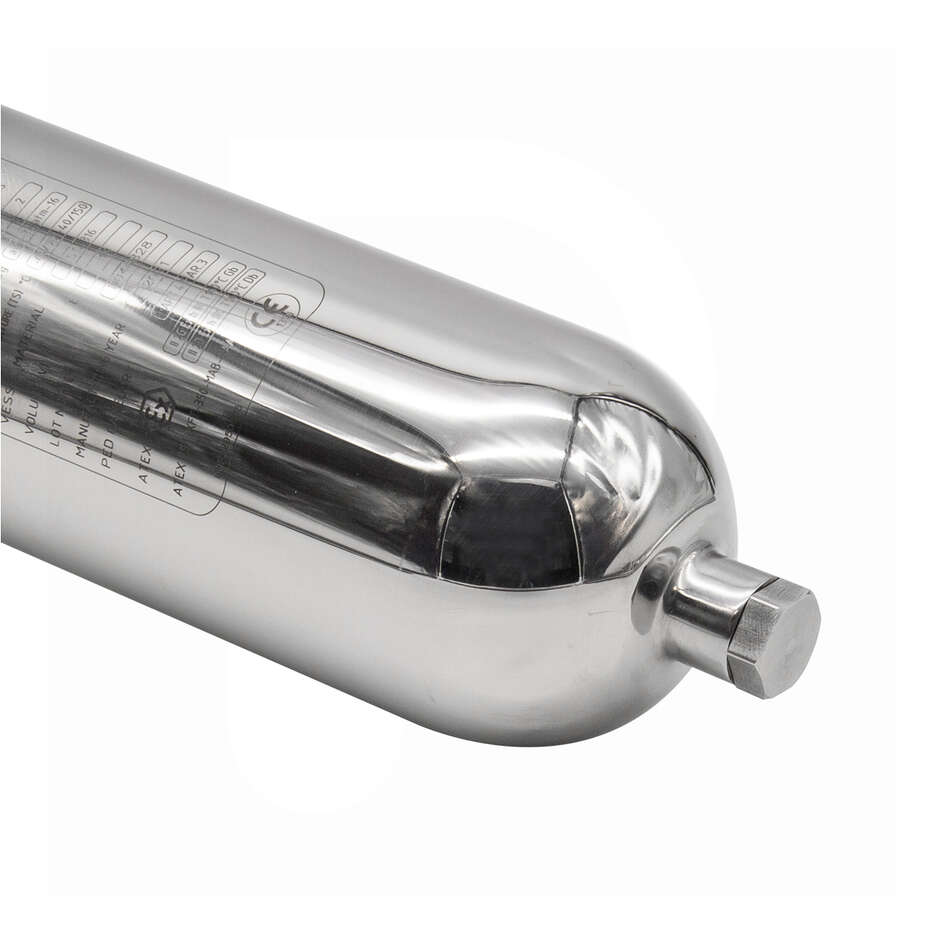

Filter Housing 10"

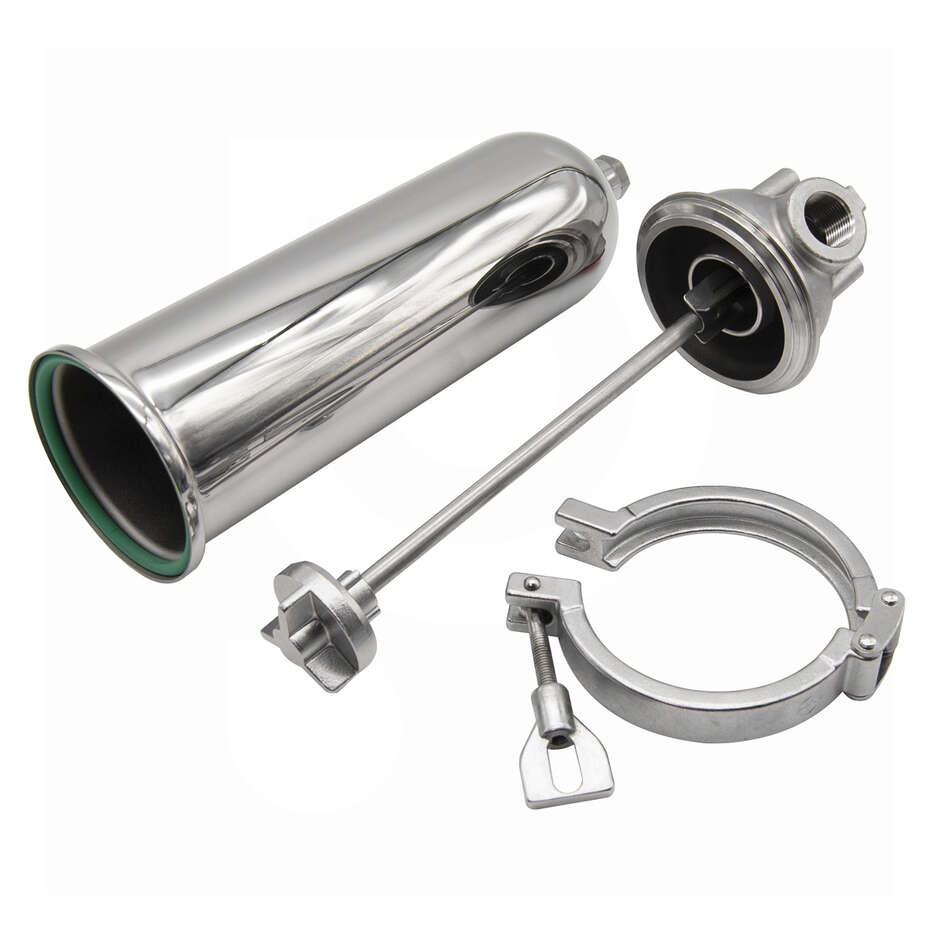

The Housing 10" filter is a tool used in the pre-bottling stage to carry out complete cleaning, sterilisation and cold polishing of beer, wine, fruit juices or other food liquids. The structure of the tool includes a 10" AISI 316 stainless steel housing that guarantees maximum hygiene and safety in beverage filtration operations and ensures the removal of yeast cells and bacteria, minimising any alteration of the final product. The membranes of the 10" Housing have a pore size of 0.1 - 10 µm, while the porosity of the filter is 0.45 µm, with a working capacity of up to 400 L/h. Compact and resistant even under harsh operating conditions, the materials used in the construction of the Housing 10" filter provide a high level of product quality. In addition, the possibility of disassembling the various components simplifies the cleaning of the equipment after use.
Features
- Material: AISI 316 stainless steel
- In-Out Connections: 3/4"
- Connection: D
- Drain: 1/4"
- Venting: 1/8"
- Flow rate: 400 L/h
- Pore size 0.1 - 10 µm
- Filter porosity 0.45 µm

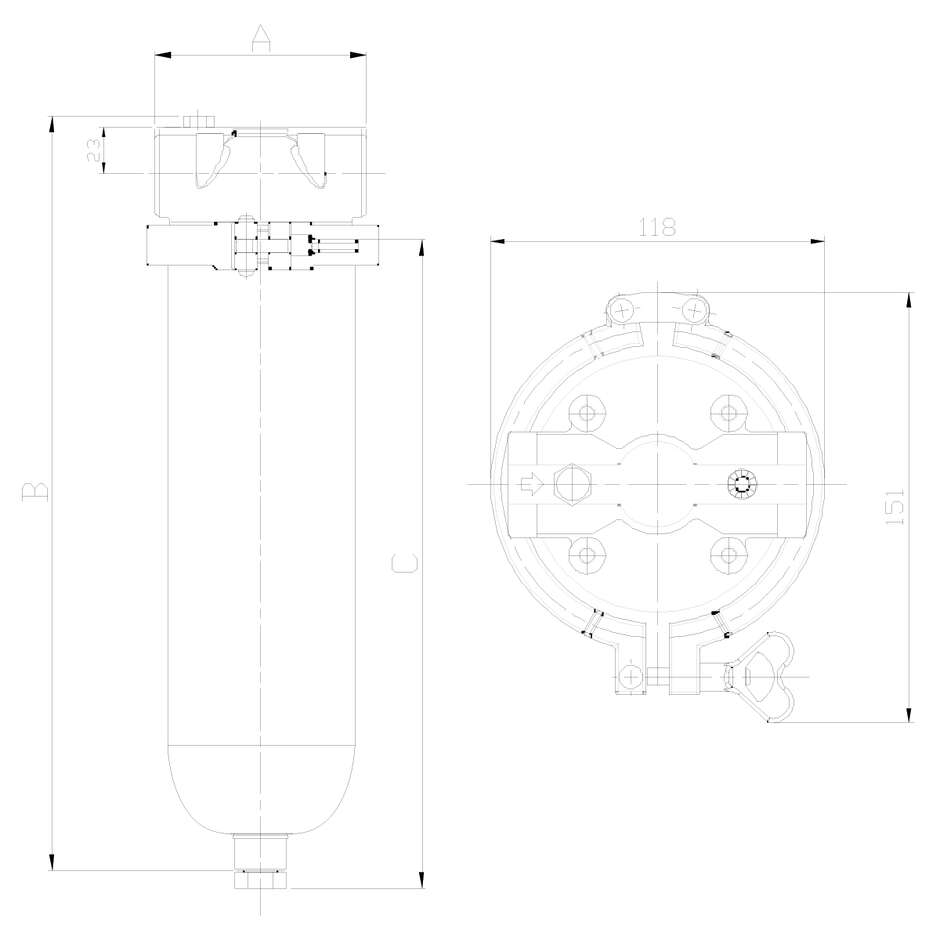

- Dimensions in mm: 105(H) x 375(B) x 318(cC)
- Weight: 3.5 kg
- Volume: 1.9 L
- Conforms to CE safety standards

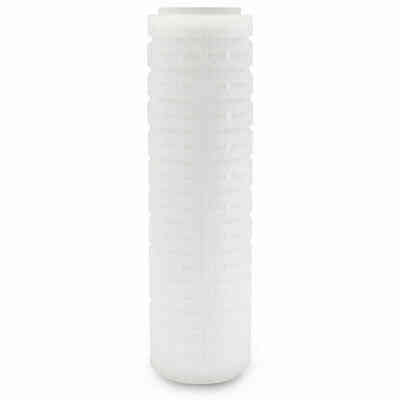

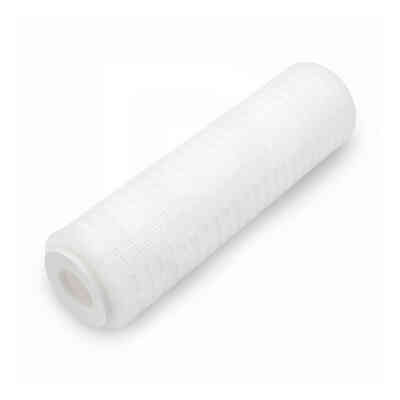

Filter cartridge not included
