Duplex AB1500 230V electrificator

Duplex AB1500 230V electrificator

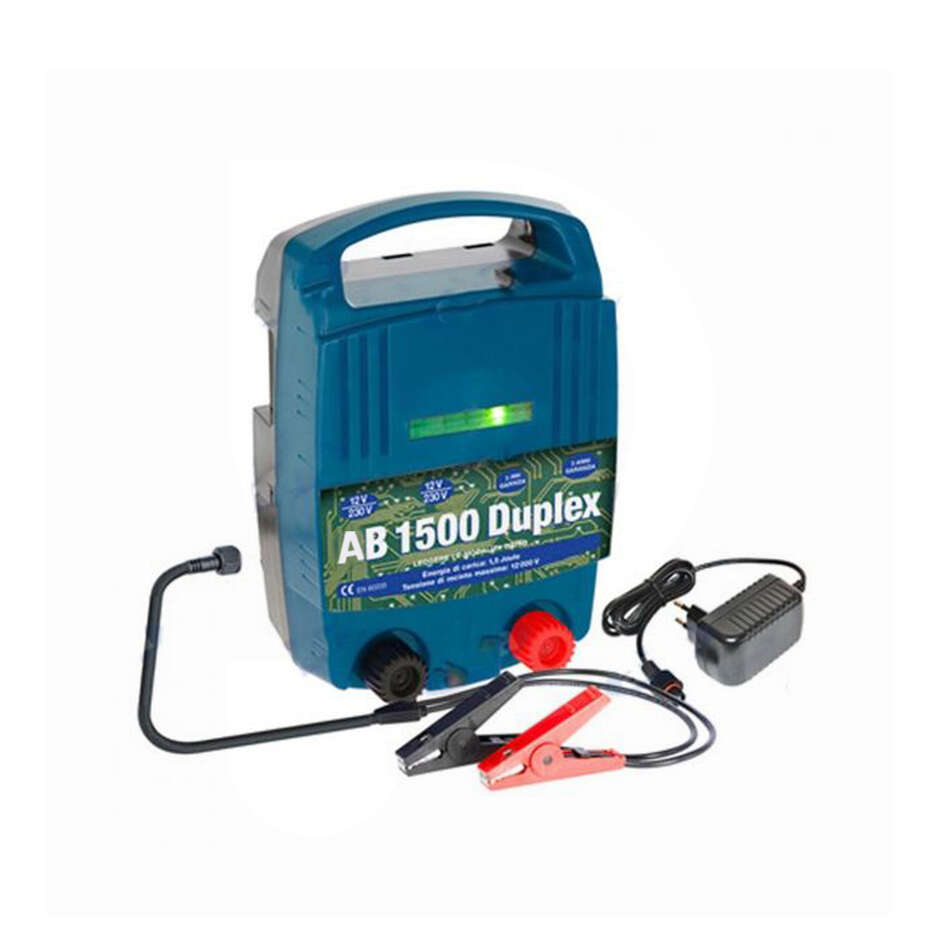

The DUPLEX 12/230V AB 1500 electrifier, with a charging energy of 1.5 joules, is suitable for 12-volt fences up to a maximum length of 25 km without vegetation. A 230V battery charger, 12 V connection cable and band and ground connection are included.

Features:

• Model: AB 1500
• Type: Electrifier
• Area of application: Animal husbandry
• Nominal voltage: 12/230 V
• Average charging current: 1.5 A
• Current consumption: 1 J
• Voltage at 500 ohms: 4100 V
• Maximum voltage: 12000 V
• Maximum discharge: 1.5 J
• Maximum length without vegetation: 25 km
• Maximum length with little vegetation: 8.3 km
• Maximum length with a lot of vegetation: 2.8 km
• Weight: 1.45 kg
