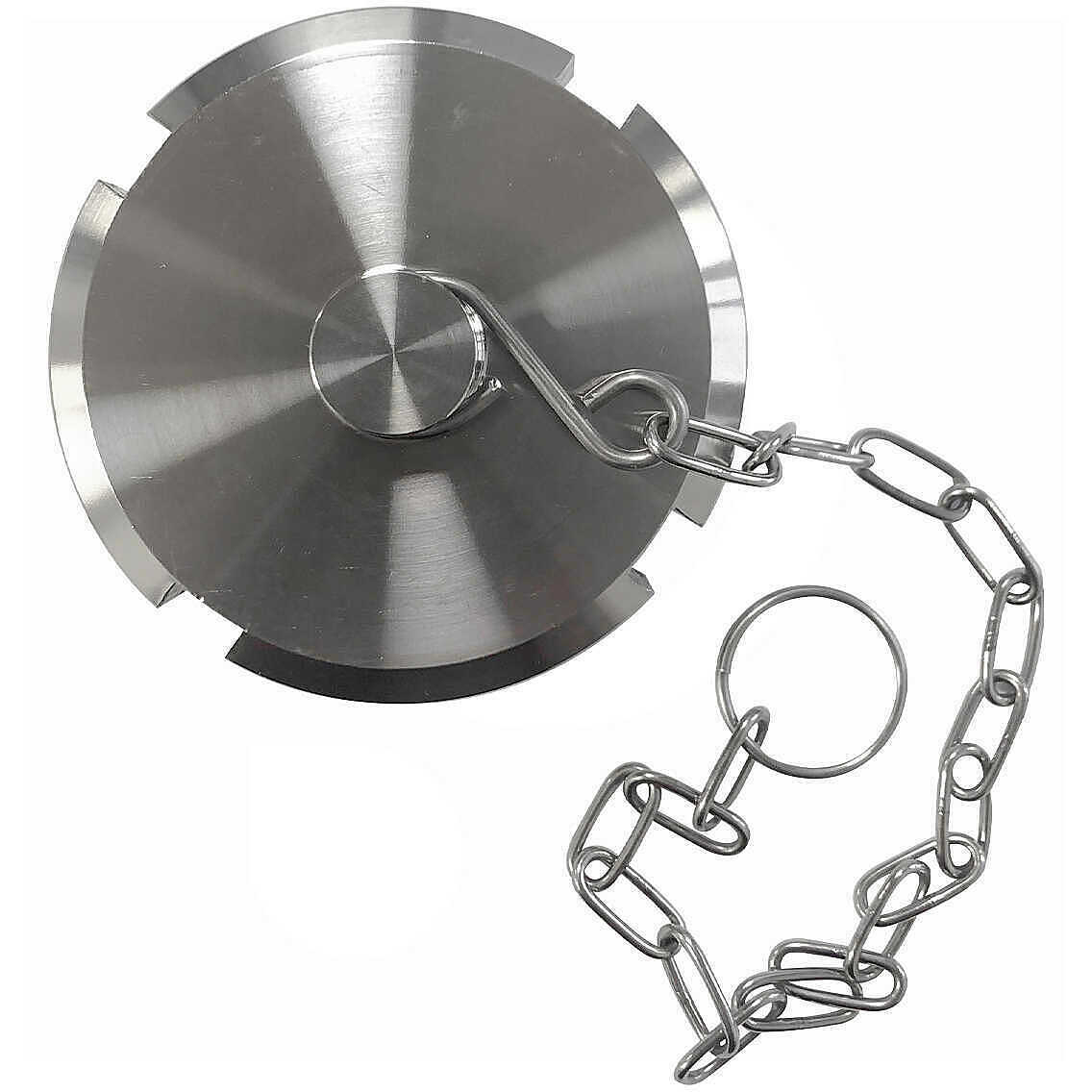

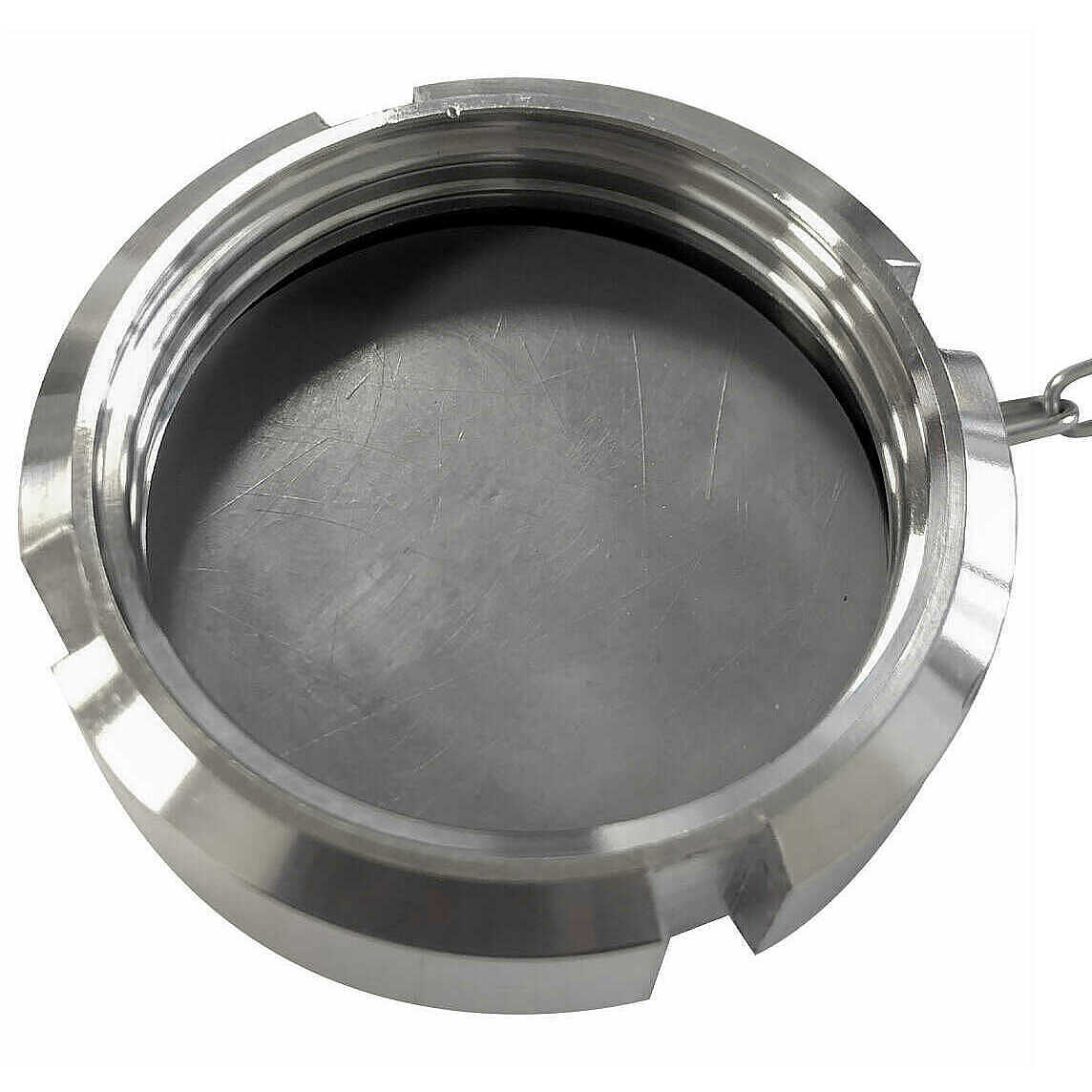

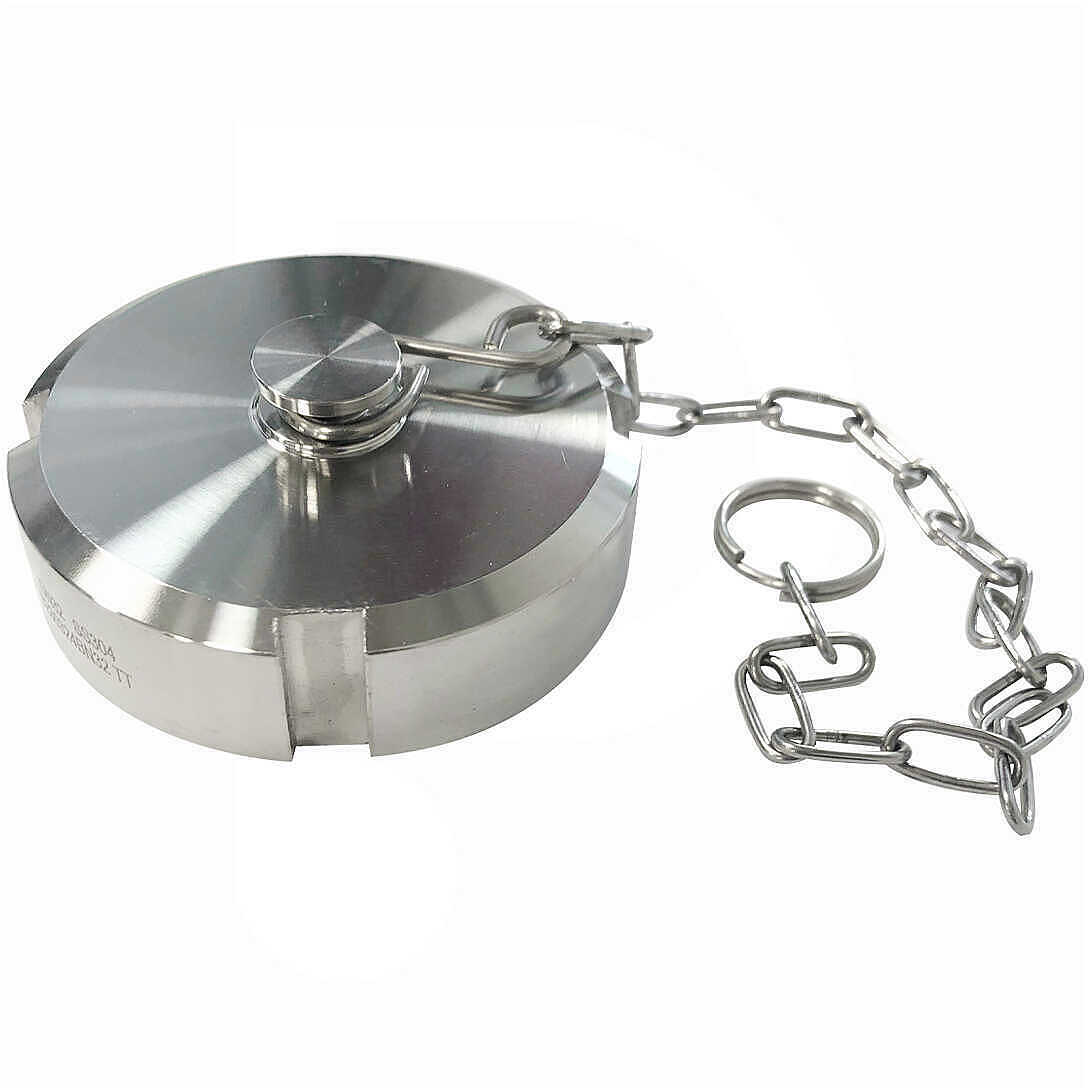

DIN 100 Female Stainless Steel Cap with Gasket and Chain

DIN 100 Female Inox Cap with chain and NBR rubber gasket

The DIN 100 Female Inox Cap, which is designed to guarantee safety and efficiency in numerous industrial sectors, is on sale in the Polsinelli store with safety chain and flat gasket in nitrile rubber. Made of AISI 304 stainless steel, this blind swivel cap is certified for contact with food liquids in adherence to relevant safety regulations. Its robust construction offers excellent strength and durability, while its smooth finish facilitates cleaning and sanitising.

For use with DIN 100 valves and pipe fittings, this cap is perfect for applications in the wine, dairy and beverage industries in general, but is also widely used in the pharmaceutical and oil & gas sectors. The NBR nitrile rubber gasket ensures an optimal hermetic seal, preventing leakage and guaranteeing maximum reliability.

Characteristics DIN 100 female stainless steel cap

• Material: stainless steel AISI 304
• Cap type: blind swivel DIN 100 with chain

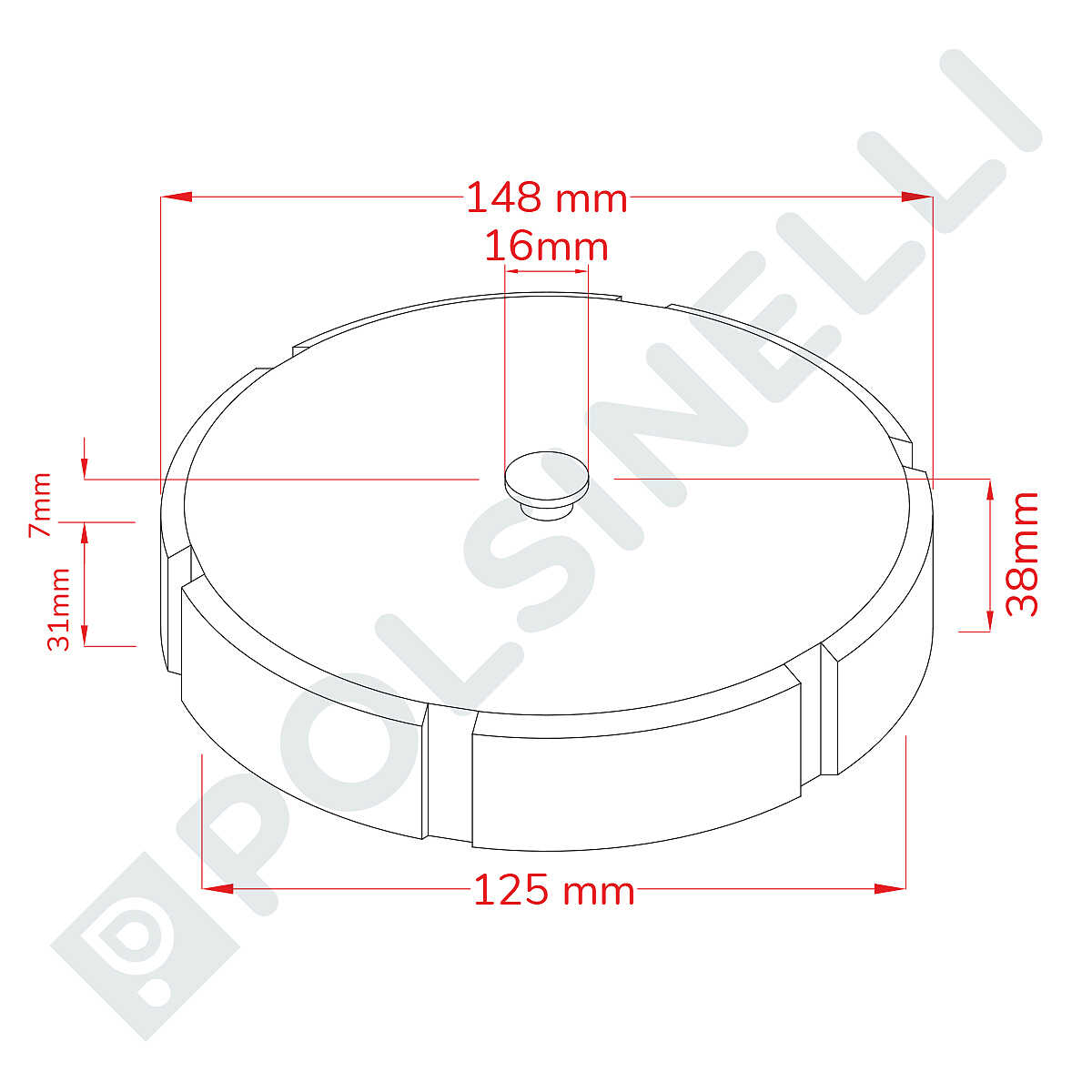

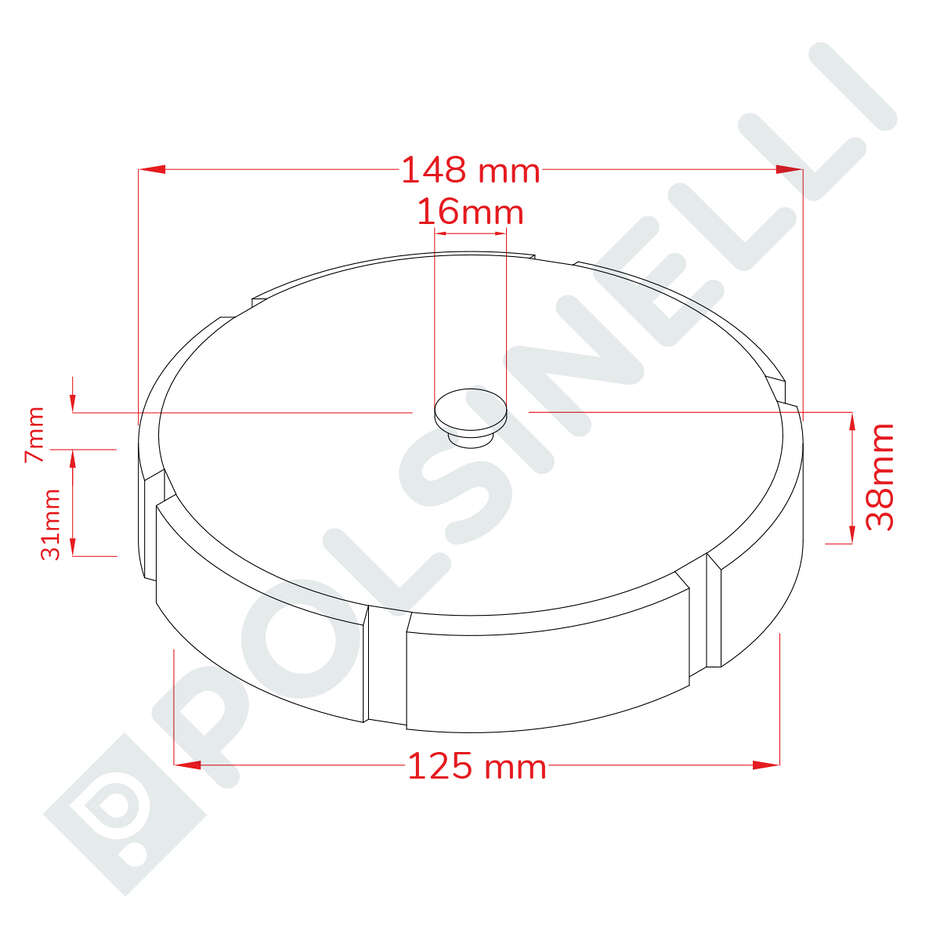

• Cap dimensions (external): Ø148x31h mm
• DN 100

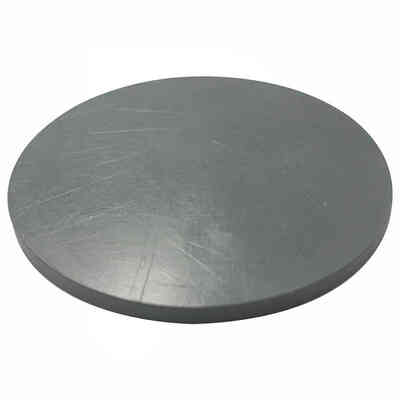

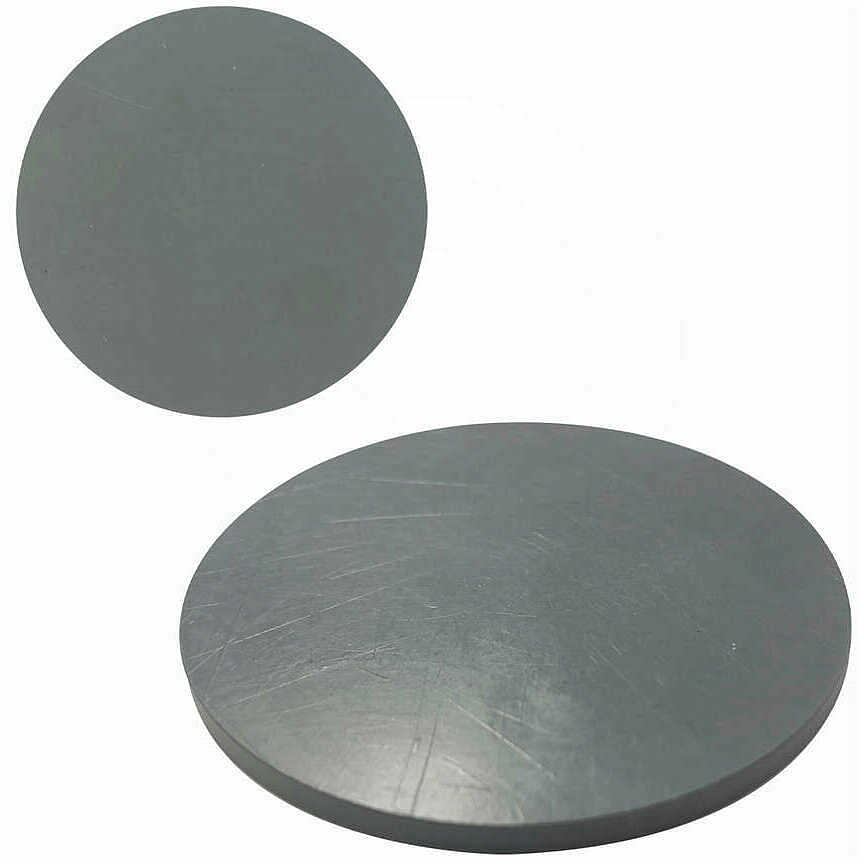

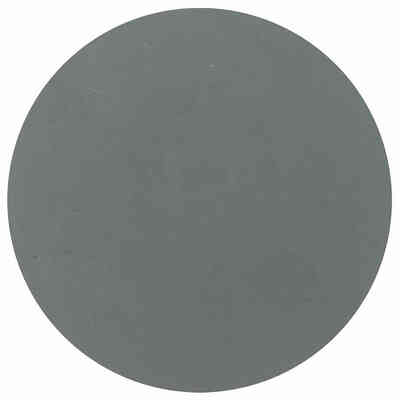

• Gasket type: flat nitrile rubber NBR
• Gasket size: Ø130x3h mm

Replacement gasket to be purchased separately
