D510 Cotton Filter Stainless Steel for Olive Oil 50 L

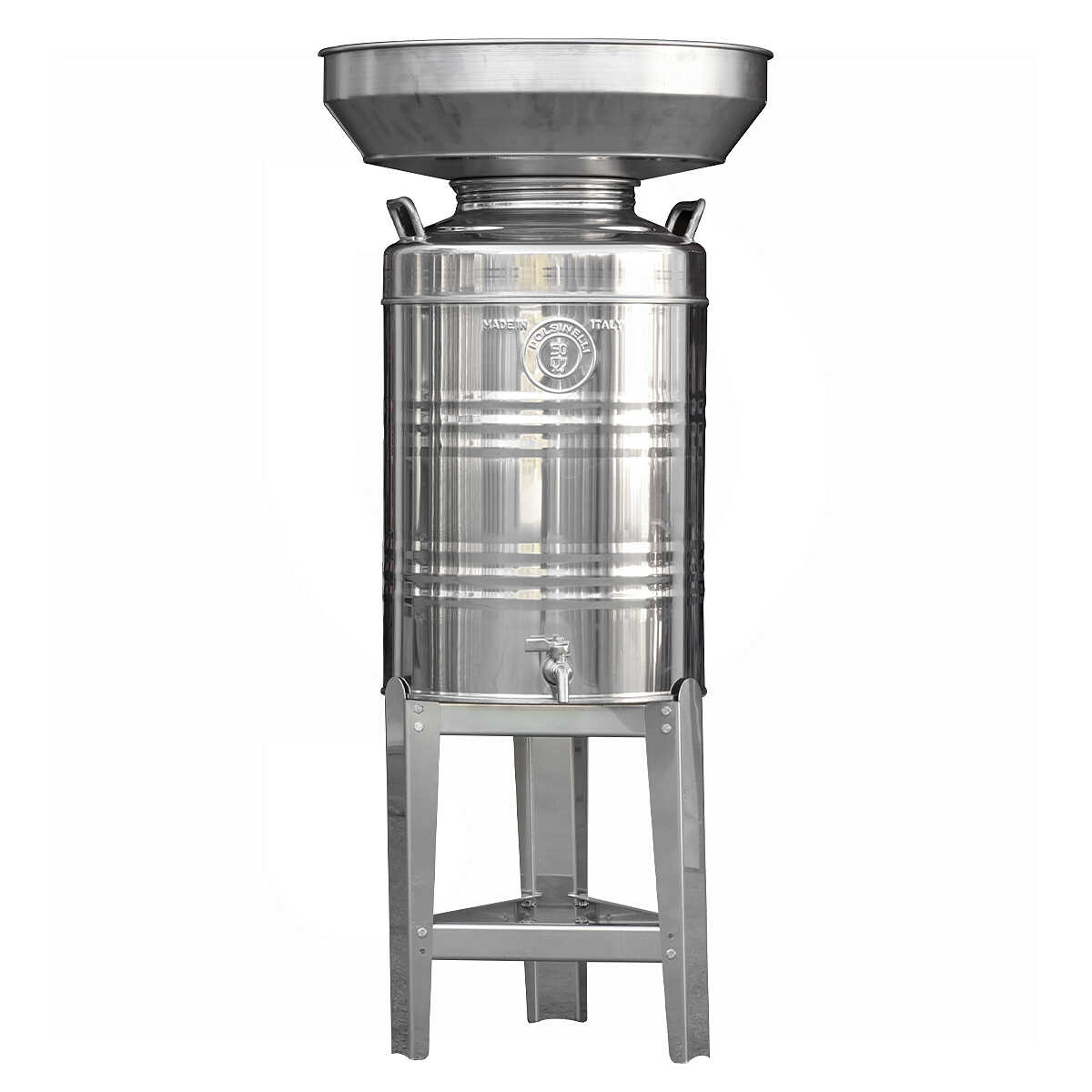

D510 Kit Cotton Filter AISI 304 Stainless Steel for Olive Oil with Stainless Steel Drum and Pedestal

The D510 Cotton Filter is a practical and functional solution for filtering olive oil, seed oils and other food-grade liquids. Made entirely from AISI 304 stainless steel, it offers durability, corrosion resistance and suitability for food contact.

The kit includes:

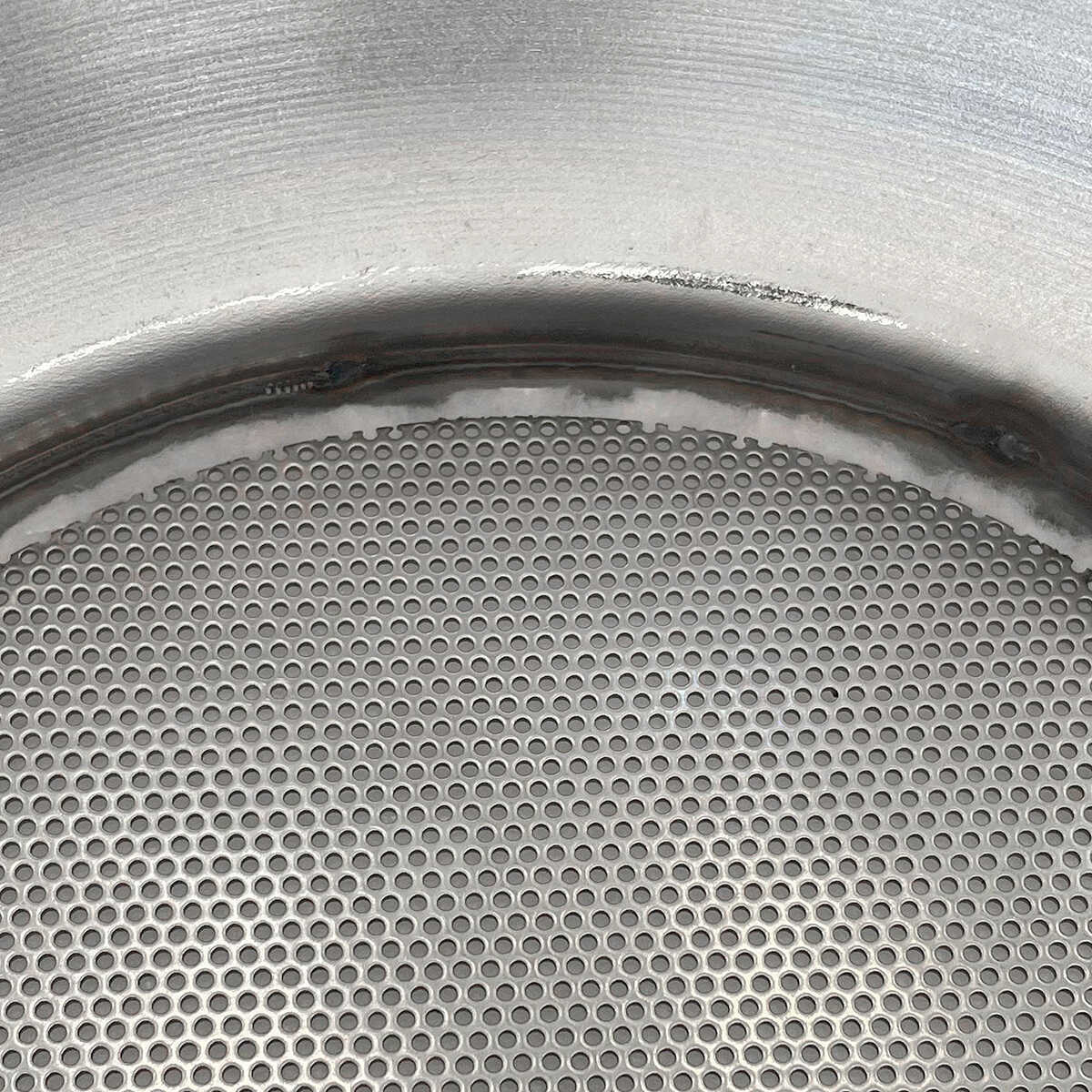

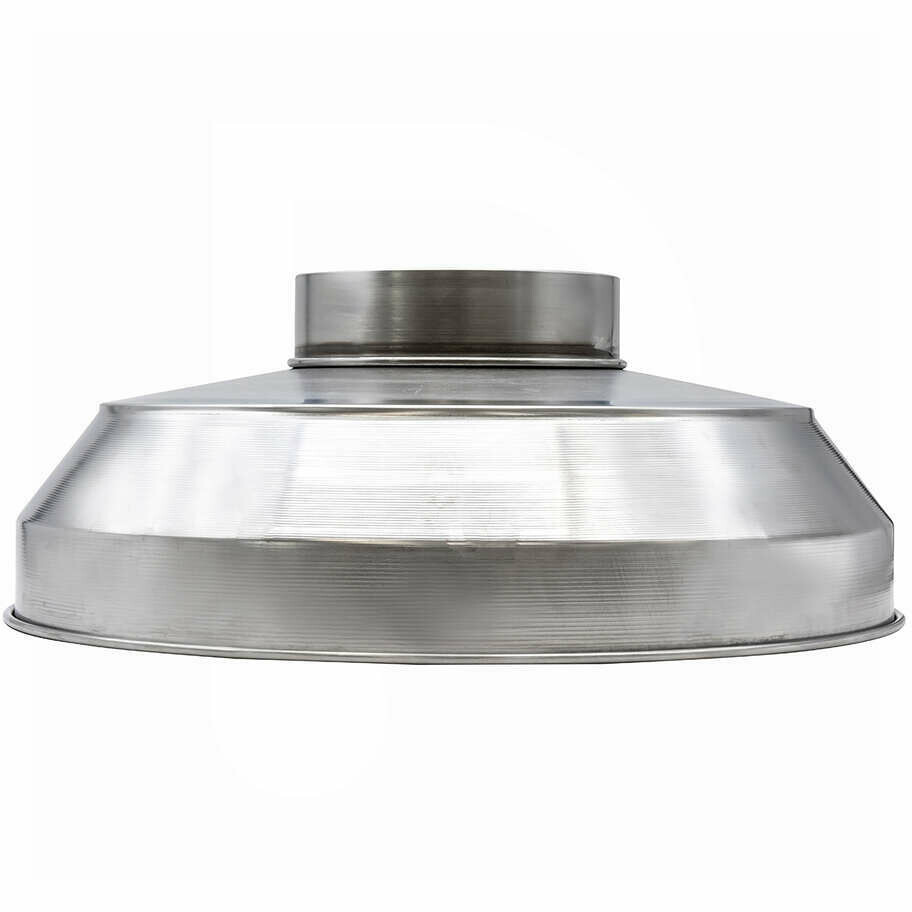

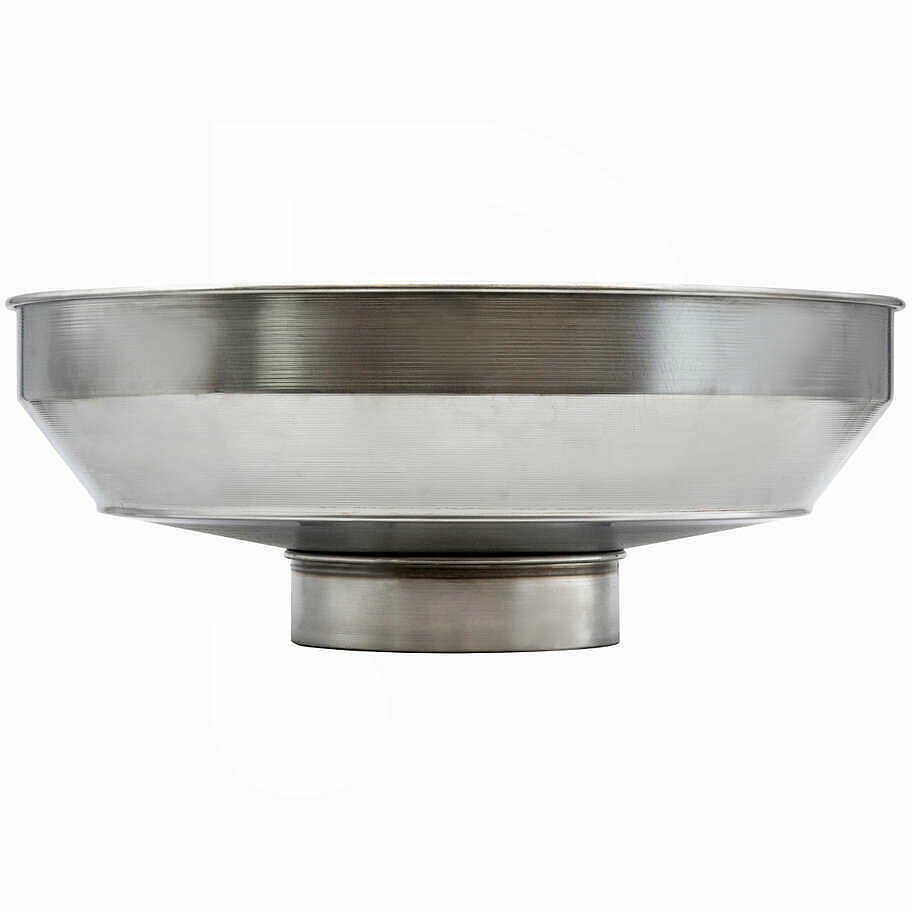

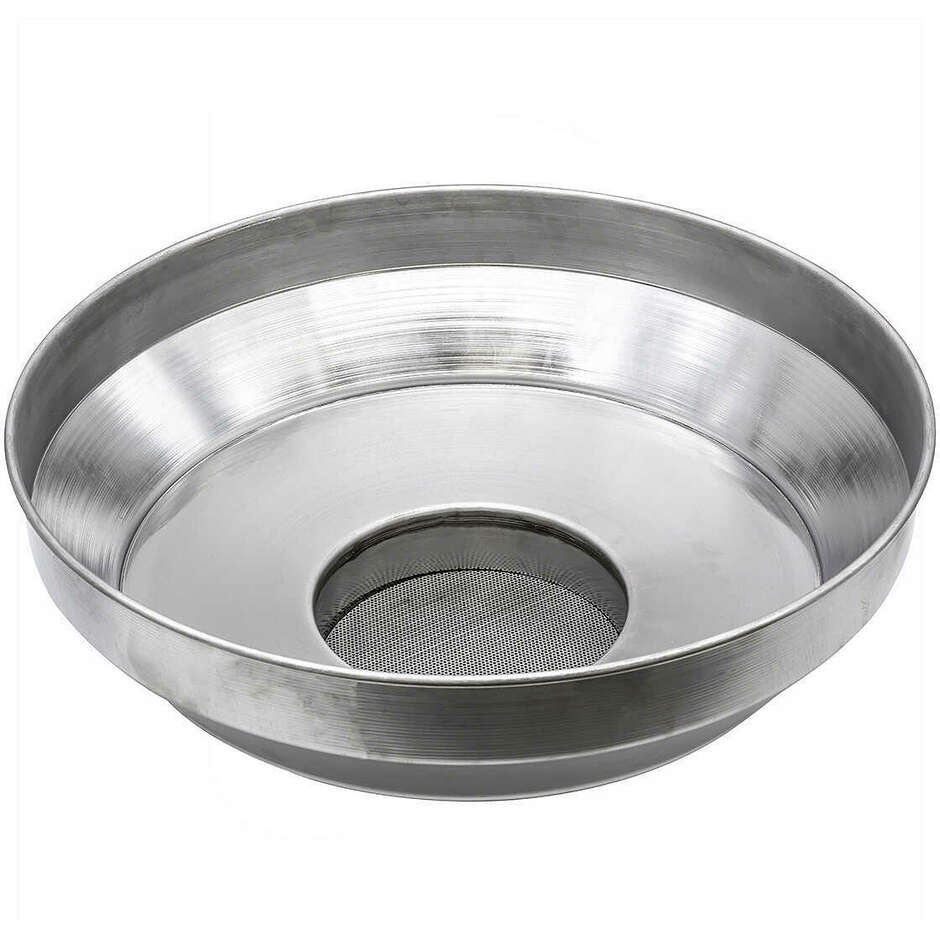

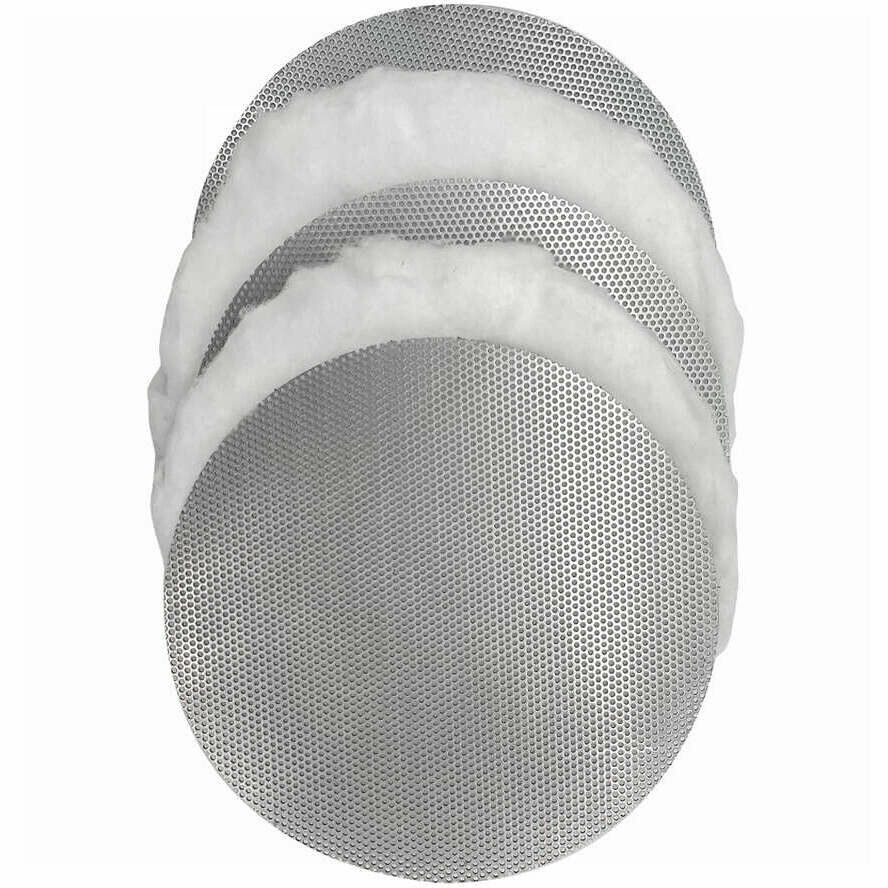

• The filter with 3 perforated stainless steel discs, between which the filter cotton is placed. The cotton traps impurities and solid particles present in the liquid, helping to produce a clearer final product.
• 50 L Seamed Stainless Steel Container with 1/2" Stainless Steel Tap
• Tripod stand to keep the container elevated and stable.

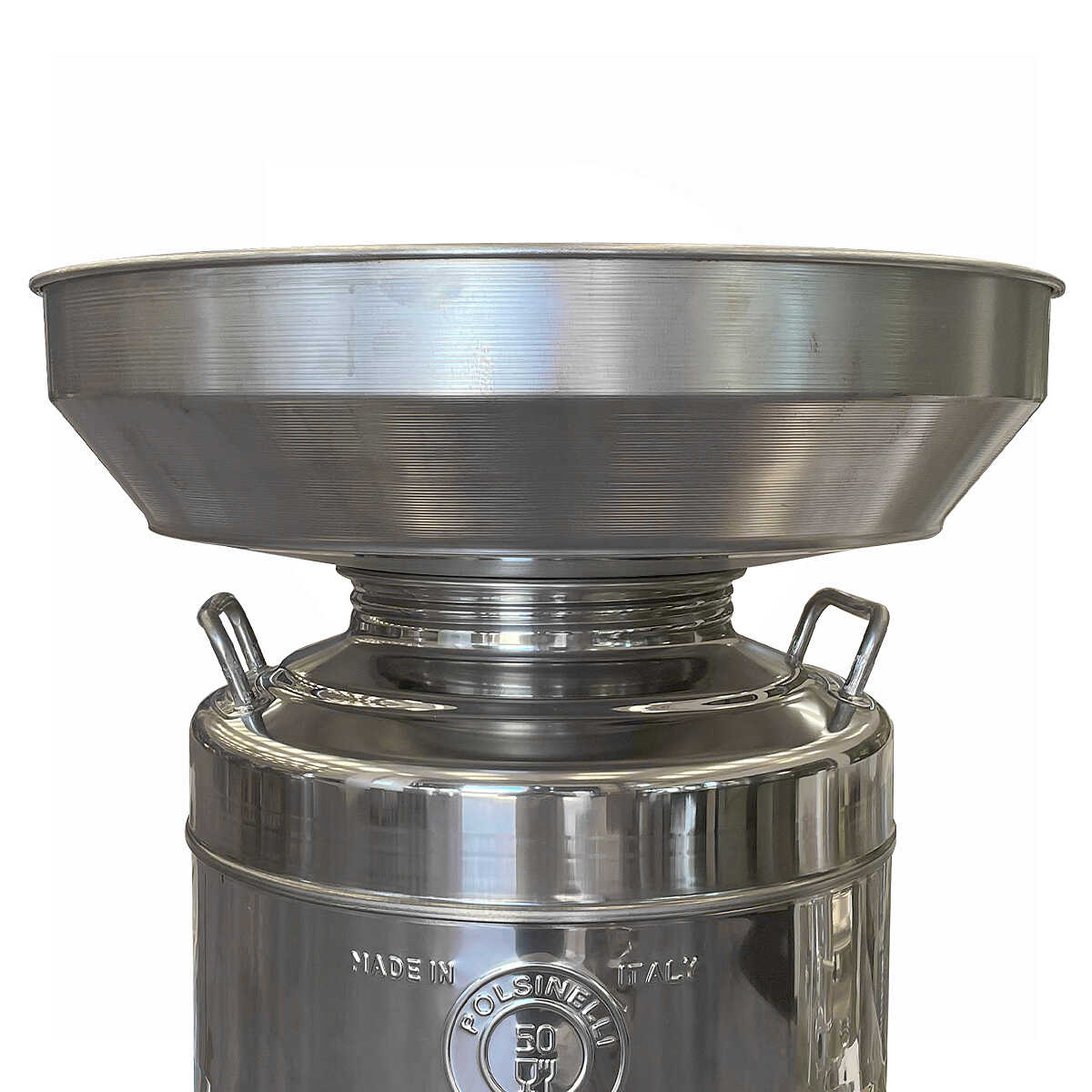

Thanks to its design and capacity of approximately 20 litres, the D510 Filter is easy to use and can be positioned directly over the opening of a drum or container used to collect the filtered product.

Instructions for Use:

1. Position the filter over the opening of the drum.
2. Place the first perforated disc at the bottom of the filter.
3. Alternate layers of filter cotton with the perforated discs, finishing with the third disc.
4. Slowly pour the liquid to be filtered into the filter until it is filled.

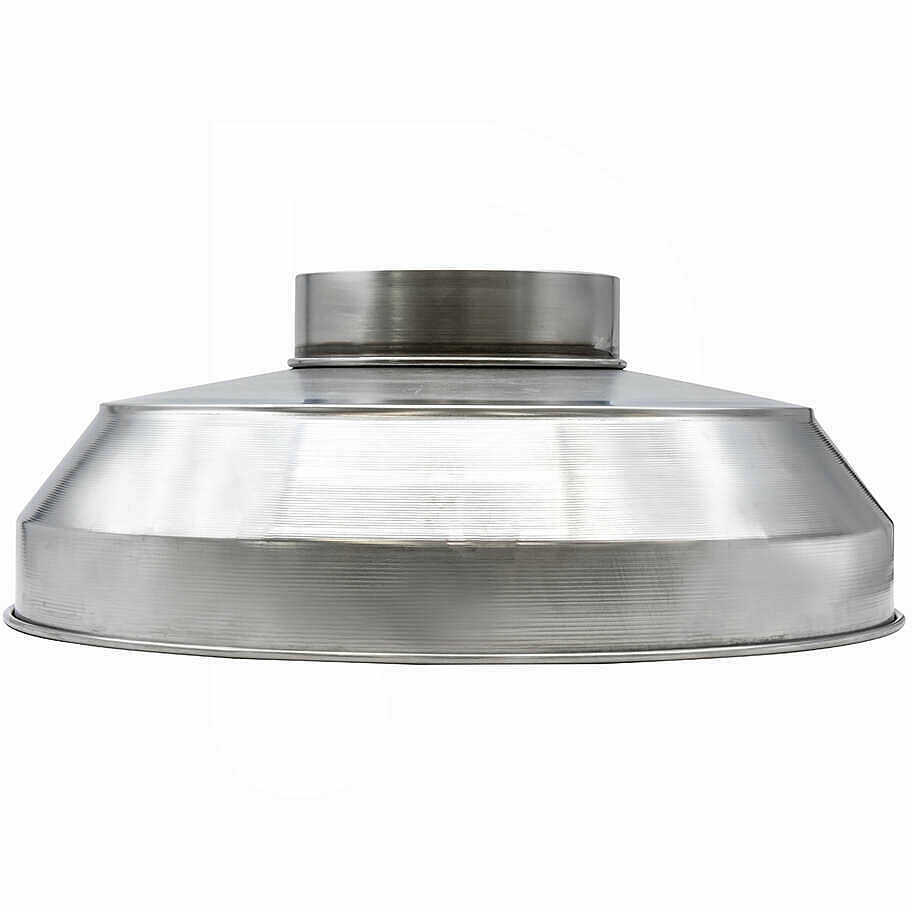

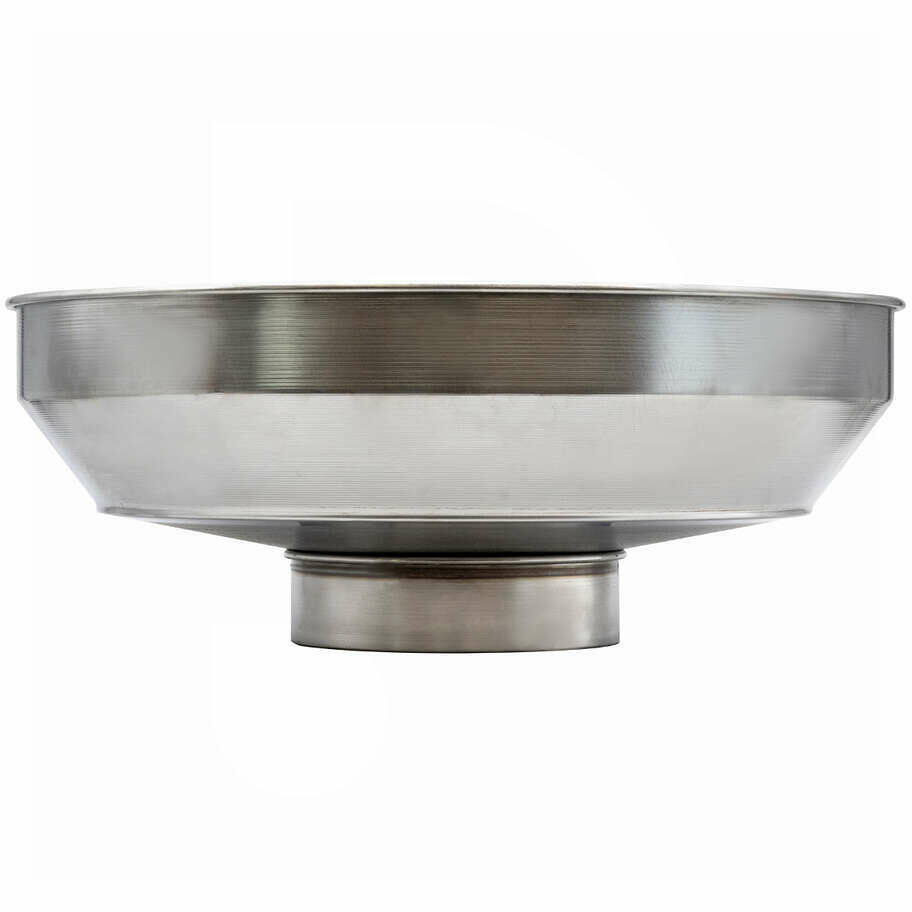

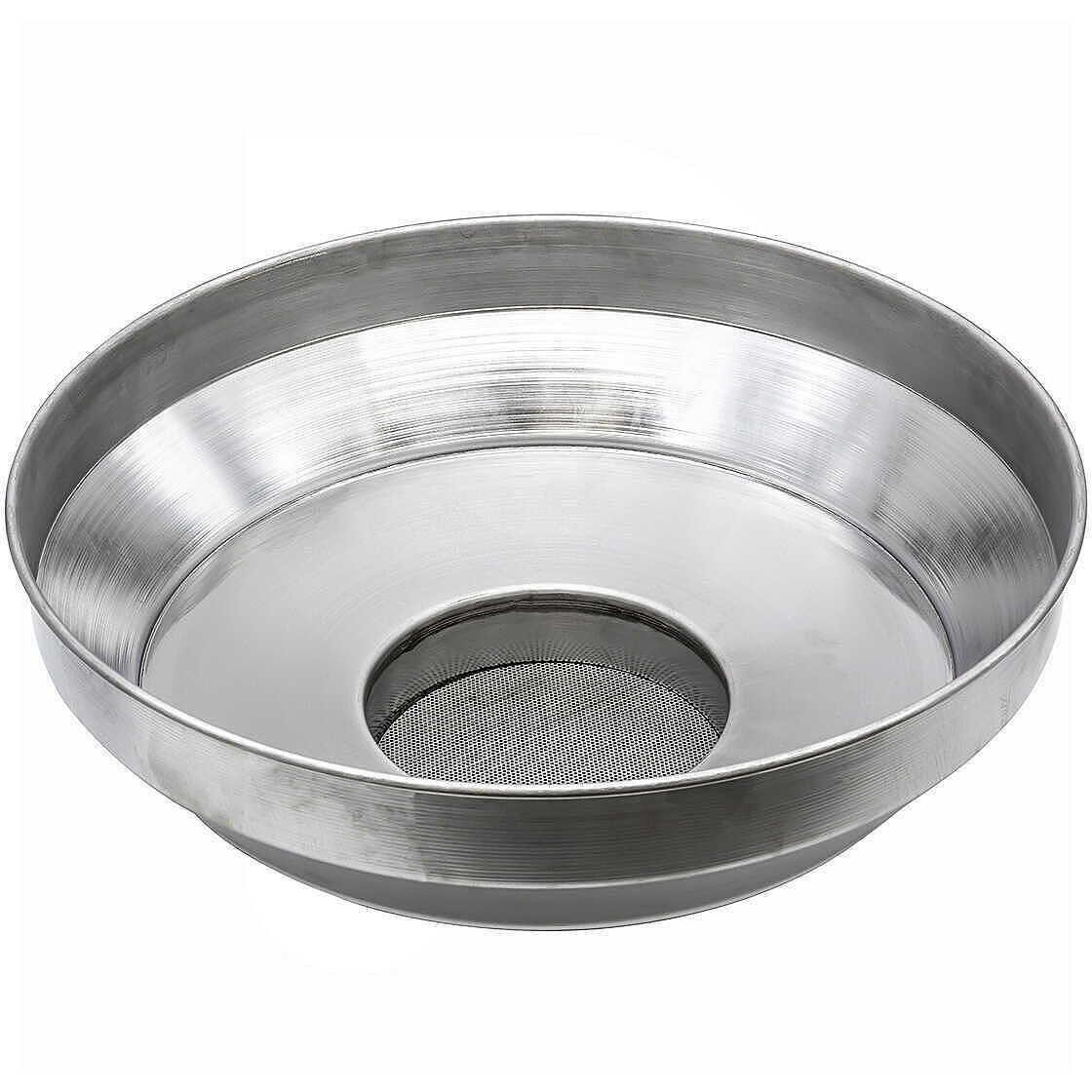

Features Filter:

• Material: AISI 304 stainless steel
• Capacity: approximately 20 litres

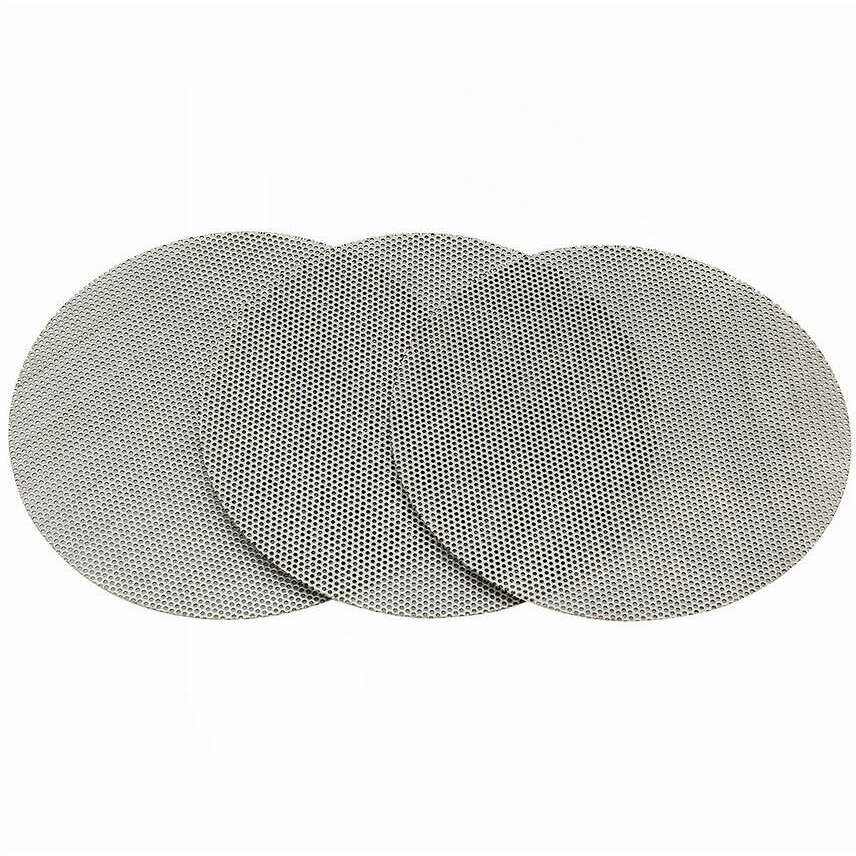

• Perforated discs: 3

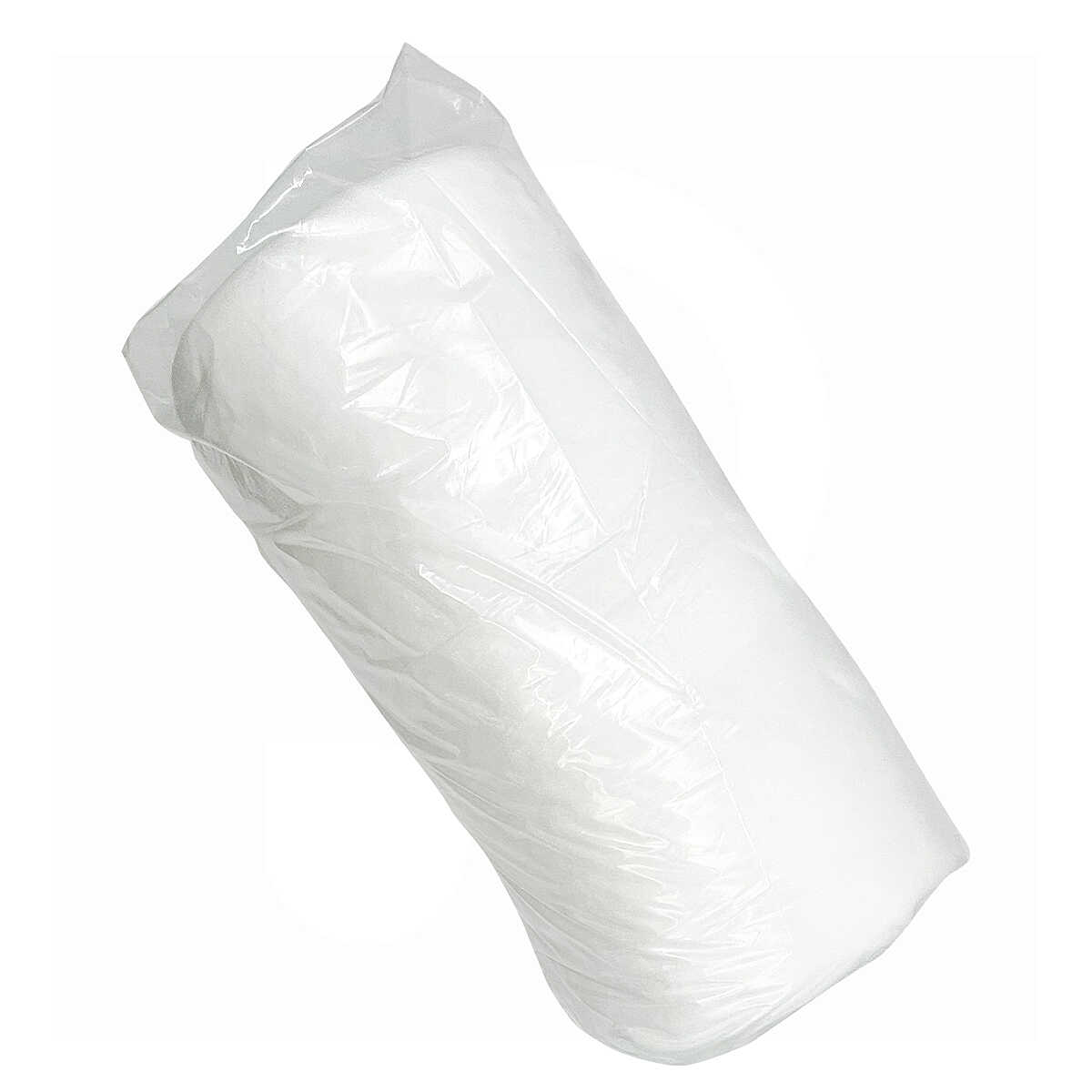

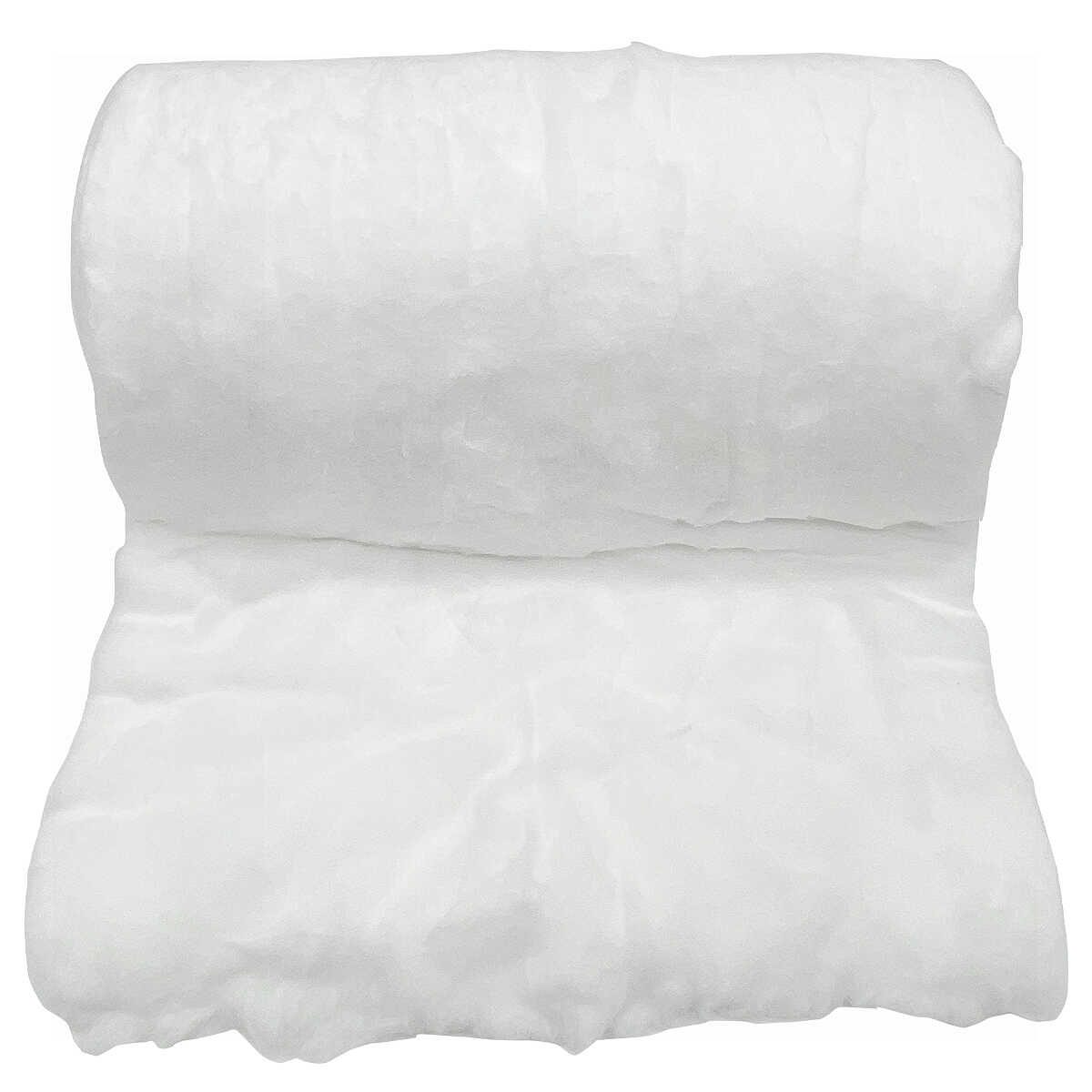

• 1 kg roll of 100% absorbent cotton included

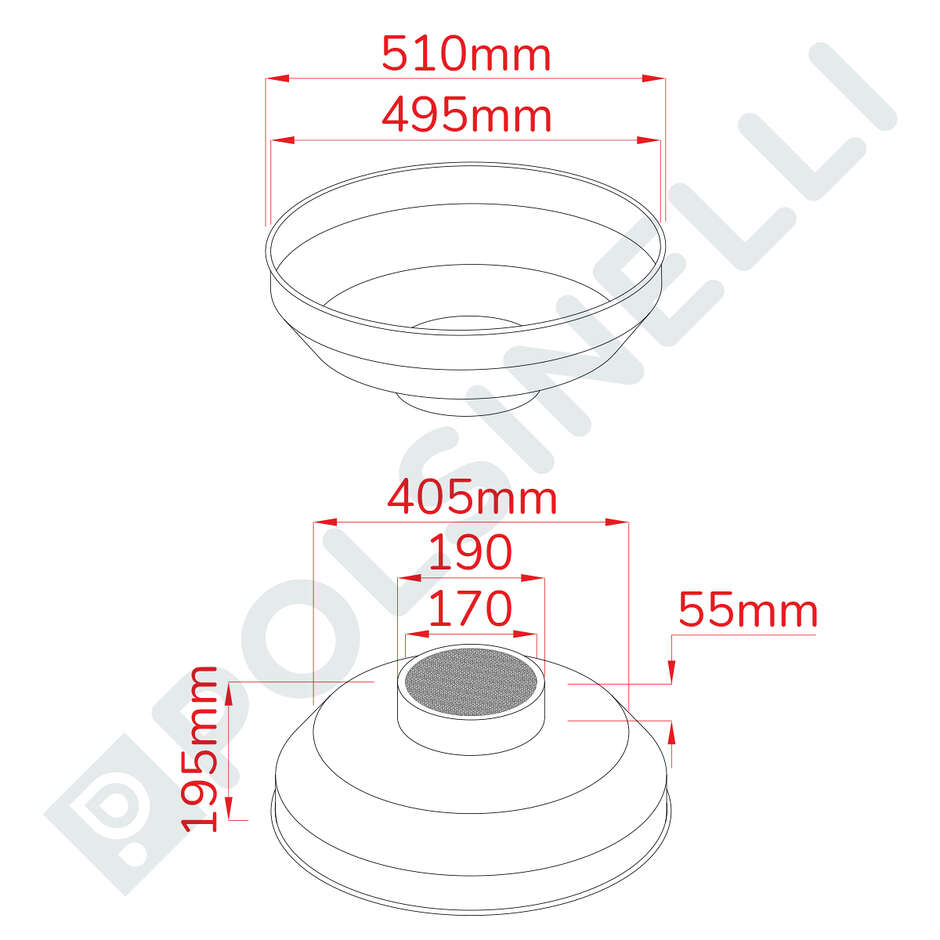

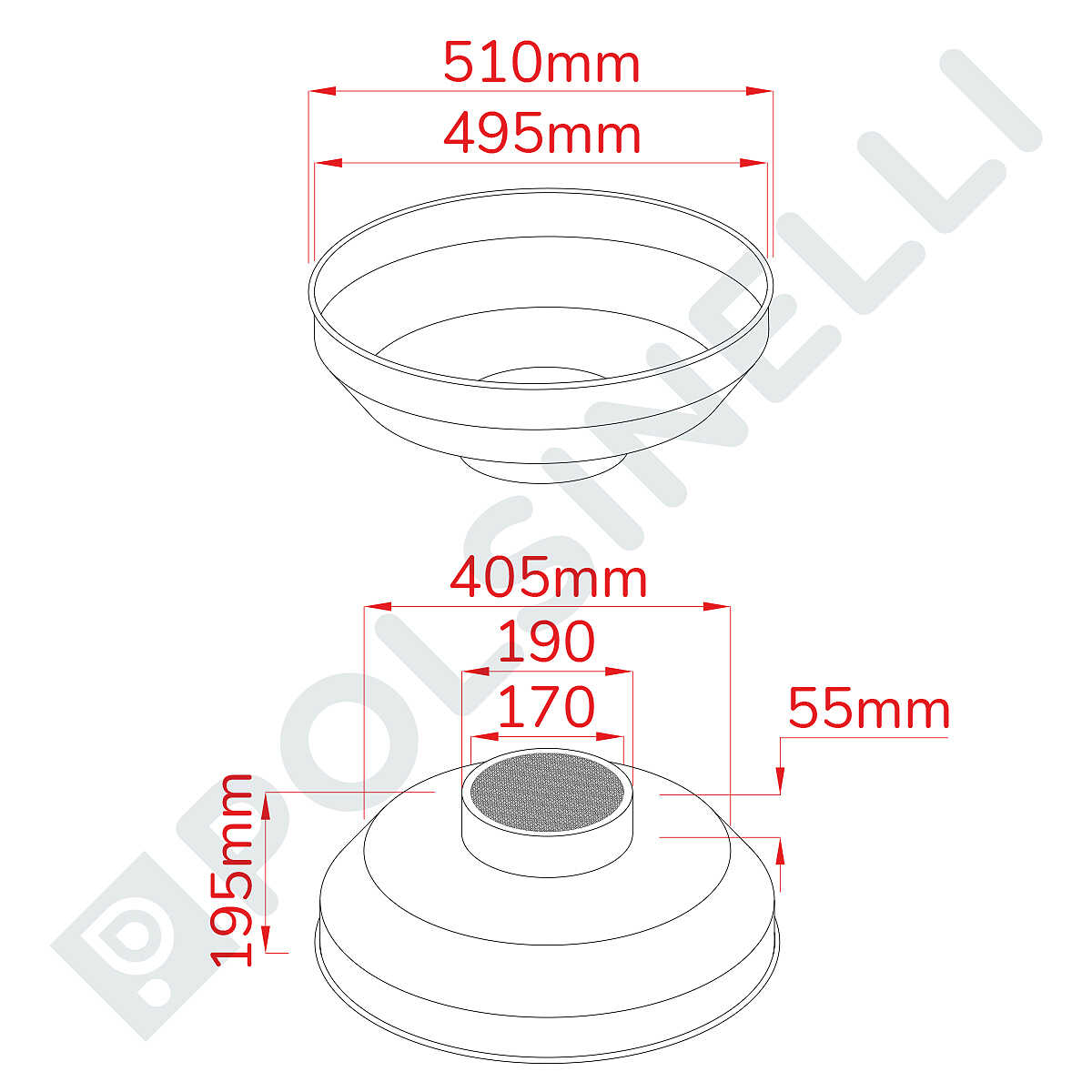

• Upper external diameter: 510 mm
• Upper internal diameter: 495 mm
• Lower external diameter: 190 mm
• Weight: 3 kg

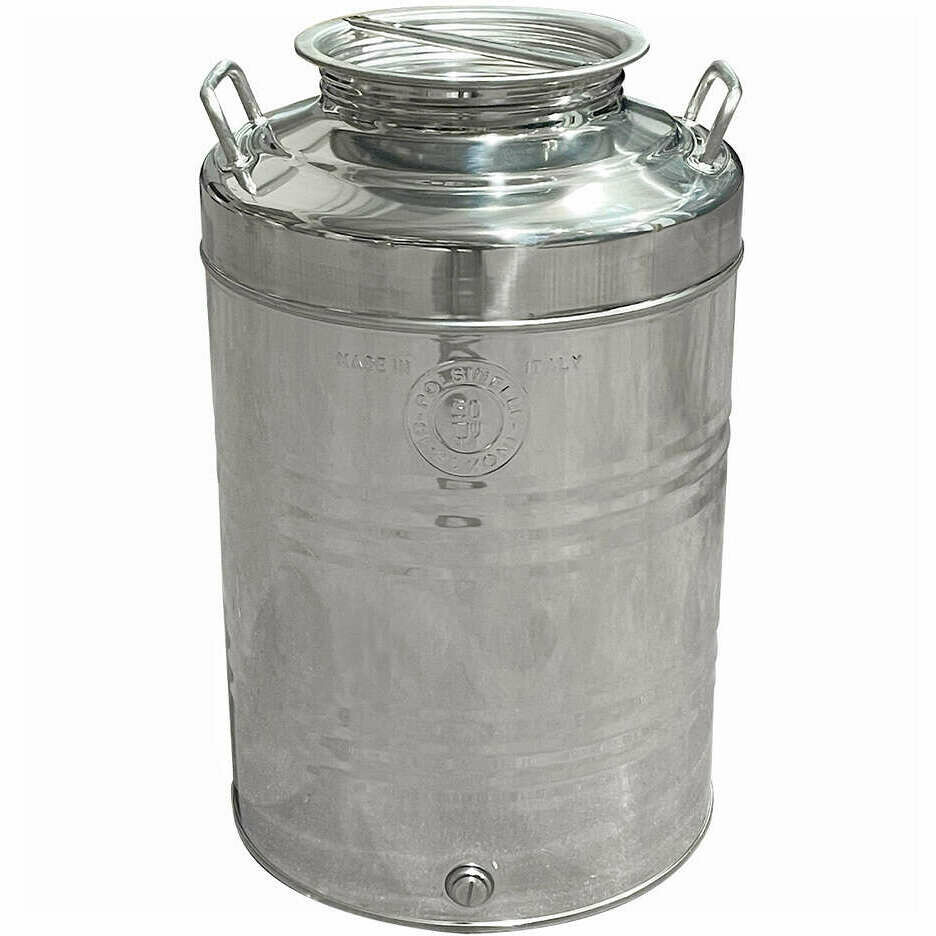

Characteristics Drum:

• Material: 18/10 – AISI 304 stainless steel
• Made to hold olive oil, wine, beer, milk and other foodstuffs liquids
• Capacity: 50 liter

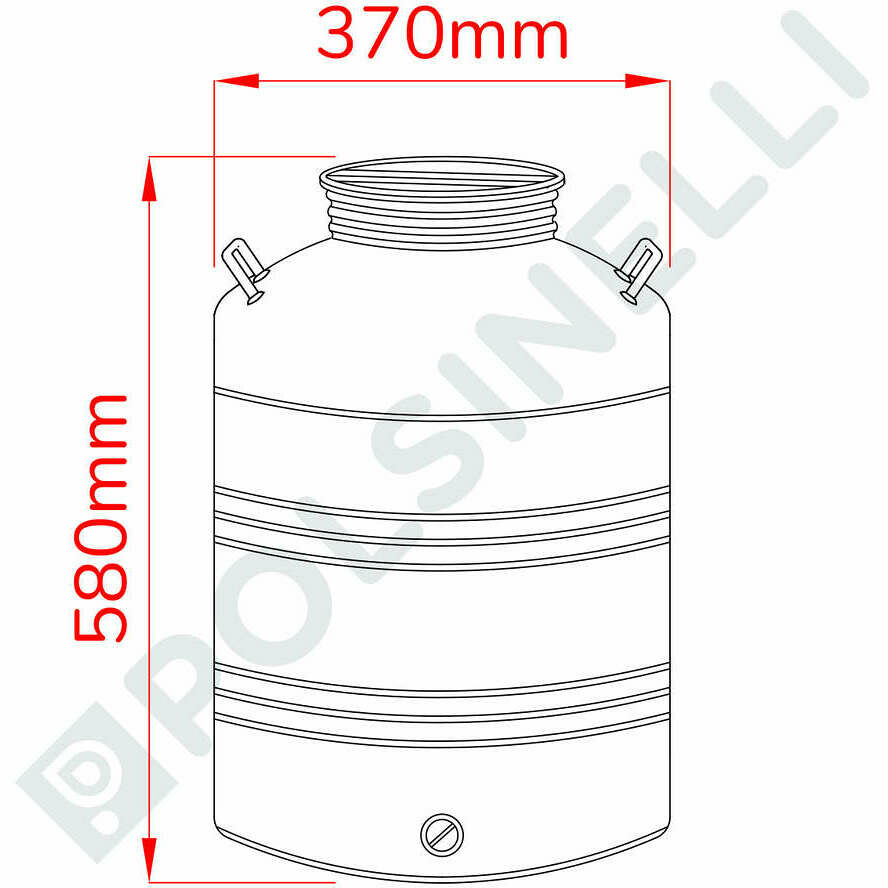

• Height: 580 mm
• Bottom diameter: 370 mm
• Upper diameter: 200 mm
• Screw tap
• Grafted bottom

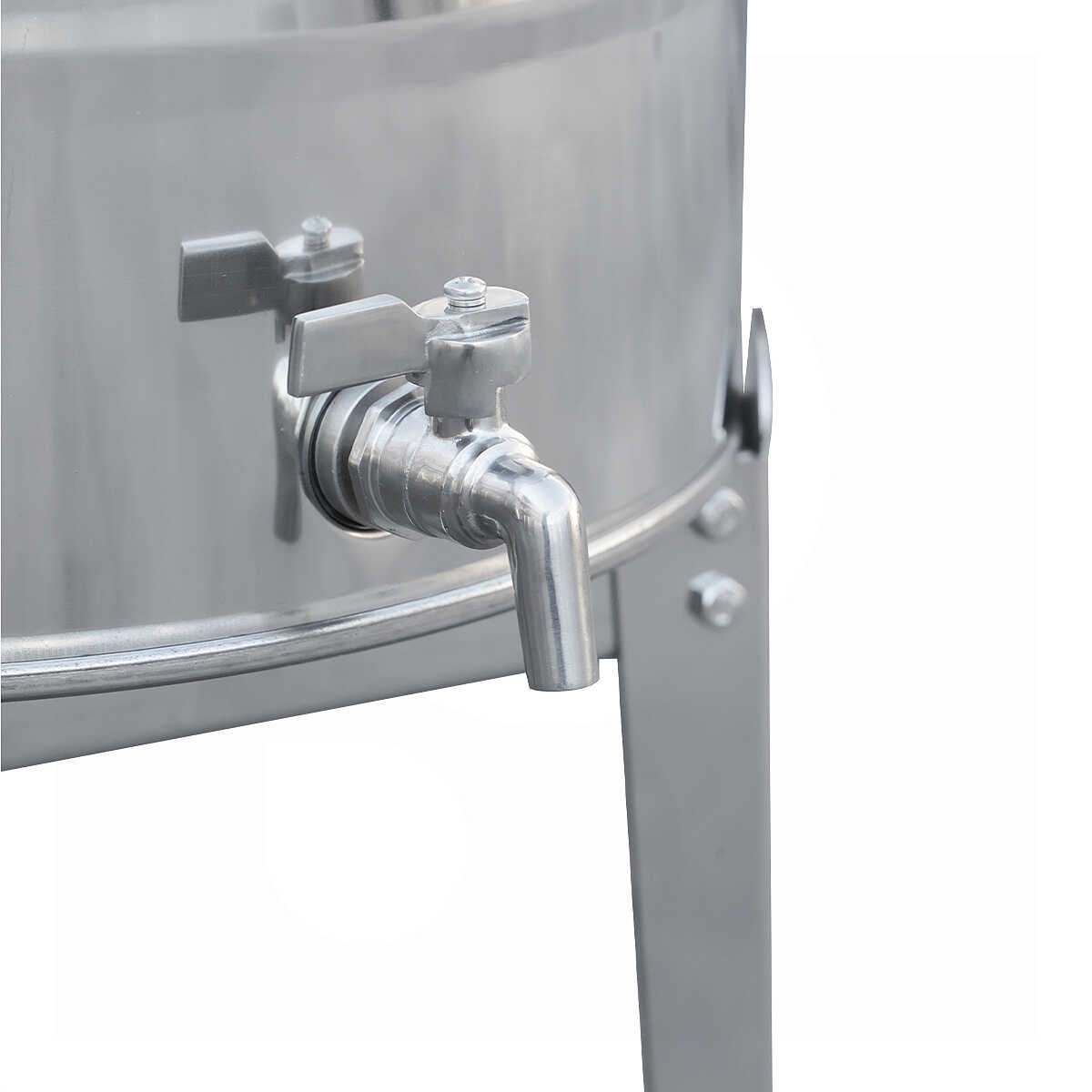

• 1/2" Stainless Steel Tap

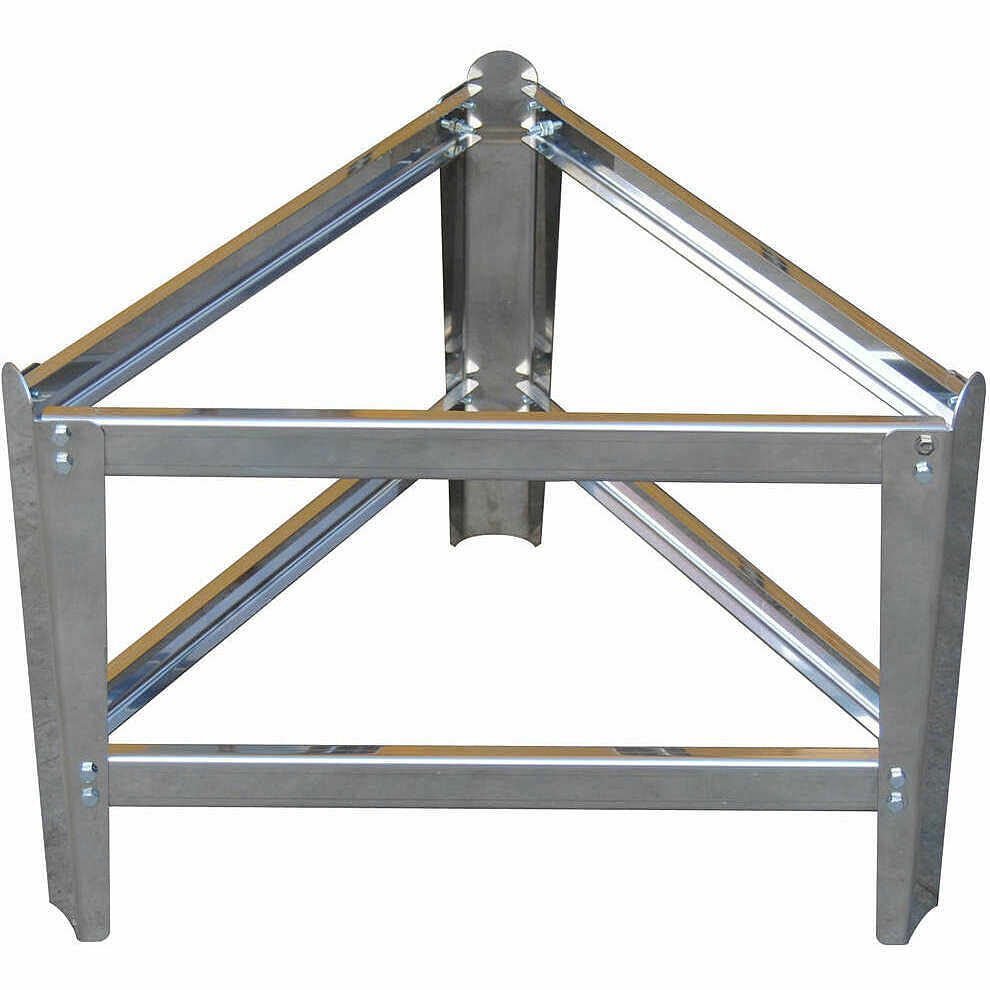

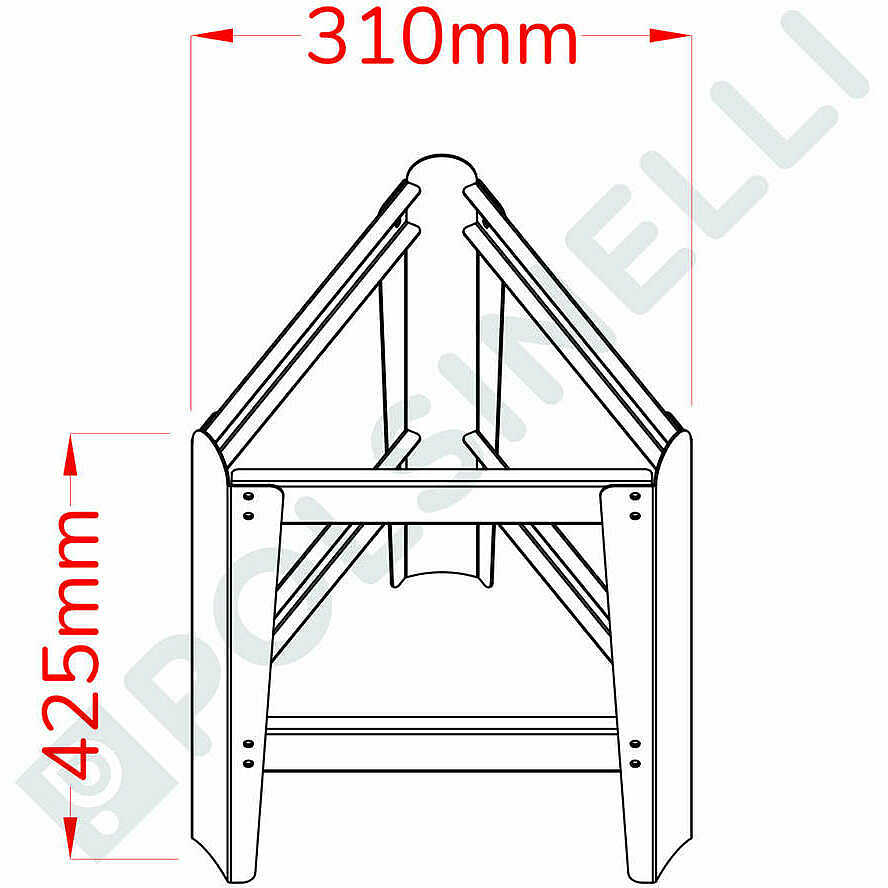

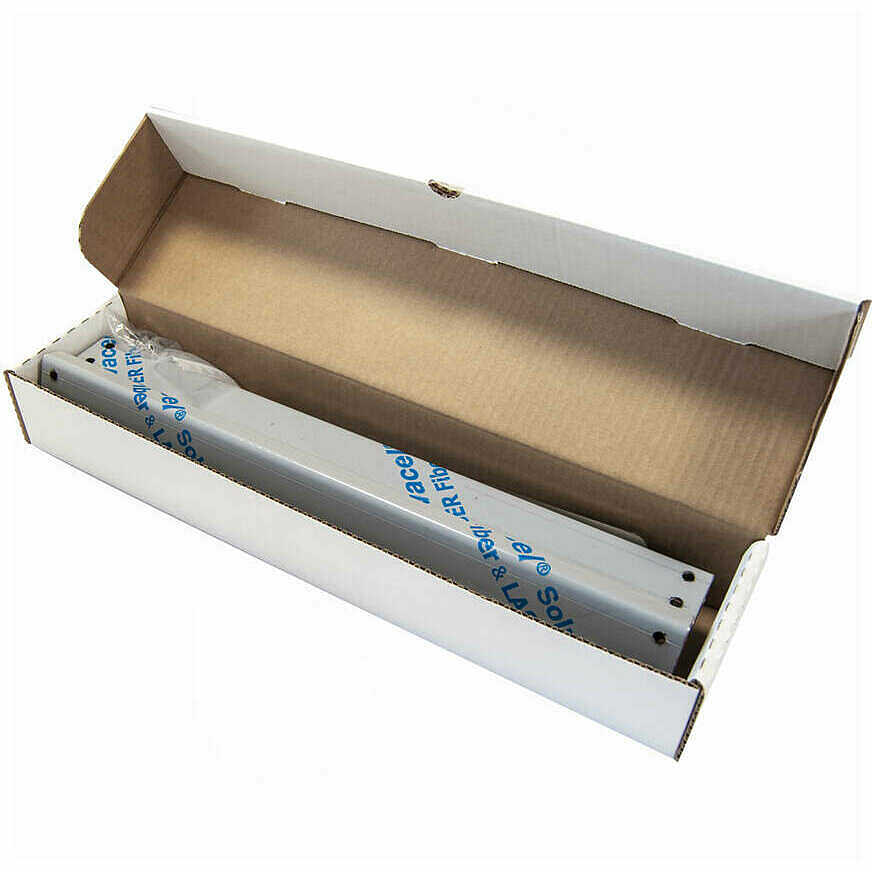

Characteristics Pedestal:

• Material: AISI 304 stainless steel
• Dimensions: 310x425(h) mm
• Height from the ground: 400 mm
