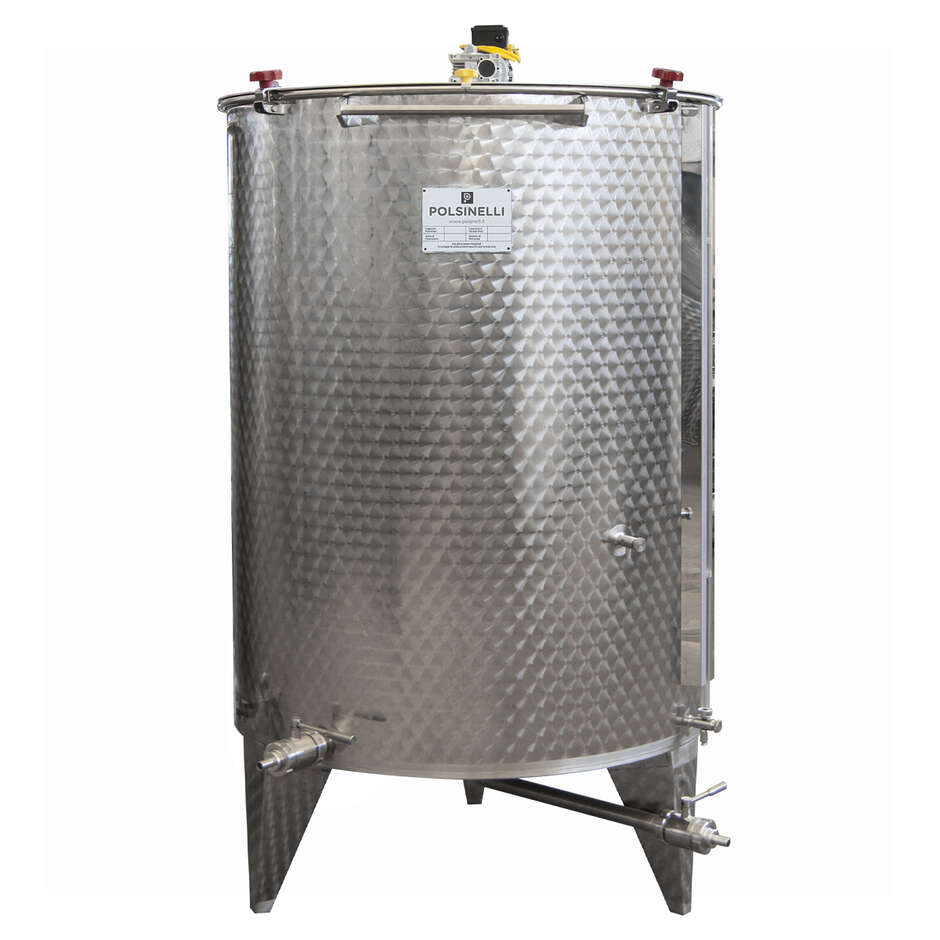

Conical bottom Priming Tank 10° 1500 L

Conical bottom Priming Tank 10° 1500 L

Ideal in the carbonation phase of beer, it guarantees the homogeneity of the mixing of sugar added to the beer before refermentation in the keg or bottle. Equipped with a low-speed motorised stirrer to minimise oxygenation.

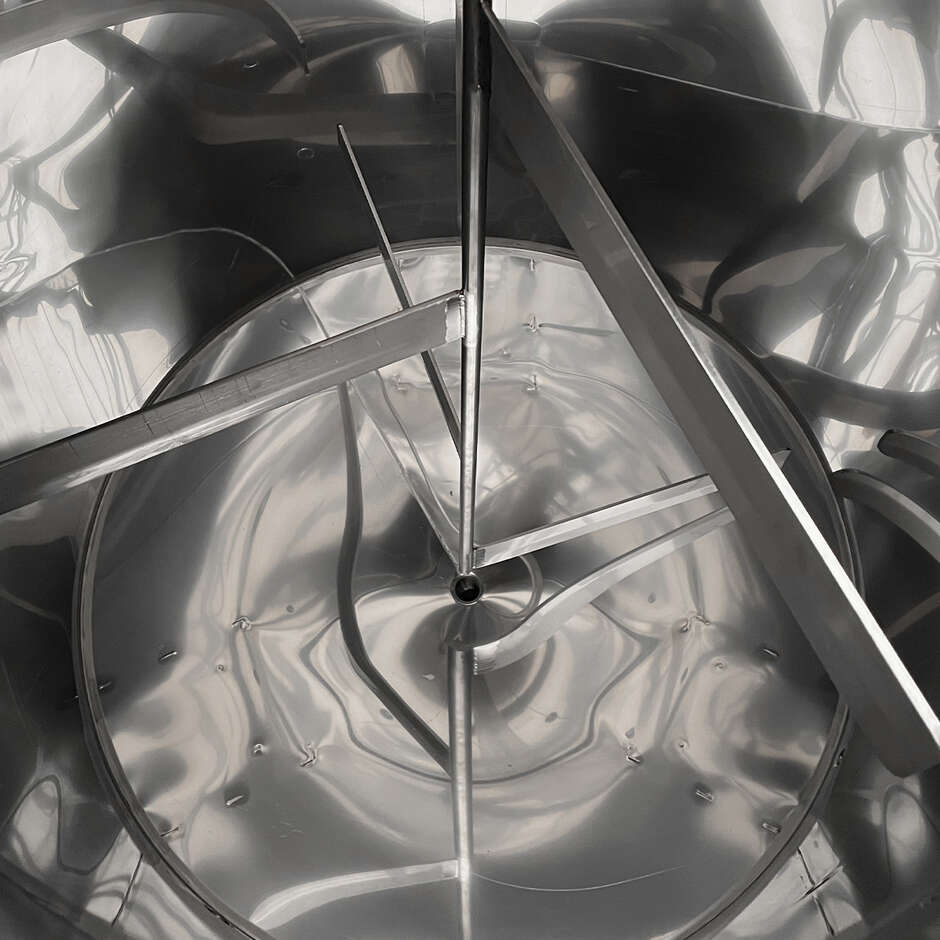

The vat is made entirely of Aisi 304 stainless steel ensuring high strength and excellent durability. The mirror-polished interior facilitates cleaning and sanitising operations, safeguarding the organoleptic properties of the product.

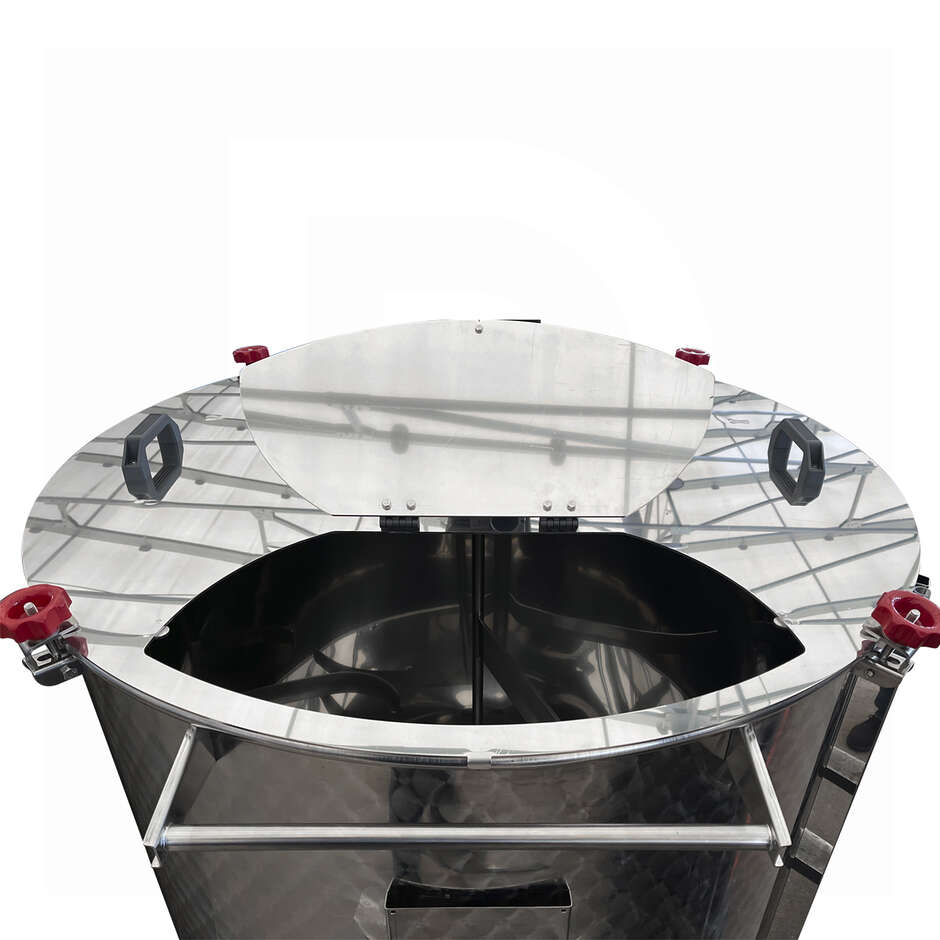

High-thickness lid equipped with inspection flap for monitoring the processing phases and washing sphere. Total and patient discharge with DIN 40 stainless steel ball valves and hose holder for 20 mm internal Ø hose.

Features:

• Material: Stainless steel AISI 304

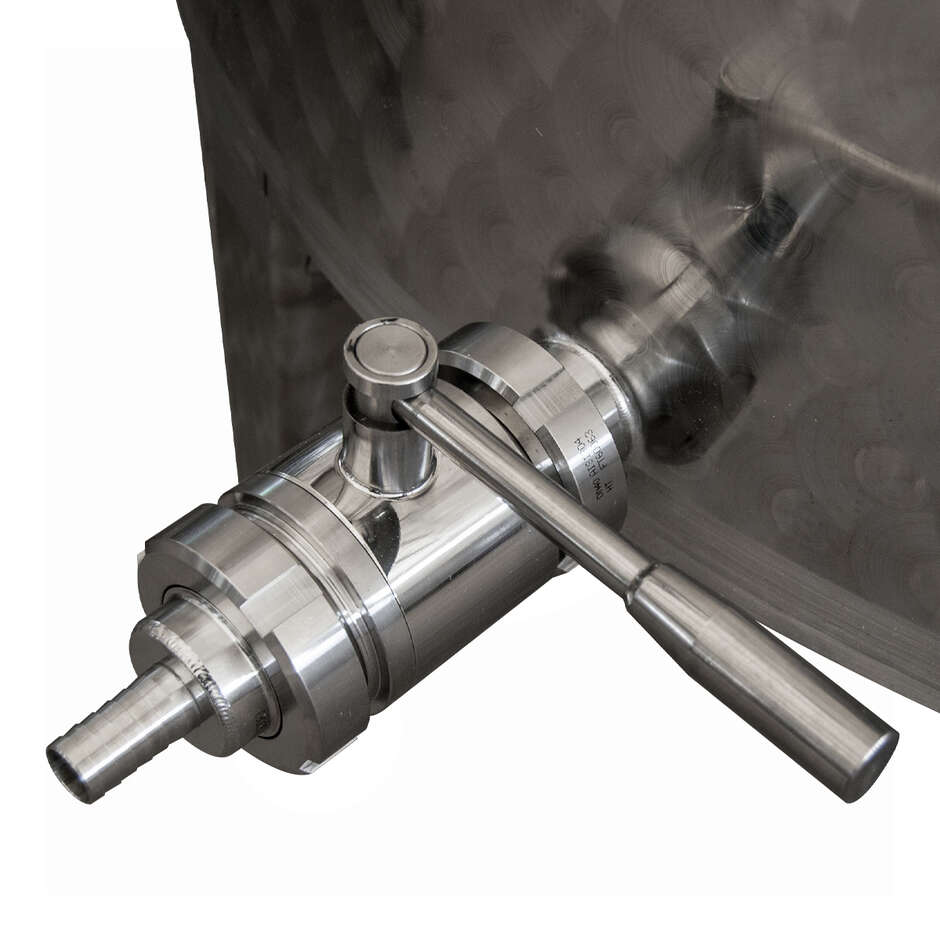

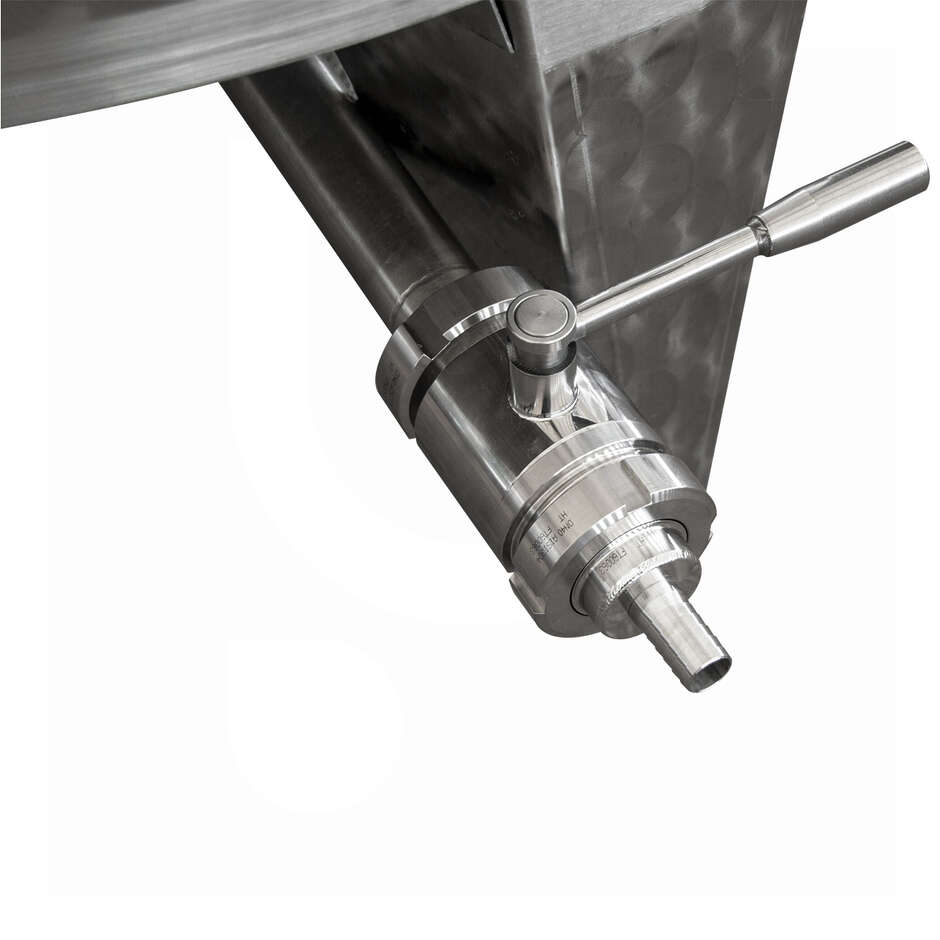

• Partial/total discharge with DIN 40 valve and hose connector ø 20
• Flushing ball
• 10° conical bottom with reinforcements
• 3 stainless steel feet

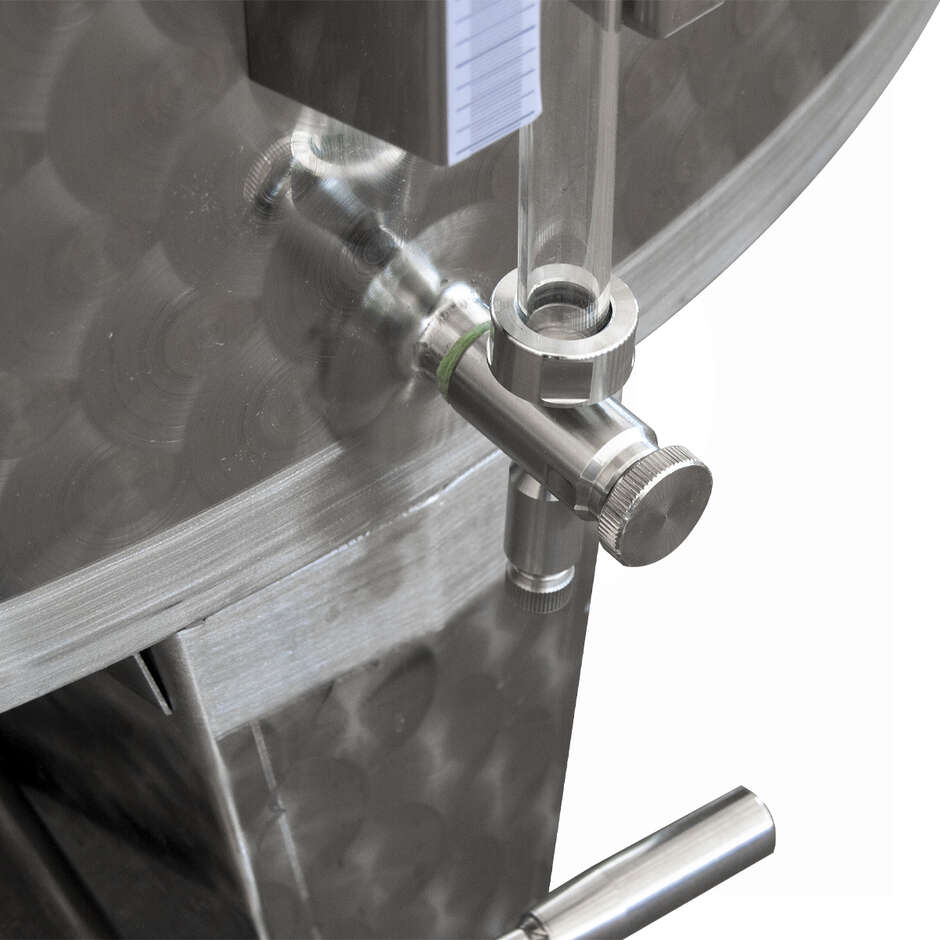

• Level indicator with stainless steel protection

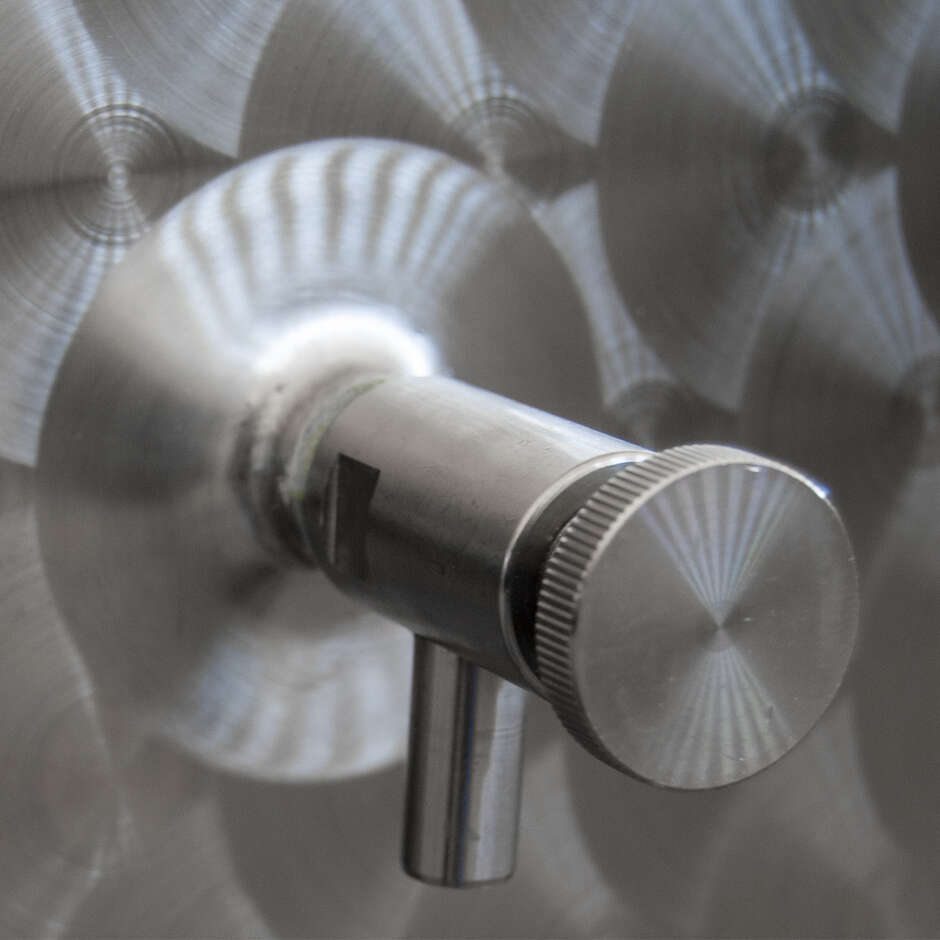

• Stainless steel wine taster
• Scale holder
• Internal finishes: mirror polished for easy cleaning and sanitising
• External finishes: flamed, with satin-finished seams.

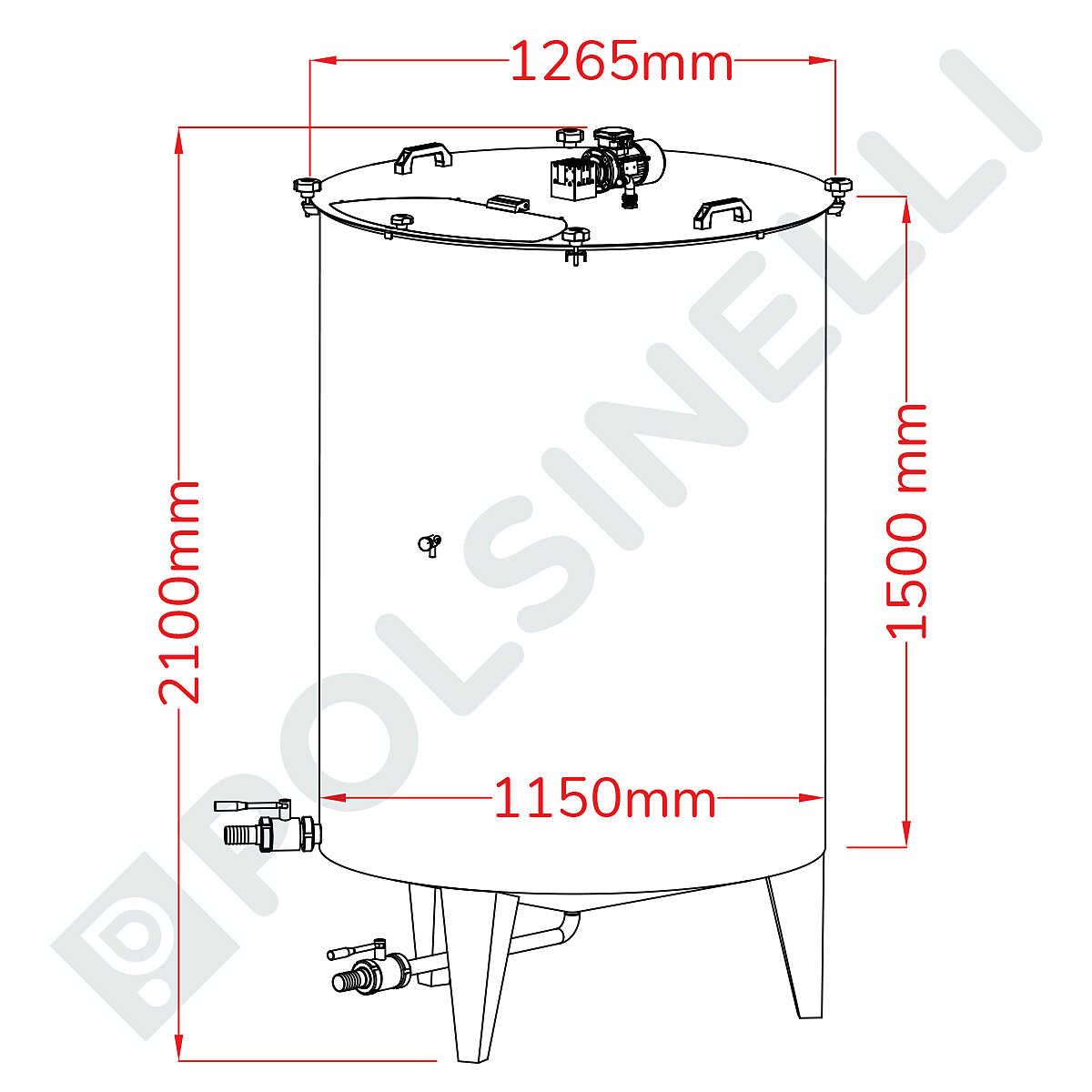

Dimensions:

• Diameter: 1150 mm
• Spindle height: 1500 mm
• Foot height: 400 mm
• Total height: 2100 mm

Thickness:

• Walls: 1.2 mm
• Bottom: 1.5 mm

Agitator kit:

• 220 Volt motor with switch
• Absorption 0.18 kW
• Schuko plug
• Speed motor: 14 RPM
• Stainless steel blades
• Inspection lid with knob

Appliance complies with EC safety regulations
