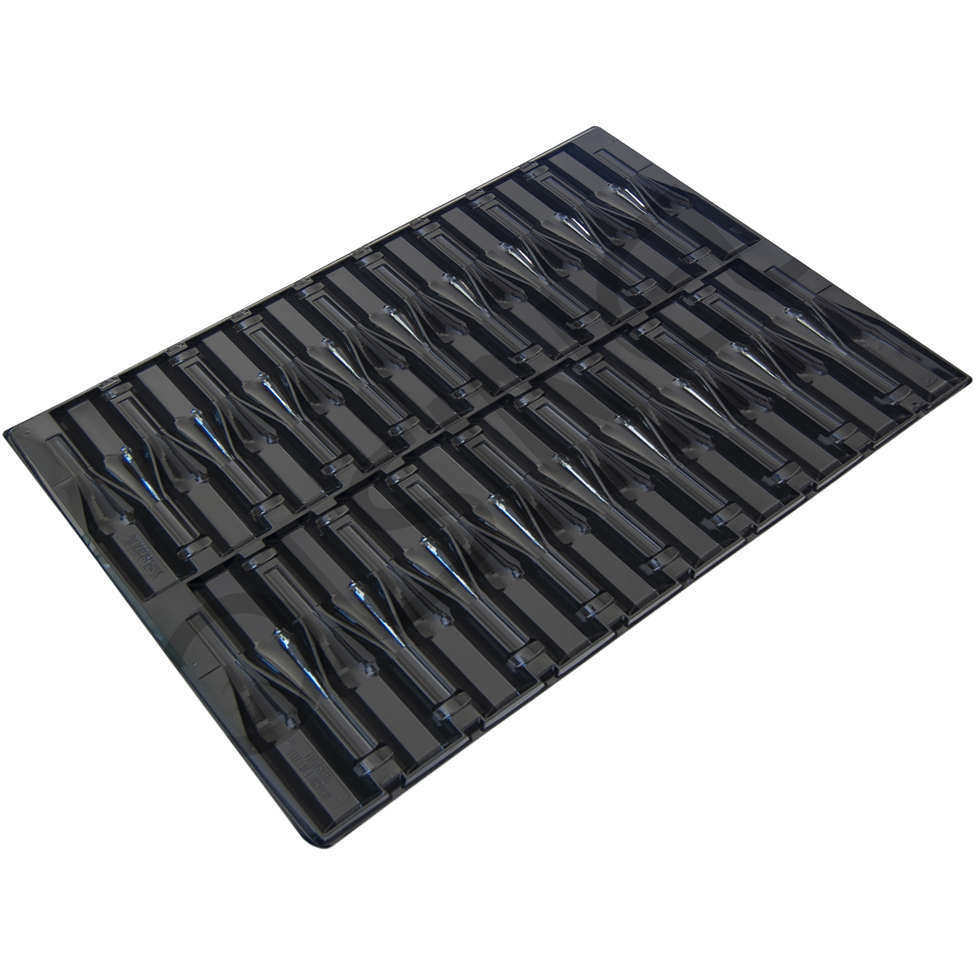

Intercalaire pour Borgognotta 120x80 (10 pcs)

Intercalaire pour Borgognotta 120x80 (10 pcs)

Intercalaire en plastique aux formes spécifiques permettant un parfait maintien horizontal des bouteilles.
Interfalda est un nouveau système innovant de stockage de vin en bouteille, à utiliser comme alternative aux cages en métal et aux murs en bois. Ce système garantit une utilisation maximale de l'espace en hauteur et au sol. Le logement des bouteilles est conçu pour éviter toute rayure et rupture des bouteilles. La couleur noire ne favorise pas le passage de la lumière assurant un raffinement du vin dans un environnement protégé.

• Type de palette: 120x80 cm
• Bouteilles pour intercalaire: 38
• Nombre de intercalaires par palette: max 20
• Nombre de bouteilles par palette: 760
• Type de bouteilles: borgognotta 0,75 lt
• Diamètre maximum: 90 mm
• Diamètre min .: 80 mm
• Hauteur maximale de la bouteille: 320 mm
• Hauteur de la bouteille min .: 235 min
• Capacité d'empilement: 2 + 1 (deux palettes sur une sur le sol)
• Paquet: 10 pièces

USAGE RULES:

• Be sure to stock the pallets composed by VINPLAST on perfectly flat surfaces.
• VINPLAST can be used starting from the outer rim downward.
• Each layer of VINPLAST must be inverted with respect to the previous one.
• Bottles should be positioned starting to fill the layer from the center outwards in order to distribute the load optimally.
• Bottles must be placed towards the bottom so that the layer is perfectly horizontal and flat. This procedure will avoid damages.
• Storage of LABELLED bottles is not recommended unless the customer has personally tried this procedure and he is satisfied with the result. Moving and transporting bottles on VINPLAST is in any case forbidden.
• Once the composition of the pallet is finished, it is advisable to place a VINPLAST upside down as a lid, in order to protect the bottles from contact with the upper pallet.
• The stacking of the 20-layer can be carried out on three heights starting from a ground-based stack.
• The stack thus composed of three pallets (2+1 on the ground) will have to be stacked compactly and in adherence to each other to give more stability to the structure.
• Pallet should be in perfect conditions.
• The number of bottle layers may vary depending on how the customer uses the limit of the loads allowed by the pallet supports.
• The stack of bottles could be covered by a protective film of 0,7 micron.

This procedure protects the bottles from dust. The stack is already stable in itself, so this operation is not intended to consolidate it further. The film should be applied avoiding tensions which could deform the corners of the plates.

No special precautions are required when transporting with forklift trucks other than to keep the forks in a flat position. It is not recommended to move VINPLAST-formed pallets on uneven roads by unsuitable means (tractors, forklifts, open trucks…).
