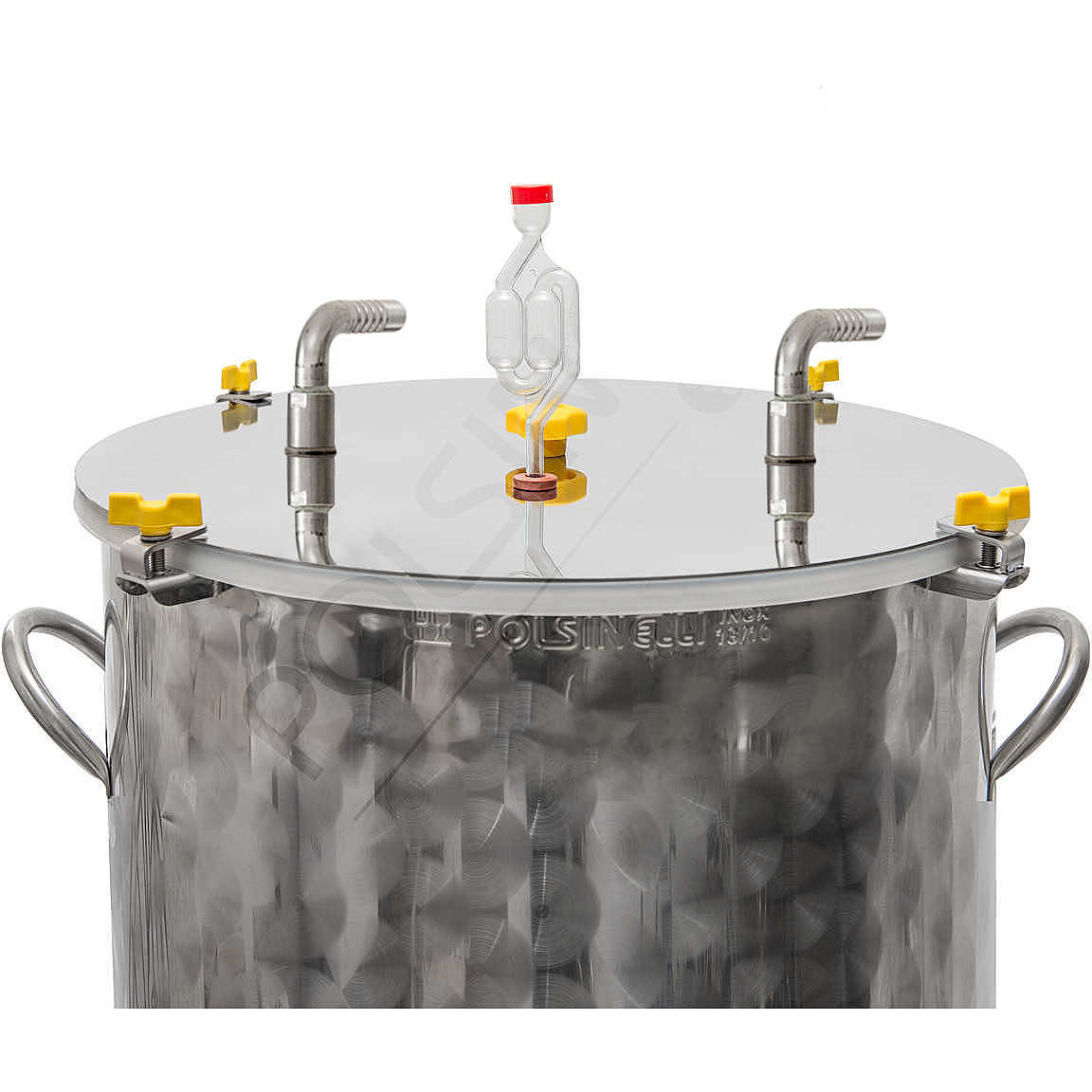

150 L stainless steel refrigerated beer fermenter with flat bottom

150 L stainless steel refrigerated beer fermenter with flat bottom

The 150 lt. refrigerated fermenter with flat bottom is the ideal equipment for beer storage, an high quality and tough product thought for your company. Realized in AISI 304 stainless steel for food contact, it shows a mirror polished internal finish and external flower embossing finish. The stainless steel withstands perfectly liquid contact and at the same time, maintains its organoleptic properties. The rounded and welded bottom allows an easy cleaning.

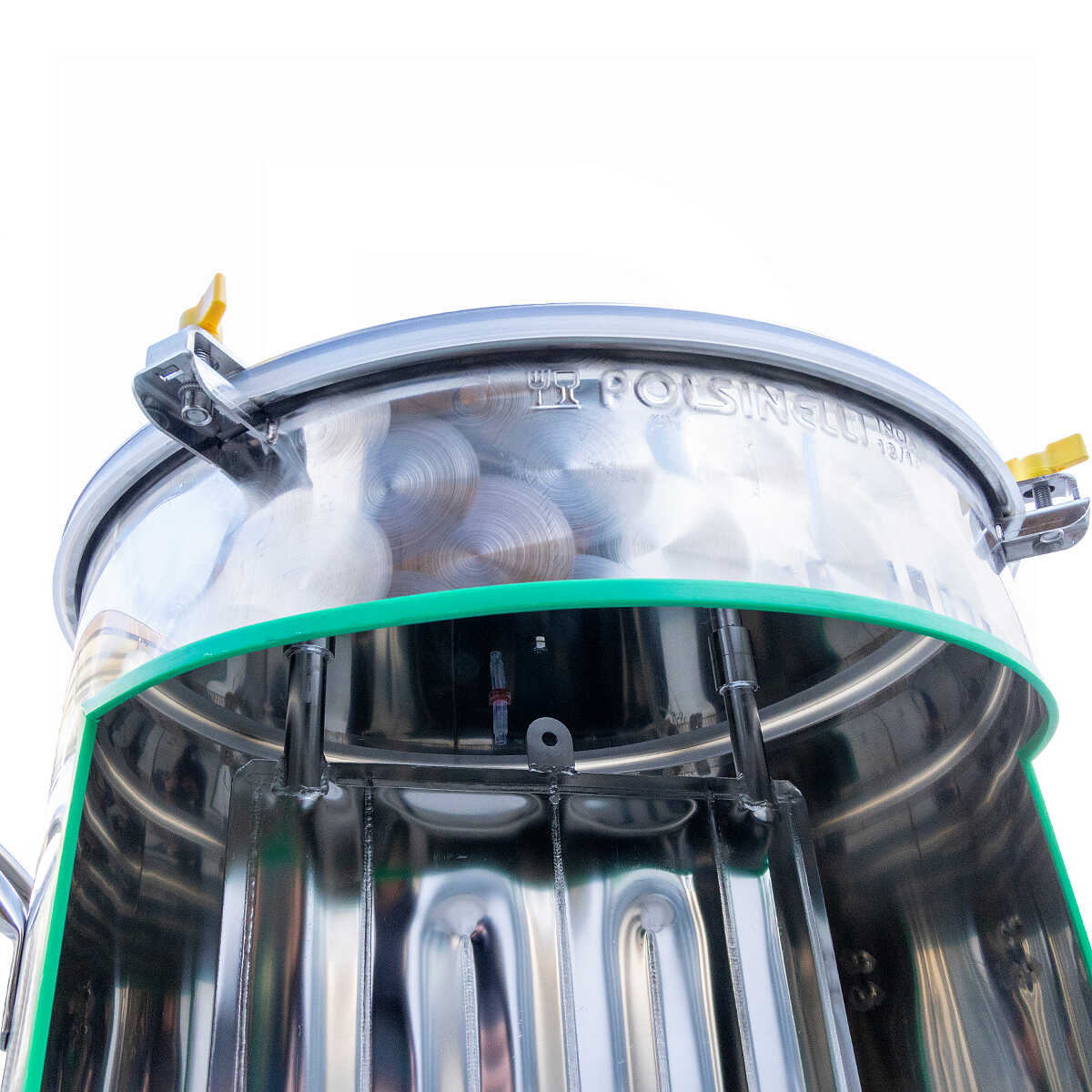

Thanks to the refrigerating plate as standard equipment, the 150 lt. fermenter with flat bottom allows to regulate and check constantly the temperature of the liquid inside. Indeed, the product is equipped with analogical thermometer with probe holder. The upper lid is made of stainless steel and the airlock is included. On the bottom is mounted a stainless steel valve for the yeasts sediment.

Technical sheet:

• Material: 18/10 stainless steel (AISI 304)
• Capacity: 150 L
• Diameter: 530 mm
• Height: 705 mm
• Walls thickness: 0.6 mm
• Bottom thickness: 0.7 mm
• Lid thickness: 2 mm

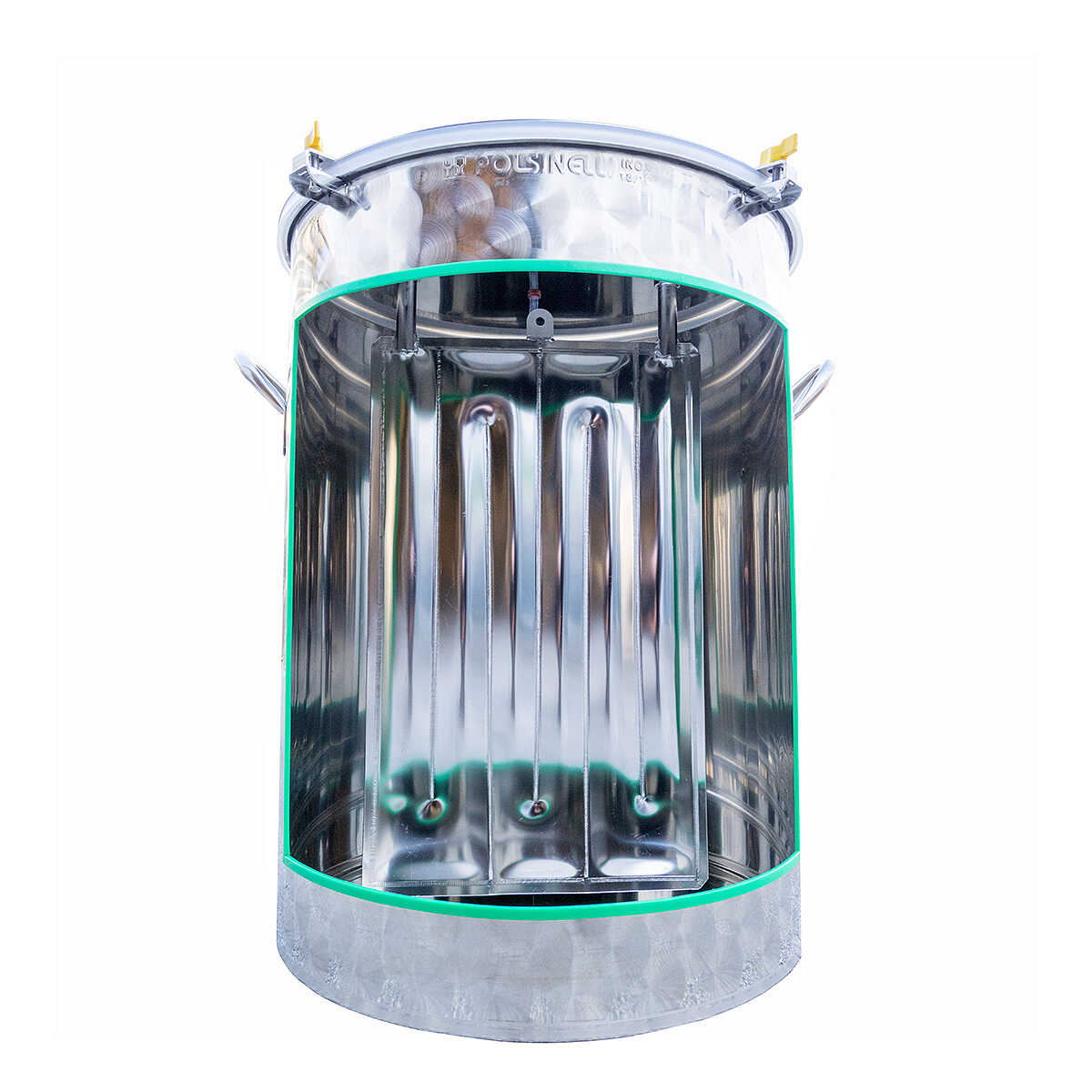

Plate technical specifications:

• Material: 18/10 stainless steel (AISI 304)
• Width: 370 mm
• Height: 600 mm
• Exchange surface: 0.44 m²
• Internal capacity: 1,11 lt.
• Foil thickness: 1 + 1mm

Standard equipment:

• Refrigerating plate with 2 connections 1/2" M
• Stainless steel valve 3/4" M at 40mm from the bottom for the yeasts sediment
• Stainless steel high thickness lid
• Analogical thermometer with stainless steel probe holder
• Additional stainless steel probe holder
• 4 hooks stainless steel for hermetic tightness
• dismantlable and sanitizable gasket made of food contact silicone
• Airlock
• External flower embossing
• Round and welded bottom
• Stainless steel handles
