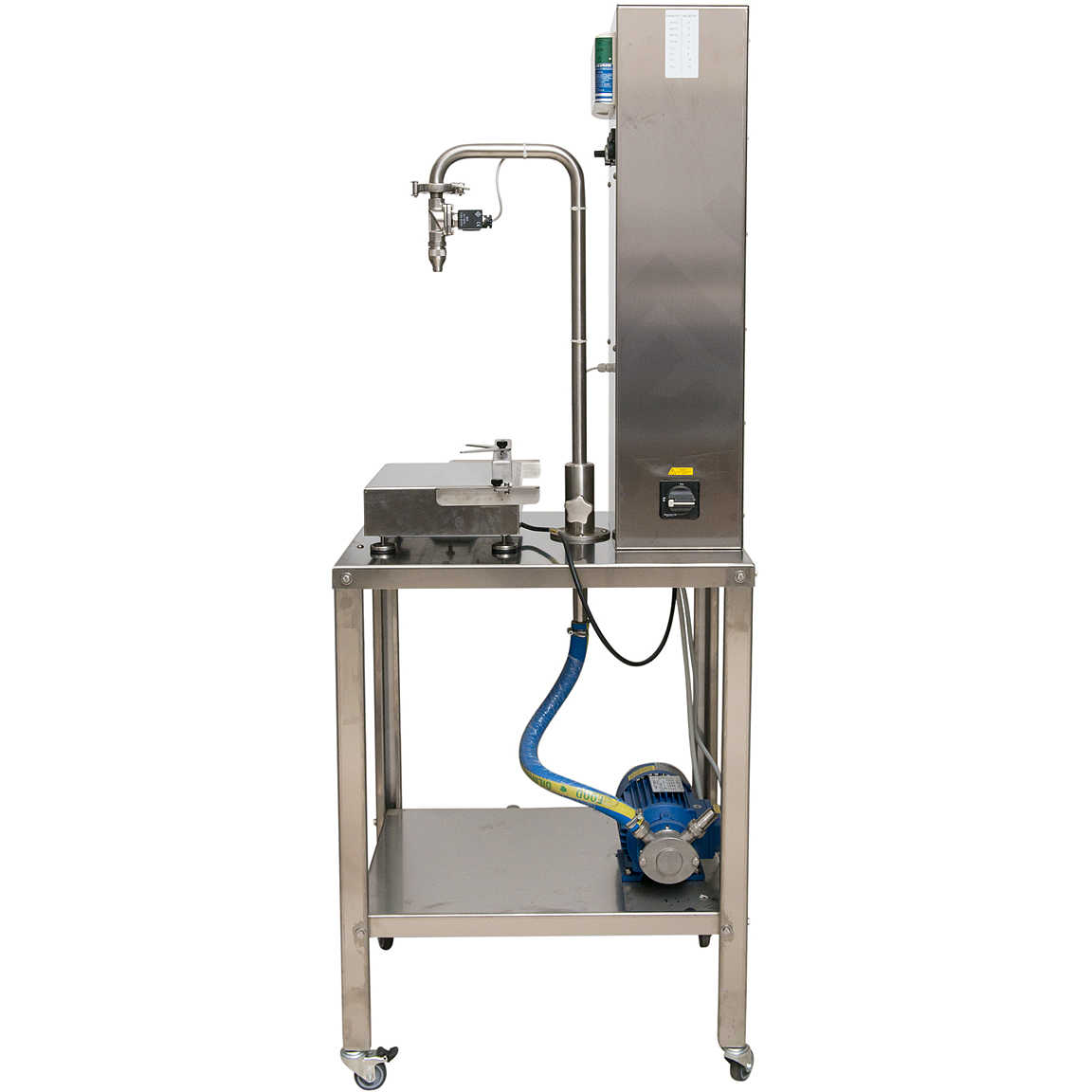

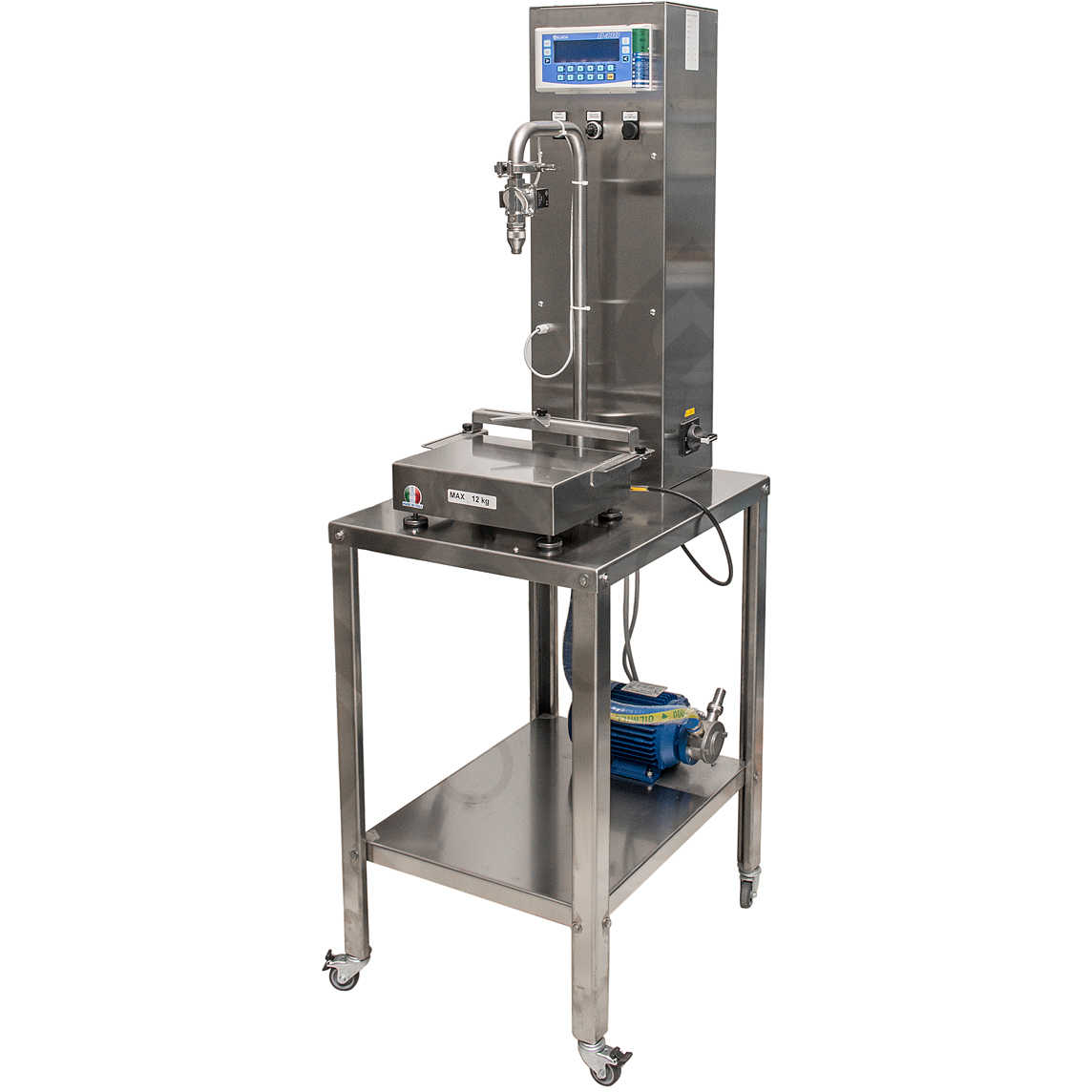

Olea M12 Olive oil weighing-filling machine for tins

Olive oil weighing-filling machine for tins OLEA M12

Dosing platform with electronic indicator. Scale capacity max 12 kg.

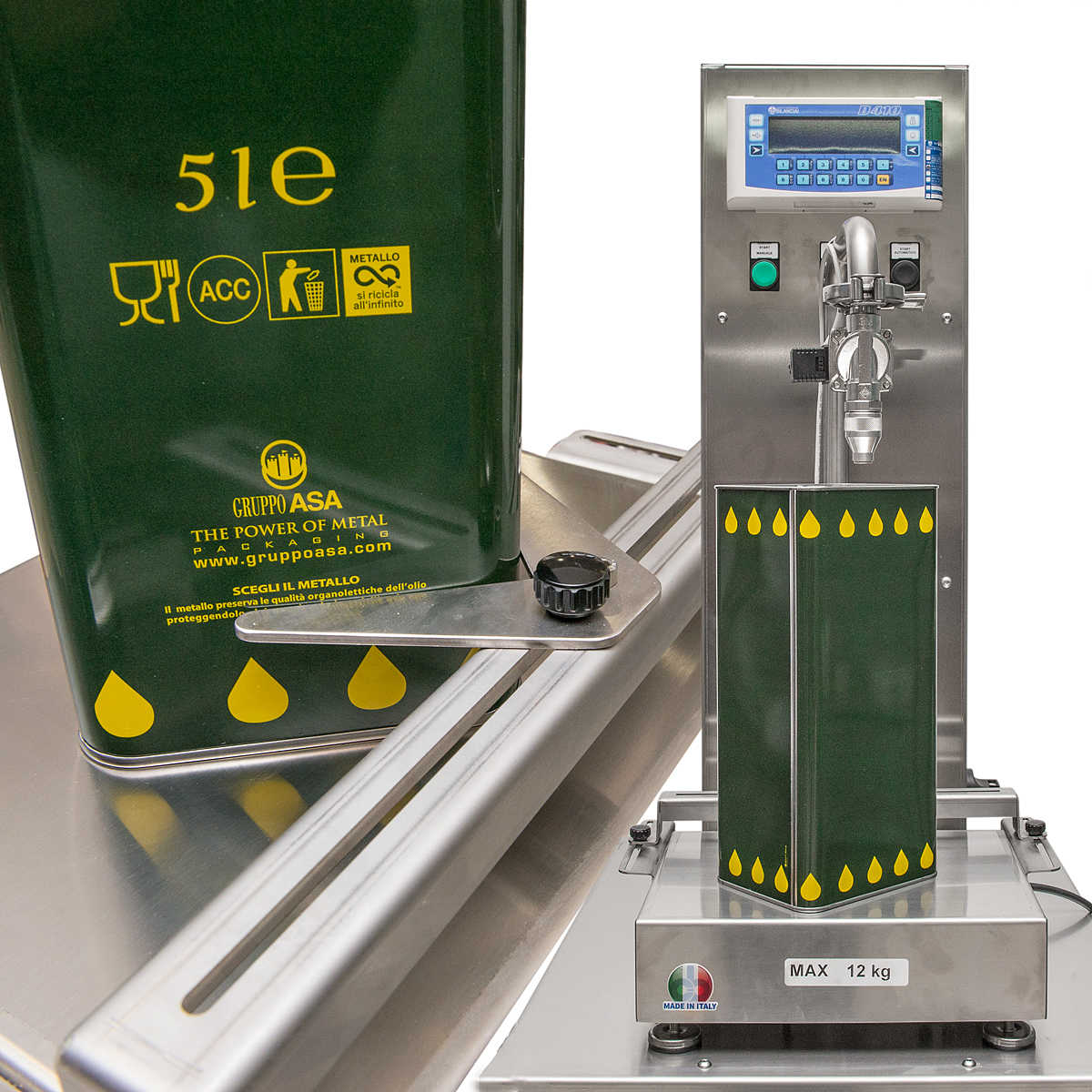

This machine can fill 120 tins of 5 litres per hour. Extremely practical and accurate, because with a simple movement (by placing the tin on the scale), the tin is filled electronically controlled. During filling, the display will show you the instant and final quantity.

Composed of:

• Stainless steel bench
• Liverani pump (flow rate l / h 1,200)
• Tube dosage support
• Electrical panel support
• Tube dosage in stainless steel AISI 316
• Electrical panel in stainless steel
• Weighing platform
• Electric valve attachment with clamp

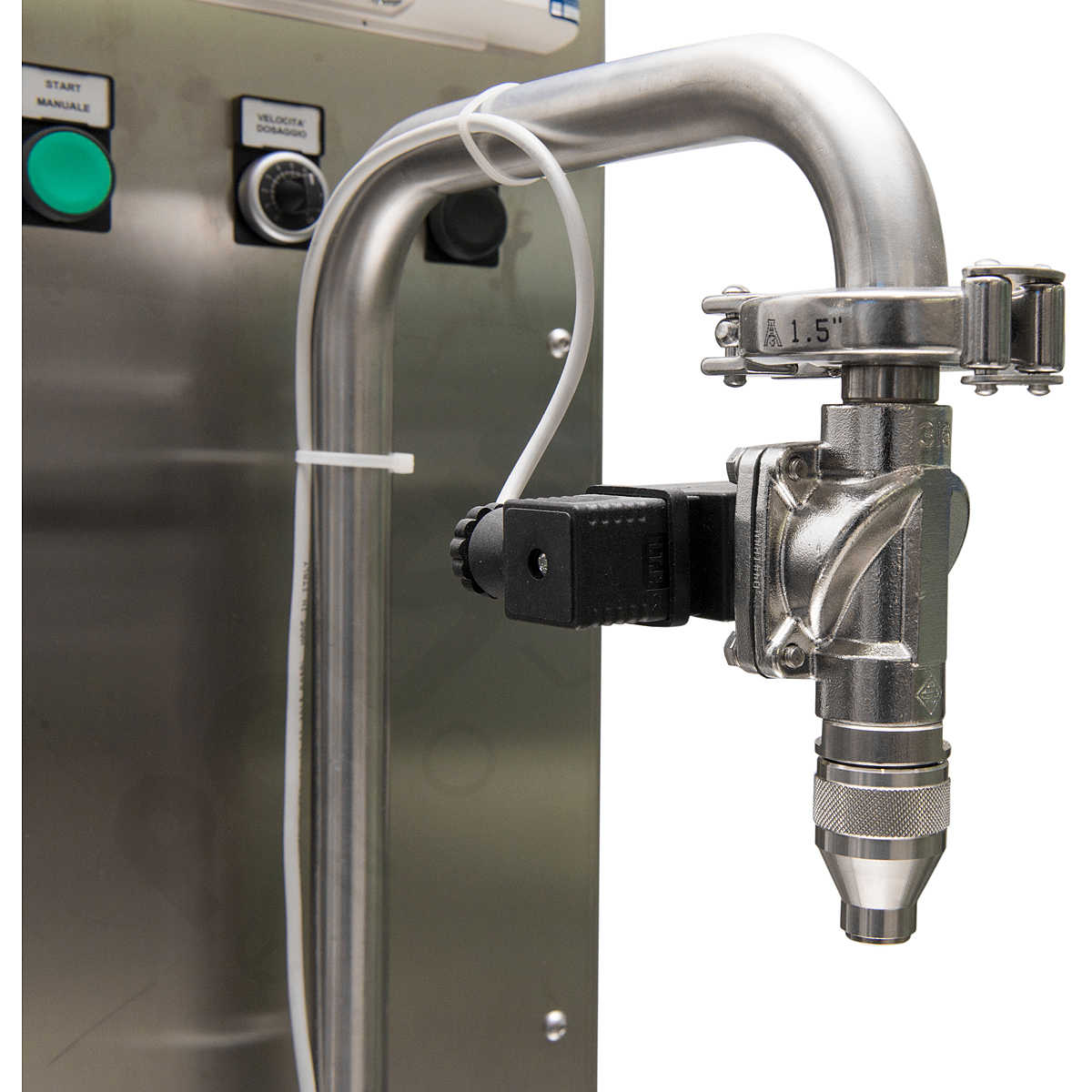

• Electric valve
• Spout (number 1 for bottles and n. 1 for tins or carboys)
• Centering collar
• Central regulation
• Vertical Locking knob
• Central adjusting knob
• O-ring seal 4061 - pump hose- nozzle - o-ring seal 4075

Features:

• Overall Dimensions: Width 500 mm - Length 600 mm x Height 1850 mm
• Dosing capacity: carboys or 3 or 5 litre tins reaching dosage up to 12 kg. (unlimited manual dosing).
• Hourly production: about 120 pcs of 5 litre.
• Power supply: 220 V
• This machine has been designed to work in temperatures from +10 °C to +40 °C, different temperatures may be allowed for short periods.
• The temperature of the product to be bottled must be: from +10 °C to +30 °C, different temperatures may be allowed only by replacing some parts of the machine.
• The machine is calibrated to work up to 1000 meters above sea level.

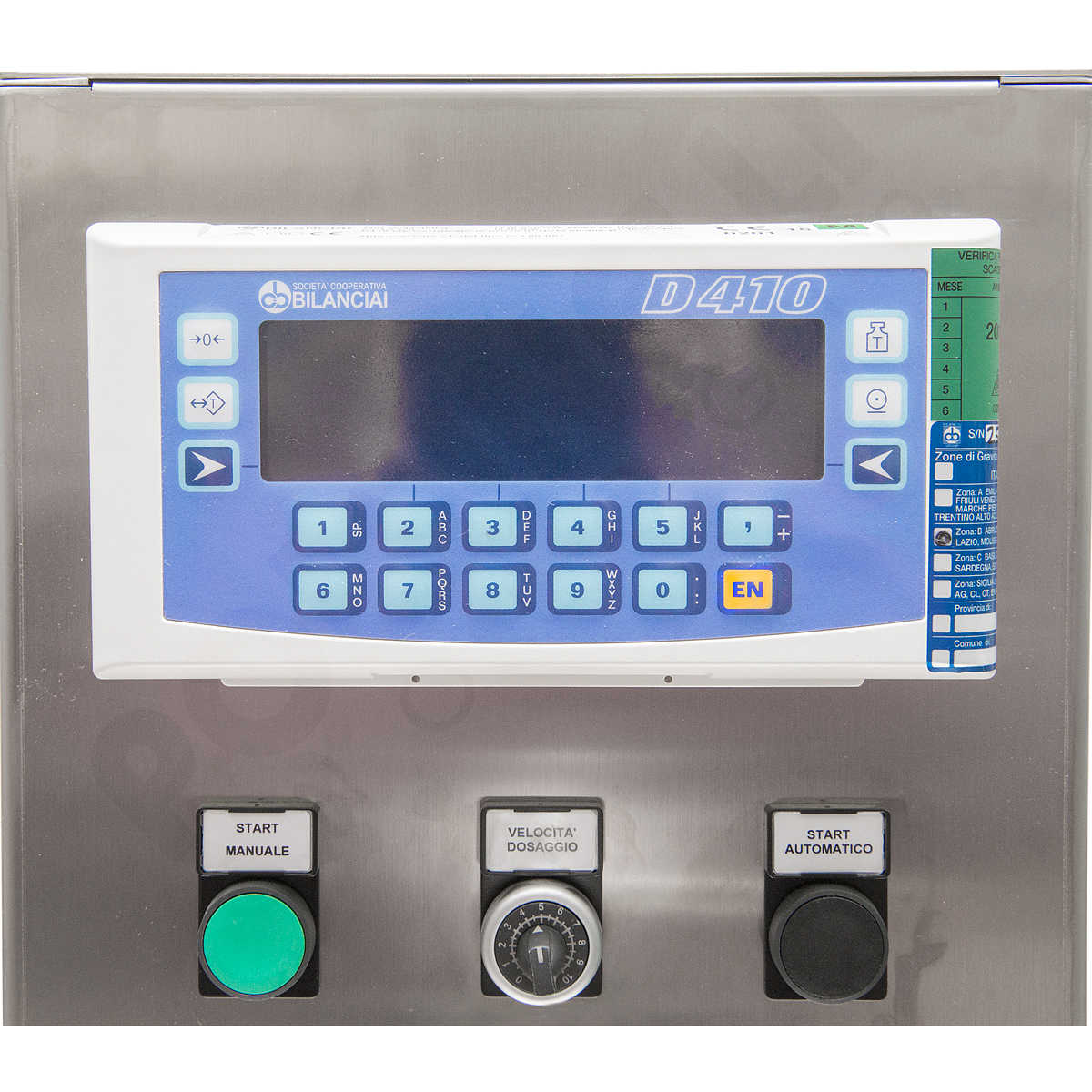

Control and Signaling Devices on the Control Panel:

• Platform scale programming display
• Main switch
• Pump speed adjustment potentiometer
• Manual dispensing button for oil suction
