Filter Jolly 30

Filter Jolly 30

This machine is especially designed to meet the needs of small and medium-sized companies. They are practical and safe made of stainless steel. Depending on the type of filter sheet used, the machine allows roughing, clarifying and sterilizing red and white wines, sparkling wines, vinegar, herbal medicine products, liquor, etc...

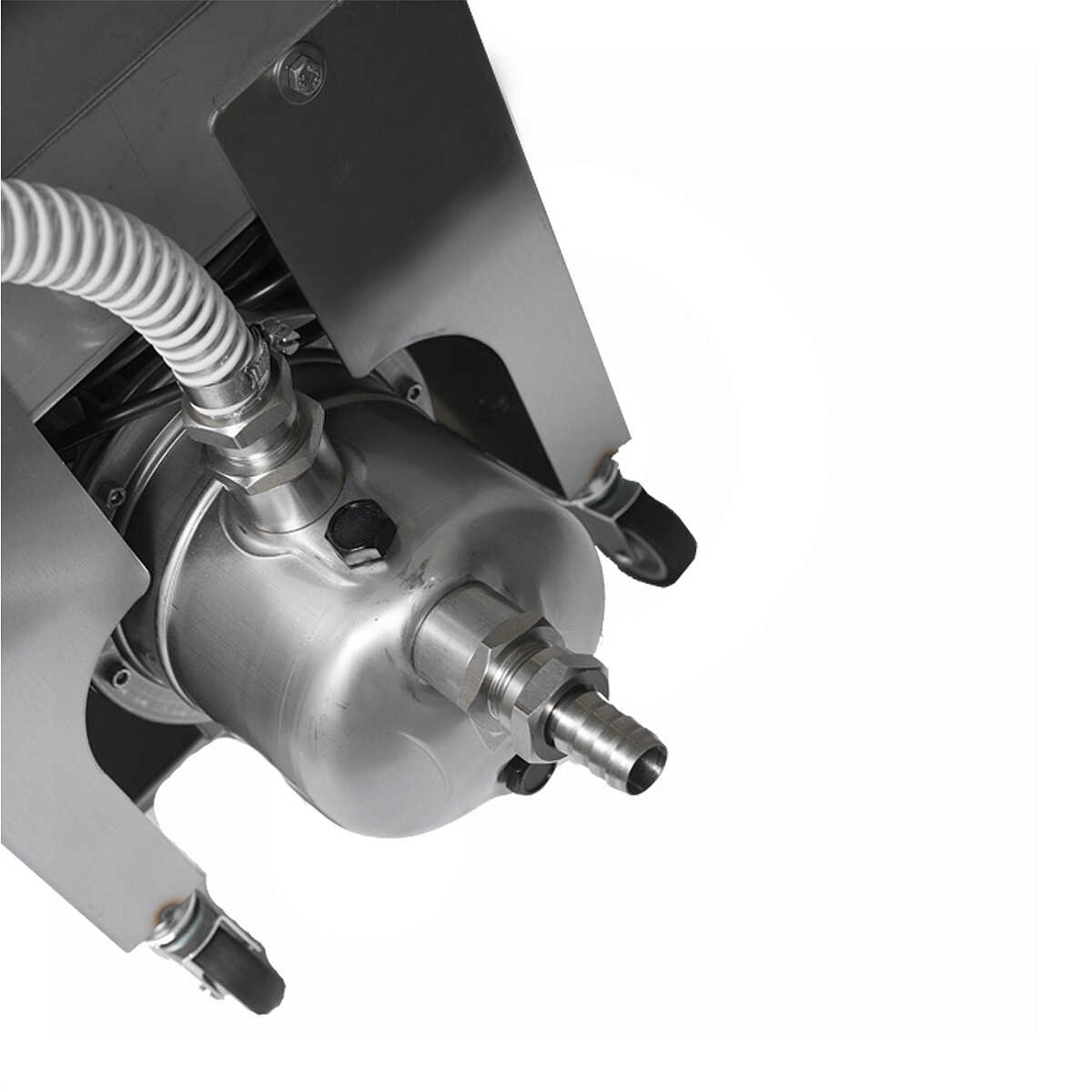

The range of filters is composed of units with filtering capacity from 100 to 5,000 litres of wine per hour. Stainless steel electric pumps of the centrifugal type are assembled for all purposes, except for filtering olive oil that need mono screw pumps or nitrile impeller ones.
The support plates 20 x 20 cmare made of plastic for food or, on request in NORIL, sterilized at 120 °C. The machine is mounted on an AISI 304 stainless steel trolley equipped with 4 wheels (2 with brakes) to easily move the filter.
Standard stainless steel taps.

Characteristics:

• Filter surface area: 1,2 square meters
• Sheets size: 20 x 20 cm (Filter sheets to be purchased separately)
• Wine production: 1000 to 1800 L/h
• Overall dimensions: 770*300*560h mm

• Weight: 47 kg
• ⌀20 mm stainless steel hose barb
