⌀990 Air floating lid kit

Air floating lid kit for variable capacity tanks ⌀990 mm

For Polsinelli flat-bottomed stainless steel tank 1000 L

For Polsinelli flat-bottomed stainless steel tank with manhole 1000 L

Also suitable for tanks with internal diameters from 1000 to 1025 mm

It includes:

• a stainless steel floating lid ⌀990 mm
• an air chamber for food use

• a stainless steel pump with manometer
• clamps
• recovery rope
• air tube
• vent valve with sealings

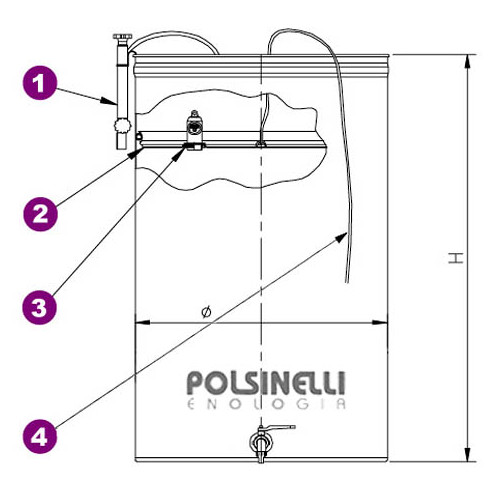

1 - stainless steel pump with analog manometer
2 - stainless steel floating lid
3 - vent valve
4 - recovery rope

Proper use of floating air lids:

1. always fully fill the tank with wine
2. place the stainless steel float lid on the surface of the wine
3. unscrew the valve on the pump to allow inflation
4. inflate the tube to about 0.7 atm
5. check that the tube is tight against the inner surface of the tank and close the valve of the pump
6. you should check the air pressure every 15 days.

If the tube does not maintain the pressure, please check:

1. that there are no holes
2. the attachment between the air chamber and plastic tube
3. that the air hose clamps are not loose
4. that the gauge is not broken
5. if the pump valve is not working
